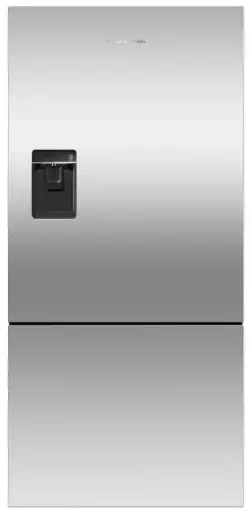

FISHER   PAYKEL RF170BLPUX6 N Freestanding Refrigerator Freezer, 32 Inch, 17.5 cu ft, Ice and Water

FISHER- PAYKEL-RF170BLPUX6-N-Freestanding-Refrigerator-Freezer-32-Inch-17.5-cu-ft-Ice-and-Water-PRO

INTRODUCTION

This stylish left hinge refrigerator comes in timeless stainless steel with concealed handles for a more streamlined look.

  • Bottom freezer
  • ActiveSmart™ helps keep food fresher for longer
  • Ultra flat door conceals handles for streamlined look

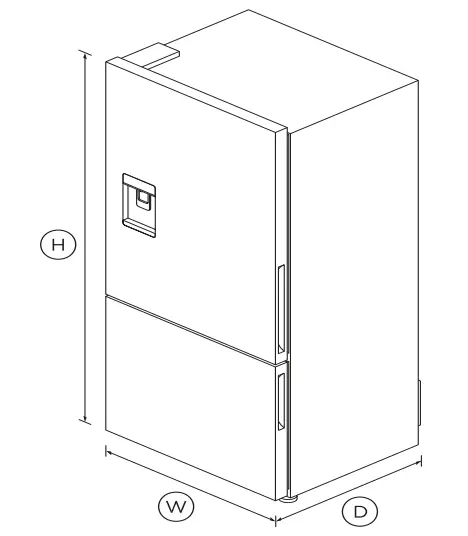

DIMENSIONS

FISHER- PAYKEL-RF170BLPUX6-N-Freestanding-Refrigerator-Freezer-32-Inch-17.5-cu-ft-Ice-and-Water-1

  • Height 67 3/4″
  • Width 31 1/8″
  • Depth 27 3/8″

FEATURES & BENEFITS

ACTIVESMART™ FOODCARE
Every time you open your refrigerator, the temperature around your food changes. ActiveSmart™ foodcare adjusts airflow to create a stable temperature, helping your food stay fresher for longer.
CLEVER ENERGY
Your refrigerator adapts to daily use by cooling and defrosting only when needed. This means your refrigerator uses the energy it needs without compromising on food care.
HUMIDITY CONTROL
Your fruit and veges need different environments. Each storage bin creates a microclimate, which helps keep them fresher for longer.
EASY CLEANING
No more permanent dirty marks with our EZKleen feature for stainless steel refrigerators. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
ICE MAKER
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
DESIGN QUALITY
Our refrigerators are designed and built using quality materials. We use real stainless steel on our refrigerators and solid glass for shelving.
WATER ON TAP
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your refrigerator.

SPECIFICATIONS

Accessories

Matching Replacement Water                                                   FWC3

Capacity

Volume freezer                                                                               5.2cu ft

 Volume refrigerator                                                                     12.3cu ft

Consumption

Energy usage                                              538kWh/year

Features

Adjustable door shelves4
Adjustable glass shelves4
Covered door shelves2
Door alarm
Front levelling feet
Fruit and vegetable bins2
Full extension runners
Full-width door shelves2
LED lighting
Rear rollers
SmartTouch control panel
Spill-proof removable bins
Stackable bottle holders2
Ultra slim water dispenser
Wi-Fi connectivity

Freezer Features

Automatic ice maker
Bottle chill
Door alarm
Fast freeze
Freezer bins2
Ice Boost
Ice bin and scoop
Large plastic bins
Slide Out Pastry Tray

Performance

ActiveSmart™ Foodcare
Adaptive defrost
External water dispenser
Frost free
Inverter controlled compressor
Sabbath mode

Product dimensions

Depth27 3/8″
Height67 3/4″
Minimum air clearance – at rear1 3/16″
Minimum air clearance – each1 3/16″
Minimum air clearance – on top2″
Width31 1/8″

Warranty

Parts and labor2 years
Sealed system parts and laboradditional 3 years
SKU26284

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020.
