RF135BDRJX4 Freestanding Refrigerator Freezer, 25 inch, 13.5 cu ft, Ice
User Guide
Series 5 | Contemporary
Stainless Steel | Right Hinge

Contents hide

1 RF135BDRJX4 Freestanding Refrigerator Freezer, 25 inch, 13.5 cu ft, Ice

2 FEATURES & BENEFITS

3 SPECIFICATIONS

4 Documents / Resources

4.1 References

5 Related Posts

RF135BDRJX4 Freestanding Refrigerator Freezer, 25 inch, 13.5 cu ft, Ice

Combining stylish flush-fit design with quality materials, clever technology and generous storage, in timeless stainless steel.

Active Smart™ Food care technology helps keep food fresher for longer
Flat door that fits flush with cabinetry
Brushed metal handles

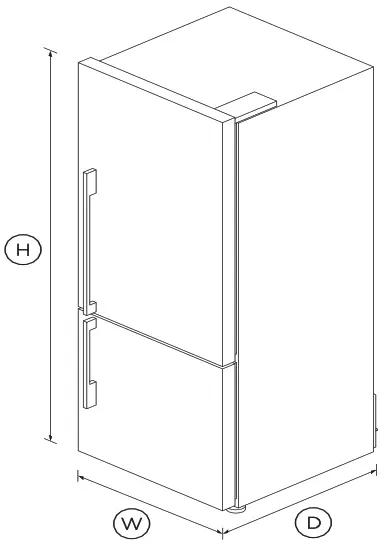

DIMENSIONS

Height	67 1/2″
Width	25″
Depth	27 3/8″

FEATURES & BENEFITS

ACTIVE SMART™ FOOD CARE
This refrigerator freezer adapts to daily use by cooling and defrosting only when needed. Active Smart™ Food care technology uses energy efficiently without compromising on food care.
FLEXIBLE STORAGE
Adjustable shelves and door storage give you plenty of room to stack and pack all your groceries. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean.
HUMIDITY CONTROL
Your fruit and veges need different environments to stay fresh. Humidity control in each storage bin allows you to maintain a microclimate that helps keep food fresher for longer.
DESIGN QUALITY
Our refrigerators are designed and built using quality materials. We use real stainless steel on our refrigerators and solid glass for shelving.
INTERNAL ICE MAKER
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
EASY CLEANING
No more stubborn dirty marks with our EZKleen feature for stainless steel fridges. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
EASY TO USE
The Smart Touch control panel has been designed to be intuitive for ease to use, and is conveniently placed near the front of the fridge.

SPECIFICATIONS

Accessories
Joiner kit	819264
Matching Replacement Water	847200
Surround Kit (Joined left/right	Part number 24470
Capacity
Total gross capacity	13.4 cu ft
Volume freezer	3.9 cu ft
Volume refrigerator	9.5 cu ft
Consumption
Energy usage	545 kWh/year
Features
Adjustable door shelves	4
Adjustable glass shelves	4
Covered door shelves	2
Door alarm	•
Front levelling feet	•
Fruit and vegetable bins	2
LED lighting	•
Rear rollers	•
SmartTouch control panel	•
Stackable bottle holders	2
Wi-Fi connectivity	•
Freezer Features
Automatic ice maker	•
Bottle chill	•
Door alarm	•
Fast freeze	•
Ice Boost	•
Ice bin and scoop	•
Large plastic bins	•
Slide Out Pastry Tray	•
Performance
Active Smart™ Food care	•
Adaptive defrost	•
Frost free freezer	•
Humidity control system	•
Sabbath mode	•
Power requirements
Supply frequency	60Hz
Supply voltage	110 – 120 V
Product dimensions
Depth	27 3/8″
Height	67 1/2″
Width	25″
Warranty
Parts and labor	2 years
Sealed system parts and labor	additional 3 years
SKU	26272

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020

Other product downloads available at fisherpaykel.com
User Guide
Energy Label
Service & Warranty
Installation Guide
Install Guide – Water Filter Replacement
Installation Guide – Joiner Kit
