FISHER and PAYKEL RF522ADUX5 487L Freestanding French Door Refrigerator Freezer User Guide
Introduction
You’ll have plenty of flexible storage space in this striking, large
capacity French Door refrigerator freezer.
- Active Smart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Door water dispenser and internal ice maker
- Spacious bottom freezer with full extension drawer gives easy access to frozen goods.

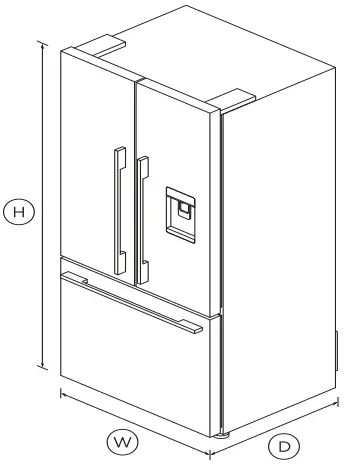

DIMENSIONS
| Height | 1715mm |
| Width | 790mm |
| Depth | 695mm |
FEATURES & BENEFITS
ACTIVESMART™ FOODCARE
Active Smart™ Food care learns how you live. It’s technology which understands how you use your refrigerator and adjusts
temperature, airflow and humidity inside to help keep food fresher for longer.
COMPLEMENTARY DESIGN
With their premium handle styling and stainless steel finish, our refrigerators are designed to match the rest of Fisher & Paykel’s
kitchen appliance family.
SIMPLE STORAGE
This refrigerator is designed to make it simple for you to store, access and remove food. Storage bins give you full access inside
when they’re pulled open and can be easily removed to clean.
Our flexible shelving also gives you more storage options.
EASY CLEANING
No more permanent dirty marks with our EZ Kleen feature for stainless steel refrigerators. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
ICE MAKER
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
WATER ON TAP
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage
space in your fridge.
DESIGN QUALITY
Our fridges are designed and built using quality materials. We use real stainless steel on our fridges and solid glass for shelving.
SPECIFICATIONS
| Capacity | |
| Volume | 487L |
| Volume freezer | 142L |
| Volume refrigerator | 345L |
| Consumption | |
| Energy rating | 3.5 star |
| Energy usage | 414kWh/year |
| Features | |
| Adjustable glass shelves | 3 |
| Adjustable half width door | 4 |
| Covered door shelve | 2 |
| Door alarm | • |
| Front levelling feet | • |
| Full extension runners | • |
| Full width door shelves | 2 |
| LED lighting | • |
| Rear rollers | • |
| Single bottle holders | 4 |
| Smart Touch control panel | • |
| Ultra slim water dispense | • |
| Freezer Features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Fast freeze | • |
| Freezer bins | 3 |
| Ice Boost | • |
| Ice bin and scoop | • |
| Performance | |
| Active Smart™ Food care | • |
| Adaptive defrost | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| R600a refrigeran | • |
| Product dimensions | |
| Depth | 695mm |
| Heigh | 1715mm |
| Height to top of cabinet | 1715mm |
| Width | 790mm |
| Warranty | |
| Parts and labour | 2 years |
| Sealed system parts only | additional 3 years |
| SKU | 26410 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
