QUICK REFERENCE GUIDE > RF523GDX1
Freestanding French Door
Refrigerator Freezer, 79cm,
523L
Series 7 | Contemporary
Stainless Steel | French hinge

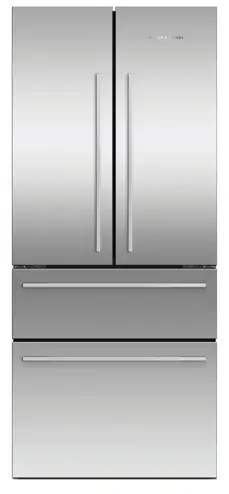

RF523GDX1 523L Freestanding French Door Refrigerator Freezer
Designed for those who need plenty of flexible space for their cold and frozen food storage, with a stylish stainless steel finish.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature
- Two full-extension freezer drawers give easy access to frozen goods
DIMENSIONS
| Height | 1790 mm |
| Width | 790 mm |
| Depth | 688 mm |
FEATURES & BENEFITS
ActiveSmart™ Foodcare
ActiveSmart™ Foodcare learns how you live. It is a technology that understands how you use your refrigerator and adjusts the temperature, airflow, and humidity inside to help keep food fresher for longer.
Easy slide drawers
The fully extendable freezer drawers let you store large items without a hassle, give you easy access to frozen foods and allow you to separate items like meat and frozen desserts.
Easy to organize
There are multiple storage options for you to choose from.
Different-sized adjustable shelves and door storage give you plenty of room to stack and pack all your groceries. Full extension runners make it easy to remove storage bins and clean them out.
Design quality
Our refrigerators are designed and built using quality materials.
We use real stainless steel and solid glass for the interior shelving.
SPECIFICATIONS
Capacity
| Freezer | 202L |
| Refrigerator | 321L |
| Total gross capacity | 523L |
Consumption
| Energy rating | F |
Freezer features
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Ice bin and scoop | • |
| LED lighting | • |
| Slide Out Pastry Tray | • |
Performance
| ActiveSmart™ Foodcare | • |
| ActiveSmart™ technology | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| R600a refrigerant | • |
| Sabbath mode | • |
Product dimensions
| Depth | 688 mm |
| Depth (excluding handles) | 688 mm |
| Height | 1790 mm |
| Height to top of cabinet | 1775 mm |
| Height to top of door | 1790 mm |
| Minimum air clearance – at rear | 30 mm |
| Minimum air clearance – each | 20 mm |
| Minimum air clearance – on top | 20 mm |
| Width | 790 mm |
Refrigerator features
| Adjustable door shelves | 6 |
| Adjustable glass shelves | 4 |
| Covered door shelves | 2 |
| Door alarm | • |
| Front levelling feet | • |
| Fruit and vegetable bins | 2 |
| Full extension runners | • |
| LED lighting | • |
| Rear rollers | • |
| SmartTouch control panel | • |
| Split-level cantilevered shelves | • |
| Stackable bottle holders | 4 |
Warranty
| Parts and labour | 5 years |
| SKU | 24897 |
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher& Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
ActiveSmart-refrigerator-user-guide-RF523-847364E.pdf (fisherpaykel.com)590256H_F&P_SERVWARRANTY_GLO.indd (fisherpaykel.com)ActiveSmart-refrigerator-installation-guide-RF523-847364E.pdf (fisherpaykel.com)
