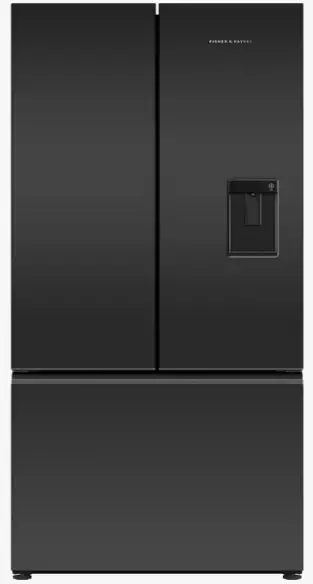

FISHER PAYKEL RF540AZUB5 569L Freestanding French Door Refrigerator Freezer User Guide
With ample storage and a stylish contemporary design, this model will complement your kitchen perfectly.
- Elegant matte black glass finish, with recessed handles for a streamlined look
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature
- Convenient access to fresh, chilled water and ice with slimline water dispenser and internal ice make
- Spacious bottom freezer with full extension drawer gives easy access to frozen goods
DIMENSIONS
- Height 1790mm
- Width 900mm
- Depth 695mm
FEATURES & BENEFITS
COMPLEMENTARY DESIGN
Contemporary design and flat doors create a streamlined look to fit any kitchen aesthetic. This refrigerator freezer has a tactile black glass finish that pairs perfectly with recessed handles.
ACTIVESMART™ FOODCARE
ActiveSmart™ Foodcare learns how you live. It is technology which understands how you use your fridge and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
CLEVER ENERGY
Your refrigerator adapts to daily use by cooling and defrosting only when necessary. This means your refrigerator uses the energy it needs without compromising on food care.
DESIGN QUALITY
Our refrigerators are designed and built using robust, quality materials, with a solid glass used for both the fridge exterior and interior shelving.
ICE MAKER
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off when you need to free up freezer space, or during busy times, use the boost feature to increase ice production.
ULTRA SLIM WATER DISPENSER
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your refrigerator.
HUMIDITY CONTROL
Your fruit and veges need different environments. The humidity control slides in each storage bin create a microclimate that helps keep food fresher for longer.
SPECIFICATIONS
Accessories
- Replacement water filter 847200
Capacity
- Total net volume 569L
- Volume freezer 152L
- Volume refrigerator 417L
Consumption
- Energy consumption 369kWh/year
- Energy rating F
Features
- Adjustable door shelves 6
- Adjustable glass shelves 2
- Covered door shelves 2
- Deli storage bins 2
- Door alarm •
- Fruit and vegetable bins 2
- LED lighting •
- Smart Touch control panel •
- Stackable bottle holders 4
- Ultra slim water dispenser •
Freezer Features
- Automatic ice maker •
- Bottle chill •
- Door alarm •
- Fast freeze •
- Ice Boost •
- Ice bin and scoop •
- LED lighting •
Performance
- ActiveSmart™ Foodcare •
- Adaptive defrost •
- Frost free •
- Humidity control system •
- Inverter controlled compressor •
- Noise emissions 42dBA
- Noise emissions class D
- Sabbath mode •
Power requirements
- Rated current 10A
- Supply frequency 50Hz
- Supply voltage 230V
Product dimensions
- Depth 695mm
- Height 1790mm
- Height to top of cabinet 1790mm
- Height to top of door 1790mm
- Width 900mm
Warranty
- Parts and labour 5 years
- Sealed system parts only 5 years
- SKU 26490
The product dimensions and specifications in this page apply to the specific product
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
