RF522ADUX5 Freestanding
French Door Refrigerator Freezer
User Guide
Series 7 | Contemporary
Stainless Steel | French hinge

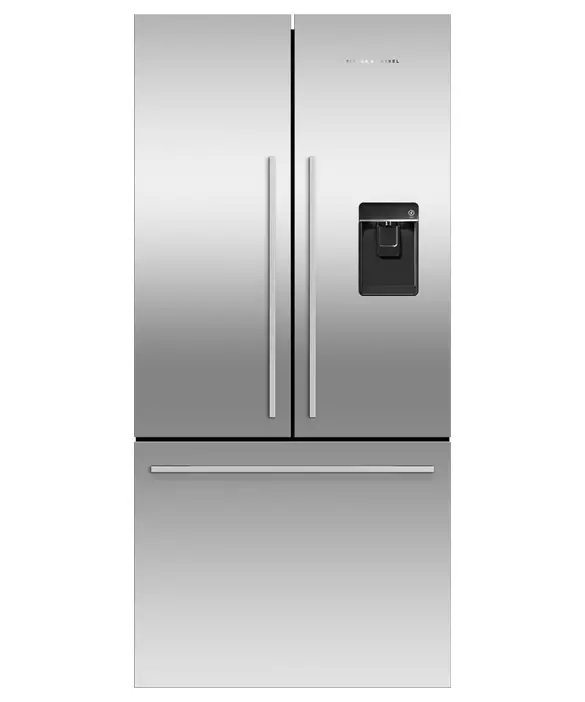

RF522ADUX5 Freestanding French Door Refrigerator Freezer
You’ll have plenty of flexible storage space in this striking, large capacity French Door refrigerator freezer.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Door water dispenser and internal ice maker
- Spacious bottom freezer with full extension drawer gives easy access to frozen goods.

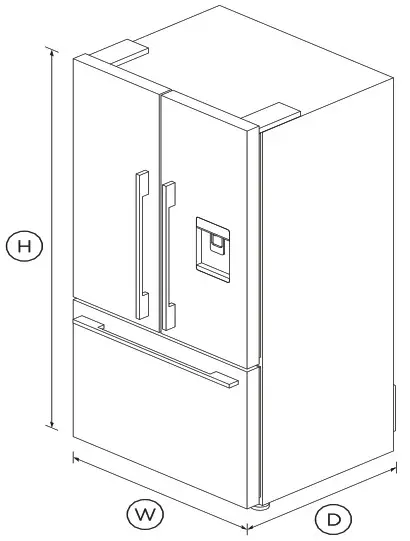

DIMENSIONS
| Height | 1715mm |
| Width | 790mm |
| Depth | 695mm |
FEATURES & BENEFITS
ACTIVESMART™ FOODCARE
ActiveSmart™ Foodcare learns how you live. It’s technology which understands how you use your refrigerator and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
COMPLEMENTARY DESIGN
With their premium handle styling and stainless steel finish, our refrigerators are designed to match the rest of Fisher & Paykel’skitchen appliance family.
SIMPLE STORAGE
This refrigerator is designed to make it simple for you to store, access and remove food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean.
Our flexible shelving also gives you more storage options.
EASY CLEANING
No more permanent dirty marks with our EZKleen feature for stainless steel fridges. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
ICE MAKER
Fresh ice is always available for you in a dedicated freezer bin.
Simply turn it off to free up freezer space, or during busy times you can boost ice production by up to 30%.
WATER ON TAP
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your fridge.
DESIGN QUALITY
Our fridges are designed and built using quality materials. We use real stainless steel on our fridges and solid glass for shelving.
SPECIFICATIONS
| Accessories | |
| Replacement water filter | FWC3 (made after 2018), |
| Capacity | |
| Volume | 487L |
| Volume freezer | 142L |
| Volume refrigerator | 345L |
| Consumption | |
| Energy rating | 3.5 star |
| Energy usage | 414kWh/year |
| Features | |
| Adjustable glass shelves | 3 |
| Adjustable half width door | 4 |
| Covered door shelves | 2 |
| Door alarm | • |
| Front levelling feet | • |
| Full extension runners | • |
| Full width door shelves | 2 |
| LED lighting | • |
| Rear rollers | • |
| Single bottle holders | 4 |
| SmartTouch control panel | • |
| Ultra slim water dispenser | • |
| Freezer Features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Fast freeze | • |
| Freezer bins | 3 |
| Ice Boost | • |
| Ice bin and scoop | • |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Frost free | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| R600a refrigerant | • |
| Product dimensions | |
| Depth | 695mm |
| Height | 1715mm |
| Height to top of cabinet | 1715mm |
| Width | 790mm |
| Warranty | |
| Parts and labour | 2 years |
| Sealed system parts only | additional 3 years |
| SKU | 26409 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
