RF540AZUB5 Freestanding French Door Refrigerator Freezer
User Guide
Series 7 | Contemporary
Black Glass | French hinge

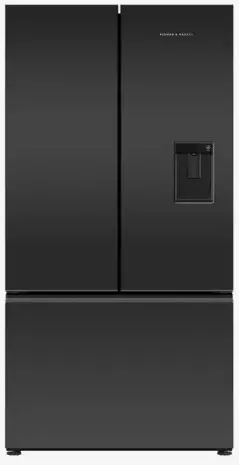

RF540AZUB5 Freestanding French Door Refrigerator Freezer
With ample storage and a stylish contemporary design, this model will complement your kitchen perfectly.
- Elegant matte black glass finish, with recessed handles for a streamlined look
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature
- Convenient access to fresh, chilled water and ice with a slimline water dispenser and internal ice maker
- The spacious bottom freezer with a full extension drawer gives easy access to frozen goods
DIMENSIONS
| Height | 1790mm |
| Width | 900mm |
| Depth | 695mm |
FEATURES & BENEFITS
Complementary design
Contemporary design and flat doors create a streamlined look to fit any kitchen aesthetic. This refrigerator freezer has a tactile black glass finish that pairs perfectly with recessed handles.
ActiveSmart™ Foodcare
ActiveSmart™ Foodcare learns how you live. It is a technology that understands how you use your fridge and adjusts the temperature, airflow, and humidity inside to help keep food fresher for longer.
Clever energy
Your refrigerator adapts to daily use by cooling and defrosting only when necessary. This means your refrigerator uses the energy it needs without compromising on food care.
Design quality
Our refrigerators are designed and built using robust, quality materials, with solid glass used for both the fridge exterior and interior shelving.
Ice maker
Fresh ice is always available for you in a dedicated freezer bin.
Simply turn it off when you need to free up freezer space, or during busy times, use the boost feature to increase ice production.
Ultra slim water dispenser
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your refrigerator.
Humidity control
Your fruit and veges need different environments. The humidity control slides in each storage bin create a microclimate that helps keep food fresher for longer.
SPECIFICATIONS
Accessories
| Replacement water filter | 847200 |
Capacity
| Total net volume | 569L |
| Volume freezer | 152L |
| Volume refrigerator | 417L |
Consumption
| Energy consumption | 369kWh/year |
| Energy rating | F |
Features
| Adjustable door shelves | 6 |
| Adjustable glass shelves | 2 |
| Covered door shelves | 2 |
| Deli storage bins | 2 |
| Door alarm | • |
| Fruit and vegetable bins | 2 |
| LED lighting | • |
| SmartTouch control panel | • |
| Stackable bottle holders | 4 |
| Ultra slim water dispenser | • |
Freezer Features
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Ice Boost | • |
| Ice bin and scoop | • |
| LED lighting | • |
Performance
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Frost free | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Noise emissions | 42dBA |
| Noise emissions class | D |
| Sabbath mode | • |
Power requirements
| Rated current | 10A |
| Supply frequency | 50Hz |
| Supply voltage | 230V |
Product dimensions
| Depth | 695mm |
| Height | 1790mm |
| Height to top of the cabinet | 1790mm |
| Height to top of the door | 1790mm |
| Width | 900mm |
Warranty
| Parts and labor | 5 years |
| Sealed system parts only | 5 years |
| SKU | 26490 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
 | User Guide |
| User Guide |
| Service & Warranty |
| Installation Guide |
| Install Guide – Water Filter Replacement |
