QUICK REFERENCE GUIDE > RF523GDUX1
Freestanding French Door
Refrigerator Freezer, 79cm,
475L, Ice & Water
Series 7 / Contemporary / Stainless Steel / French hinge

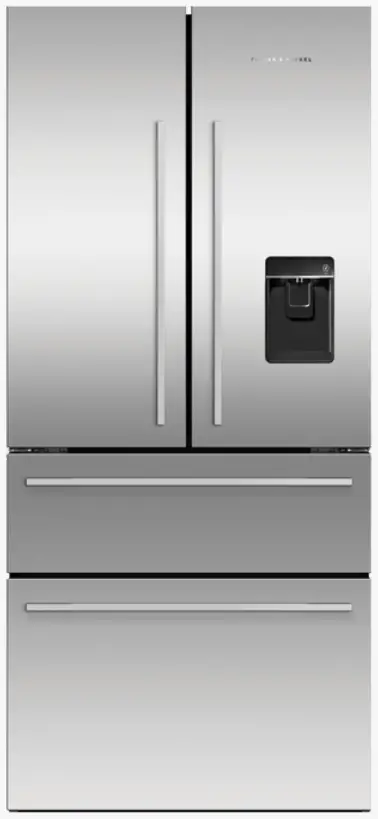

RF523GDUX1 475L Freestanding French Door Refrigerator Freezer
Designed for those who need plenty of flexible space for their cold and frozen food storage, with a stylish stainless steel finish.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Two full-extension freezer drawers give easy access to frozen goods
- Door water dispenser and internal ice maker
DIMENSIONS
| Height | 1790 mm |
| Width | 790 mm |
| Depth | 688 mm |
FEATURES & BENEFITS
ActiveSmart™ Foodcare
ActiveSmart™ Foodcare learns how you live. It is a technology that understands how you use your refrigerator and adjusts the temperature, airflow, and humidity inside to help keep food fresher for longer.
Ice maker
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
Water on tap
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your fridge.
Design quality
Our refrigerators are designed and built using quality materials. We use real stainless steel and solid glass for the interior shelving.
Easy to organize
There are multiple storage options for you to choose from. Different-sized adjustable shelves and door storage give you plenty of room to stack and pack all your groceries. Full extension runners make it easy to remove storage bins and clean them out.
Easy slide drawers
The fully extendable freezer drawers let you store large items without a hassle, give you easy access to frozen foods and allow you to separate items like meat and frozen desserts.
SPECIFICATIONS
| Accessories (sold separately) | |
| Replacement water filter | Part number 847201 |
| Capacity | |
| Freezer | 177L |
| Refrigerator | 298L |
| Total net volume | 475L |
| Consumption | |
| Energy consumption | 350kWh/year |
| Energy rating | F |
| Freezer features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Built-in ice maker | • |
| Door alarm | • |
| Fast freeze | • |
| Ice Boost | • |
| Ice bin and scoop | • |
| LED lighting | • |
| Slide Out Pastry Tray | • |
| Performance | |
| ActiveSmart™ Foodcare | • |
| ActiveSmart™ technology | • |
| Automatic defrost | • |
| Frost free | • |
| Frost free freezer | • |
| Humidity control system | • |
| Internal replaceable water filter | • |
| Inverter controlled compressor | • |
| Noise emissions | 40dBA |
| Noise emissions class | C |
| R600a refrigerant | • |
| Sabbath mode | • |
| Power Requirements | |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 688 mm |
| Depth (excluding handles) | 688 mm |
| Height | 1790 mm |
| Height to top of the cabinet | 1775 mm |
| Height to top of the door | 1790 mm |
| Minimum air clearance – at rear | 30 mm |
| Minimum air clearance – each | 20 mm |
| Minimum air clearance – on top | 20 mm |
| Width | 790 mm |
| Refrigerator features | |
| Adjustable door shelves | 6 |
| Adjustable glass shelves | 4 |
| Covered door shelves | 2 |
| Door alarm | • |
| Front leveling feet | • |
| Fruit and vegetable bins | 2 |
| Full extension runners | • |
| Gallon door shelves | • |
| LED lighting | • |
| Rear rollers | • |
| SmartTouch control panel | • |
| Split-level cantilevered shelves | • |
| Stackable bottle holders | 4 |
| Ultra slim water dispenser | • |
| Warranty | |
| Parts and labor | 5 years |
| Sealed system parts only | 5 years |
| SKU | 26036 |
TEST The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020″
