CPV2-304L N 30 inch Gas Rangetop
User Guide

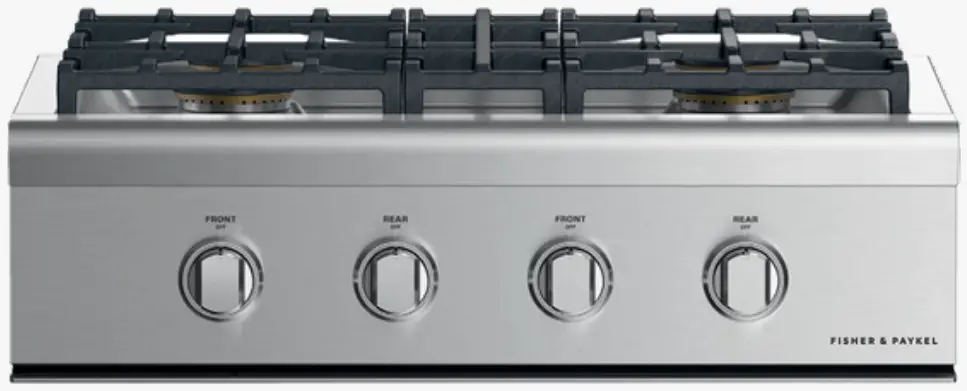

CPV2-304L N 30 inch Gas Rangetop
QUICK REFERENCE GUIDE > CPV2-304L N
Gas Rangetop, 30″, LPG
Series 9 | Professional Stainless
Steel | LPG
A powerful high-heat four burner with precision control and performance. Pair with any other appliance in our Professional range.
- Your burners can deliver anything from a high 19,000 BTU heat per burner for fast boiling, to a gentle flame for simmering
- Continuous surface grates designed for pots and pans to move safely across the cooktop

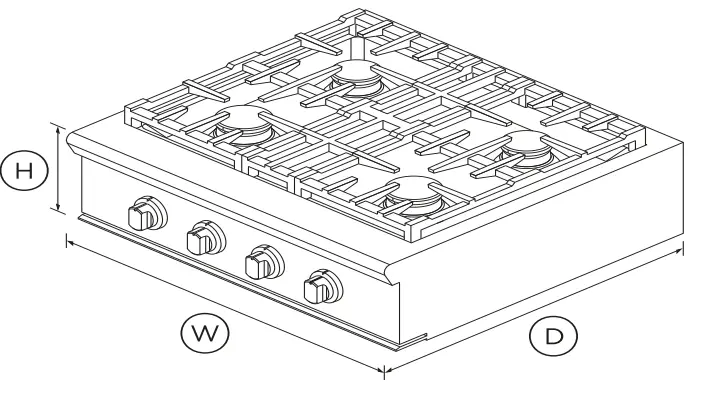

DIMENSIONS
| Height | 85/16 “ |
| Width | 29 7/8 “ |
| Depth | 28 “ |
FEATURES & BENEFITS
Perfect heat
Sealed Dual Flow BurnersTM deliver rangetop power up to 22,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
Precise Control
From the highest to the lowest temperatures you get total control with halo-illuminated rangetop dials. A precise full surface simmer is delivered across all burners.
Cooking flexibility
The continuous surface grates are designed for pots and pans to move safely across the rangetop. Full coverage, deep-platform style grates are designed so heat goes directly onto the pot rather than the grates themselves, for a faster boil and energy efficiency.
Easy cleaning
These rangetops have sealed burners and a single sheet cooking surface which, combined with a commercial-style stainless steel finish and dishwasher-safe grates, allow easy cleaning.
Information at a glance
LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.
Complementary design
Built to last with distinctive, bold styling, this rangetop is designed to match the Fisher & Paykel Professional style family of appliances.
SPECIFICATIONS
| Burner ratings | |
| Max burner power | 22500BTU |
| Power back left | 18500BTU |
| Power back right | 18500BTU |
| Power front left | 22500BTU |
| Power front right | 18500BTU |
| Controls | |
| Metal illuminated dials | • |
| Performance | |
| Sealed Dual Flow Burners™ | 4 |
| Simmer on all burners | 140°F |
| Power requirements | |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Product dimensions | |
| Depth | 28 “ |
| Height | 85/16″ |
| Width | 297/8″ |
| Recommended back guards and ventilation | |
| Minimum CFM | 600 |
| Pro hood | VS30 |
| Warranty | |
| Parts and labor | Limited 2 Years Parts & Labor |
| SKU | 71391 |
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
User Guide590256H_F&P_SERVWARRANTY_GLO.indd (fisherpaykel.com)Booklet InstallationGuide Resources (zip)
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1.888.936.7872
Wwww.fisherpaykel.com
