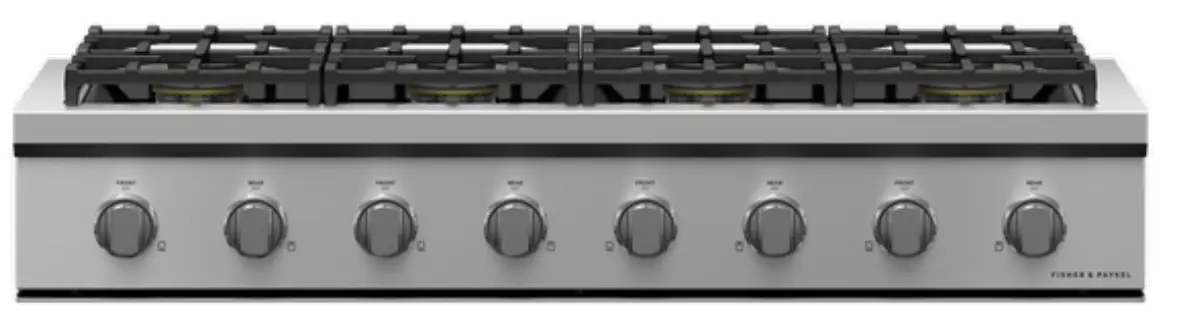

FISHER PAYKEL CPV3-488-L Gas Rangetop, 48 Inch, LPG
INTRODUCTION
Eight burners for when you need maximum performance and cooktop space – great for those who love to cook for a crowd.
- Your burners can deliver anything from very high 19,000 BTU heat for seriously fast boiling, to the most gentle flame for simmering
- Continuous surface grates designed for pots and pans to move safely across the cooktop
- Designed to match Professional style appliances
- Made from quality materials and real stainless steel
DIMENSIONS
- Height 8 5/16″
- Width 47 7/8″
- Depth 28″
FEATURES & BENEFITS
COOKTOP POWER
Sealed Dual Flow Burners™ deliver range top power up to 19,000 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
PRECISE CONTROL
From the highest to the lowest temperatures you get total control with halo-illuminated range top dials. A precise full surface simmer is delivered across all burners.
PRECISE CONTROL
From the highest to the lowest temperatures you get total control with halo-illuminated range top dials. A precise full surface simmer is delivered across all burners.
COOKING FLEXIBILITY
The continuous surface grates are designed for pots and pans to move safely across the range top. The deep-platform style grates provide full coverage so heat goes directly onto the pot, for a faster boil.
EASY TO CLEAN
These range tops are easy to clean with sealed burners and a continuous, porcelain base pan.
INFORMATION AT A GLANCE
LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.
DESIGN QUALITY
This range top is built to last with craftsmanship in every detail, featuring real stainless steel, cast-iron grates, and titanium coated dials.
SPECIFICATIONS
| Burner ratings | |
| Max burner power | 19,000 BTU |
| Power back centre | 13,000 BTU |
| Power back centre (2) | 13,000 BTU |
| Power back left | 13,000 BTU |
| Power back right | 13,000 BTU |
| Power front centre | 15,000 BTU |
| Power front centre (2) | 15,000 BTU |
| Power front left | 19,000 BTU |
| Power front right | 19,000 BTU |
| Total cooktop power | 120,000 BTU |
| Cleaning | |
| Easy clean porcelain basepan | • |
| Controls | |
| Metal illuminated dials | • |
| Star K Certification | • |
| Titanium coated, illuminated | • |
| Gas Requirements | |
| Fitting and pipe | ½ NPT, min. ⅝” flex lin |
| Supply Pressure (LPG | 11″ to 14″ W. |
| Performance | |
| Sealed Dual Flow Burners | 8 |
| Sealed cooking surface | • |
| Simmer on all burners | 140°F |
| Power requirements | |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120VV |
| Product dimensions | |
| Depth | 28″ |
| Height | 8 5/16″ |
| Width | 47 7/8″ |
| Recommended Back Guards Ventilation | |
| Combustible situation | BGCV2-3048H |
| Non combustible situation | BGCV2-3048 / BGCV2-1248 |
| Pro hood | HCB48-12_N |
| Safety | |
| ADA compliant | • |
| Warranty | |
| Parts and labor | 2 years |
| SKU | 82009 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
