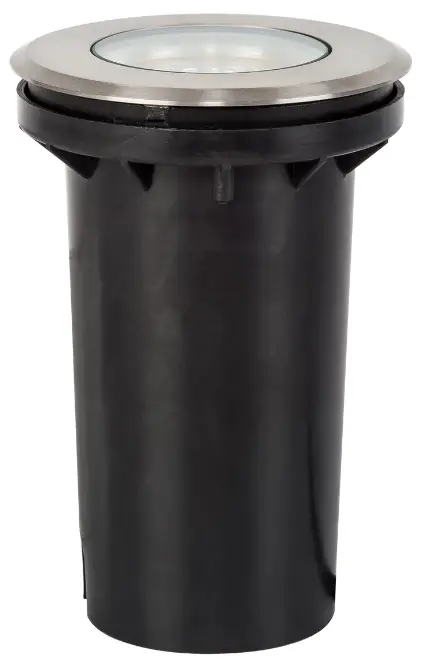

HAVIT HV1827 Luta Inground Light Instruction Manual

Contents hide

Model No.	HV1827W	HV1827C	HV1828W	HV1828C	HV1829W	HV1829C
Name	Luta
Material	316 Stainless Steel cover + Aluminium body
Colour	Cover – Stainless Steel Body – Black
IP Rating	IP67
Input Voltage	12v DC		12v DC		24v DC
Protection Class	(Low Voltage)		(Low Voltage)		(Low Voltage)
Lamp Base	Built In LED
Lamp Wattage	1x 3w		1x 5w		1x 20w
Colour Temp	3000k	5500k	3000k	5500k	3000k	5500k
Lumens	270lm	300lm	450lm	500lm	1600lm	1800lm
CRI	> 80
Wiring	Parallel
Dimmable	No
Warranty	3 Years Replacement*

HV1827

HV1828

HV1829

This product must be installed by a qualified electrician according to AS/NZS
Ensure all electrical mains are disconnected before any
Modification of this product will void any
Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the
When installing low voltage fittings, Voltage to fitting must be within +or- 5% of voltage required, if not within this allowance warranty will be
Aluminium and 304SS fittings must not be installed within 5km of any salt water
All 316 stainless steel fittings must have regular cleaning maintenance to avoid any tea staining from forming on (Warranty does not cover Tea Staining)
All o-rings and seals must be in place correctly to maintain warranty

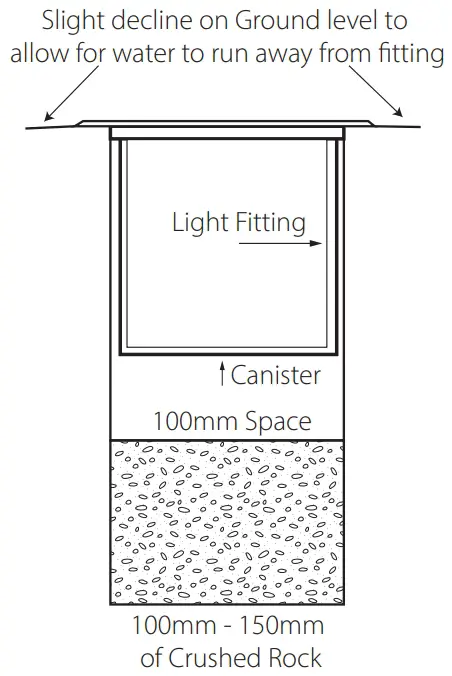

When installing in ground light fittings, Adequate drainage must be allowed to prevent fittings from sitting in water for a long period of time, if no drainage is allowed, Warranty will be (See sample adequate drainage diagram for correct installation method.)
This form may be updated at any time due to product improvements, please check online installation form for most current version

Make sure that the electrical circuit is free of voltage (master switch off )

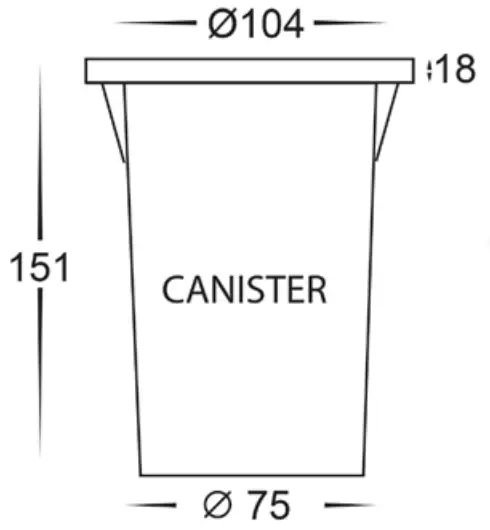

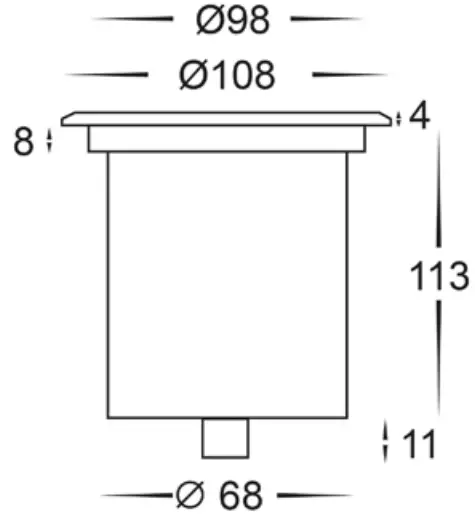

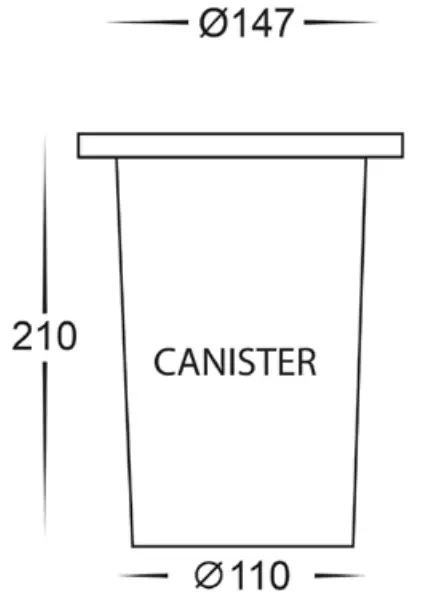

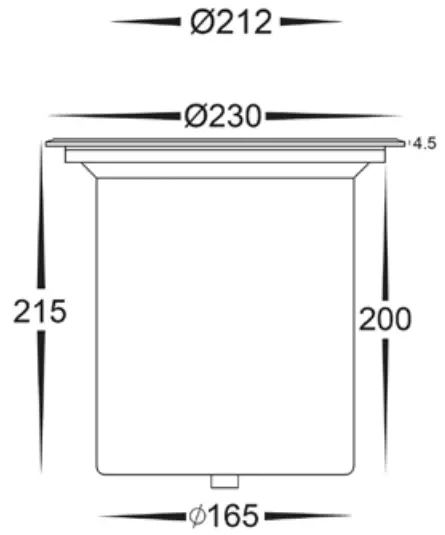

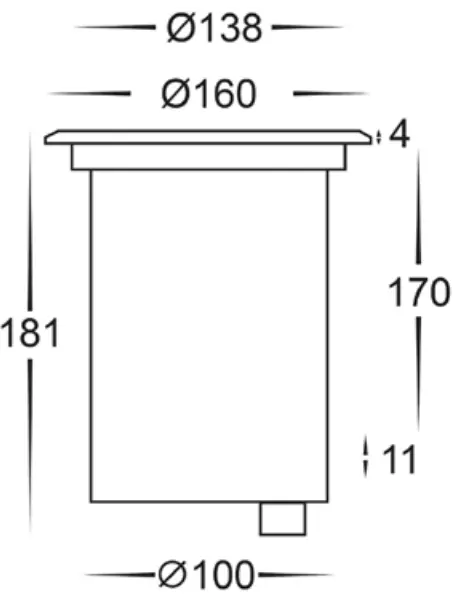

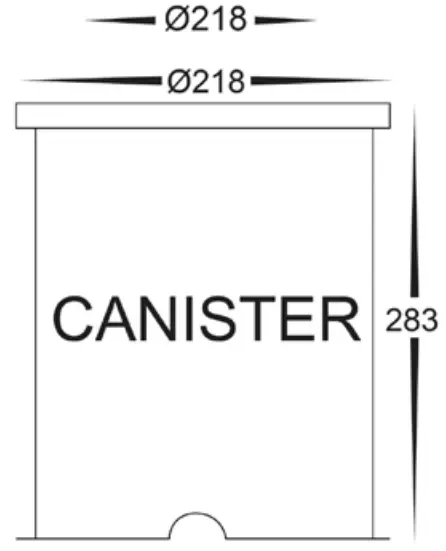

Make a hole where fitting is to be placed using dimensions provided on line drawings, making sure adequate drainage is
Insert canister, and ensure that the top is level with ground or Failure to do so will void warranty.
Using an appropriate 12v DC LED Driver (24v DC Driver for HV1829 Models) – DO NOT CONNECT LIGHT FITTING DIRECTLY TO 240V
Connect the cable – If more than one fitting installed, wiring must be done in
Strip back the cable on both fitting and cable run and twist the positive cables Then connect neutral cables together
Solder all joins using solder and either a heat gun or butane gas
Cover connections using an adhesive lined heat shrink or gel cap to make connection Failure to do this will void warranty.
Heat the heat shrink or crimp the gel cap making sure all connections are
To adjust tilt, remove nuts on back of fitting and set aside, Remove cover and
Adjust fitting to desired angle by pushing gently on either side until you reach desired
Reinsert glass and
Reattach the 4x nuts and tighten making sure the seals are still in place and screws are tight to avoid any water
Insert fitting into Apply silicon around edge of fitting to prevent any water from getting inside to electrical connections.
All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.

Must be installed by a licensed electrician
