Revo Spot Light
Installation Instruction
Product Specifications
| Model No. | HV4002T-2-BLK | HV4002T-2-WHT |
| Name | Revo | |
| Material | Aluminum | |
| Colour | Black | White |
| IP Rating | IP20 | |
| Input Voltage | 240v AC | |
| Protection Class | 1 (Requires Earth | |
| Lamp Base | Built-in LED | |
| Lamp Wattage | 2x 8w | |
| Colour Temp | TRI Colour – 3000k, 4000k, 5500k | |
| Lumens | 2x 6401m,2x 6801m, 2x 7201m | |
| CRI | >80+ | |
| Wiring | Parallel | |
| Dimmable | Yes | |
| Warranty | 3 Years Replacement* | |

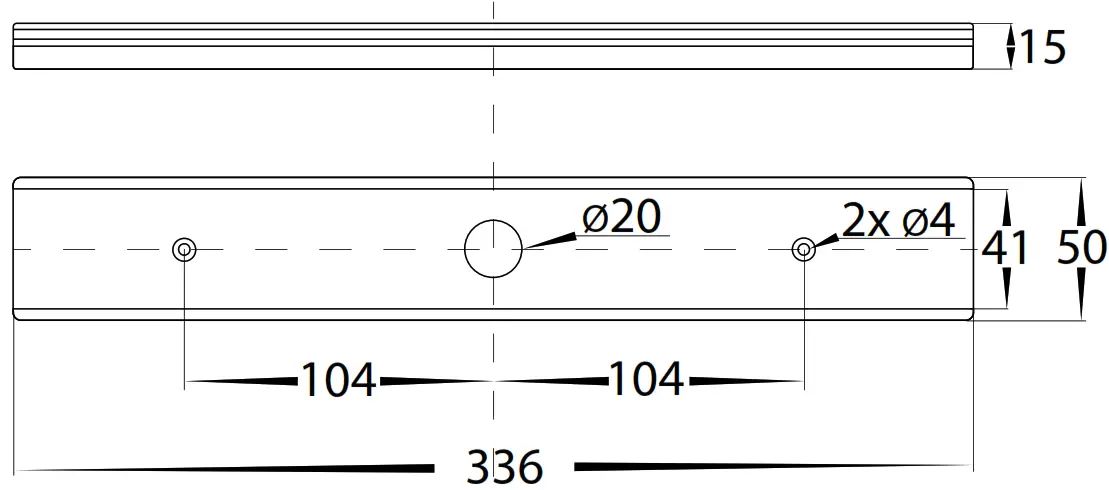

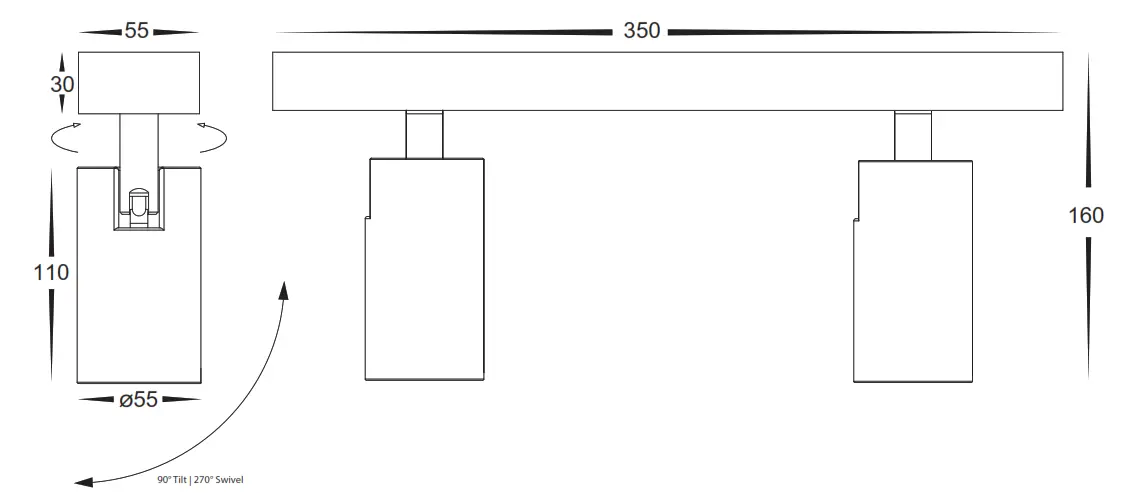

Dimensions
 |  |
Important Safety Issues:
- This product must be installed by a qualified electrician according to AS/NZS 3000.
- Ensure all electrical mains are disconnected before any installation.
- Modification of this product will void any warranty.
- Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the system.
- Aluminium and 304SS fittings must not be installed within 5km of any saltwater environments.
- All o-rings and seals must be in place correctly to maintain a warranty
- This form may be updated at any time due to product improvements, please check the online installation form for the most current version.

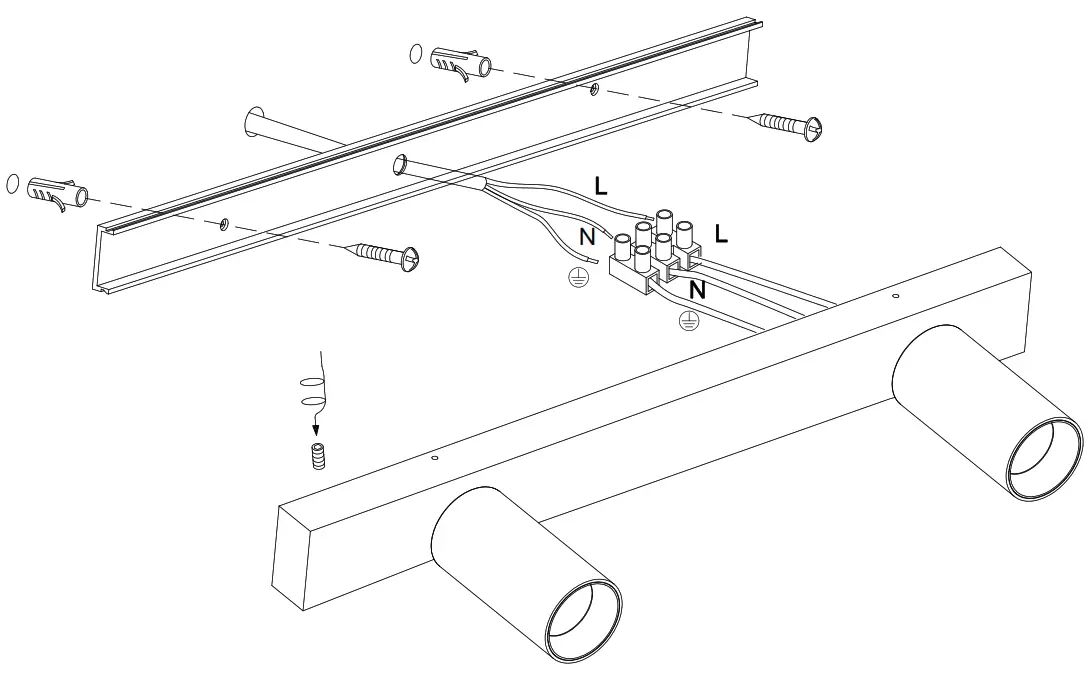

Mounting Base Diagram
Steps for Installation:
- Make sure that the electrical circuit is free of voltage (master switch off )
- Remove Allen screws on side of the fitting and set them aside.
- Install base plate in the desired location
- Connect the cable – use wire with earth; connect the earth first, then live and neutral wire
- Fitting is preset to 3000k, to change the slide switch to desired color temperature
- Reattach fitting to base plate making sure Allen screws are tight.
- Adjust fitting to desired position making sure to stop rotating when fitting cannot rotate anymore, If forced fitting will continue to rotate and cause internal cables to become entangled causing fitting to short. If this is done, the warranty will be voided.
- All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.
Must be installed by a licensed electrician
| Warranty Terms & Conditions* | Additional Information |
 |  |
Contact Details:
143 Beauchamp Road Matraville NSW 2036 Australia
Tel: 02 9381 8300
Fax: 02 9666 8881
Email: [email protected]
Web: www.havit.com.au
Havit Lighting
