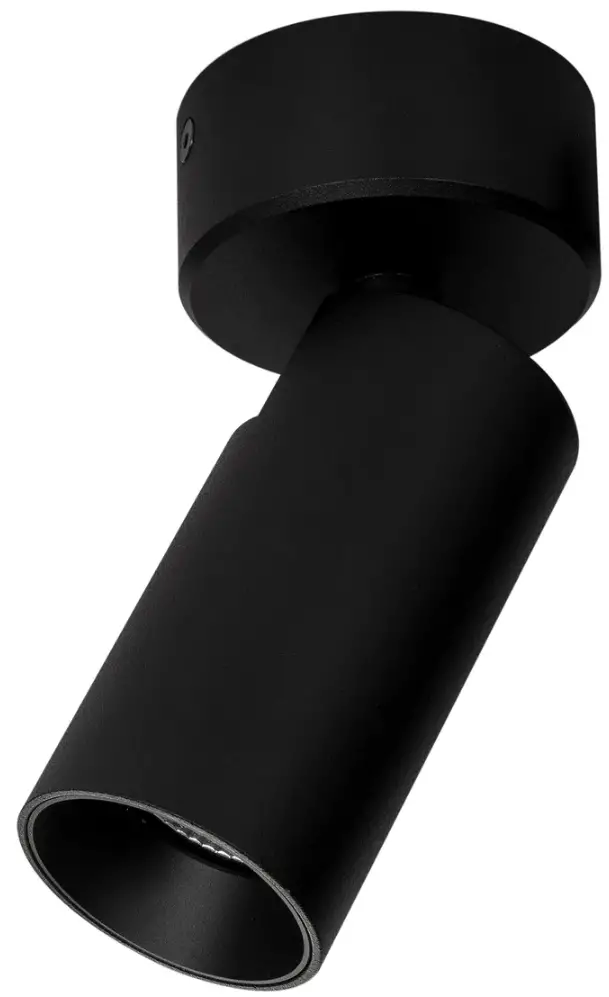

HAVIT Lighting HV4002T-1-BLK Revo Spot Light

Contents hide

This product must be installed by a qualified electrician according to AS/NZS 3000.
Ensure all electrical mains are disconnected before any installation.
Modification of this product will void any warranty.
Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the system.
Aluminium and 304SS fittings must not be installed within 5km of any salt water environments.
All o-rings and seals must be in place correctly to maintain warranty
This form may be updated at any time due to product improvements, please check online installation form for most current version.

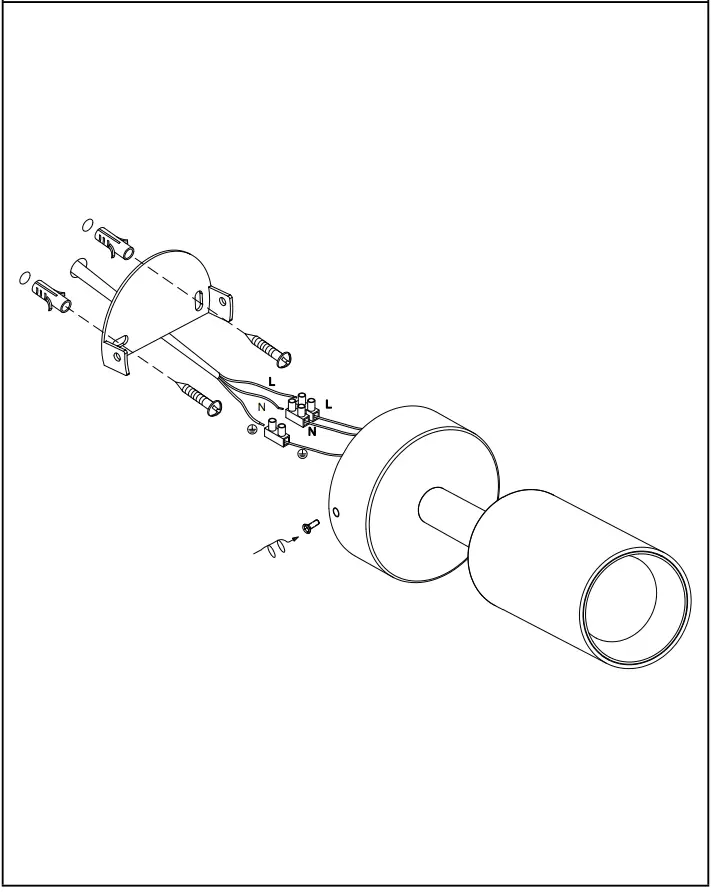

Make sure that the electrical circuit is free of voltage (master switch off )
Remove allen screws on side of fitting and set aside.

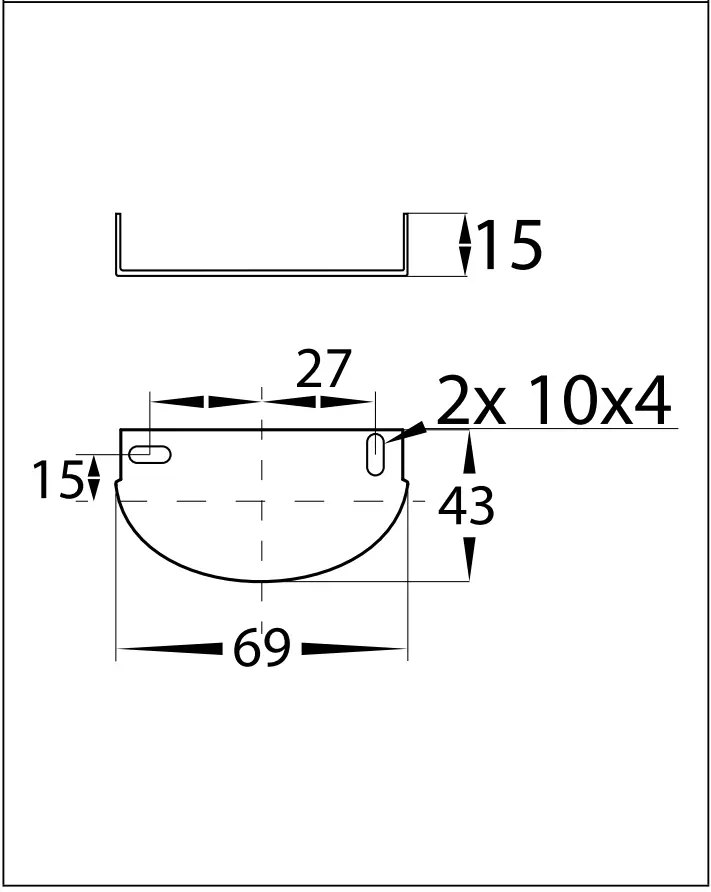

Install base plate in desired location
Connect the cable – use wire with earth; connect the earth first, then live and neutral wire
Fitting is preset to 3000k, to change slide switch to desired colour temperature
Reattach fiiting to base plate making sure allen screws are tight.
Adjust fitting to desired position making sure to stop rotating when fitting cannot rotate anymore, If forced fitting will continue to rotate and cause internal cables to become entangled causing fitting to short. If this is done, warranty will be voided.
All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.

Must be installed by a licensed electrician
