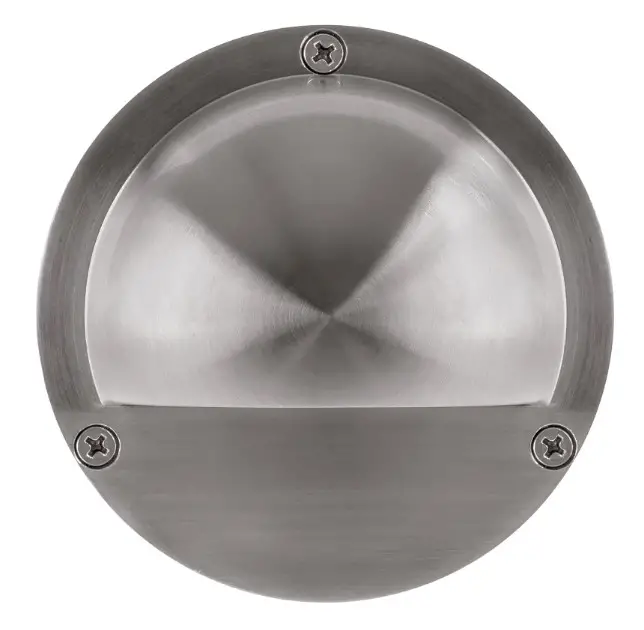

HAVIT HV2910 Pinta Step Light Instruction Manual

Pinta Step Light Installation Instructions

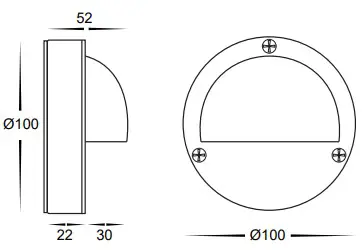

HV2901-2-3-4 Dimensions

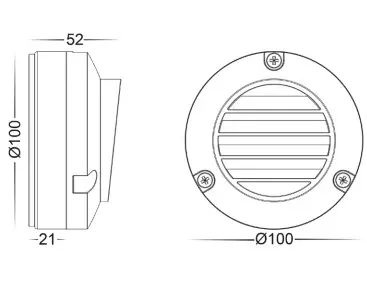

HV2905 Dimensions

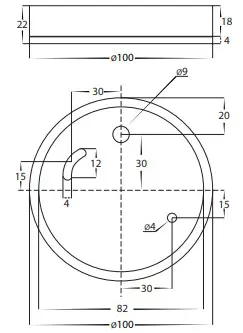

Mounting Base

Important Safety Issues:

• This product must be installed by a qualified electrician according to AS/NZS 3000.
• Ensure all electrical mains are disconnected before any installation.
• Do not exceed maximum wattage restrictions for globes: 240V G9 = 25w / 12V MR16 = 20w
• Modification of this product will void any warranty.
• Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the system.
• When installing low voltage fittings, Voltage to fitting must be within +or- 5% of voltage required and cannot be installed more than 25m from LED Driver, if not within this allowance warranty will be voided.
• All 316 stainless steel fittings must have regular cleaning maintenance to avoid any tea staining from forming on fitting. (Warranty does not cover Tea Staining)
• All o-rings and seals must be in place correctly to maintain warranty.
• These instructions may be updated at any time due to product improvements, Please visit website for most current installation instructions.

Important Safety Issues:

1. This product must be installed by a qualified electrician according to AS/NZS 3000.
2. Ensure all electrical mains are disconnected before any installation.
3. Do not exceed maximum wattage restrictions for globes: 240V G9 = 25w / 12V MR16 = 20w
4. Modification of this product will void any warranty.
5. Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the system.
6. When installing low voltage fittings, Voltage to fitting must be within +or- 5% of voltage required and cannot be installed more than 25m from LED Driver, if not within this allowance warranty will be voided.
7. All 316 stainless steel fittings must have regular cleaning maintenance to avoid any tea staining from forming on fitting. (Warranty does not cover Tea Staining)
8. All o-rings and seals must be in place correctly to maintain warranty.
9. These instructions may be updated at any time due to product improvements, Please visit website for most current installation instructions.

Steps for Installation for HV2903 + HV2904 + HV2905 Models:

1. Make sure that the electrical circuit is free of voltage (master switch off)
2. Remove screws from front of fitting as set aside.
3. HV2903 – Use wire with earth; connect the earth first, then live and neutral wire
4. HV2904 + HV2905 – Using an appropriate 12v LED Driver – DO NOT CONNECT LIGHT FITTING DIRECTLY TO 240V
5. Connect the cable – If more than one fitting installed, wiring must be done in parallel.
6. Strip back the cable on both fitting and cable run and (for HV2903 – wist the earth cables together first) twist the positive cables together. Then connect neutral cables together
7. Solder all joins using solder and either a heat gun or butane gas torch.
8. Cover connections using an adhesive lined heat shrink or gel cap to make connection watertight. Failure to do this will void warranty.
9. Heat the heat shrink or crimp the gel cap making sure all connections are covered.
10. Install base plate in desired location, Seal all holes in the backing plate including cable entry and screw holes.
11. Fitting is preset to 3000k, To change move switch above PCB to desired colour temperature
12. Reattach face onto fitting making sure seals are still in place and screws are tight to avoid water penetration into fitting
13. Apply silicon around edge of fitting to prevent any water from getting inside to electrical connections.
14. All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit

Contact Details:

Warranty Terms & Conditions*
Additional Information
Pinta Step Light Installation Instructions
143 Beauchamp Road Matraville NSW 2036 Australia
Tel: 02 9381 8300 Fax: 02 9666 8881 Email: [email protected] Web: www.havit.com.au
