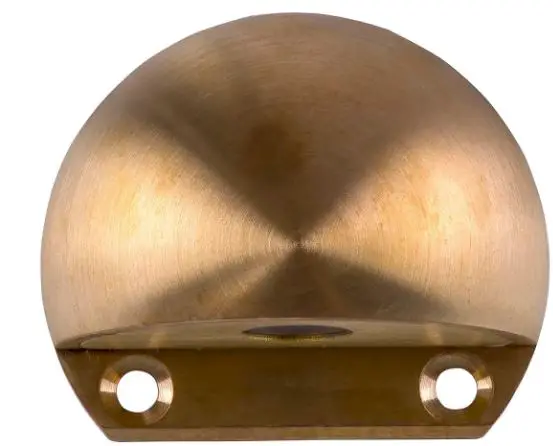

HAVIT HV3281 Occhio Step Light
Important Safety Issues:
- This product must be installed by a qualified electrician according to AS/NZS 3000.
- Ensure all electrical mains are disconnected before any installation.
- Modification of this product will void any warranty.
- Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the system.
- When installing low voltage fittings, Voltage to fitting must be within +or- 5% of voltage required and cannot be installed more than 25m from LED Driver, if not within this allowance warranty will be voided.
- When installing brass fittings, gloves must be worn to avoid any oils transferring to fitting.
- All 316 stainless steel fittings must have regular cleaning maintenance to avoid any tea staining from forming on fitting. (Warranty does not cover Tea Staining)
- All o-rings and seals must be in place correctly to maintain warranty.
- These instructions may be updated at any time due to product improvements, Please visit website for most current installation instructions.
Occhio Step Light Installation Instructions
| Product Specifications | ||||||||||||
| Model No. | HV3281C-SS316 | HV3281W-SS316 | HV3281C-AB | HV3281W-AB | HV3281C-BR | HV3281W-BR | HV3281C-BLK | HV3281W-BLK | HV3281C-WHT | HV3281W-WHT | HV3281C-PSS316 | HV3281W-PSS316 |
| Name | Occhio | |||||||||||
| Material | 316 Stainless Steel | |||||||||||
| Colour | Stainless Steel | Antique Brass | Brass | Black | White | Polished Stainless Steel | ||||||
| IP Rating | IP65 | |||||||||||
| Input Voltage | 12v DC | |||||||||||
| Protection Class | (Low Voltage) | |||||||||||
| Lamp Base | Built in LED | |||||||||||
| Lamp Wattage | 1x 3w | |||||||||||
| Colour Temp | 5500k | 3000k | 5500k | 3000k | 5500k | 3000k | 5500k | 3000k | 5500k | 3000k | 5500k | 3000k |
| Lumens | 255lm | 240lm | 255lm | 240lm | 255lm | 240lm | 255lm | 240lm | 255lm | 240lm | 255lm | 240lm |
| CRI | > 80 | |||||||||||
| Wiring | Parallel | |||||||||||
| Dimmable | No | |||||||||||
| Warranty | 3 Years Replacement* | |||||||||||
Steps for Installation:
- Make sure that the electrical circuit is free of voltage (master switch off )
- Using an appropriate 12v DC LED Driver – DO NOT CONNECT LIGHT FITTING DIRECTLY TO 240V
- Connect the cable – If more than one fitting installed, wiring must be done in parallel.
- Strip back the cable on both fitting and cable run and twist the positive cables together. Then connect neutral cables together
- Solder all joins using solder and either a heat gun or butane gas torch.
- Cover connections using an adhesive-lined heat shrink or gel cap to make the connection watertight. Failure to do this will void warranty.
- Heat the heat shrink or crimp the gel cap making sure all connections are covered.
- Install fitting in desired location.
- Apply silicon around edge of fitting to prevent any water from getting inside to electrical connections.
- All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.
Must be installed by a licensed electrician
