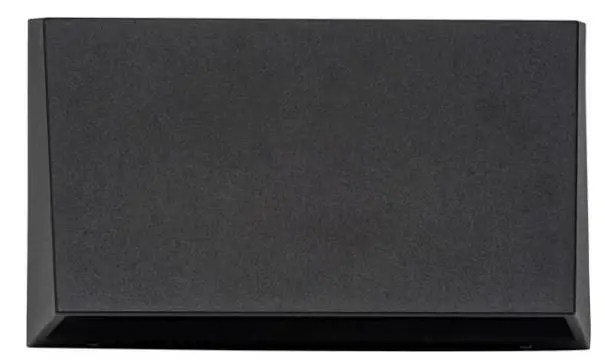

Havit Hv3278 Shim Step Light Instruction Manual (+ PDF)

Contents hide

This product must be installed by a qualified electrician according to AS/NZS 3000.
Ensure all electrical mains are disconnected before any installation.
Modification of this product will void any warranty.
Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the system.
When installing low voltage fittings, Voltage to fitting must be within +or- 5% of voltage required and cannot be installed more than 25m from LED Driver, if not within this allowance warranty will be voided.
Aluminium and 304SS fittings must not be installed within 5km of any salt water environments.
All o-rings and seals must be in place correctly to maintain warranty.
These instructions may be updated at any time due to product improvements, Please visit website for most current installation instructions.

Make sure that the electrical circuit is free of voltage (master switch off )
Loosen allen screws on side of fitting and remove face and set aside.

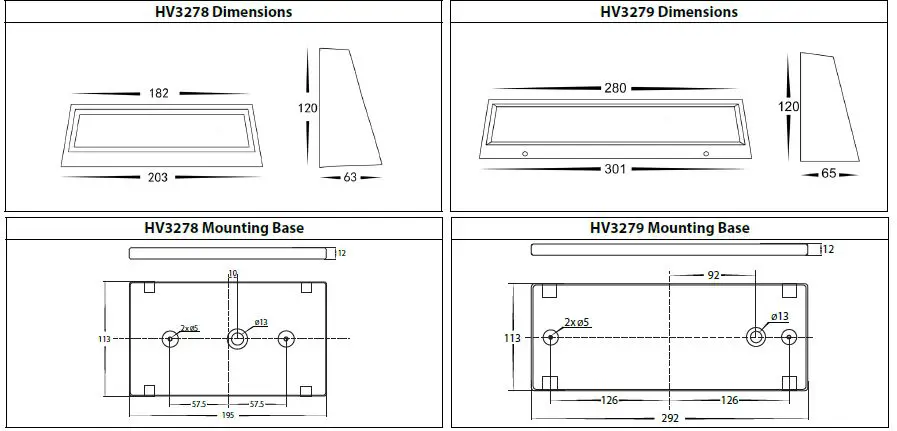

Install base plate to wall in desired location, Seal all holes including Cable entry and Mounting screws
240v Models, use wire with earth; connect the earth first, then live and neutral wire
12v DC Models – Using an appropriate 12v DC LED Driver – DO NOT CONNECT LIGHT FITTING DIRECTLY TO 240V
Connect the cable – If more than one fitting installed, wiring must be done in parallel.
Fitting is preset to 3000k, to change slide switch to desired colour temperature.
Reattach face to base plate making sure allen screws are tight to avoid water penetration
Apply silicon around edge of fitting to prevent any water from getting inside to electrical connections.
All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.
