This product must be installed by a qualified electrician according to AS/NZS 3000.
Ensure all electrical mains are disconnected before any installation.
Modification of this product will void any warranty.
Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the system.
When installing low voltage fittings, Voltage to fitting must be within +or- 5% of the voltage required, if not within this allowance warranty will be voided.
Aluminum and 304SS fittings must not be installed within 2km of any saltwater environments.
When installing copper fittings, gloves must be worn to avoid any oils transferring to the fitting.
All 316 & 304 stainless steel fittings must have regular cleaning maintenance to avoid any tea staining from forming on the fitting. (Warranty does not cover Tea Staining)
All o-rings and seals must be in place correctly to maintain the warranty
This form may be updated at any time due to product improvements, please check the online installation form for the most current version.

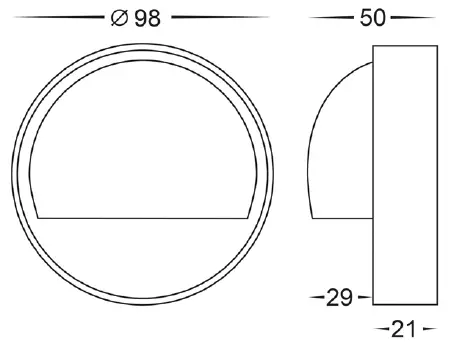

Steps for Installation for HV2921:

Make sure that the electrical circuit is free of voltage (master switch off )
Remove screws from the front of the fitting as set aside.

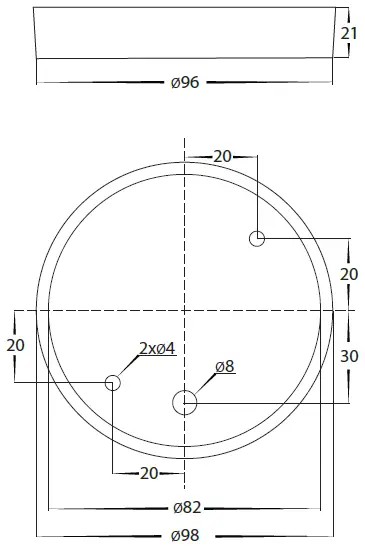

Install the base plate in the desired location
Connect the cable – use wire with earth; connect the earth first, then live and neutral wire
Insert the globe into the fitting making sure the globe can be used with the selected driver.
Reattach face onto the fitting making sure seals are still in place and screws are tight to avoid water penetration into fitting
Apply silicon around the edge of the fitting to prevent any water from getting inside to electrical connections.
All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.

Steps for Installation for HV2923T:

Make sure that the electrical circuit is free of voltage (master switch off )
Remove screws from the front of the fitting as set aside.
Connect the cable – use wire with earth; connect the earth first, then live and neutral wire
Strip back the cable on both fitting and cable run, twist the earth cables together first, Then positive cables together and neutral cables together.
Solder all joins using solder and either a heat gun or butane gas torch.
Cover connections using an adhesive-lined heat shrink or gel cap to make the connection watertight. Failure to do this will void the warranty.
Heat the heat shrink or crimp the gel cap making sure all connections are covered.
Install the base plate in the desired location
Fitting is preset to 3000k, To change move the switch above PCB to desired color temperature
Reattach the face onto the fitting making sure seals are still in place and screws are tight to avoid water penetration into fitting
Apply silicon around the edge of the fitting to prevent any water from getting inside to electrical connections.
All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.

This product must be installed by a qualified electrician according to AS/NZS 3000.
Ensure all electrical mains are disconnected before any installation.
Modification of this product will void any warranty.
Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the system.
When installing low voltage fittings, Voltage to fitting must be within +or- 5% of the voltage required, if not within this allowance warranty will be voided.
Aluminum and 304SS fittings must not be installed within 2km of any saltwater environments.
When installing copper fittings, gloves must be worn to avoid any oils transferring to the fitting.
All 316 & 304 stainless steel fittings must have regular cleaning maintenance to avoid any tea staining from forming on the fitting. (Warranty does not cover Tea Staining)
All o-rings and seals must be in place correctly to maintain the warranty.
This form may be updated at any time due to product improvements, please check the online installation form for the most current version.

Make sure that the electrical circuit is free of voltage (master switch off )
Remove screws from the front of the fitting as set aside.
Install the base plate in the desired location
Connect the cable – use wire with earth; connect the earth first, then live and neutral wire
Insert the globe into the fitting making sure the globe can be used with the selected driver.
Reattach the face onto the fitting making sure seals are still in place and screws are tight to avoid water penetration into fitting
Apply silicon around the edge of the fitting to prevent any water from getting inside to electrical connections.
All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.

Make sure that the electrical circuit is free of voltage (master switch off )
Remove screws from the front of the fitting as set aside.
Connect the cable – use wire with earth; connect the earth first, then live and neutral wire
Strip back the cable on both fitting and cable run, twist the earth cables together first, Then positive cables together and neutral cables together.
Solder all joins using solder and either a heat gun or butane gas torch.
Cover connections using an adhesive-lined heat shrink or gel cap to make the connection watertight. Failure to do this will void the warranty.
Heat the heat shrink or crimp the gel cap making sure all connections are covered.
Install the base plate in the desired location
Fitting is preset to 3000k, To change move the switch above PCB to desired color temperature
Reattach the face onto the fitting making sure seals are still in place and screws are tight to avoid water penetration into fitting
Apply silicon around the edge of the fitting to prevent any water from getting inside to electrical connections.
All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.
