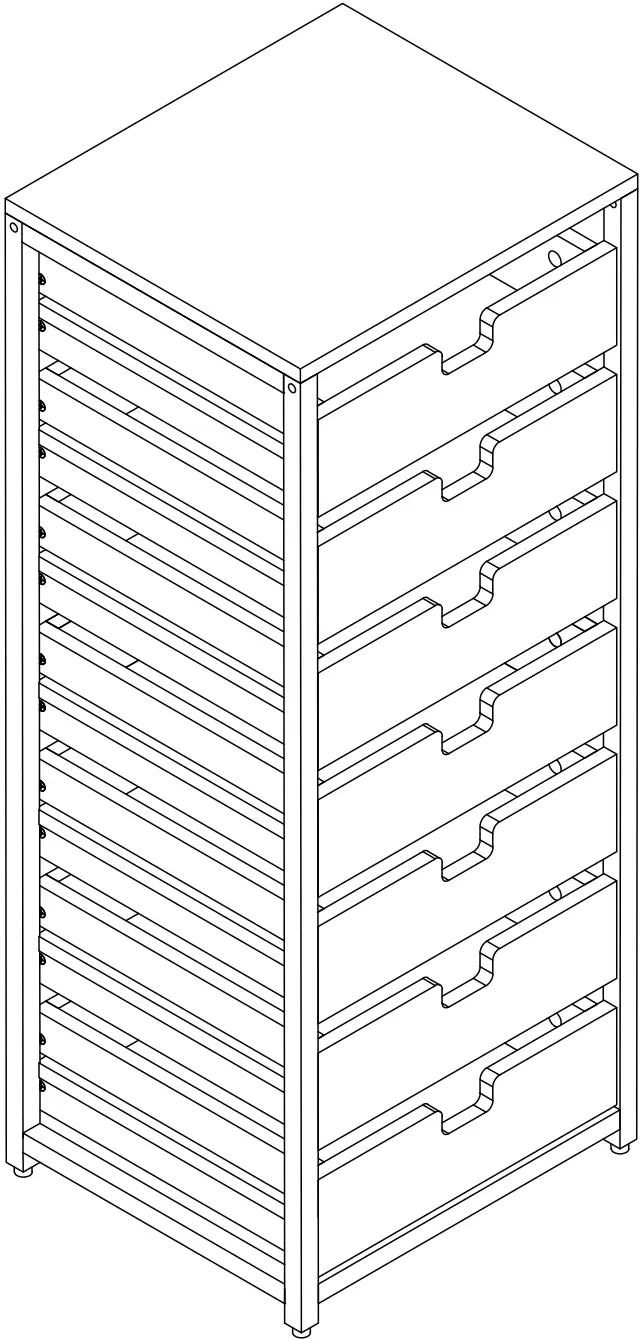

BB-JW0328XF Eulas 7 Drawer Brown Chest of Drawers
Installation Guide
BB-JW0328XF Eulas 7 Drawer Brown Chest of Drawers

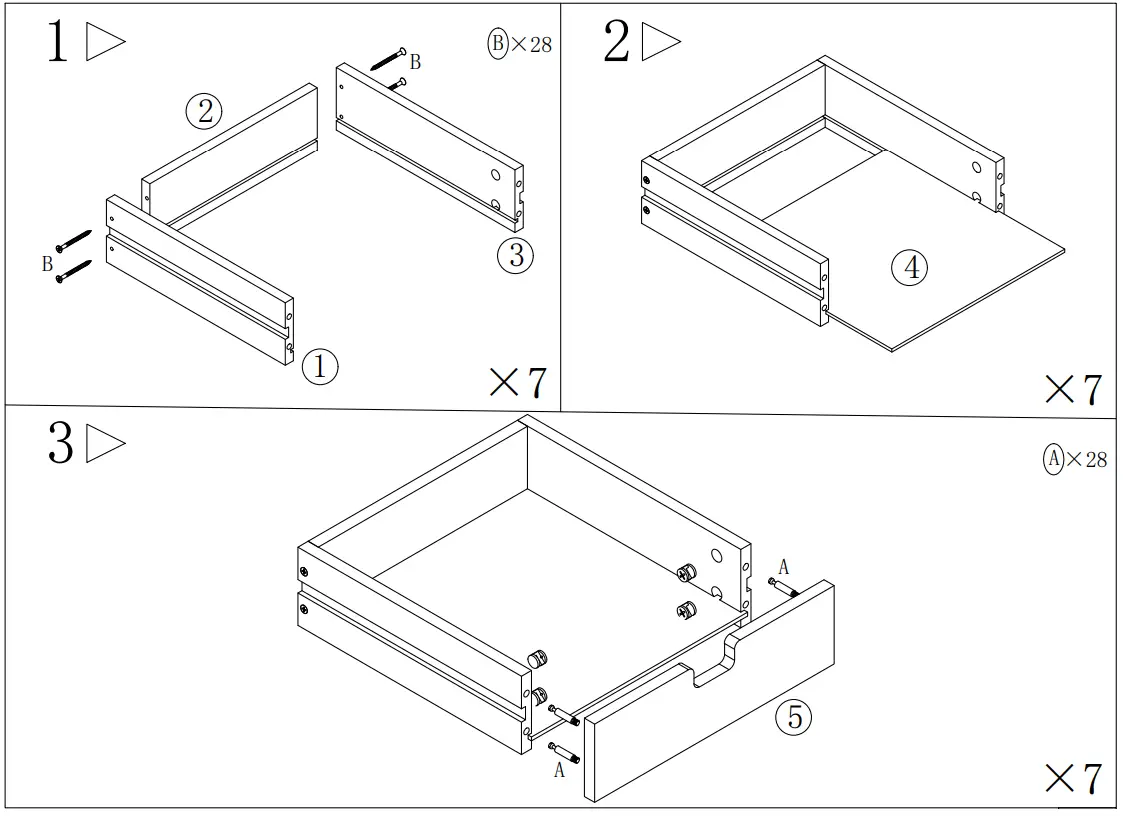

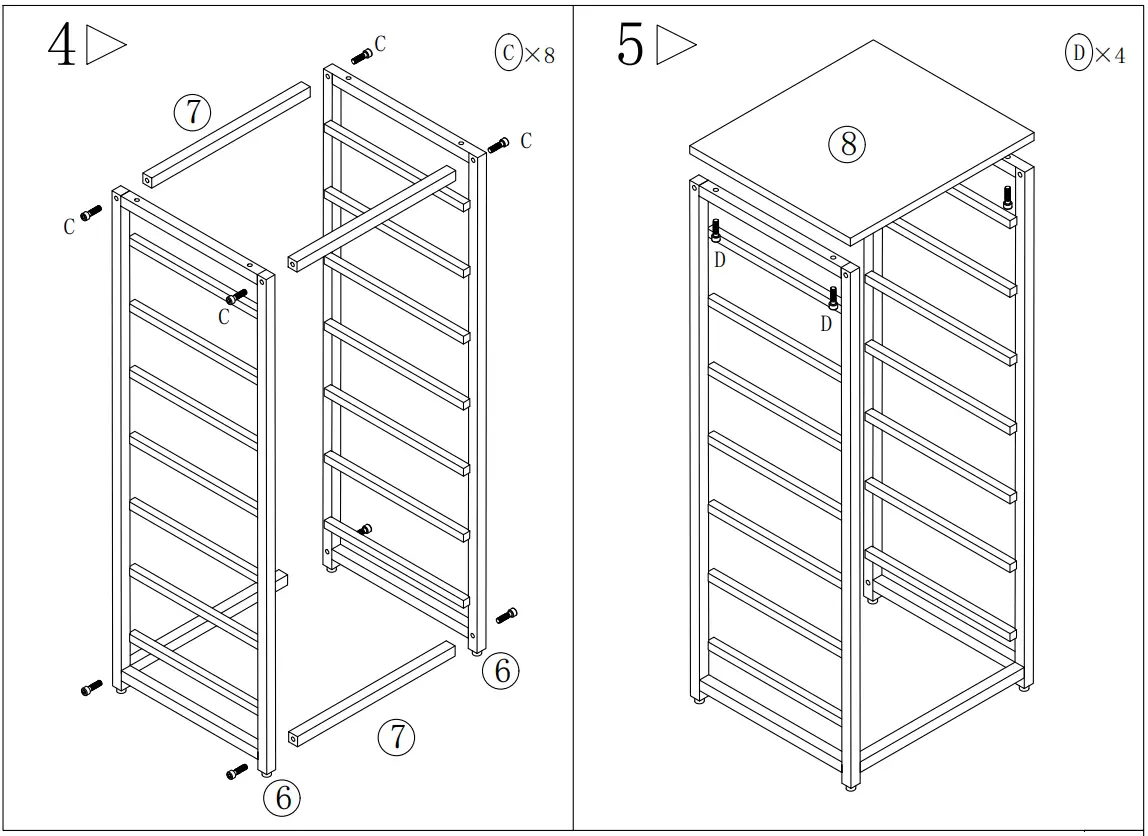

Notes: Don’t tighten screws completely at first, just in case parts were assembled wrong and need to disassemble. Tighten screws at last when all parts are put together.

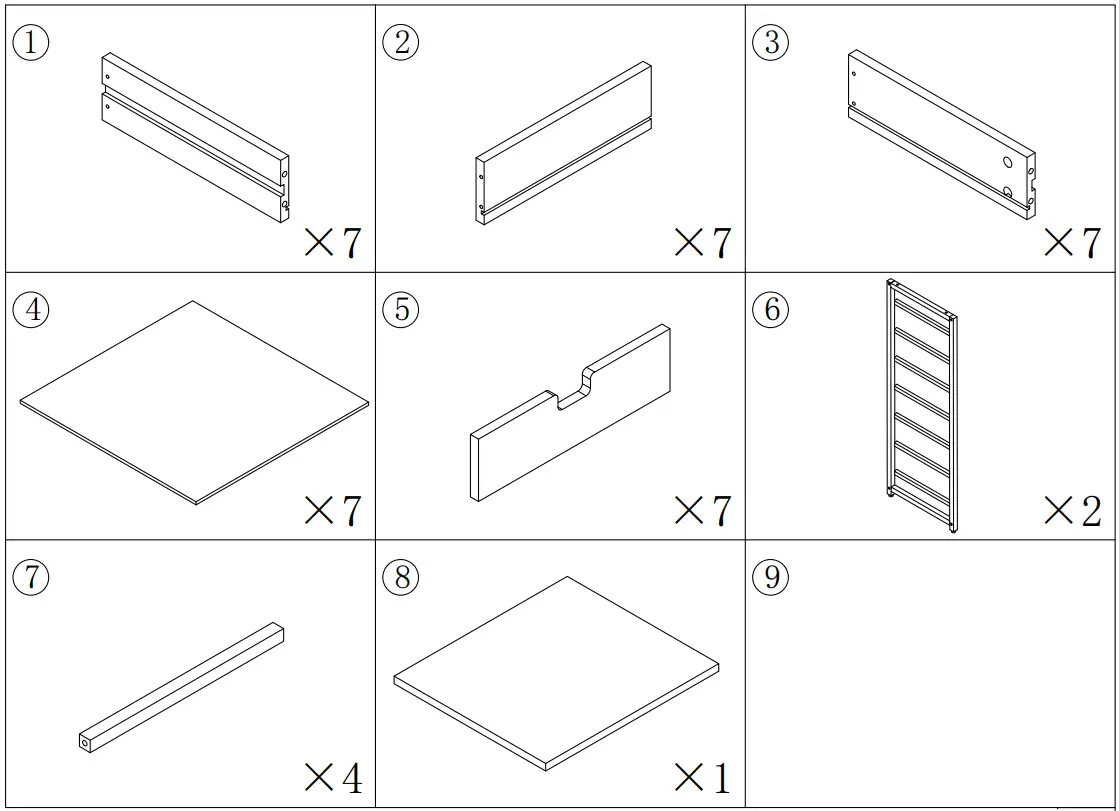

| PART NO. | QTY. | PARTS | |
| A | 28 | M6×28mm |  |
| B | 28 | ∅3.5×35mm |  |
| C | 8 | ∅6×35mm |  |
| D | 4 | ∅6×30mm | |
| E | 1 | M6 |  |

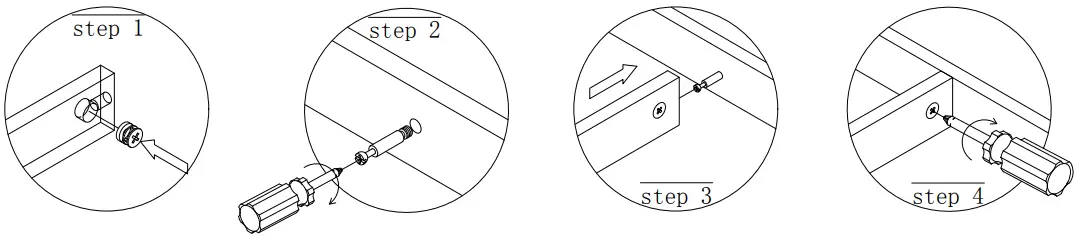

Installation of Cams and Pains：
Screw the Pin into the hole. To set Cams correctly, ensure the arrow on the Cam opens to the holes of the pin it is locking. Lock Cam by turning Cam’s head with a screwdriver to be tightened. Please don’t use an electric screwdriver to assemble the unit.
