1 HV3638C-BLK 6W 240V Up and Down LED Wall Light

2 Must be installed by a licensed electrician

HV3638C-BLK 6W 240V Up and Down LED Wall Light

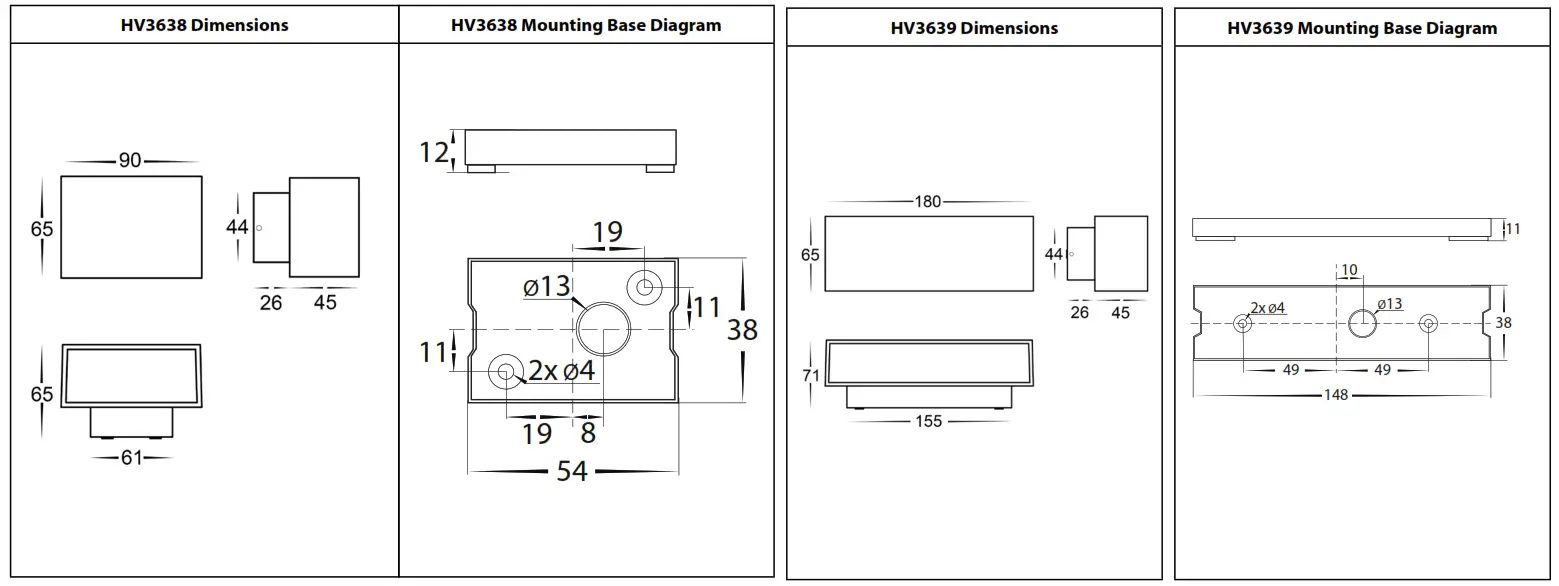

Mini Block & Block Wall Light Installation Instructions
Product Specifications
Model No.	HV3638C-BLK	HV3638W-BLK	HV3638C-WHT	HV3638W-WHT	HV3639T-BLK	HV3639T-WHT
Name	Mini Block				Block
Material	Aluminum				Aluminum
Colour	Black	White	Black	White	Black	White
IP Rating	IP54				IP54
Protection Class	1 (240v Requires Earth)				1 (240v Requires Earth)
Input Voltage	240v AC				240v AC
Lamp Base	Built-in LED				Built-in LED
Lamp Wattage	2x 3w				2x 4.5w
Colour Temp	5500k	3000k	5500k	3000k	TRI Colour – 3000k, 4000k, 5500k
Lumens	2x 210lm	2x 200lm	2x 210lm	2x 200lm	2x 300lm, 2x 310lm, x 320lm
CRI	> 80				> 80
Wiring	Parallel				Parallel
Dimmable	No				No
Warranty	3 Years Replacement*				3 Years Replacement*

Important Safety Issues:

• This product must be installed by a qualified electrician according to AS/NZS 3000.
• Ensure all electrical mains are disconnected before any installation.
• Modification of this product will void any warranty.
• Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the system.
• Aluminium and 304SS fittings must not be installed within 5km of any saltwater environments.
• All o-rings and seals must be in place correctly to maintain the warranty
• This form may be updated at any time due to product improvements, please check the online installation form for the most current version.

Steps for Installation:

1. Make sure that the electrical circuit is free of voltage (master switch off )
2. Remove screws from the top and bottom of the fitting and set them aside.
3. Remove base plate from fitting.
4. Install the base plate to the wall in the desired location using appropriate screws for application.
5. Seal all holes including cable entry and around screws
6. Connect the cable – use wire with earth; connect the earth first, then live and a neutral wire.
7. For HV3639 Models, fitting is preset to 3000k, to change the slide switch located inside the base of fitting to desired color temperature.
8. Reattach fitting to base plate making sure screws are tight to avoid any water penetration.
9. Apply silicon around the edge of the fitting to prevent any water from getting inside to electrical connections.
10. All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.
