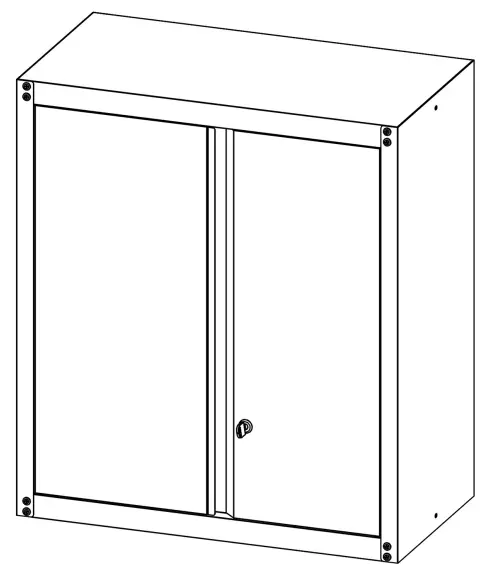

YXX-X036 Metal Adjustable Shelf Bathroom Storage Wall Cabinet
Instruction Manual
NOTE: PLEASE AN ASSISTANT IS REQUIRED ES NECESARIO UN AYUDANTE UN ASSISTANT ESTNECESSAIRE.
Please scan the QR code to check the assemble video

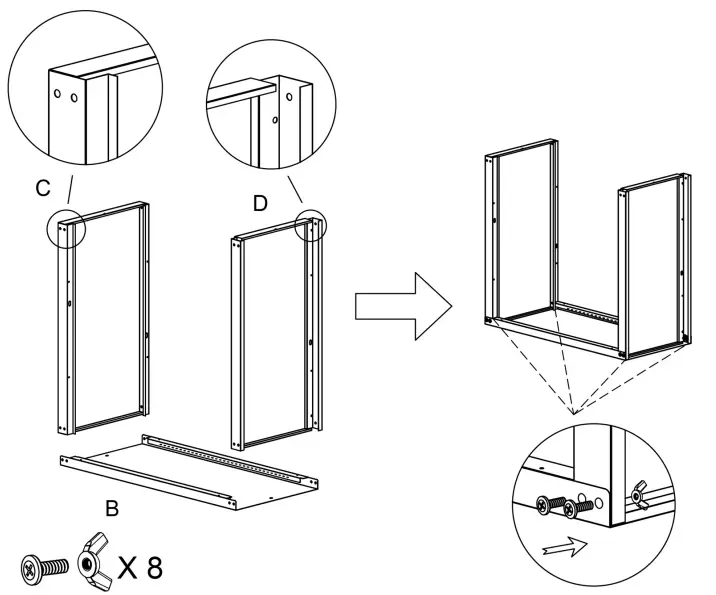

Connect C and D to side plate B. Align with the corresponding screw holes. Then secured with 8 pcs screws F.
Attention: Don’t tighten the screws until after the cabinet has been installed
Installation of roof and base plates

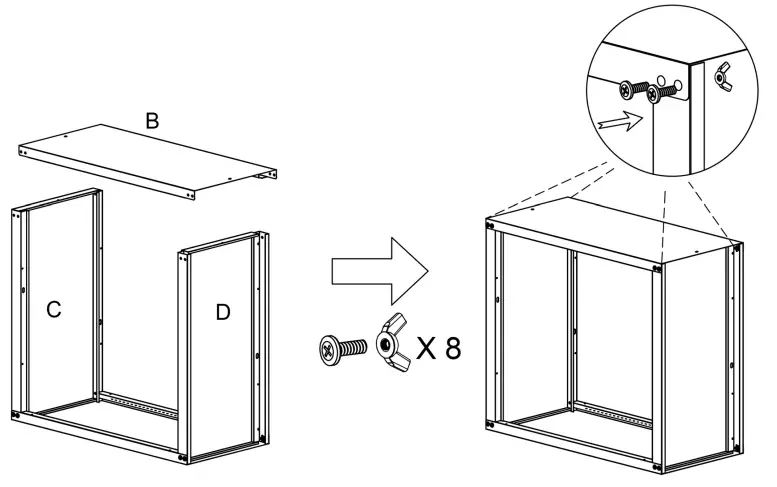

Connect B with C, D. Align with the corresponding screw holes. Then secured with 8 pcs screws F
Attention: Don’t tighten the screws until after the cabinet has been installed
Installation of right side plate

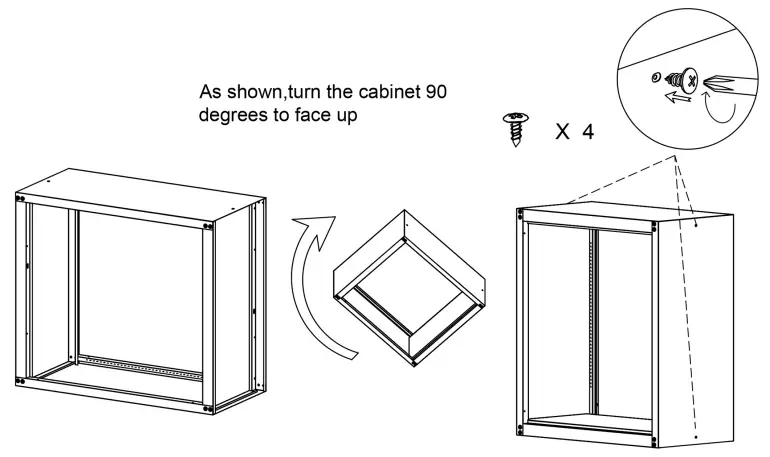

Right the cabinet
Link A with roof, base, left and right side plate. Align with the corresponding screw holes. Then secured with 8 pcs 5 x 10 screw G. Link between A with two screws F.
Installation of the back plate

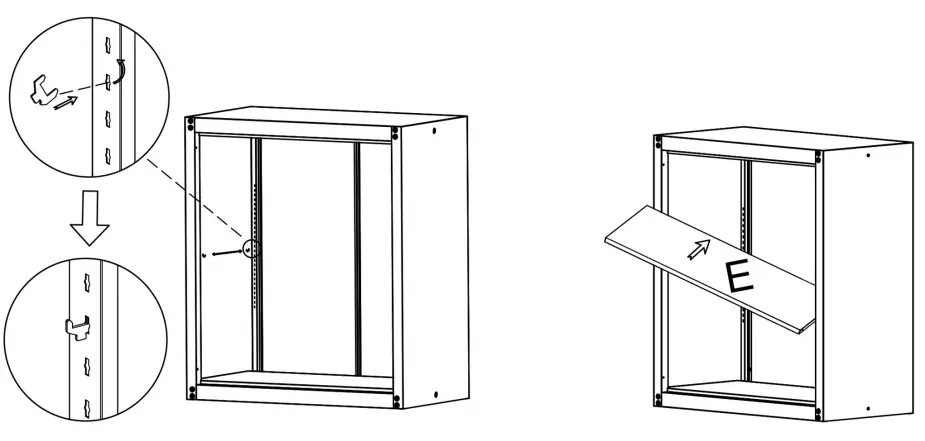

Align separator plate buckle H with corresponding holes, and put in 4 pcs in order.
Tilt partition E into the cabinet.
Made it level then down.
Place it accurately into the laminate buckle slot.
Installation of Shelving and Shelving bracket

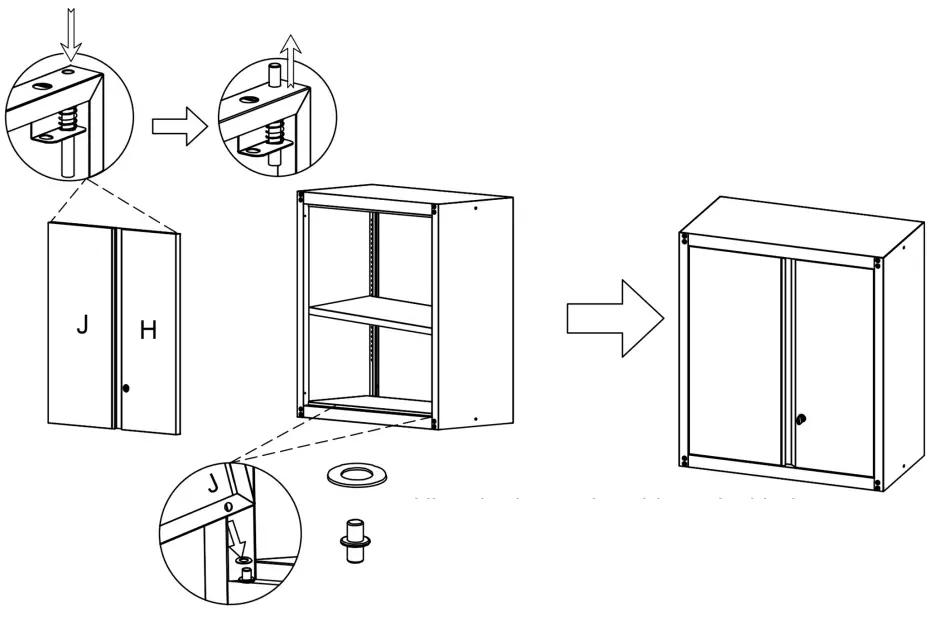

Press down on the upper door spring door hinge, align it with the upper top door hinge hole and release the hand to allow it to enter accurately.
Align the lower door hinge J with the corresponding holes in the bottom. Place the washers in order. Align lower door hinge holes of door plates J and H with the corresponding door hinge.
Installation of left and right door plates.

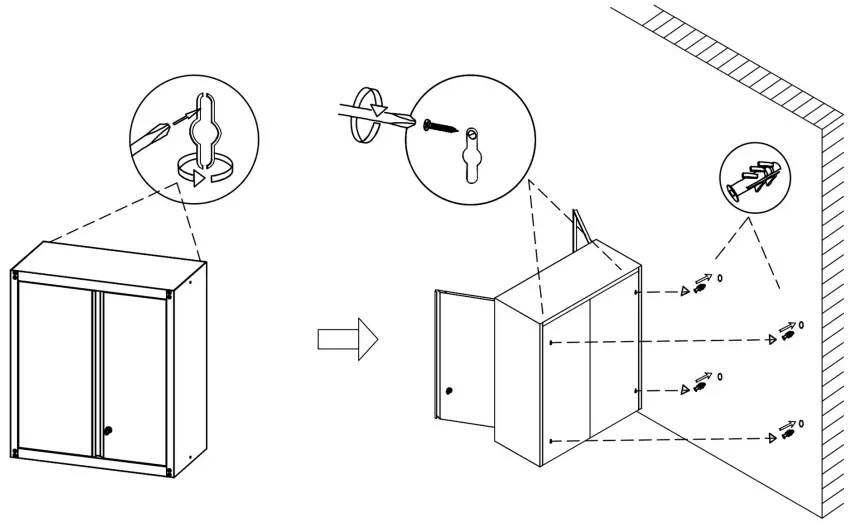

If need to hang the wall, could perforate the wall and use screws K to fix the cabinet. If don’t need it, could put it in any place to use directly.Completely
Fixed the cabinet
