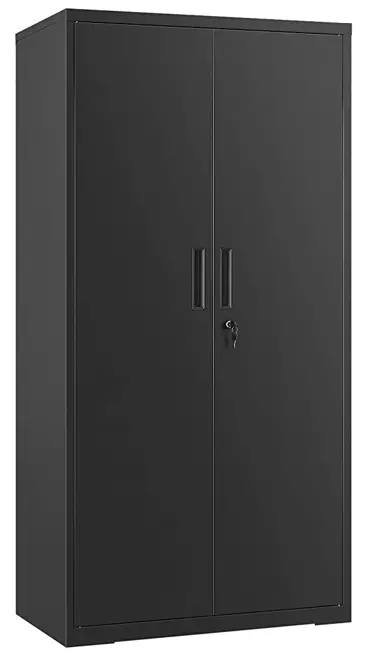

MX-W139258971 Metal Storage Cabinet
Instruction Manual
PARTS LIST
| Name | Part | Qty | Spare | Name | Part | Qty | Spare | ||

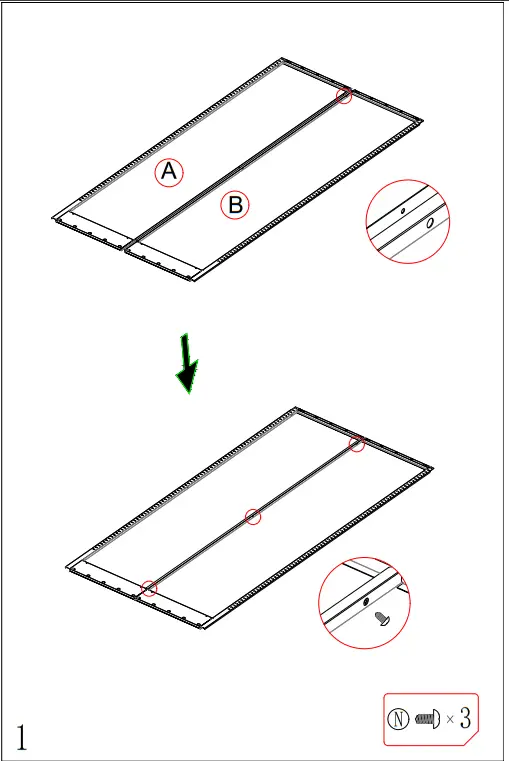

| A | Left Back Panel | ![]() | 1 | L | 1-3/16″Wall | 2 | |||
| B | Right Back Panel | ![]() | 1 | M | Wall Anchor | ![]() | 2 | ||

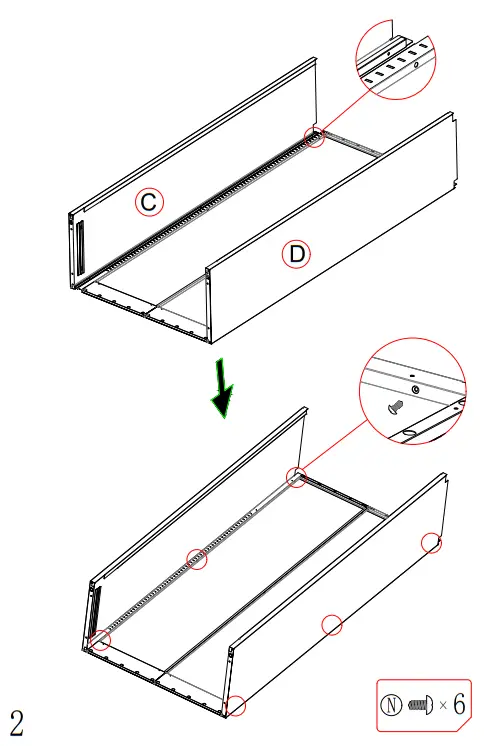

| C | Left Side | ![]() | 1 | N | 13/32″Screw | ![]() | 22 | 2 | |

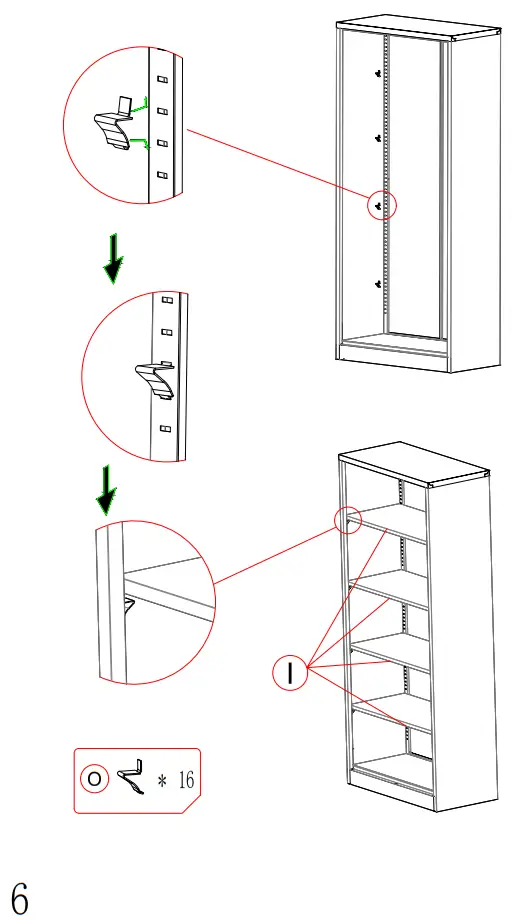

| D | Right Side | ![]() | 1 | O | Shelf Support | ![]() | 16 | ||

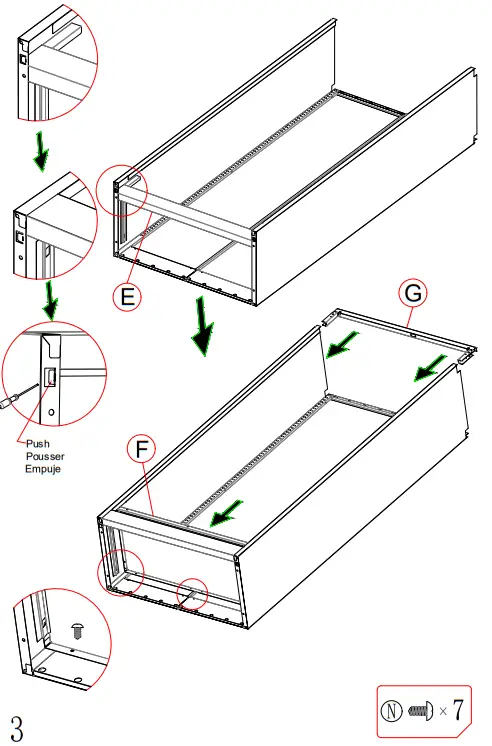

| E | Kick Plate | ![]() | 1 | S | Door Pivot Pin | ![]() | 2 | ||
| F | Bottom Panel | ![]() | 1 | T | Shim | ![]() | 4 | ||

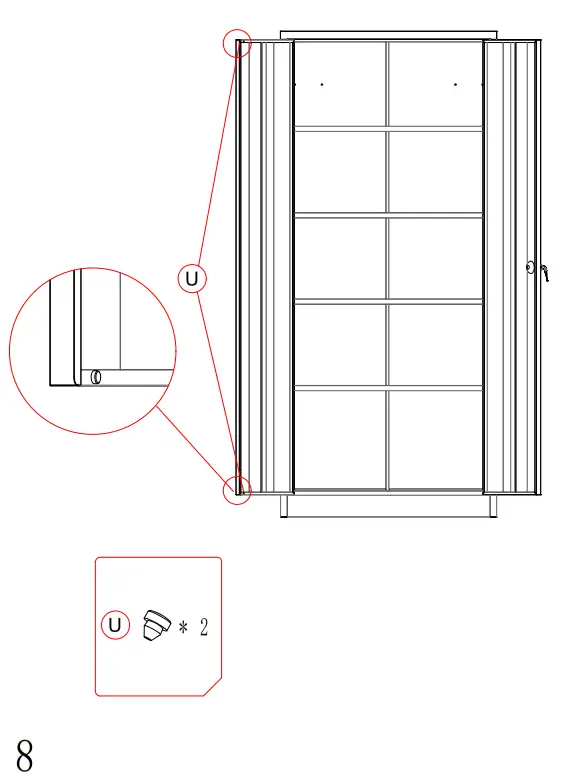

| G | Top Rail | ![]() | 1 | U | Foam Pad | ![]() | 2 | ||

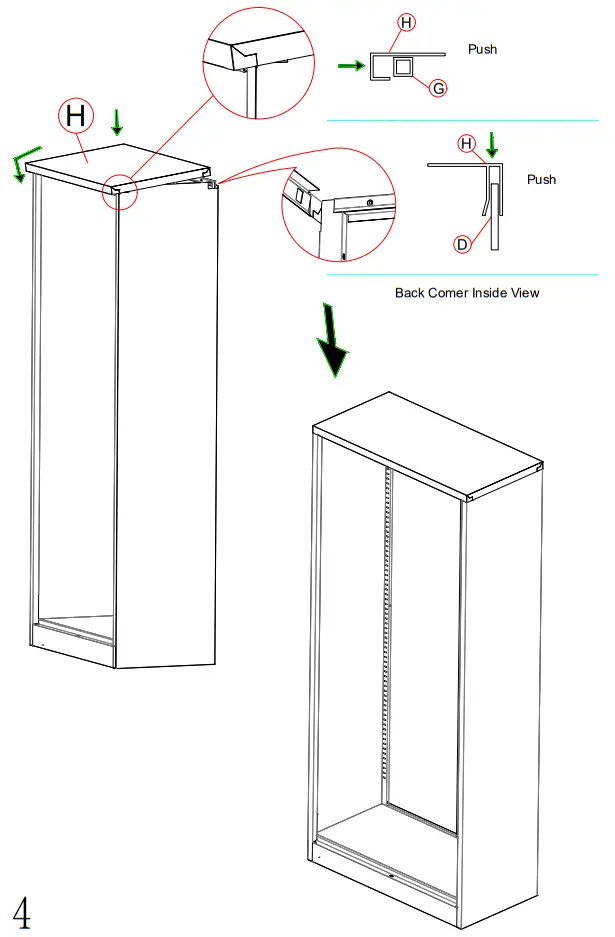

| H | Top Panel | ![]() | 1 | ||||||
| I | Shelves | ![]() | 4 | ||||||

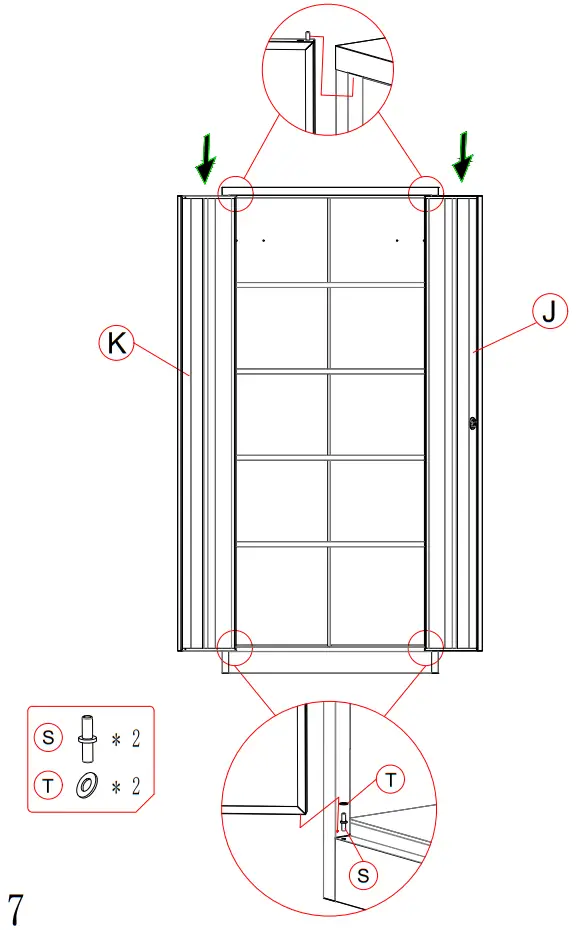

| J | Right Door | ![]() | 1 | ||||||
| K | Left Door | ![]() | 1 | ||||||
SIZE COMPARISON CHART

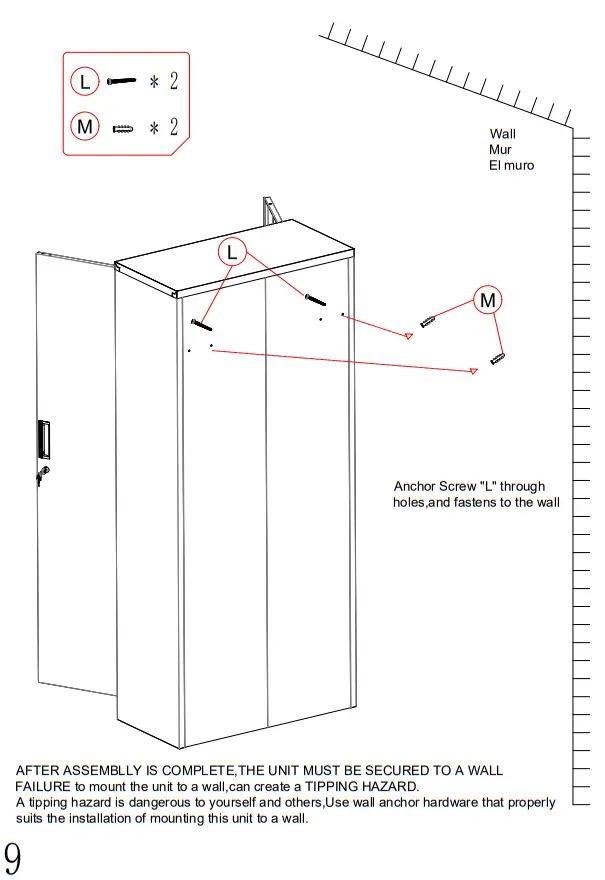

| L | 1-3/16″ Wall Anchor Screw | |
| N | 13/32″ Screw | ![]() |
CAUTION
An assistant is required.









This Product is designed for stationary use only.
Do not use it with any type of mobile cabinet conversion device.
