CX729SC-WAL Walnut Storage Cabinet
Instruction Manual
MADE IN CHINA
ASSEMBLY INSTRUCTIONS
| ITEM | DESCRIPTION | PART | QTY |
| I | Top panel |  | 1 |
| 2 | Bottom panel |  | 1 |
| 3 | Left side panel |  | I |
| 4 | Right side panel |  | 1 |
| 5 | Upper fixed shelf |  | I |
| 6 | Lower fixed shelf |  | I |
| 7 | Left divider |  | 1 |
| 8 | Right divider |  | I |
| 9 | Back panel |  | 2 |
| 10 | Adjustable shelf |  | 2 |
| 11 | Left door |  | 1 |
| 12 | Right door |  | 1 |
| 13 | Drawer left said |  | 3 |
| 14 | Drawer right said | | 3 |
| 15 | Drawer back |  | 3 |
| 16 | Drawer button |  | 3 |
| 17 | Drawer front |  | 3 |
Hardware List:
| ITEM | DESCRIPTION | PART | QTY |
| A | Wooden dowel |  | 48 |
| B | Bolt |  | 14 |
| C | Wrench |  | 1 |
| D | Knob |  | 2 |
| E | Long machine screw |  | 2 |
| F | Handle |  | 3 |
| G | Short machine screw | | 6 |
| H | Door fitting |  | 6 |
| I | Round head screw |  | 36 |
| J | Shelf support |  | 8 |
| K | Plastic anchor |  | 1 |
| L | Mounting screw |  | 1 |
| M | Flat washer |  | 1 |
- Required screwdriver & mallet, not included.
- Before discarding packing materials, please check to make sure that all parts and hardware is present.
- Two people are needed for assembly.
- Please follow the instructions closely; do not over-tighten screws or bolts unless instructed.
- After a few days from the initial assembly, the product may have acclimated to the new environment. Please retighten the hardware.

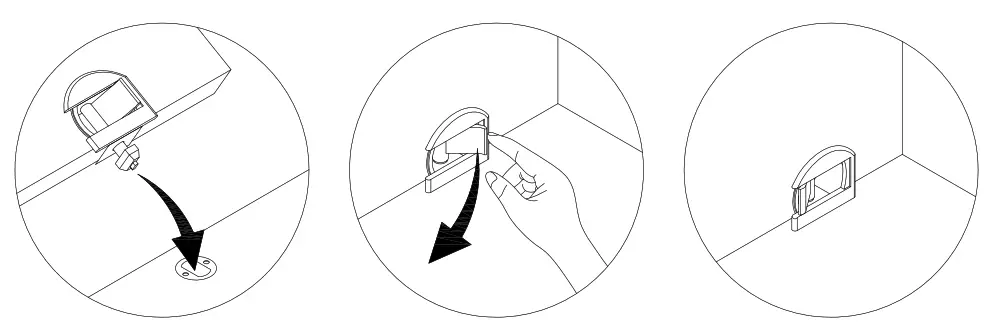

Guideline For Assembling of Plastic Lock
 |  |
 |  |
 |  |
 |  |
