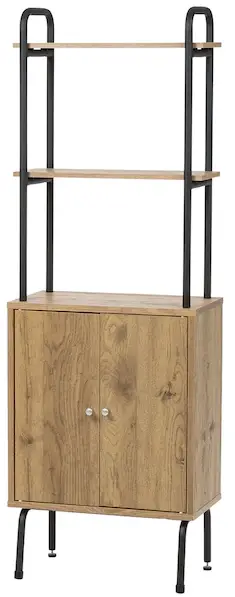

IRIS 590077 Rustic Industrial Storage Cabinet
Tool Required
- Cross-head Screwdriver
WEIGHT CAPACITY IS MEASURED VALUE, NOT GUARANTEED VALUE.
PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
IMPORTANT
- READ ALL INSTRUCTIONS PRIOR TO ASSEMBLY.
- FOLLOW ASSEMBLY INSTRUCTIONS PROPERLY TO ENSURE MAXIMUM PRODUCT STRENGTH AND STABILITY,

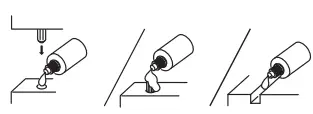

- Gluing dowel and slot
- Tightening Pin Screw clockwise using a Phillips screwdriver

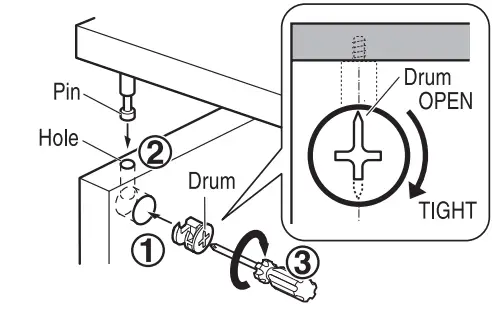

- Tightening Drum
- Insert tightening drum: Being careful of orientation, insert the drum to the back With an etched arrow at top. (Drum cannot be secured if oriented incorrectly)
- Insert tightening pin into hole
- Turn tightening drum: Secure by turning 135-180 degrees clockwise.

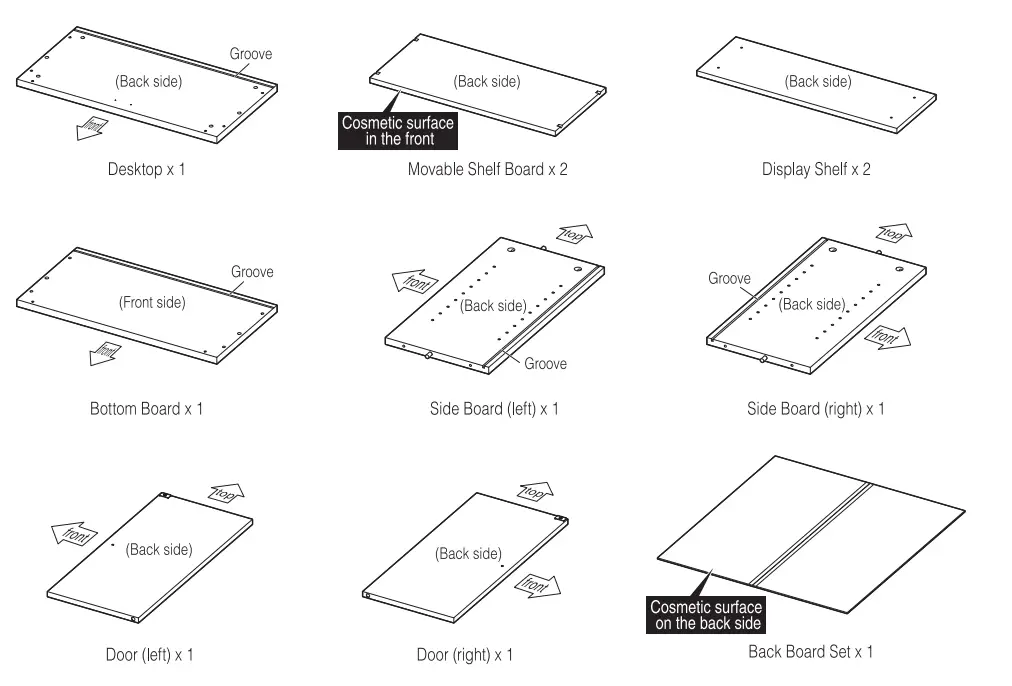

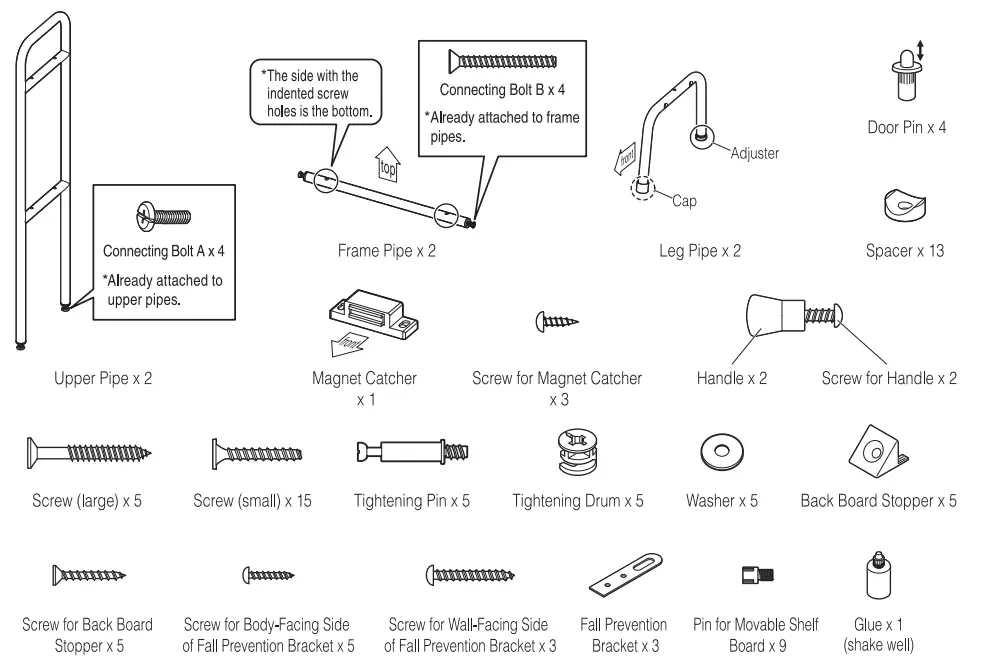

INCLUDED PARTS
ASSEMBLY METHOD
- ASSEMBLE INDOORS ON A FLAT SURFACE, AND BE WARY OF SCRATCHES ON THE FLOOR FROM ASSEMBLY.
- VERIFY THAT ALL PARTS ARE PROPERLY INSTALLED.

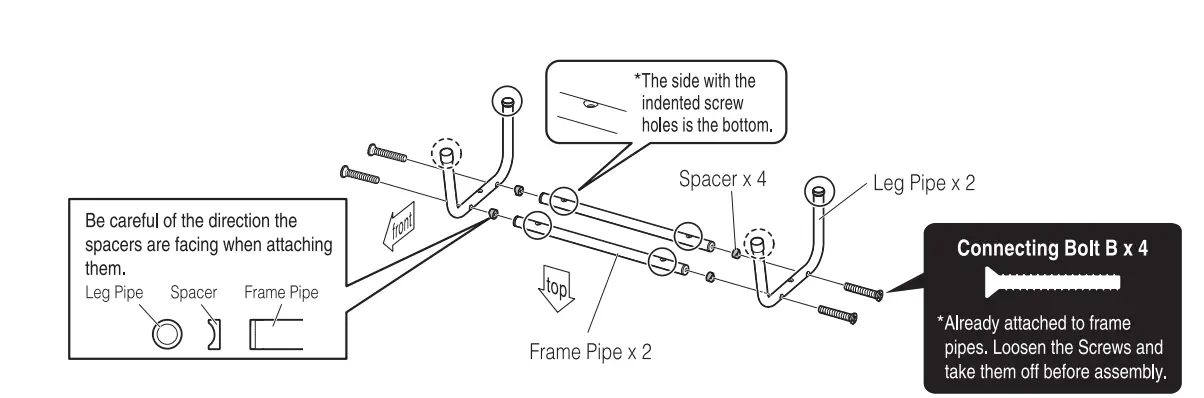

- Attach the leg pipes to the frame pipes, and temporarily tighten connecting bolts B.

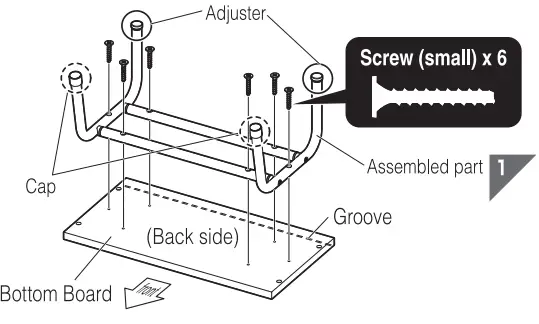

- Attach the assembled part to the bottom board and fully tighten the screws (small) and connecting bolts B.

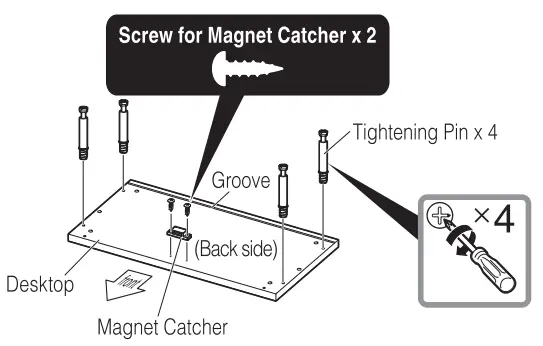

- Attach the magnet catcher and tightening pins to the desktop.

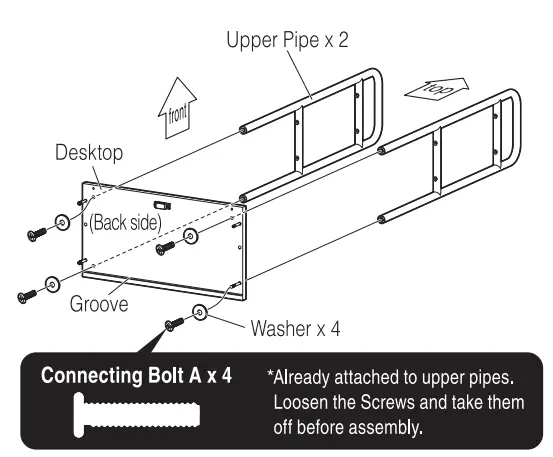

- Attach the upper pipes to the desktop.

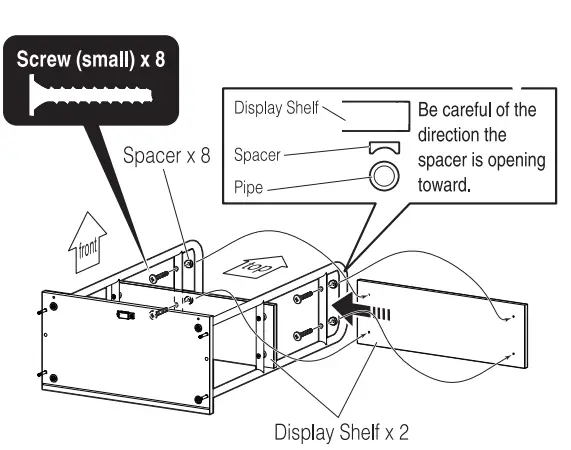

- Attach the display shelves.

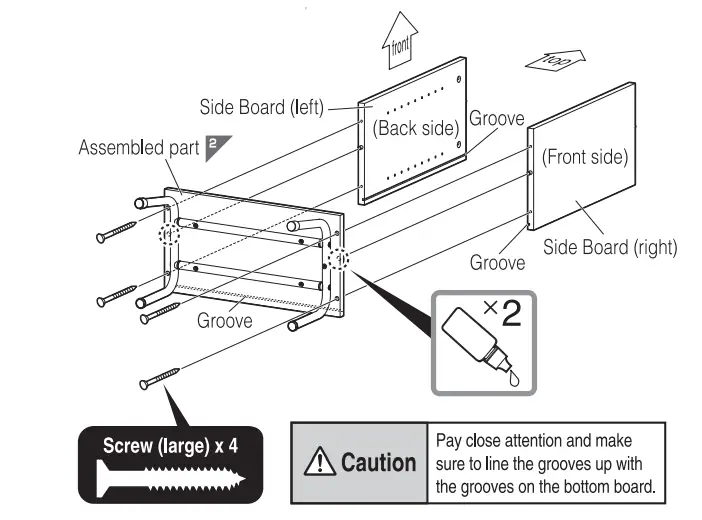

- Attach the side boards (left and right) to assembled part.

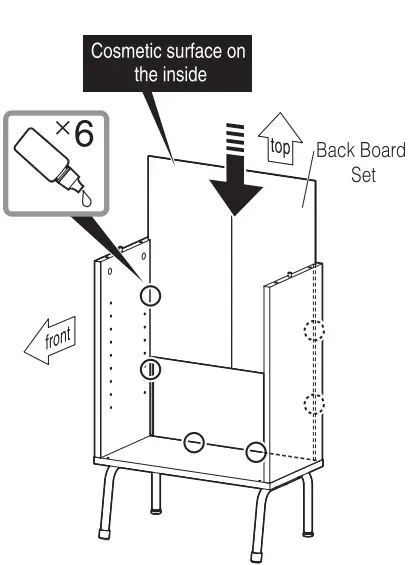

- Attach the backboard set.

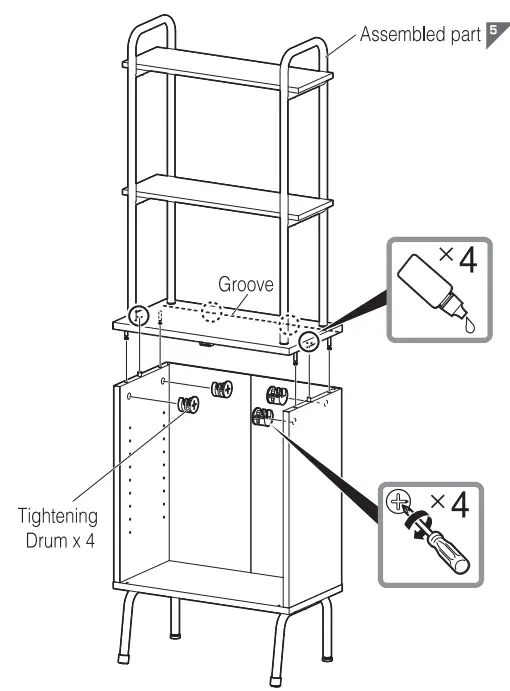

- Attach assembled part.

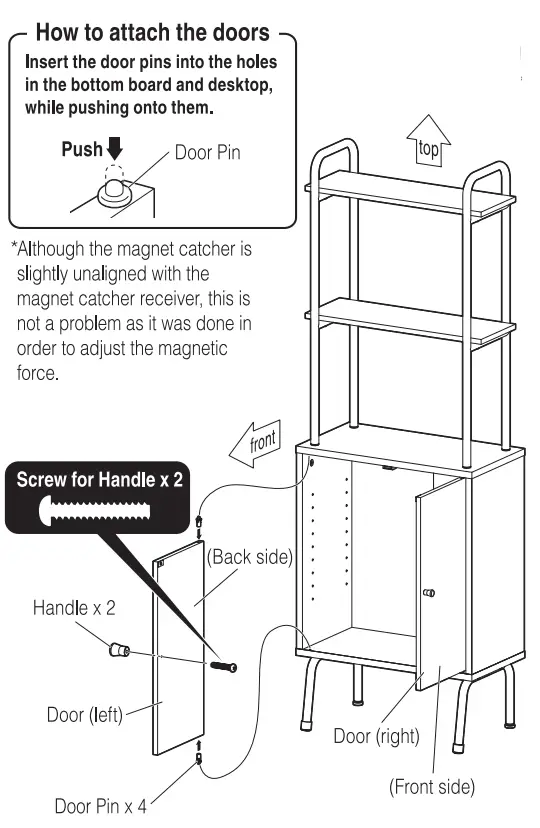

- Attach the doors (left and right).

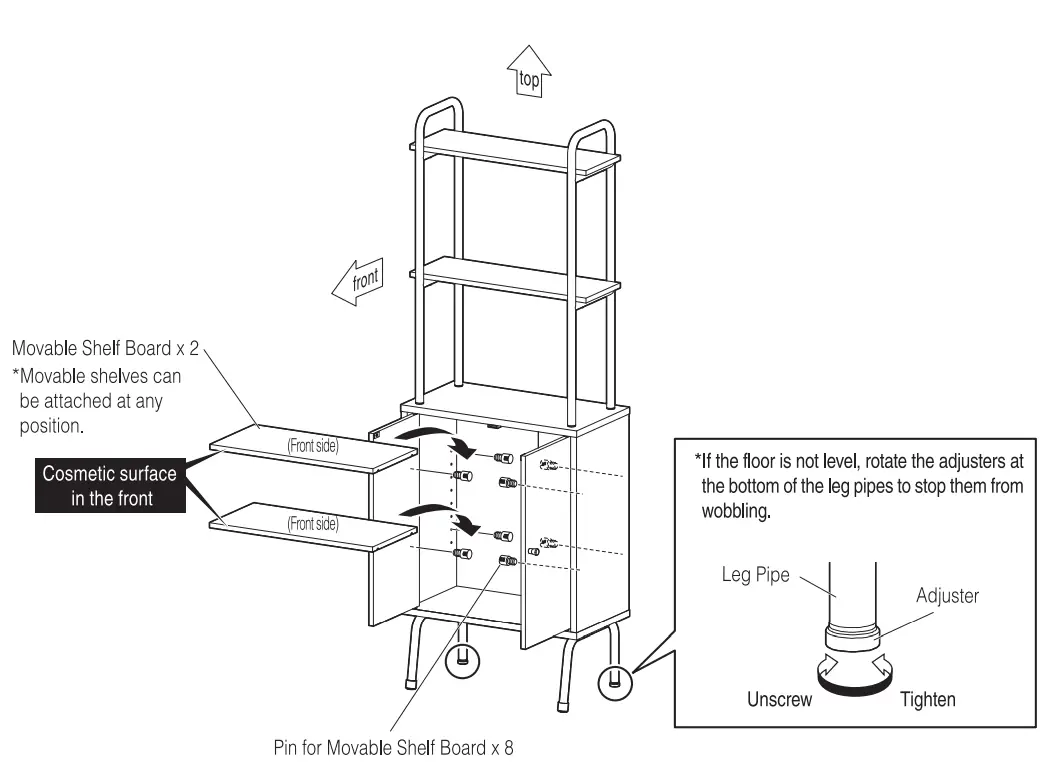

“Although the magnet catcher is slightly unaligned with the magnet catcher receiver, this is not a problem as it was done in order to adjust the magnetic force. - Attach the movable shelf boards.

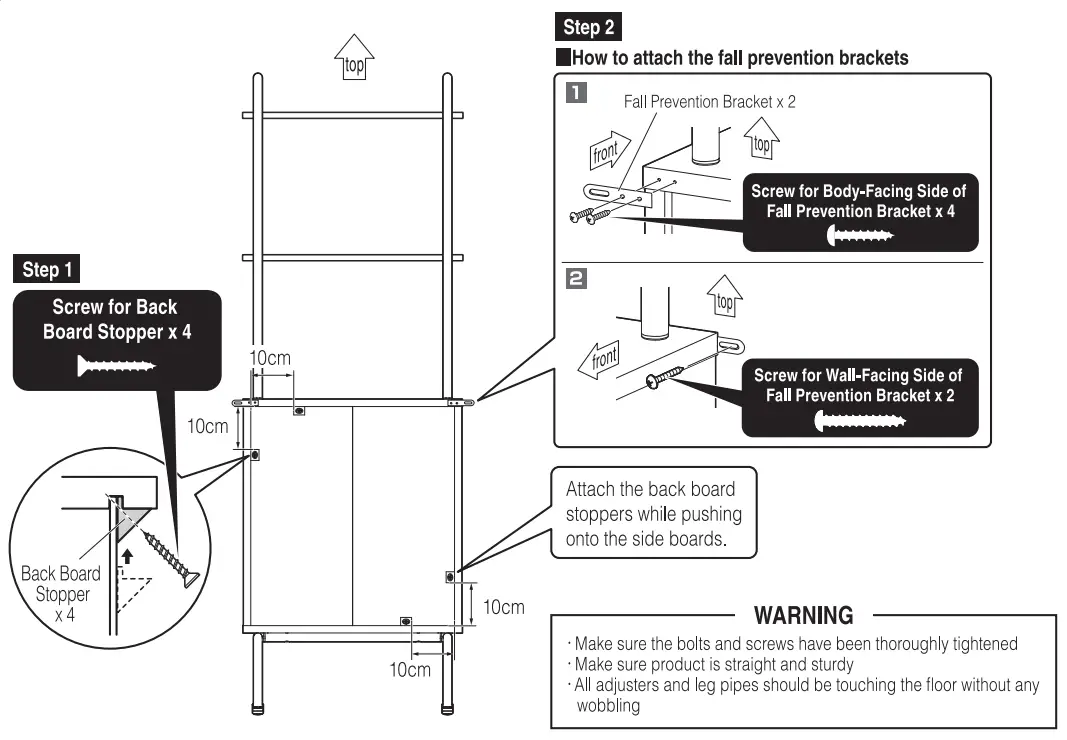

- Attach the back board stoppers (4 points) and fal prevention brackets to complete assembly.
PRECAUTIONS
FOR INDOOR STORAGE USE ONLY
- Do not place product near a heater or any other source of heat/fire,
- Keep product on a flat and stable surface.
- Do not allow children to play with product.
- Do not exceed the weight capacity.
- Do not place things that exceed the weight tolerance on or inside the product.
- When moving product, take all items off.
- Assemble correctly according to the assembly method in this manual.
- Use of this product on flooring or other easily damaged floor surfaces may result in scratches or dents on the floor surface, so use sufficient caution.
- When placing tems on product, distribute weight evenly.
- There may be oil adhering to the pipes, so wipe it off promptly.
- When opening or closing the doors, avoid pinching your fingers.
- Do not close the doors tightly. It may cause damage.
- Keep away from direct sunlight or high humidity.
- Wipe away any water, oil, or soap immediately.
- Do not place hot or wet items on the product.
- Do not place stickers or tape on product.
- If the product becomes unbalanced or unstable, please remove some of the stored items.
- Check that screws are properly tightened after installation. Screws may loosen over time, and re-tighten as needed.
- No refund will be provided for accidents or damages caused by natural disasters, improper usage, or unauthorized modifications made to the product.
- Follow the local rules and regulations when disposing of product or package materials.
- Placing product in a well-ventilated area is recommended before first use
MAINTENANCE
TO MAINTAIN OPTIMAL PERFORMANCE OF PRODUCT, OBSERVE THE FOLLOWING:
- Do not scrub the wooden shelf surface hard while cleaning. It may damage the surface.
- To remove hard stains, wipe with soap and water using a non-abrasive cloth and dry product thoroughly.
- Do not use cleaning products such as alcohol, gasoline, bleach or detergent powder.
