Devaise Asng010 Wood 5 Drawer Storage Cabinet Instruction Manual

ASNG010 Wood 5 Drawer Storage Cabinet
Instruction Manual

IMPORTANT INFORMATION
READ CAREFULLY.
KEEP THIS INFORMATION FOR FURTHER REFERENCE.

GENERAL GUIDELINES

• Please read the following instruction carefully and use the product accordingly.
• Please keep this manual and hand it over when you transfer the product.
• This summary may not include every detail of all variations and considered steps.
  Please contact us when further information and help are needed.

NOTES

• Please follow the assembly instructions precisely and only use the product as intended.
• If an odor is present when first opening the package, please leave the unwrapped product in a shaded and ventilated area for a few days to air out.
• Prior to assembly, please check the product for defects or missing accessories. If any defects are found or accessories are missing, do not use product as damage or injury may occur;
  Please contact us for assistance and replacement.
• It is suggested you regularly check the product’s bolts and connections to ensure safe use.

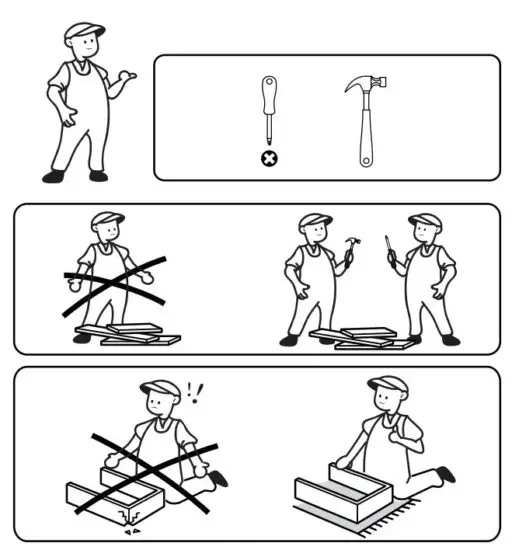

• Assemble the item on a soft flat and clean surface to avoid scratches and damage.
• It is recommended that two people assemble this product.

WARNINGS

• During assembly, keep parts and packaging materials away from children and pets as there could cause injury and are a potential choking hazard.
• Avoid sharp objects or corrosive chemicals to prevent damage to the product.
• Please open the item slowly and cautiously to avoid pinching your hands with metal joints, especially for children.

• If you have any further questions, please feel free to contact us by email or official website: www.devaise.com We will reply ASAP.
• Before installation, please make sure you have all the hardware, the serial numbers are properly labeled corresponding to the list, and the quantity is correct.
• Enjoy your new purchase!

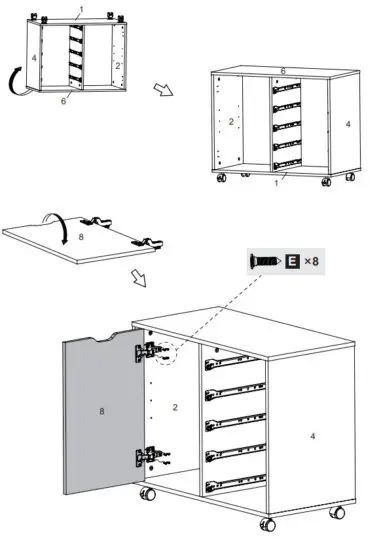

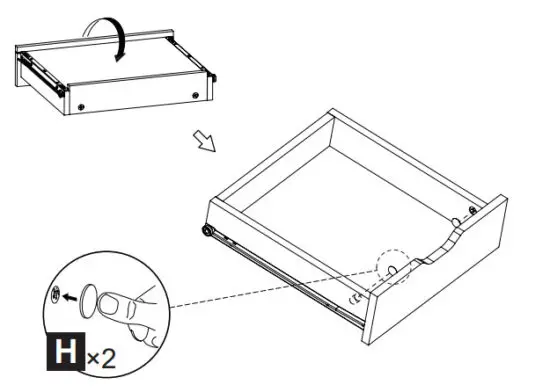

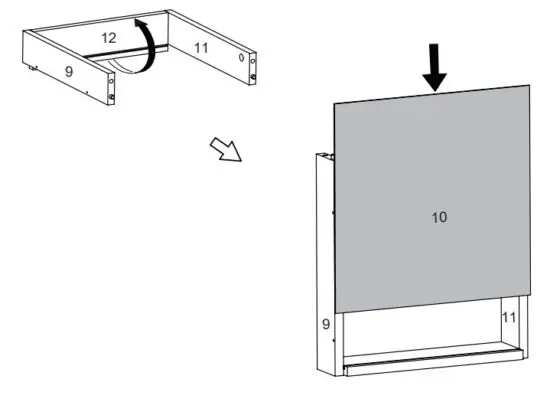

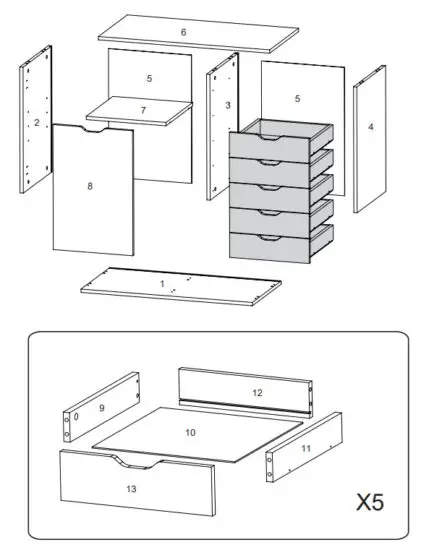

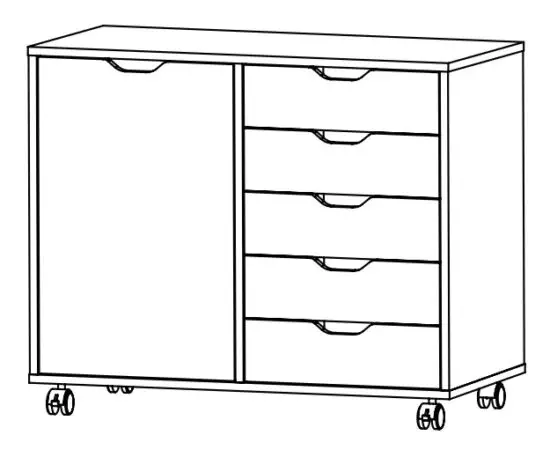

EXPLODED DRAWING

PARTS

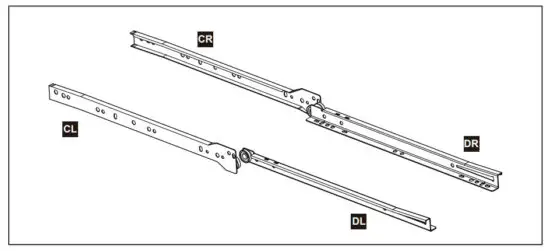

REMARK

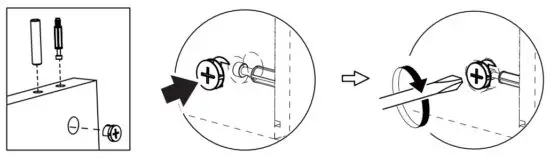

MINIFIX POSITION

REMARK
Put a blanket under the board to avoid scratches or damage.

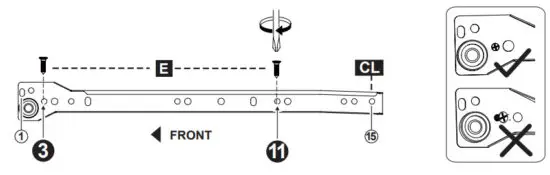

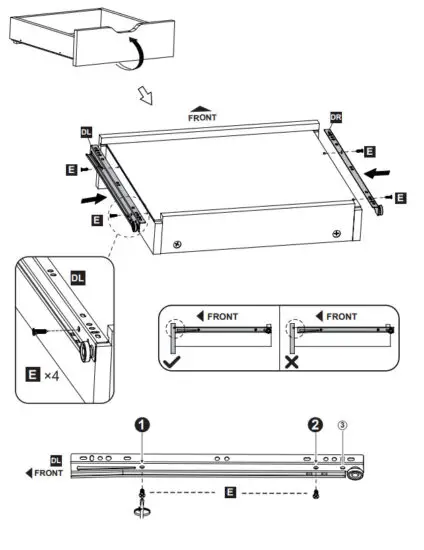

1. When installing, please make sure the screws are flattened, Not crooked; Otherwise, the drawers will not be installed perfectly.

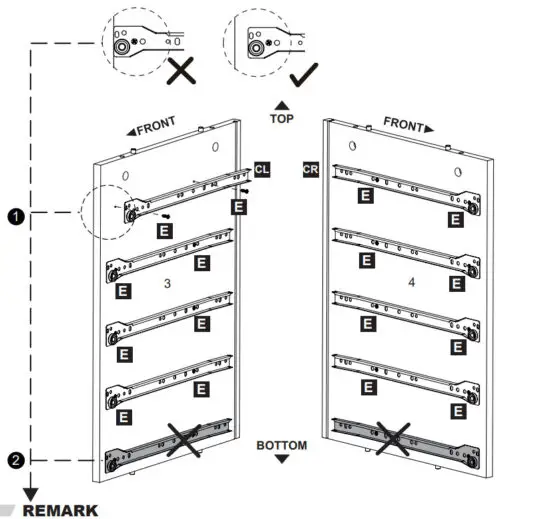

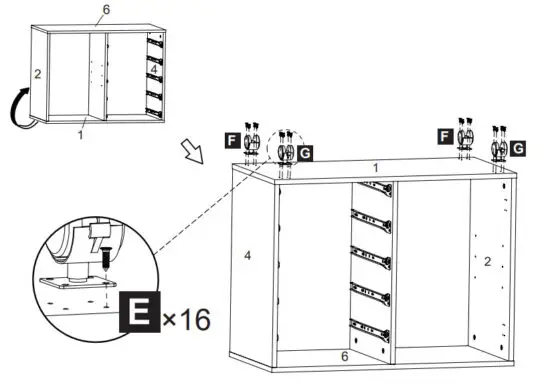

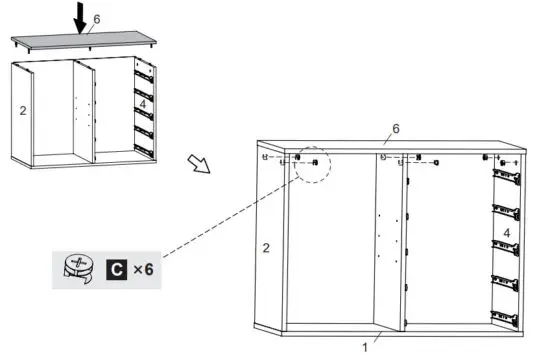

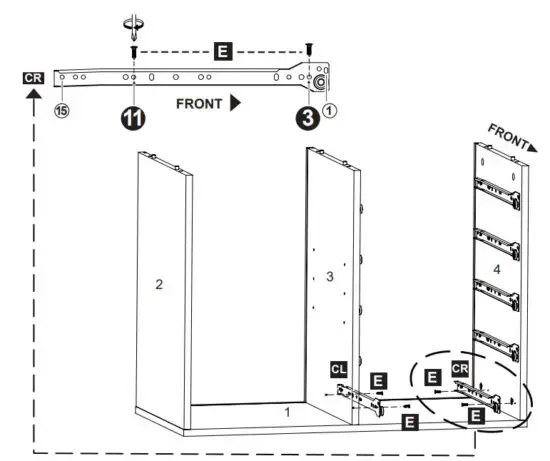

2. Please do not install the bottom drawer runner part in this step, otherwise, it will not be able to install the connector housing ( Part C ), the bottom drawer runner part will be installed in step 7.

REMARK

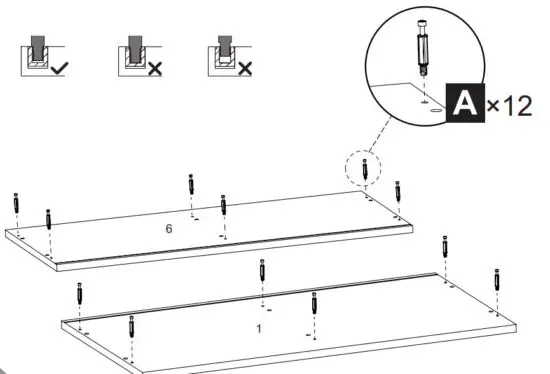

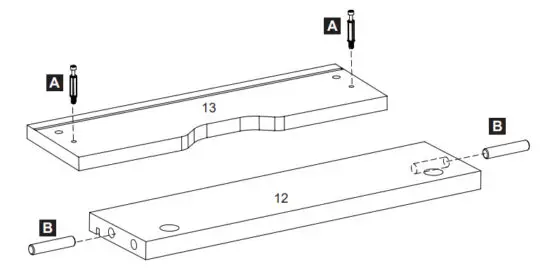

Please do not screw A too deep or too shallow.

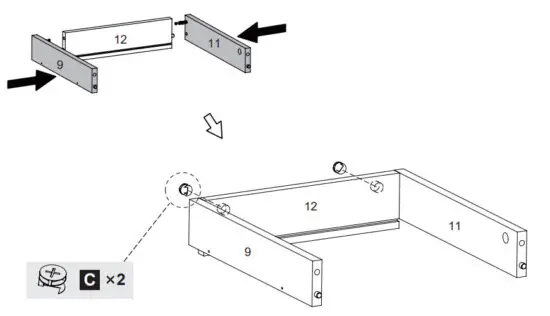

REMARK

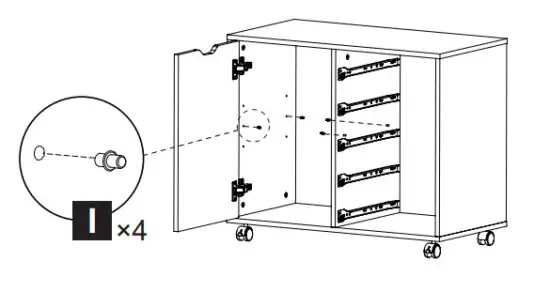

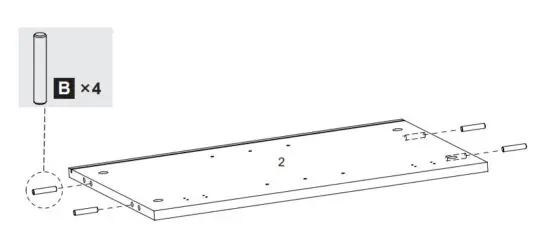

Please make the screw holes on part 2 and part 3 are relative when installing.

REMARK

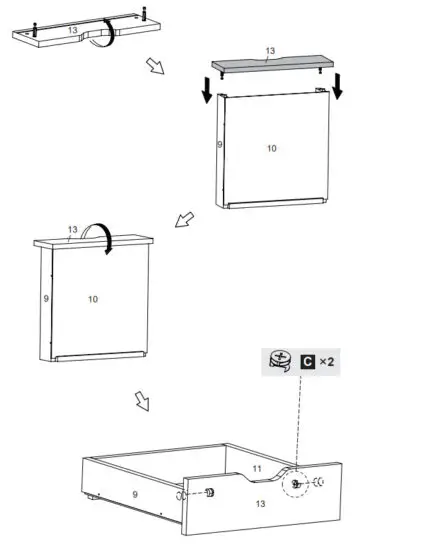

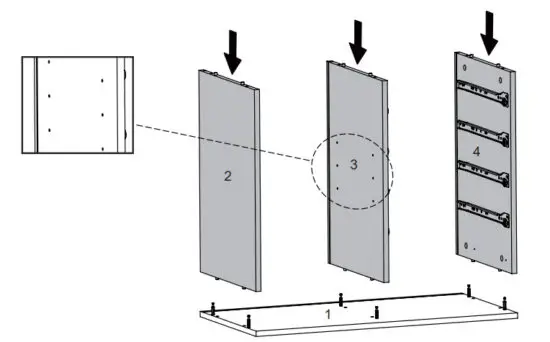

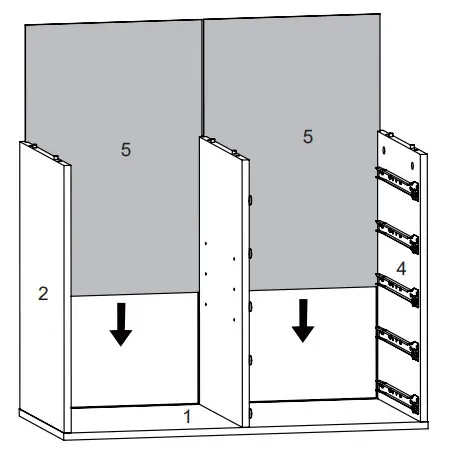

Let the grooves on part 2 3 4 be connected to the groove on part 1.

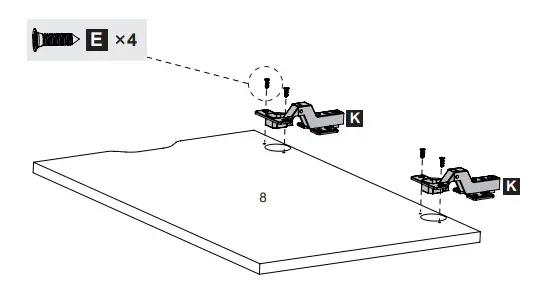

REMARK

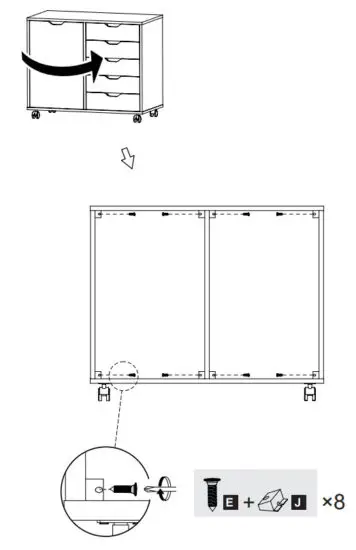

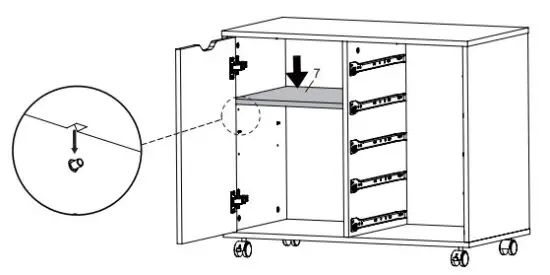

Please make the groove on board 7 match with part I.

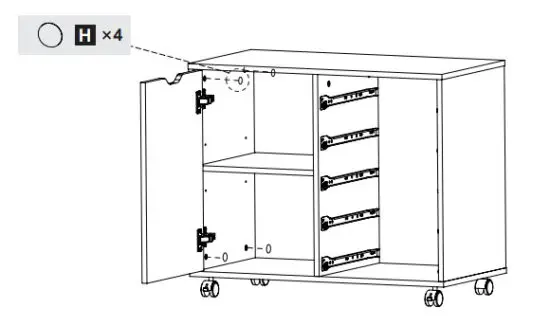

HINGE ADJUSTMENT

If the door do not appear square or aligned, loosen or tighten the appropriate screws on each case hinge as illustrated.

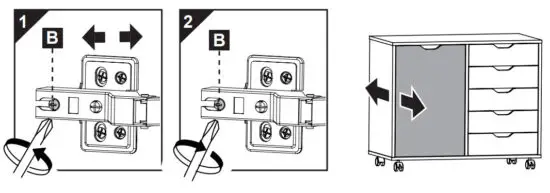

DEPTH ADJUSTMENT

Loosen screw B ( Do not lose screw B to the end), push hinge arm forwards or backward, and re-tighten screw B.

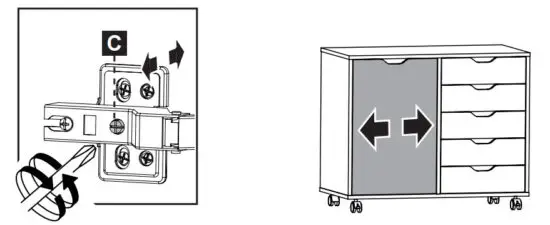

SIDE TO SIDE ADJUSTMENT

Adjust the screw C to make the hinge move left or right to the ideal place.
