AWJG008 Wood 2 Large Drawer File Cabinet
Instruction Manual
IMPORTANT INFORMATION
READ CAREFULLY.
KEEP THIS INFORMATION FOR FURTHER REFERENCE.
GENERAL GUIDELINES
- Please read the following instruction carefully and use the product accordingly.
- Please keep this manual and hand it over when you transfer the product.
- This summary may not include every detail of all variations and considered steps. Please contact us when further information and help are needed.
NOTES
- Please follow the assembly instructions precisely and only use the product as intended.
- If an odor is present when first opening the package, please leave the unwrapped product in a shaded and ventilated area for a few days to air out.
- Prior to assembly, please check the product for defects or missing accessories. If any defects are found or accessories are missing, do not use the product as damage or injury may occur;
- Please contact us for assistance and replacement.
- It is suggested you regularly check the product’s bolts and connections to ensure safe use.

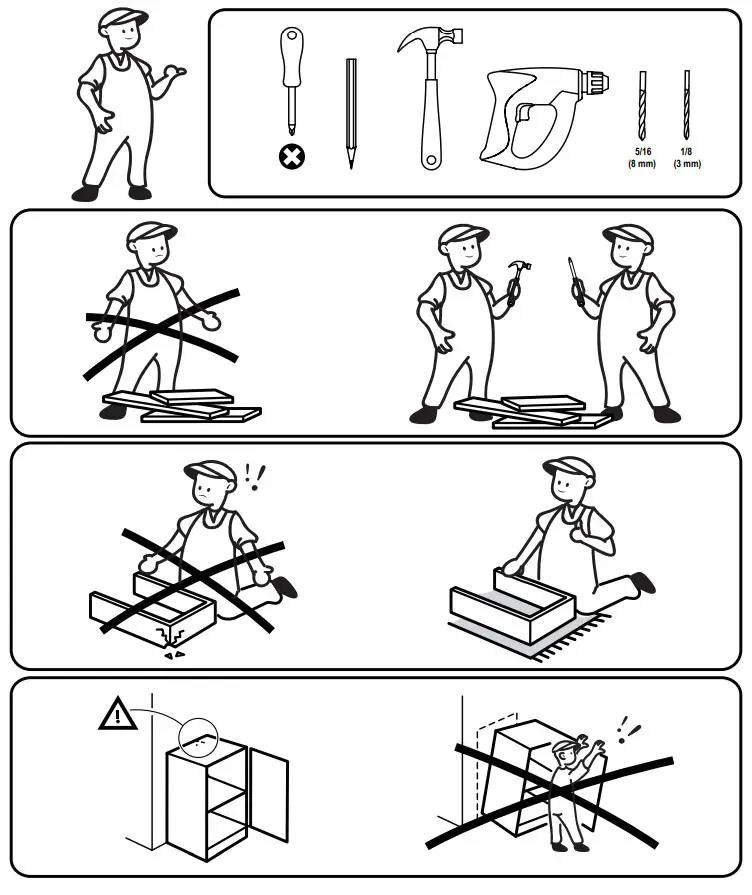

- Assemble the item on a soft flat and clean surface to avoid scratches and damage.
- It is recommended that two people assemble this product.
WARNINGS
- During assembly, keep parts and packaging materials away from children and pets as there could cause injury and are a potential choking hazard.
- Avoid sharp objects or corrosive chemicals to prevent damage to the product.
- Please open the item slowly and cautiously to avoid pinching your hands with metal joints, especially for children.
ANTI-TIP WARNING
- Serious or fatal crushing injuries can occur from furniture tip-over. To prevent this furniture from tipping over it must be permanently fixed to the wall.
- Since different wall materials require different types of fixing devices, for advice on suitable fixing systems, contact your local specialized dealer.
- If you have any further questions, please feel free to contact us by email or official website: [email protected]
- We will reply ASAP.
- Before installation, please make sure you have all the hardware, the serial numbers are properly labeled corresponding to the list, and the quantity is correct.
- Enjoy your new purchase!
EXPLODED DRAWING

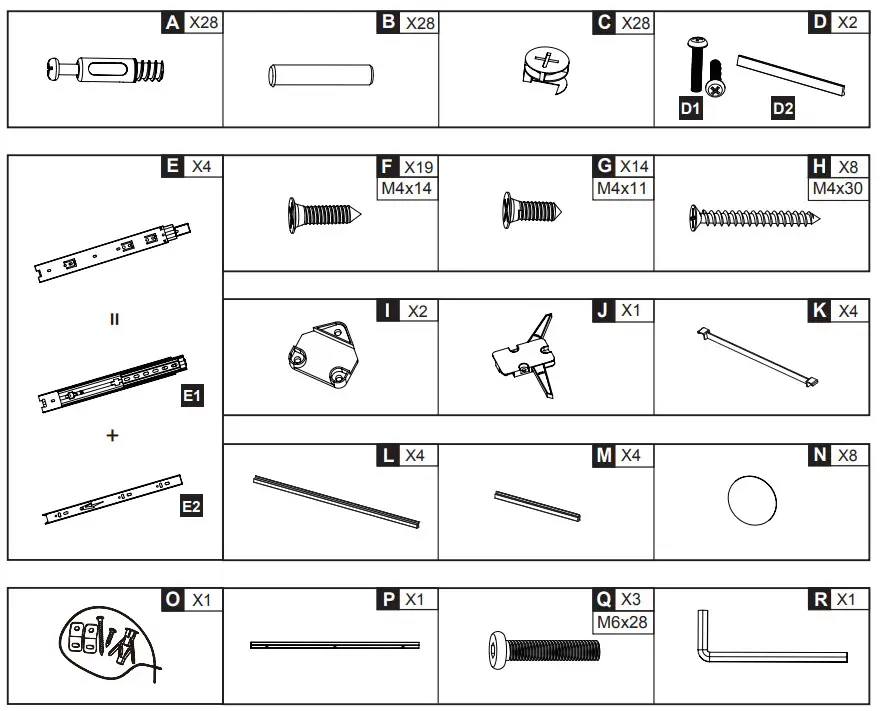

PARTS
REMARK

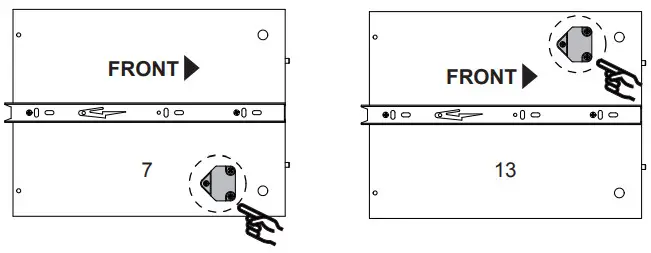

Part 7 board is assembled on the upper drawer1;
Part 13 board is assembled on the bottom drawer2;

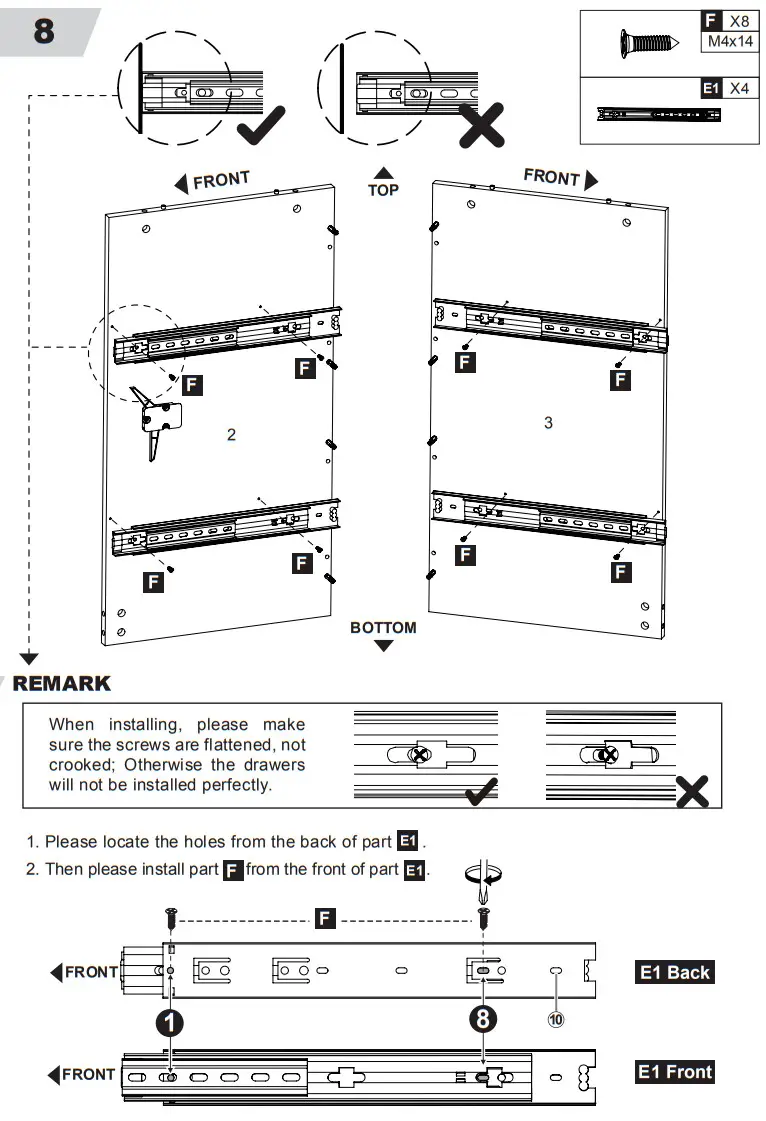

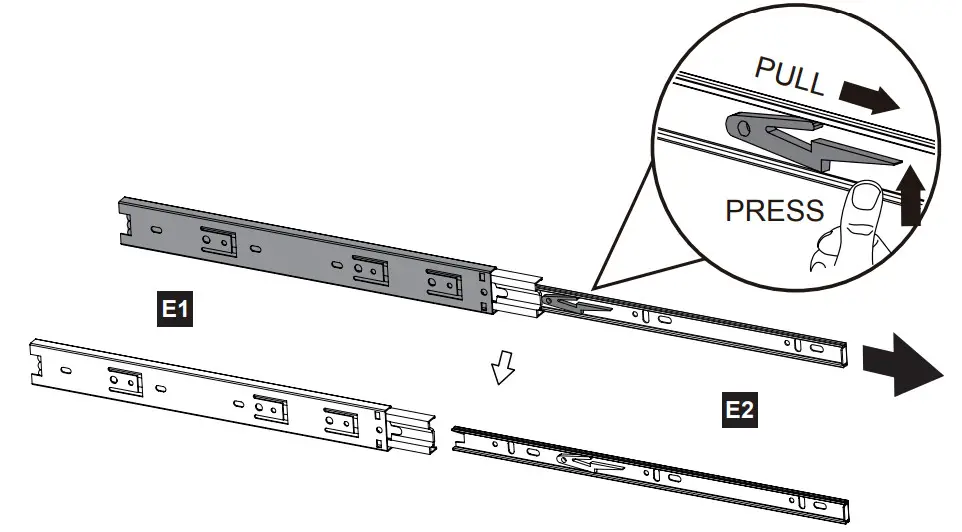

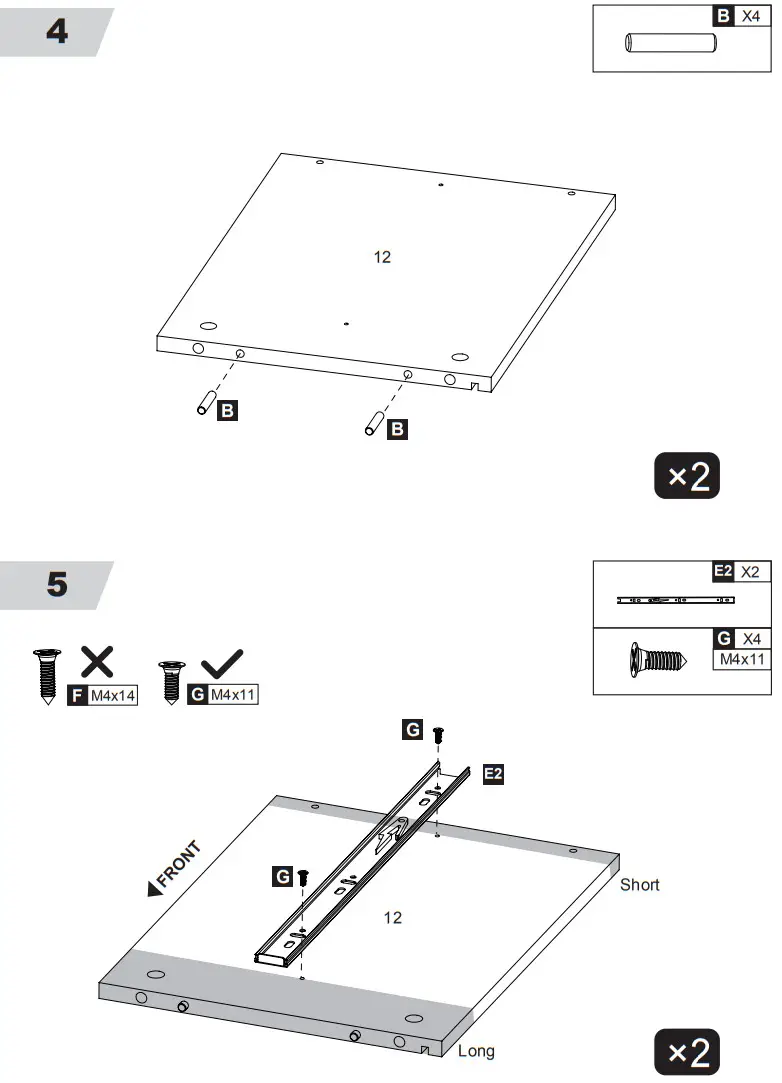

- Press the plastic part in the indicated direction to separate drawer runner E1 and E2 before assembling.
- Please grip the E1 part while sliding the E2 part.

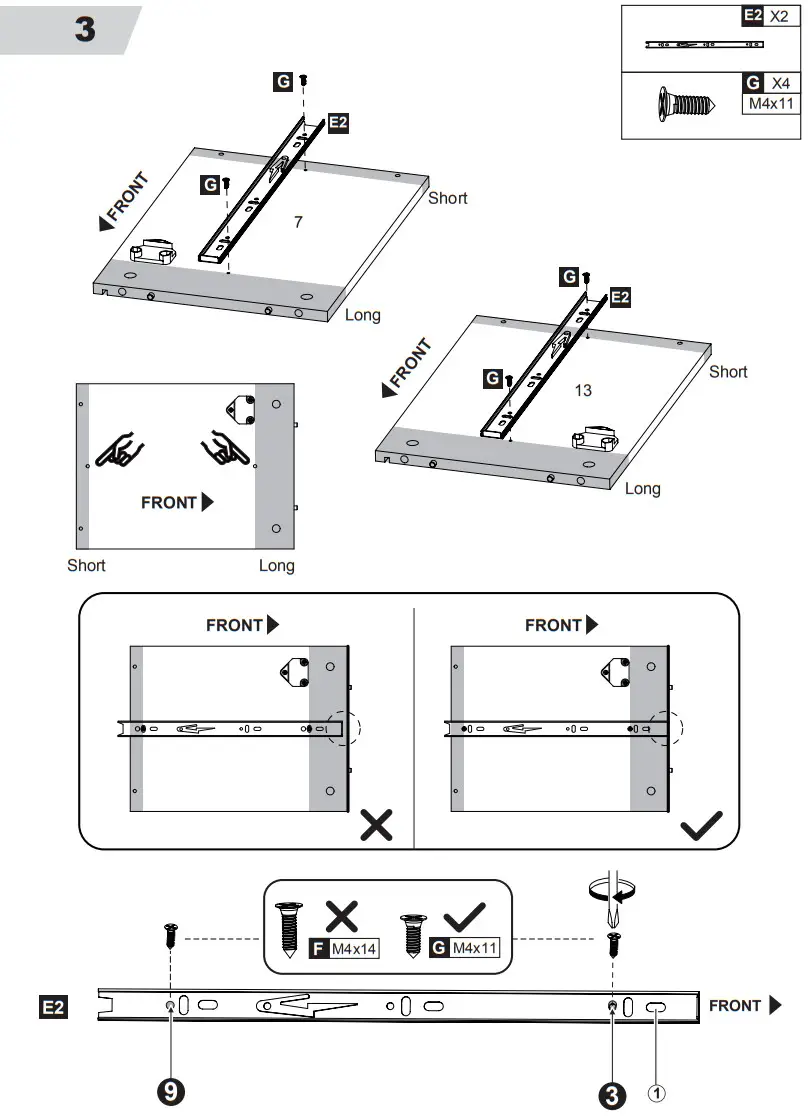

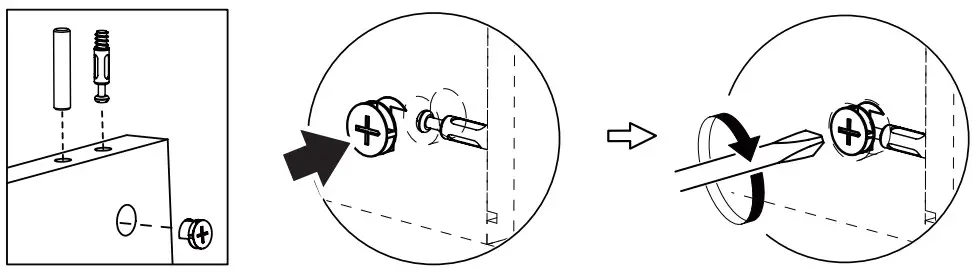

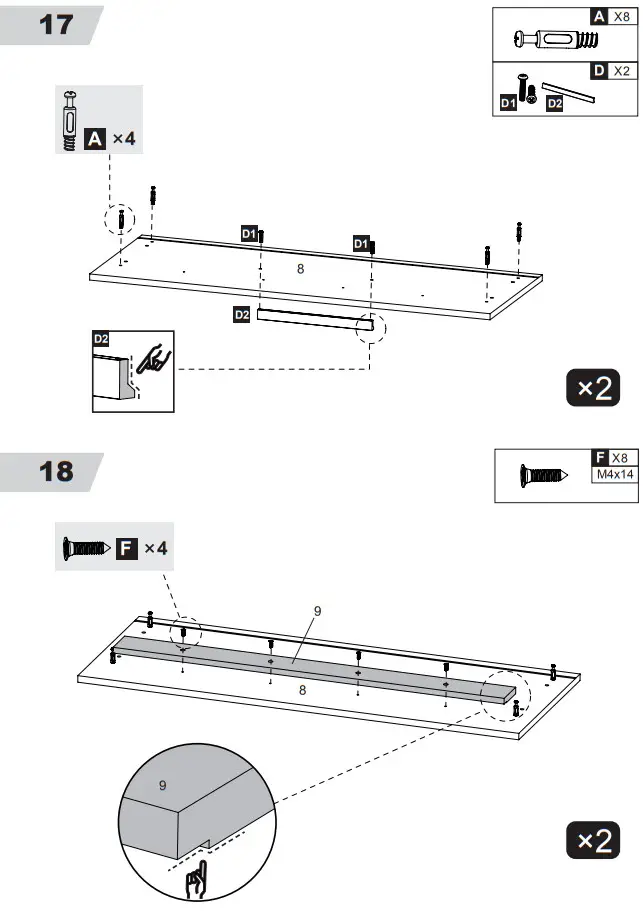

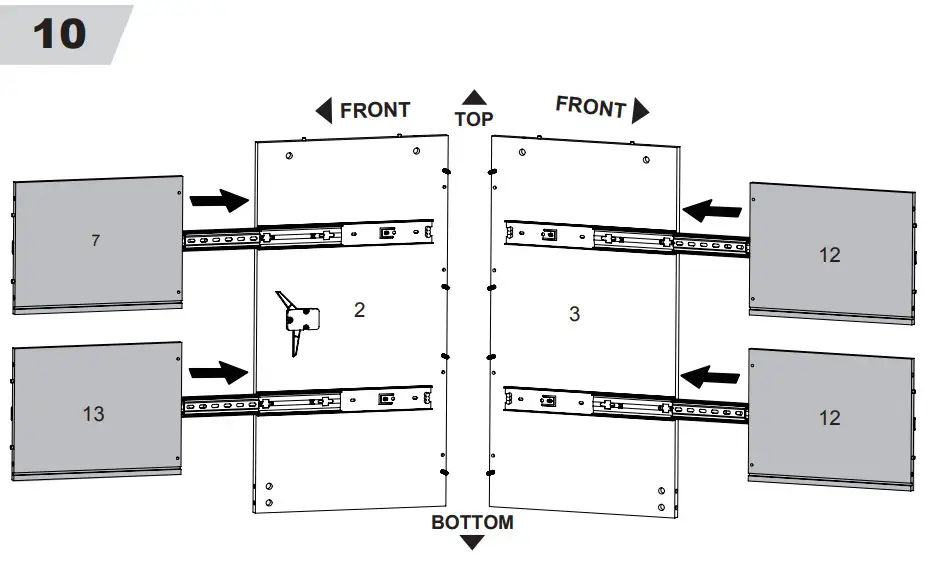

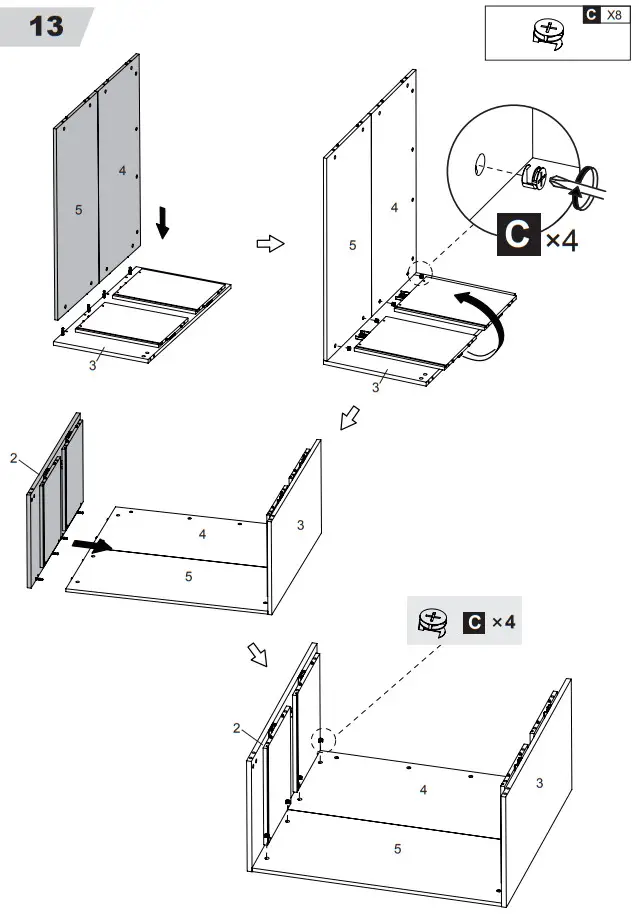

MINIFIX POSITION
REMARK

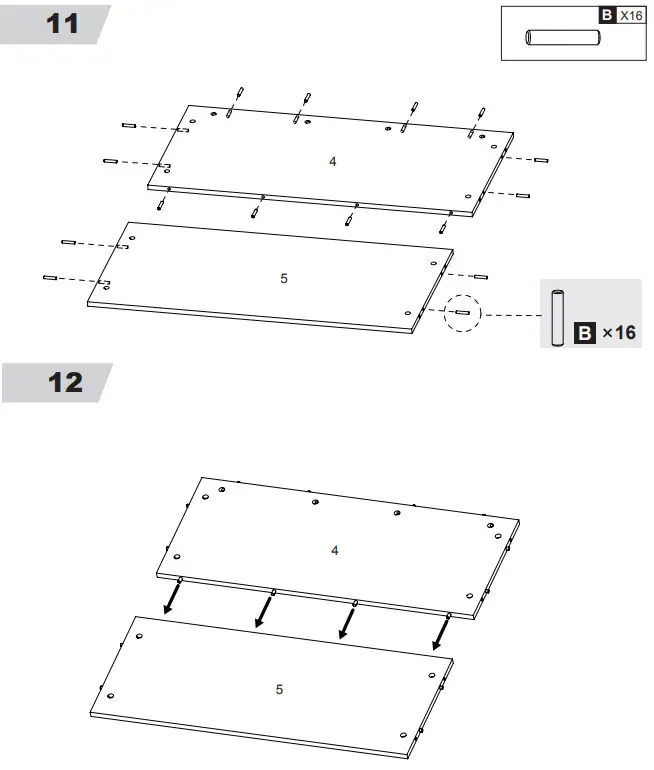

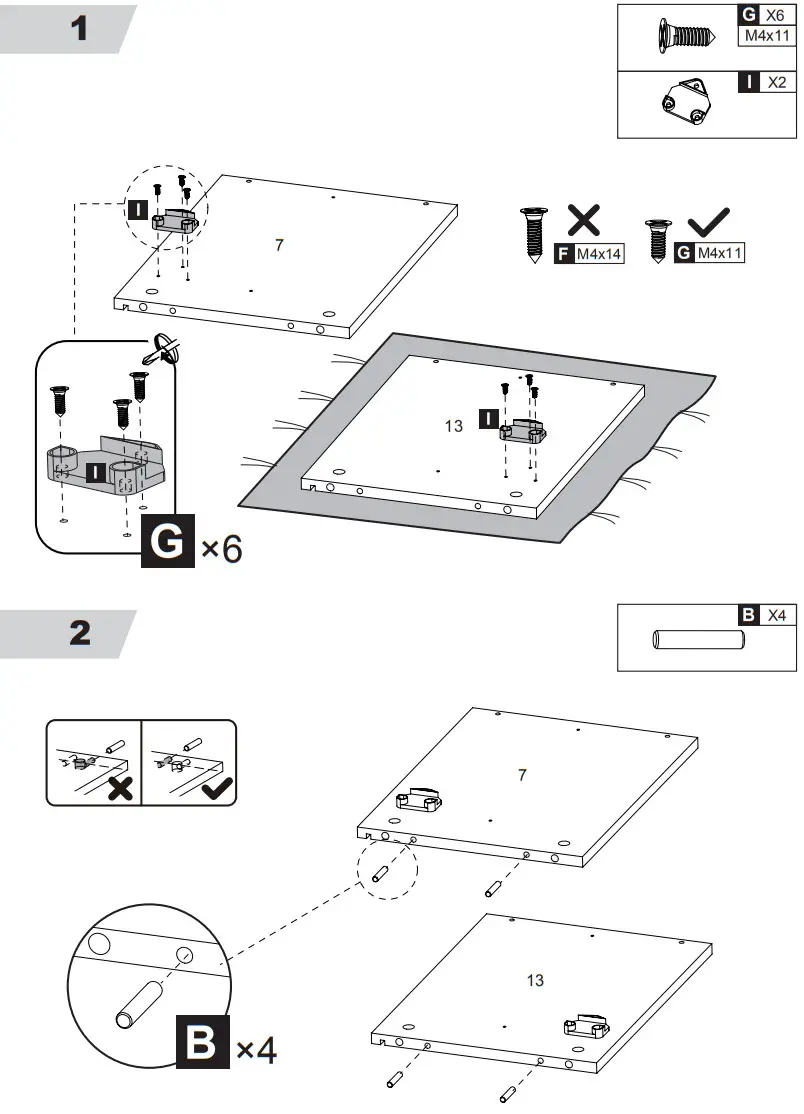

Put a blanket under the board to avoid scratches or damage.
REMARK

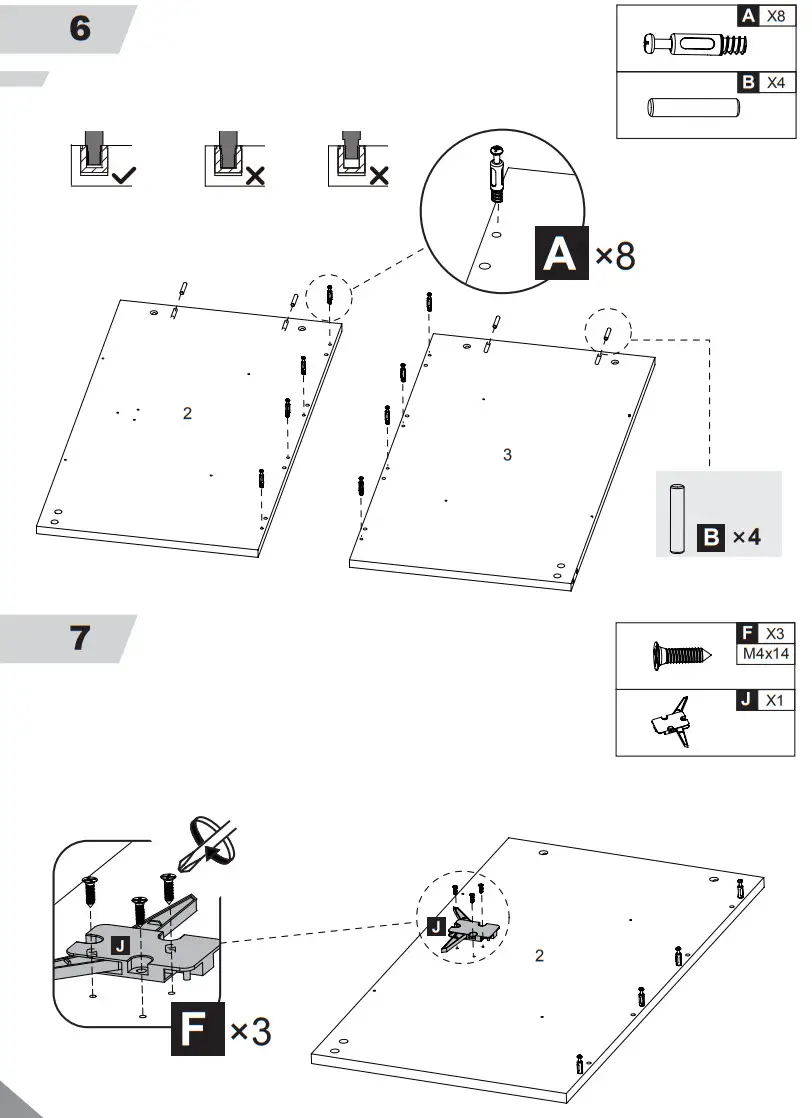

Please do not screw A too deep or too shallow.
REMARK

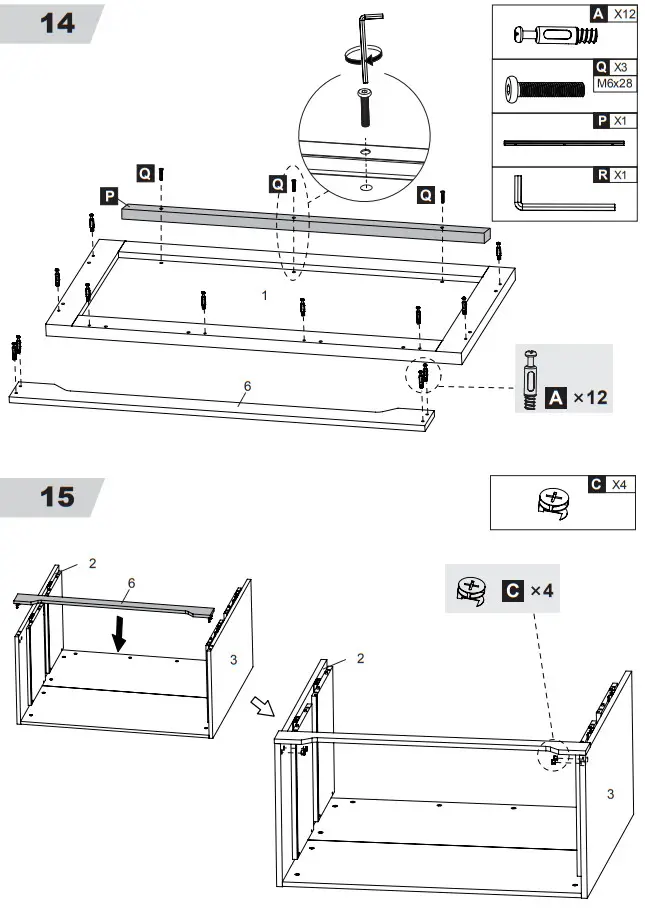

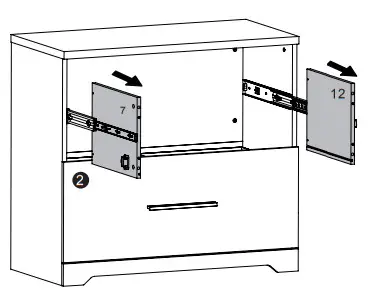

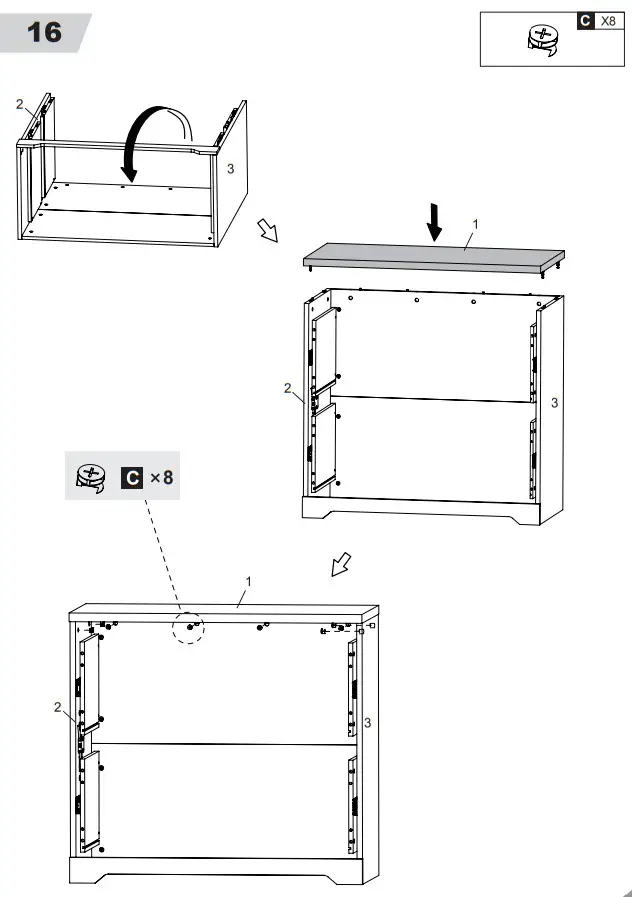

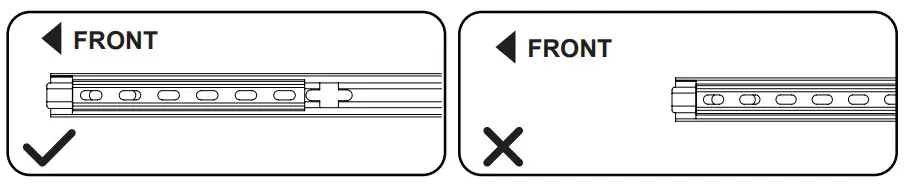

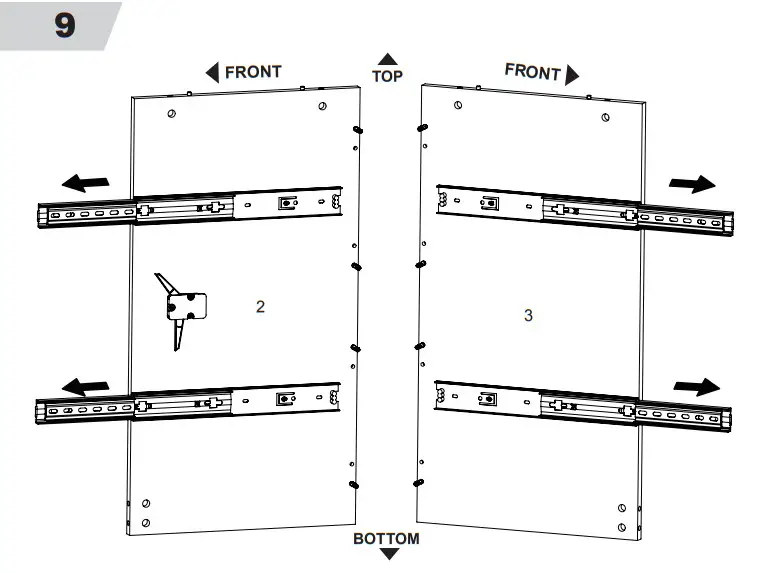

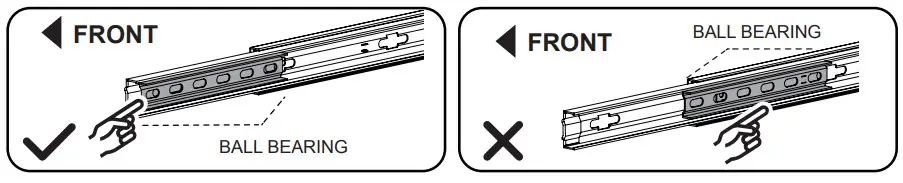

- Please fully extend the slide runners.
- Simply push the ball-bearing cart all the way to the end of the slide(in both sides).
REMARK

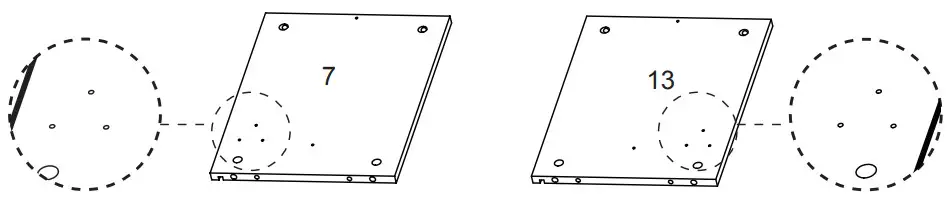

- Note the difference between part 7 and part 13.

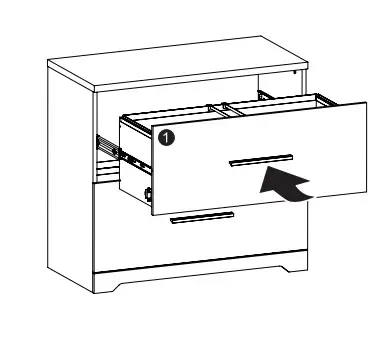

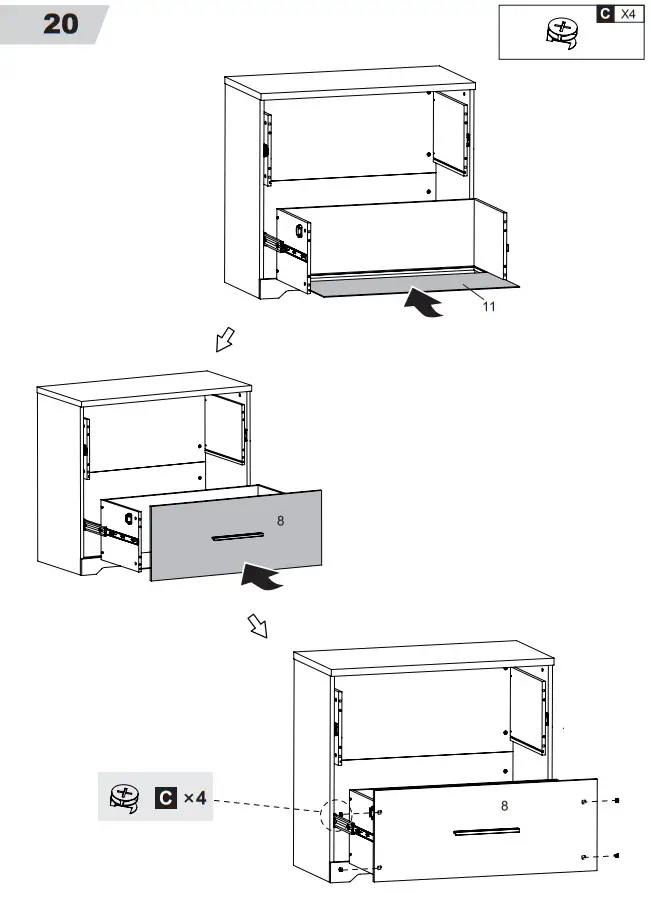

- Align the slide runners on the drawer with the unit and push it carefully inside until it stops.
- If the drawer does not go in smoothly please take it out and repeat the step.
REMARK

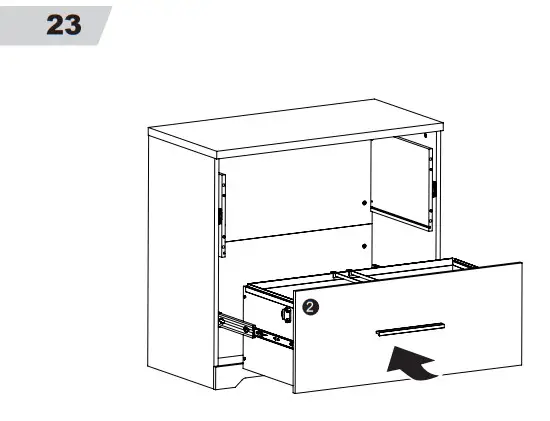

- The bottom drawer must be closed.

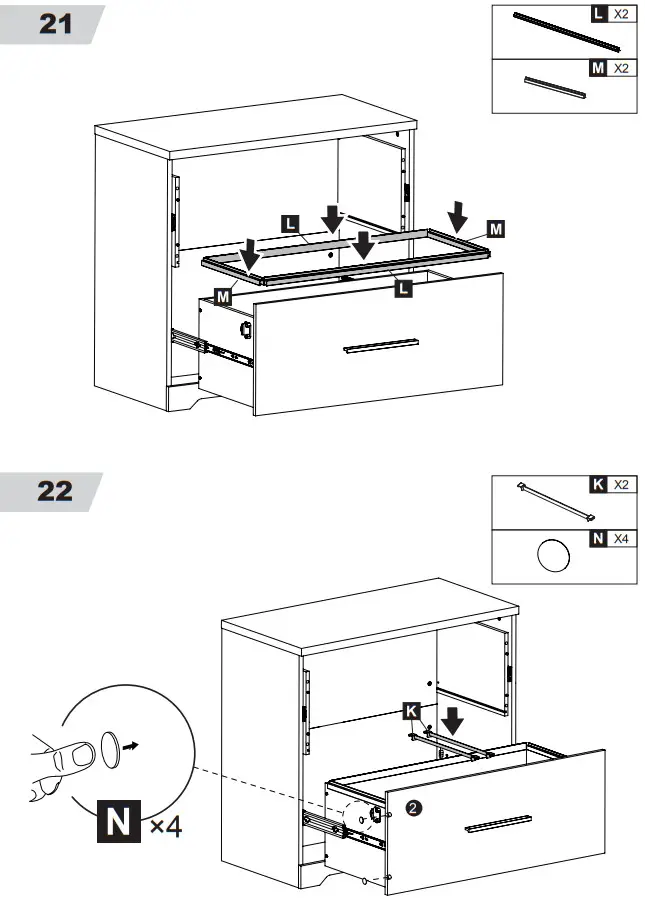

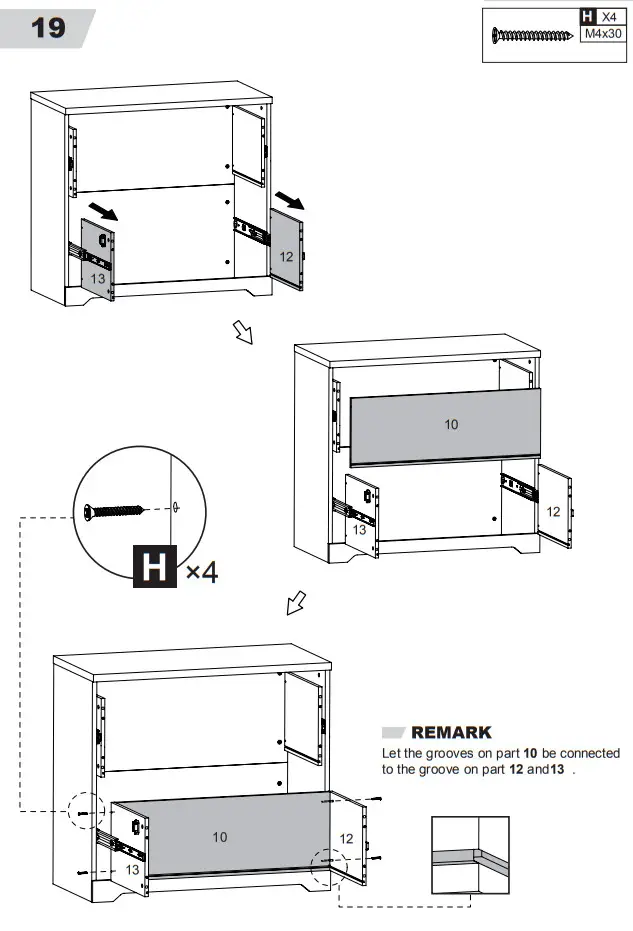

- The installation is the same for 2 drawers, please refer to step19-step22 for the installation method.
REMARK
The bottom drawer must be closed.
REMARK
One drawer can only be opened when the other 1 drawer is fully closed.
WALL ANCHORING GUIDE
ANTI-TIPPING DEVICE
The hardware you should use to secure your furniture to the wall depends on both the type of furniture you have and your wall material.
Type of Wall Material
Using the guide below, identify your wall material and choose the corresponding steps.
Mark the attachment point(s) with a pencil at the appropriate height.
Drywall or plaster with available wood stud

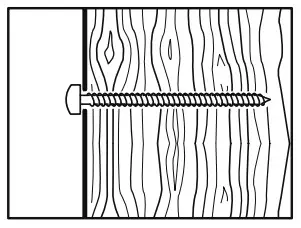

- Drill 1/8-inch (3mm) diameter pilot hole(s) into the wood stud(s), at the height you marked with a pencil.
Drywall without available wood stud
- Drill 27/64-inch (10.5mm) diameter hole (s) through the wall at the height you marked with a pencil.
- Drive the plastic plug(s) into the hole(s), using a hammer if needed.
Masonry
- Drill 27/64-inch (10.5mm) diameter hole (s) 2-inches (50mm) deep into the wall at the height you marked with a pencil.
- Drive the plastic plug(s) into the hole(s), using a hammer if needed.

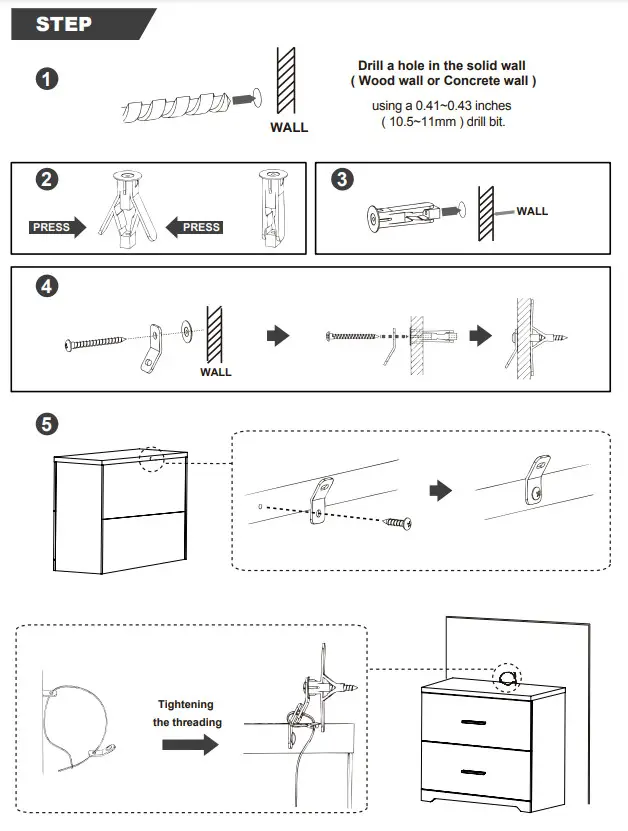

Follow the appropriate pictogram instructions on the following pages, drive the screw(s) with washer(s) through the brackets and tighten screw(s) firmly into the plastic plug(s) in the wall. Do not over-tighten.
If your wall material is not listed here, or if you have any questions, consult your local hardware store.
