8089SGRYOAKCN Cane Series Freestanding Wood 2 Drawers Cabinet
Instruction Manual
8089SGRYOAKCN Cane Series Freestanding Wood 2 Drawers Cabinet
FURNITURE TIPPING RESTRAINT FOR CANE MEDIA CHEST
Young children may be injured by tipping furniture and the use of a tipping restraint is highly recommended.
TIPPING KIT CHECK LIST
| CODE | COMPONENT | QTY | |
| 01 | BRACKET |  | 4 |
| 02 | NYLON STRAP |  | 2 |
| 03 | LONG STUD MOUNTING SCREWS |  | 4 |
| 04 | SHORT FURNITURE-SIDE MOUNTING SCREWS |  | 4 |
| 05 | PLASIC ANCHOR |  | 4 |
When properly installed, this restraint could provide protection against the unexpected tipping of furniture due to small tremors, bumps or climbing. We recommend mounting this restraint to a wall stud.
WARNING: This product is only a deterrent. It is not a substitute for proper adult supervision.
Installation Instruction:

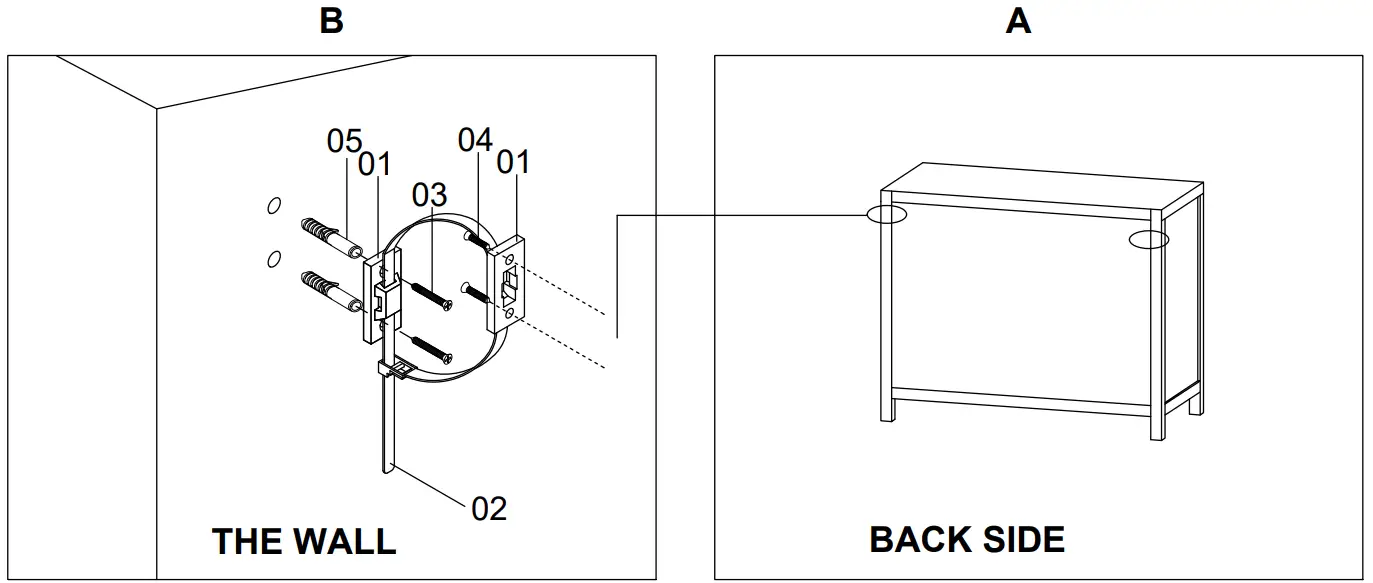

- Attach one of the mounting brackets (01) securely near the top back edge of the furniure piece by inserting the screw (04). Refer to picture A.
- Determine the final position of the furniture piece. Mark location on the wall approximately 1″ below the bracket mounted to the back of the furniture.
- Drill a starter hole into the wall stud. If wall stud is not available, drill a hole into the wall and insert plastic anchor. Gently tap anchor until the flange of the anchor (05) is flush with the wall.
- Attach the second bracket (01) by inserting and securing the screw (03) to the wall. Refer to picture B.
- Align the two brackets.
- Thread the strap (02) through both brackets and tighten until snug.
- Check to make sure that the brackets are flrmly installed and the strap is secured.
