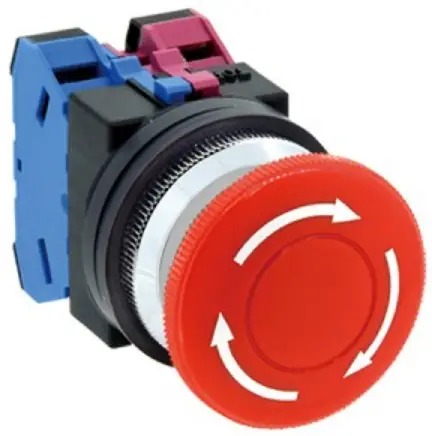

IDEC AVS301N-R ø25 TWS Series Pushbuttons Instructions
Mushroom / Pushlock Turn Reset
Package Quantity: 1
| Shape | Operation | Contact | Part No. | Color Code | Dimensions (mm) |
| Mushroom ABS3 AOS3
| Momentary | 1NO | ABS310N* | B G R Y S W | Note: The depth behind the panel of maintained unit is 1.5 mm longer than the momentary unit. |
| 1 NC | ABS301 N* | ||||
| 1NO-1 NC | ABS311N* | ||||
| 2NO | ABS320N* | ||||
| 2NC | ABS302N* | ||||
| 2N0-2NC | ABS322N* | ||||
| Maintained | 1NO | AOS310N* | |||
| 1NC | AOS301N* | ||||
| 1N0-1NC | AOS311N* | ||||
| 2N0 | AOS320N* | ||||
| 2NC | AOS302N* | ||||
| 2N0-2NC | AOS322N* | ||||
| Mushroom with Full Shroud ABGS3 AOGS3
| Momentary | 1 NO | ABGS310N* | B G R Y S W | |
| 1NC | ABGS301N* | ||||
| 1 NO-1NC | ABGS311N* | ||||
| 2N0 | ABGS320N* | ||||
| 2NC | ABGS302N* | ||||
| 2N0-2NC | ABGS322N* | ||||
| Pushlock Turn Reset (*1) AVS3
| 1NO | AVS310N::: | R Y | ||
| 1NC | AVS301N* | ||||
| 1NO-1 NC | AVS311N* | ||||
| 2N0 | AVS320N* | ||||
| 2NC | AVS302N* | ||||
| 2N0-2NC | AVS322N* | ||||
- Specify a color code in place of ✽ in Part No. B (black), G (green), Y (yellow), S (blue).W (white)
- Round bezel (metal): Chrome-plated
- Pushbuttons with 1 or 3 contact blocks have a dummy block.
- other contact configurations and gold-plated silver contacts.
- Pushbuttons: terminal screws M3.5, integrated terminal cover
- bottom view.
*1) Pushlock turn reset pushbuttons cannot be used as emergency stop switches. When emergency stop switches are required, use HW series emergency stop switches and ring adapter (HW9Z-A25).
Pushlock Turn Reset
Pushlock turn reset is locked when pressed, and reset when turned clockwise.
