Taiwan jantek Electronics., Ltd
Product Name: Push Button
Product Type: PB-071
Features: There are four different sw itch & four face plates. European Standard, U. S.A. Standard and Narrow type for flush or surface mounting.
| PB-038A PB-071A PB-086A PB-040A | PB-038B PB-0716 PB-086B PB-040B | PB-038C PB-071C PB-086C PB-040C | PB-038D PB-071D PB-086D PB-040D | PB-071E PB-086E PB-040E | PB-071F PB-086F | PB-071G PB-086G PB-040G | KS-040 KS-071 KS-086 | |
| Mechanical life time | 0.5 million operating | 1 million operating | 50 million operating | 2 million operating | >2 million operating | >2 million operating | 1 million operating | |
| Initial Contact Resistance | 125VAC, 1A | 48VDC, 2A | 24V, 0.2A AC/DC | 125VAC, 8A 24VDC, 6A | 250VAC, 5A 125VAC, 8A | 250VAC, 5A 125VAC, 8A | 250VAC, 5A — | 125VAC, 4A 250VAC, 2A |
| Operating Temperature | _5°C-50°C | -25°C-105°C | -40°C-85°C | -25°C-55°C | -25°C-55°C | -25°C-55°C | -20°C-55°C | -20°C-70°C |
| Degree of Protection | Non | Non | I P68 Certificated | I P65 Certificated | I P65 Certificated | I P65 Certificated | I P65 Certificated | Non |
| Lamp | Non | Non | Non | Yes (DC12V) tungsten lamp | LED(DC12V) | LED(DC12V) | LED(DC12V) | Non |
| Approvals | Non | Non | UL Listed CE Approved ISO 9002 | CULCS CE Approved ISO 9001 | CULTS CE Approved ISO 9001 | CULTS CE Approved ISO 9001 | Non | Non |
| Switch material | Plastic | Stainless Steel | Aluminum | Plastic | Plastic | Plastic | Stainless Steel | ideal Plznbxl &ass |
| Switch Plate Material | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Dimension of Mauled Switch’ |  2Oxlmm | 22x2mm | 28x3rin | 29x141iim light DC12V 1.121 | 30×2. 3irm | 4, 35×2. 3rn | ,25×1. 8mm | 22x7rrrn |
| Contact | NO | NO | NO | NO/NC | NO/NC | NO/NC | NO/NC | NO/NC |

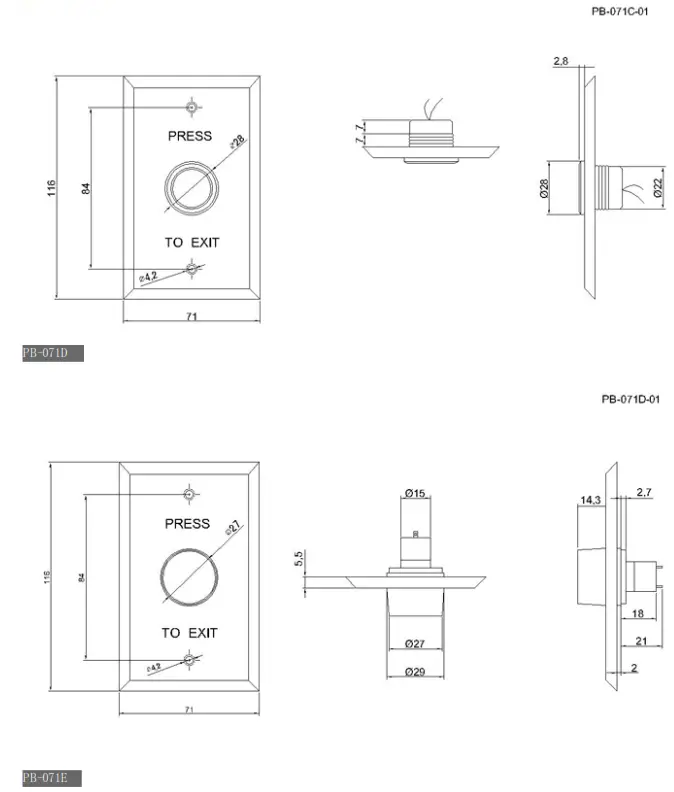

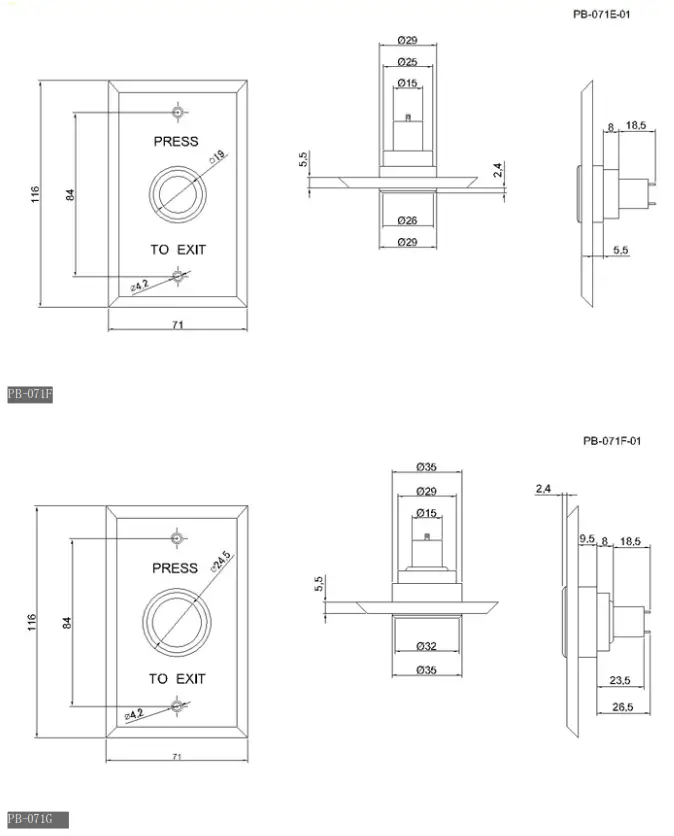

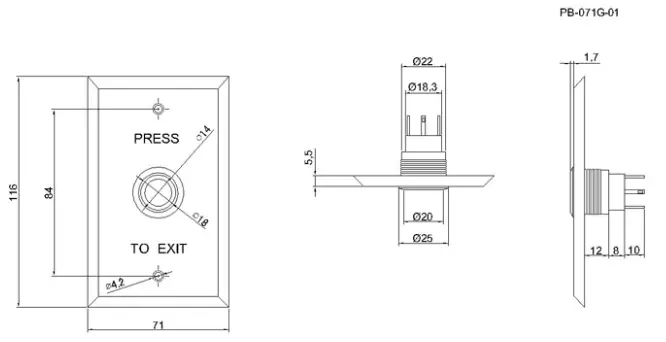

Dimension of Switch Plate & Key Switch Plate:
PB-038 90Lx38Wx33H(mm) PB-040 / KS-040 105Lx4OW (mm) PB-071 / KS-071 116Lx71W(mm) PB-086 / KS-086 86Lx86W (mm) There are four different switch plate & three key switch plate dimensions—-European Standard ,U.S.A Standard and narrow style for flush or surface mounting
Specifications: Dimension:PB-071: 116L X 71W X5H (m m )
 |  |
 |  |

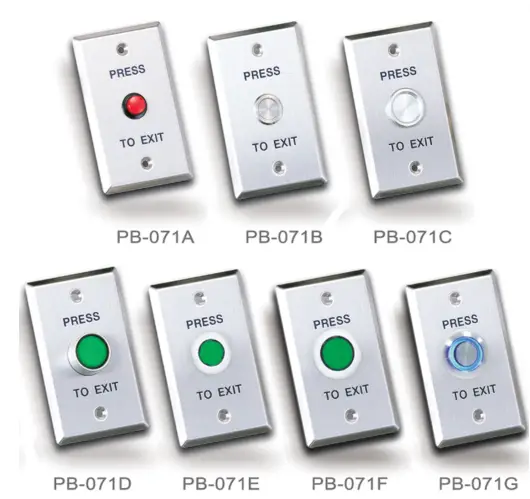

Ordering Information:
| Plastic Switch | Narrow type plate with surface mount housing | PB-038A |
| Narrow type plate with flush mount | PB-040A | |
| U.S.A standard plate(surface-mount housing is an option device) | PB-071A | |
| European standard plate(surface-mount housing is an option device) | PB-086A | |
| Stainless Steel Switch | Narrow type plate with surface mount housing | PB-038B |
| Narrow type plate with flush mount | PB-040B | |
| U.S.A standard plate(surface-mount housing is an option device) | PB-071B | |
| European standard plate(surface-mount housing is an option device) | PB-086B | |
| Aluminum Switch | Narrow type plate with surface mount housing | PB-038C |
| Narrow type plate with flush mount | PB-040C | |
| U.S.A standard plate(surface-mount housing is an option device) | PB-071C | |
| European standard plate(surface-mount housing is an option device) | PB-086C | |
| Plastic Switch with camp | Narrow type plate with surface mount housing | PB-038D |
| Narrow type plate with flush mount | PB-040D/E | |
| U.S.A standard plate(surface-mount housing is an option device) | PB-071 D/E/F | |
| European standard plate(surface-mount housing is an option device) | PB-086D/E/F | |
| with blue light | Narrow type plate with flush mount | PB-040G |
| U.S.A standard plate(surface-mount housing is an option device) | PB-071G | |
| European standard plate(surface-mount housing is an option device) | PB-086G | |
| Key Switch | Narrow type plate with flush mount | KS-040 |
| U.S.A standard plate(surface-mount housing is an option device) | KS071 | |
| European standard plate(surface-mount housing is an option device) | KS-086 |
Reference models:
Taiwan Jantek Electronics.,
Ltd. www.j3.ntek.com.tw A dd:6F-1, No. 1, Wuquan 1StR d., Xinzhuang District,
TEL: 886-2-22991255 N ew TaipeiC ity 24892,Taiw an, R.0 .0 . FAX : 02-2299-1257 / 02-2299-7412
Email: [email protected]
