AR-PB2
Full Stainless Steel Push Button
Content
Product
Slim US Type：AR-PB2-041108
Rectangle US Type：AR-PB2-072122
Square EU Type：AR-PB2-086086

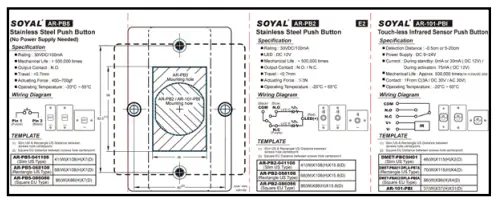

Installation Hole Template
Specification
- Contact capacity :30VDC/100mA
- LED : DC 12V
- Selenoid test : Over 500,000 times
- Output contact : N.O. / N.C.
- Travel : <0.7mm
- Actuating Force : ≦3N
- Operating Temperature : -20°C ~ 65°C

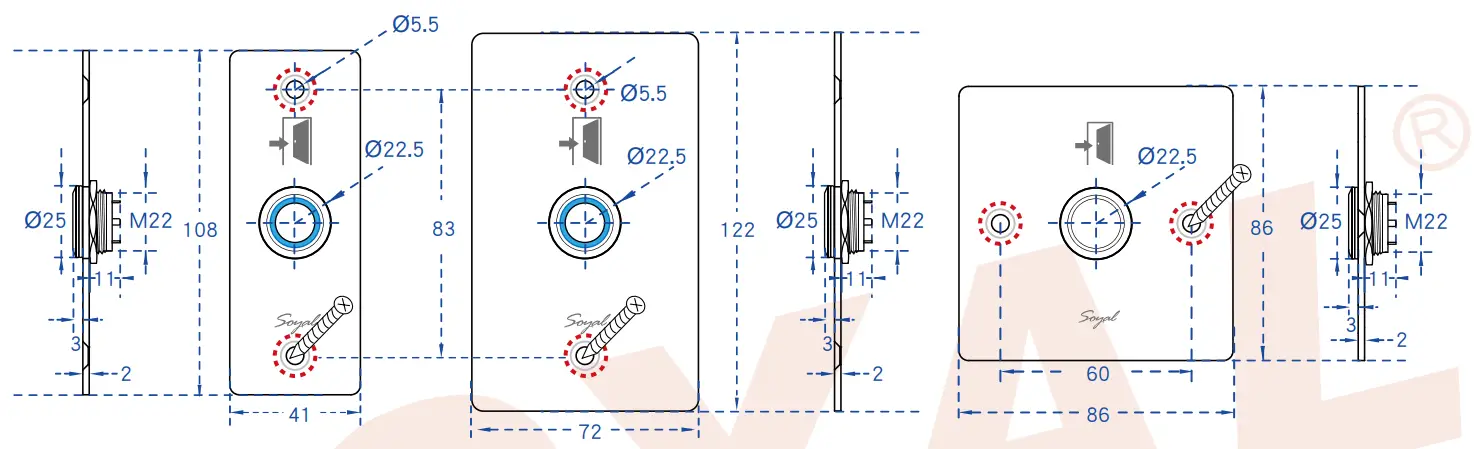

Dimension (mm)
Wiring Table
Cable:
| Wire Application | Color | Description | |
| Contact | COM | Black | COM |
| V+ | Red | LED V+ | |
| N.O. | Blue | Contact | |
| N.C. | Purple | Contact | |
※ Note:
LED Stainless Steel Push But ton AR-PB2 Series support operating voltage DC12-24V.
When wiring to DC12V could directly enable built-in LED indicator.
When wiring to DC24V required to wire 1000Ω resistor to enable the built-in LED then wire to LED V+

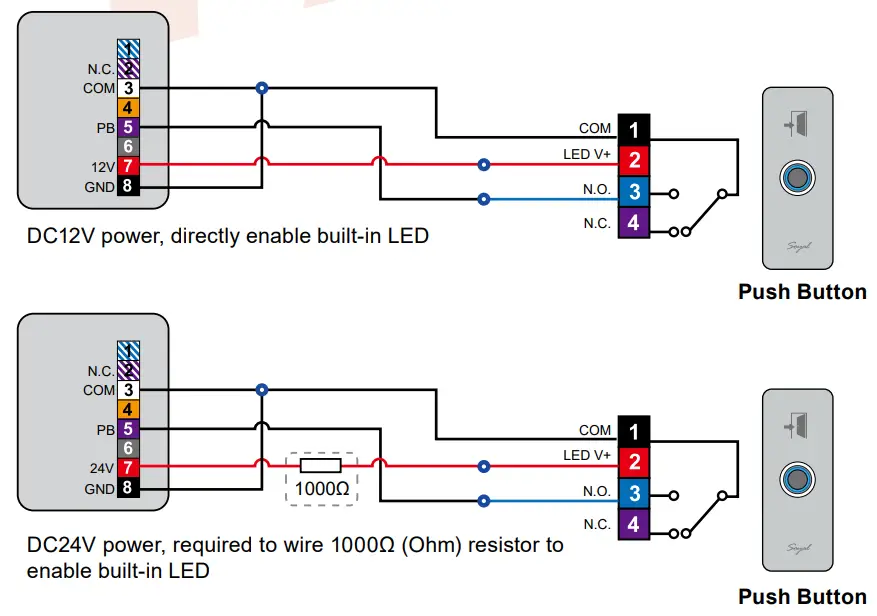

Wiring Diagram
※ Note:
When LED is not in use, does not required to power red wiring LED V+
