ACCESS & INDUSTRIAL CONTROL

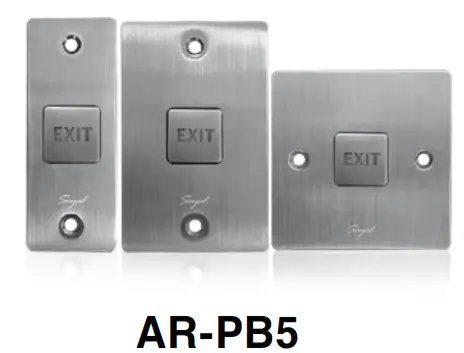

AR-PB5 Stainless Steel Push Button (No Power Supply Needed)
Content
- Product
Slim US Type : AR-PB5-041108 Rectangle US Type : AR-PB5-068108 Square EU Type : AR-PB2-086086 - Connector Cable
- Screw X2

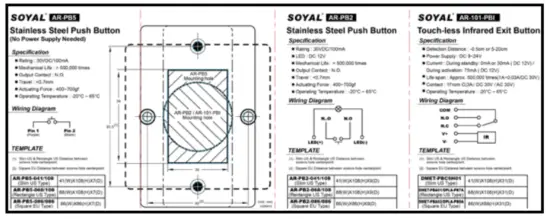

- Installation Template
Slim US Type : AR-PB5-041108 Rectangle US Type : AR-PB5-068108 Square EU Type : AR-PB2-086086
Features
- Flush mounted design is thin and aesthetics, full stainless steel material make it durable.
- Three types for installation on various sites: Slim type, US type and EU type.
- Built-in multiple sets of membrane switches, can be triggered by pressing the button at any angle, with a life time of more than 500,000 times.
- Welcome a customized logo with laser engraving on the panel to enhance the overall image quality of the building or community.
- No need external power supply, easy to use.
Specification
- Rating : 30VDC/100mA
- Mechanical Life : > 500,000 times
- Output Contact : N.O.
- Travel : <0.7mm
- Actuating Force : 400-700gf
- Operating Temperature : -20°C – 65°C
Dimmension (mm)

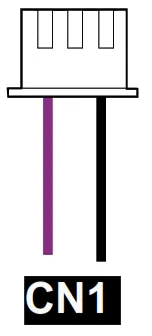

Connector Table
Cabol : CN1
| Wire Application | Color | Description | |
| Push Button Contact | N.O. | Purple | N.O. |
| – | |||
| COM | Black | COM | |

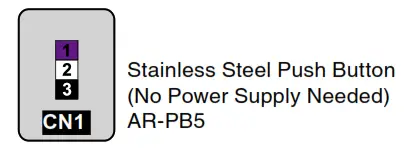

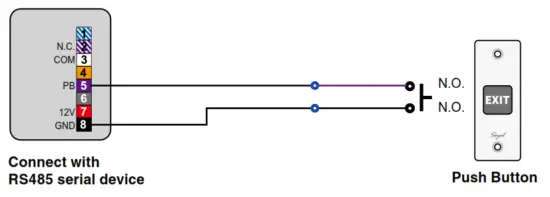

Wiring Diagram
