SOYAL AR-716-E16 Control Panel
Control Panel AR-716-E16 Parameter Setting

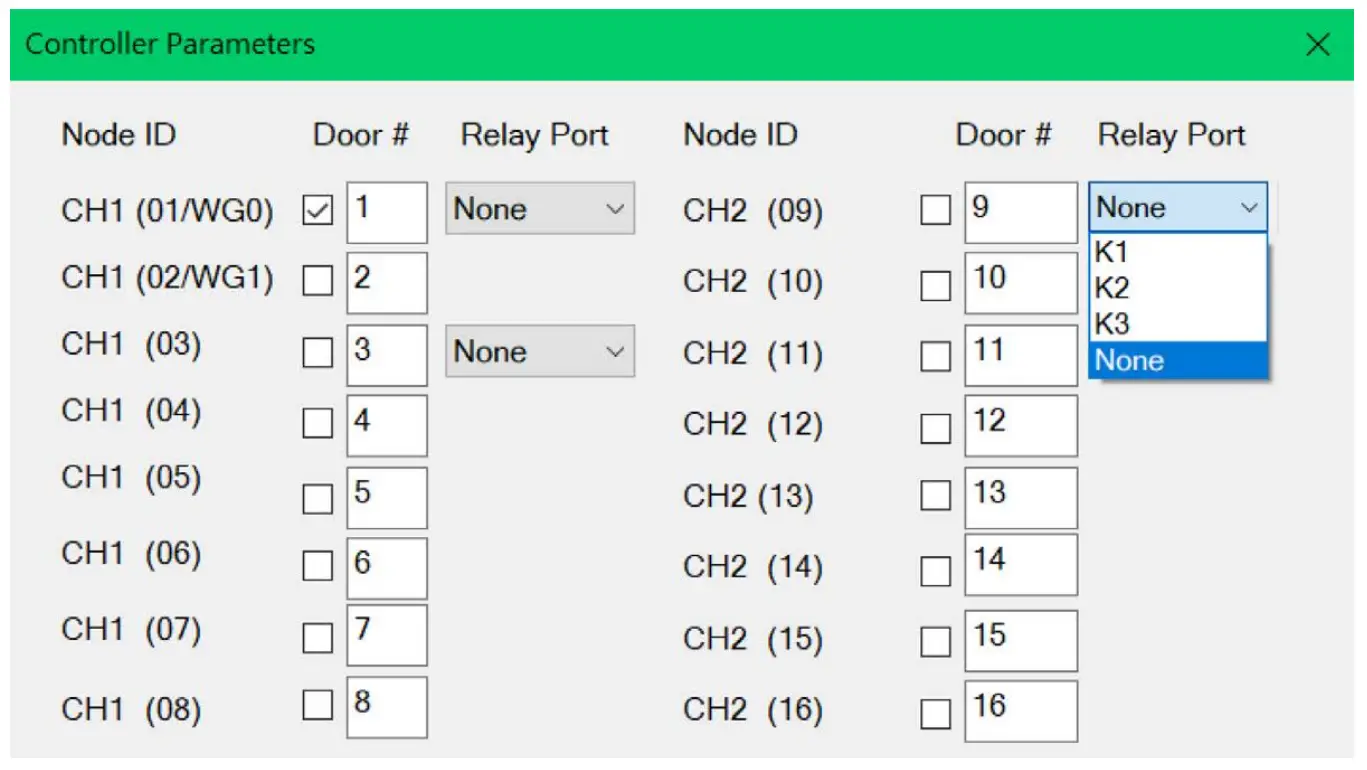

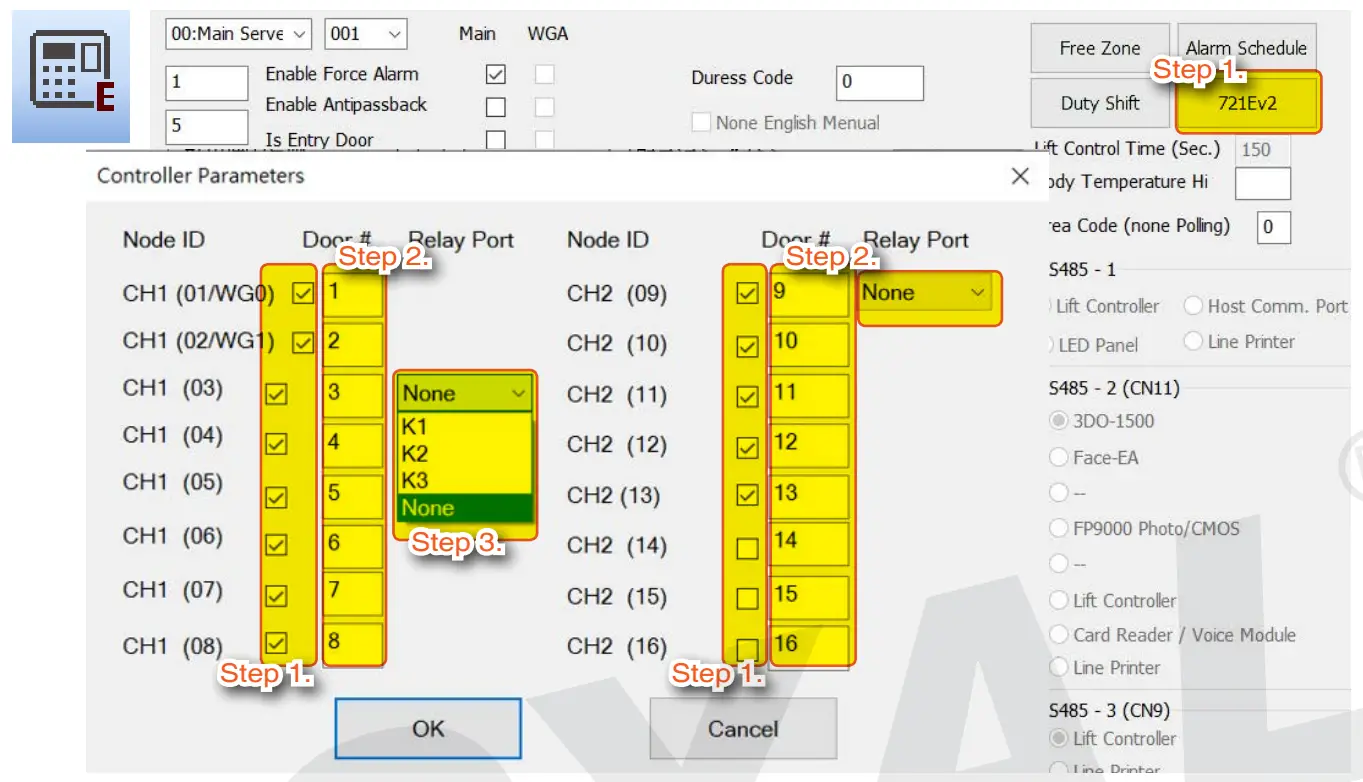

Set the connected access controller Node ID
Step 1. Tick the connected access controller
- AR-716-E16 built-in 2 WG Port connection. If wiring plan to wire WG Port 0 and WG Port 1, for access controller please start from node ID 3. This is because WG Port 0, 1 and Node ID 1, 2 share the same Door Number
- Please refrain from ticking the connected Node ID if the controller is not connected.
Example 1: WG Port wired to WG reader
wiring to WG reader does not required to tick the box
| CH1 | CH2 | WG |
| Node ID 9 | WG0 | |
| Node ID 10 | WG1 | |
| Node ID 3 | Node ID 11 | |
| Node ID 4 | ||
| Node ID 5 | ||
| Node ID 6 | ||
| Node ID 7 | ||
| Node ID 8 |

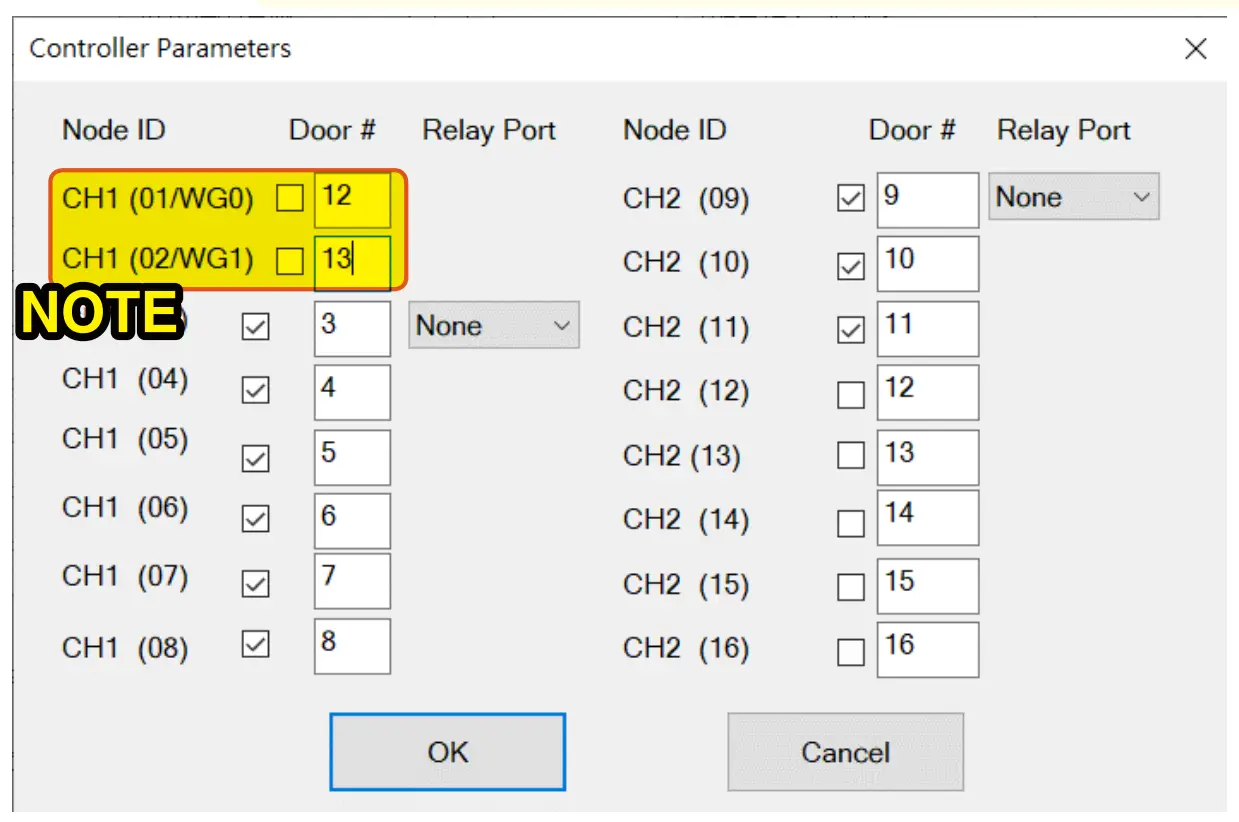

Example 2: WG Port does not wire to any WG reader
| CH1 | CH2 | WG |
| Node ID 1 | Node ID 9 | |
| Node ID 2 | Node ID 10 | |
| Node ID 3 | Node ID 11 | |
| Node ID 4 | Node ID 12 | |
| Node ID 5 | Node ID 13 | |
| Node ID 6 | ||
| Node ID 7 | ||
| Node ID 8 |
Step 2. Door #: enter Door Number
Step 3. Relay Port: Available for WG Port 0*, RS485 CH1 Node ID 3, and RS485 CH2 Node ID 9. This setting is to enable reader wired under AR-716-E16 to use on-board relay output instead of the access controller own relay.
K1/K2: the built-in relay of control panel to externally control the electric lock (if this function is selected, access controller’s connection to electronic lock is disabled, and the electric lock is connected to the K1/K2 contact). It is suitable for public door access such as Gate & Back Door access to provide safer connection.
For example: Gate installed Node ID 3 use K1 contact and Back Door installed Node ID 9 use K2 contact.
K3: Public alarm
None: Use the access controller on-board relay to control the electric lock
*WG Port 0 Relay Port option is only for dual door interlocking with CH2 Node ID 9 (Node ID 9 controller must be activated dual-door interlocking function by inputting command 44*)

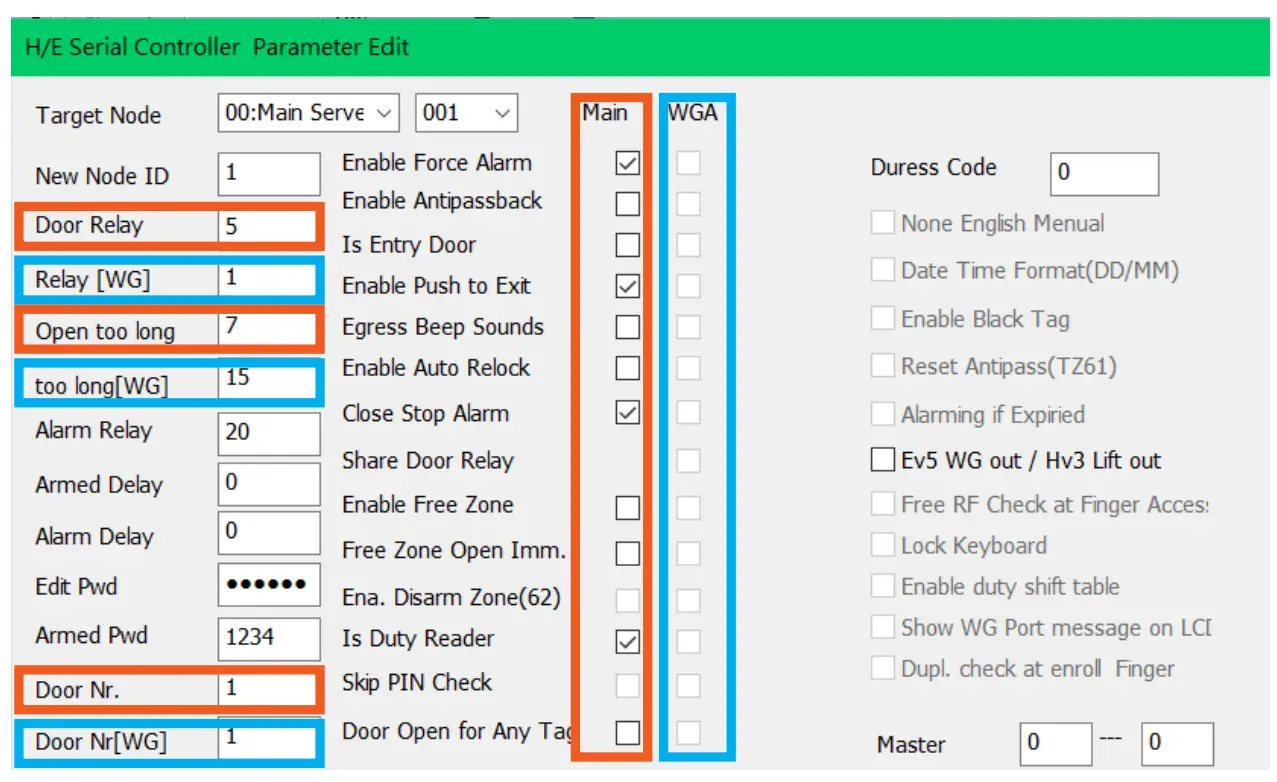

Reader Setting
Partial AR-716-E16 Parameter Setting is divided into ‘Main’ & ‘WG’
‘Main’ section is for AR-716-E16 as master controller and WG Port 0 reader
‘WG’ section is for WG Port 1 reader
