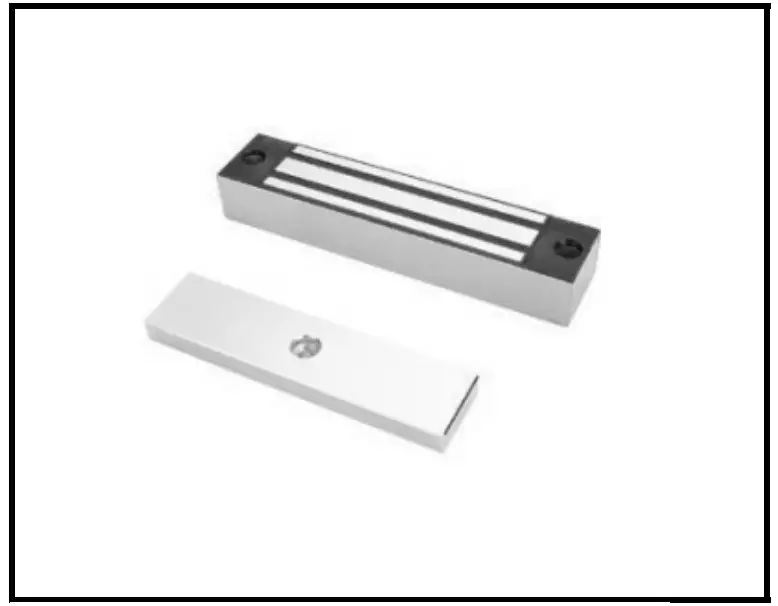

AR-0400WF Electromagnetic Lock
Instruction Manual
SPECIFICATION
| DESCRIPTION | AR-0400WF |
| Door monitoring output (reel sensor NO/NC) | NO INCLUDE |
| Input Voltage | 12 to 24 VDC |
| Current Draw | 12VDC – 370mA 24VDC – 185mA |
| Holding Force | 400LBS |
| Dimensions( L x W x D) Surface magnet Strike plate | 164 x 35 x 26 mm 130 x 32 x 10 mm |
| Material Armature housing Strike plate | Stainless steel Steel |

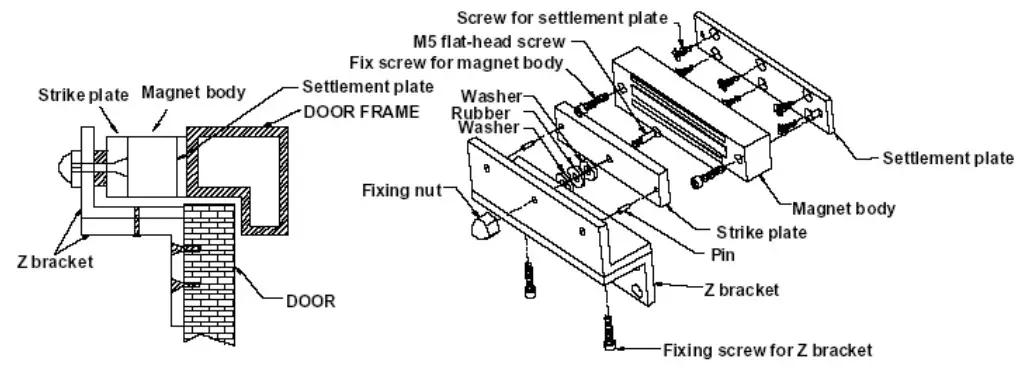

IN SWING DOOR ASSEMBLY
- Locate the desired position on the doorframe and attach the settlement plate to this location, using 6 screws included in the package.
- Insert 2 included screws through the pre-drilled holes on the lock and screw tightly to the settlement plate.
- Locate the proper position on the door, when closed, the magnetic lock will align correctly with the Drill 5 holes at this location, and attach the Z bracket to it. Important remark for tightening the Z bracket, tightening screws must be accompanied by a spring washer to avoid slipperiness.
- Insert the 2 pins to the strike plate, place a pair of washers separated by rubber, and between the strike Insert the M8 flat head screw through the center of the strike plate, pass through the washers and tighten it to the Z bracket. Do not install the strike plate with Z bracket too tight. Leave some space to allow for the best performance between the plate and lock.

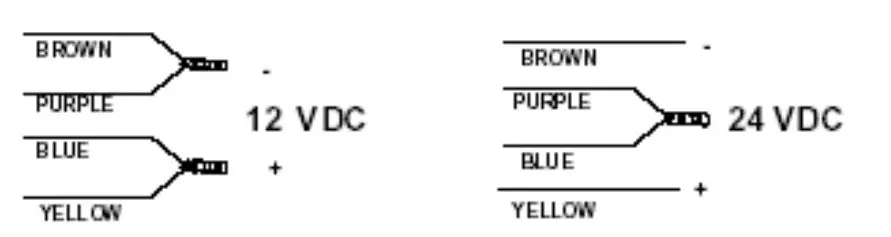

ELECTRICAL INSTRUCTION
