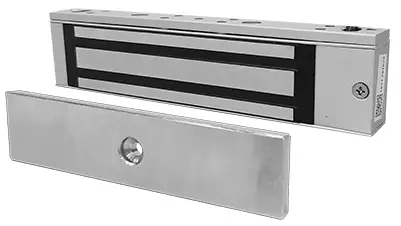

SOYAL AR-0200M Electromagnetic Lock
SPECIFICATION
- INPUT VOLTAGE: 12 TO 24 VDC
- CURRENT DRAW: 12VDC‐200mA/24VDC‐100mA
- HOLDING FORCE: 220LBS(110KG)
- SURFACE MAGNET DIMENSION: 160×28×17 mm
- STRIKE PLATE DIMENSION: 130×28×8 mm

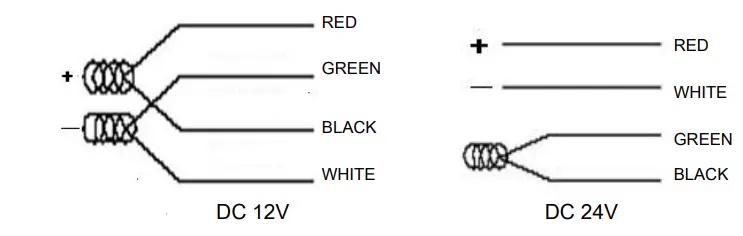

ELECTRICAL INSTALLATION

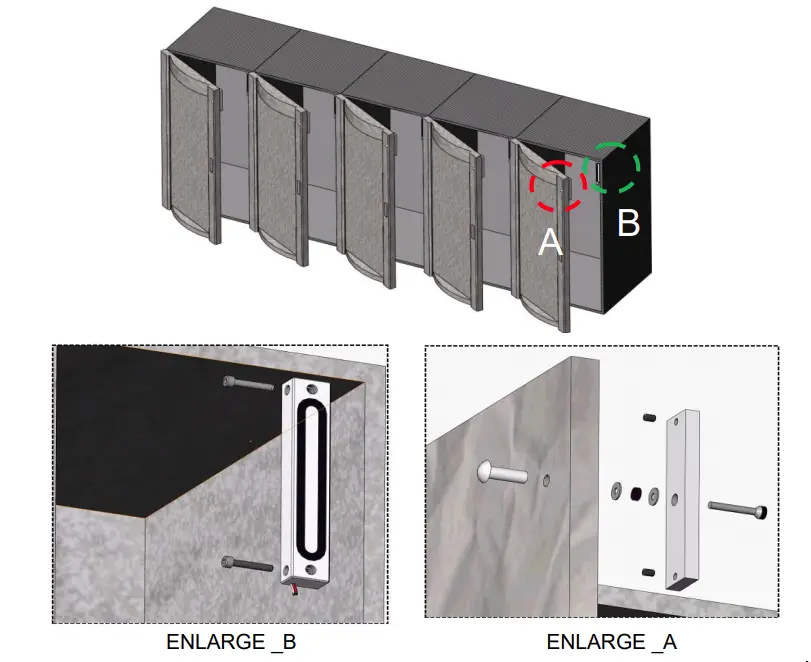

ASSEMBLY
