2489244 Rs Pro Push Button Switch Owner's Manual (+ PDF)

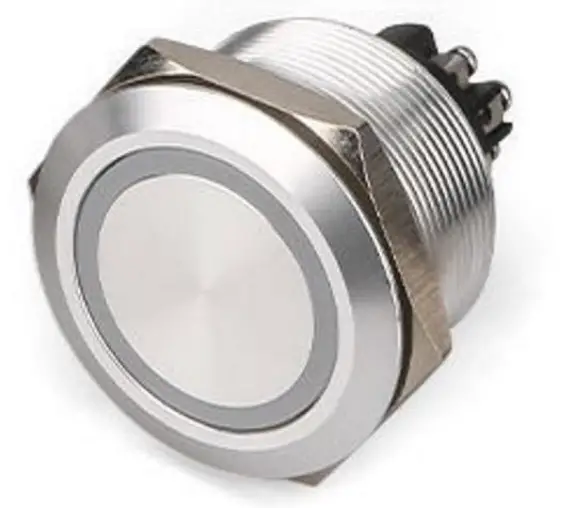

RS PRO Push Button Switch
Owner’s Manual

Contents hide

1 FEATURES

2 Product Description

3 General Specifications

4 Documents / Resources

4.1 References

5 Related Posts

FEATURES

RS Stock No.: 2489244

Stainless steel robust construction
Anti-vandal design
Easy installation
Screw terminals
Illuminated & no light options
16mm – 30mm options
IP rated
Range of voltages

RS Professionally Approved Products bring to you professional quality parts across all product categories. Our product range has been tested by engineers and provides a comparable quality to the leading brands without paying a premium price.

Product Description

High quality panel mount switches constructed from stainless steel for superior durability for both internal and external applications.
Typically used for door and gate entry control, plant and machinery, control panels, escalators and moving walkways, lifts and instrument control, process handling and access equipment.
Often used with panel mount indicators, panel alarms, buzzers and display screens.

General Specifications

Type	SW 30mm Scr Lat Rng Gn 12V
Switch Operation	Latching
Contact Configuration	1NO1NC DPST
Illuminated	Yes
LED Voltage	12V
LED Colour	Green
Actuator Shape	Round
Legend	Ring
Package Contains	1 x Switch, 1 x Hex Nut, 1 x O-Ring

Material Characteristics
Case	Stainless Steel
Base	PBT
Contact	Silver alloy
Terminals	Screw

Electrical Specifications

Voltage Rating	250VAC
Terminal Type	Screw
Wire Range	1.5mm2

Contact Specifications
Contact Current Rating	5A at 250VAC
Contact Resistance	≤50mΩ
Insulation Resistance	≥1,000MΩ
Dielectric Strength	1,780VAC
Total Travel	3.0mm +/- 0.2mm
Electrical Life	≥50,000 Cycles at Full Load

Mechanical Specifications

Mounting Type	Panel Mount
Panel Thickness	1mm (min) to 14mm (max)
Panel Cut Out Diameter	30.20mm
Mechanical Life	≥1,000,000 operations
Actuating Force	3-5N
Torque	5-14Nm applied to rear locking nut
