Durabook U11I Rugged Tablet Expansion Modules Card 54

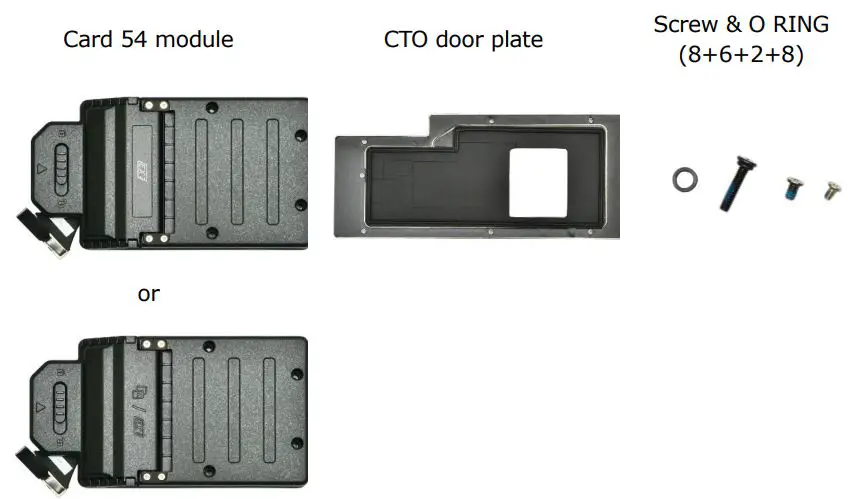

Package Contents
If any of the following items are damaged, please contact your retailer.

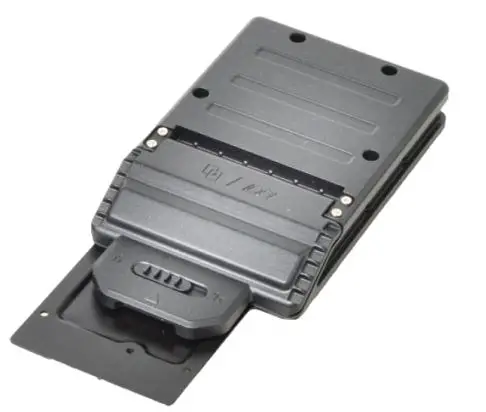

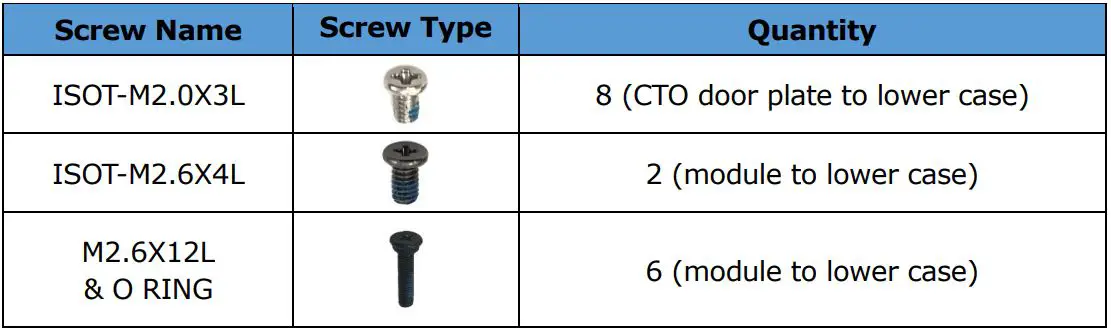

Card 54 Module Screw
NOTE:
The pictures are for reference only, actual items may slightly differ
Installation
This section will guide you on how to install the expansion modules to your tablet PC.
Note: Make sure to remove the battery before installing any type of expansion modules. For more information on how to remove/install the battery, please refer to the tablet PC service guide.
Installing the Card 54 Module
To install the Card 54 module, follow the steps below:
- Remove the 2 screw securing the CTO door to the lower case.
- Slide the CTO door to the left to disengage it from the tabs.

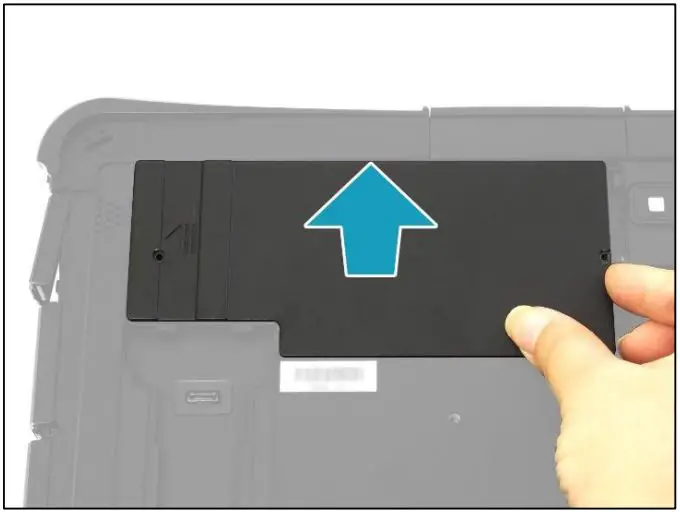

- Remove the CTO door

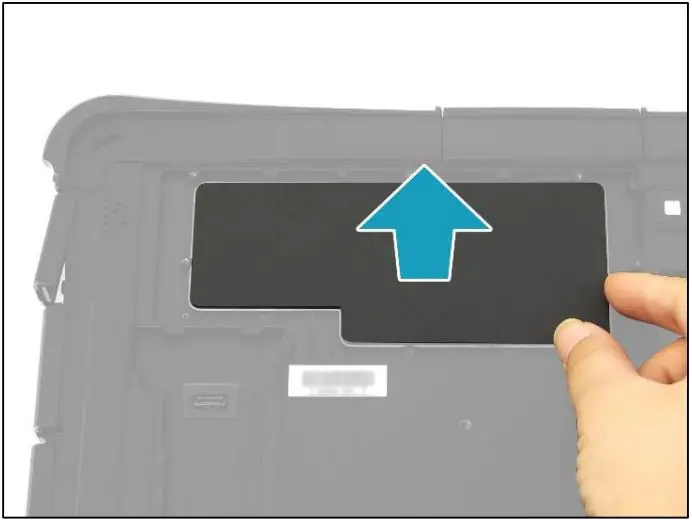

- Remove the CTO door seal out of its compartment.

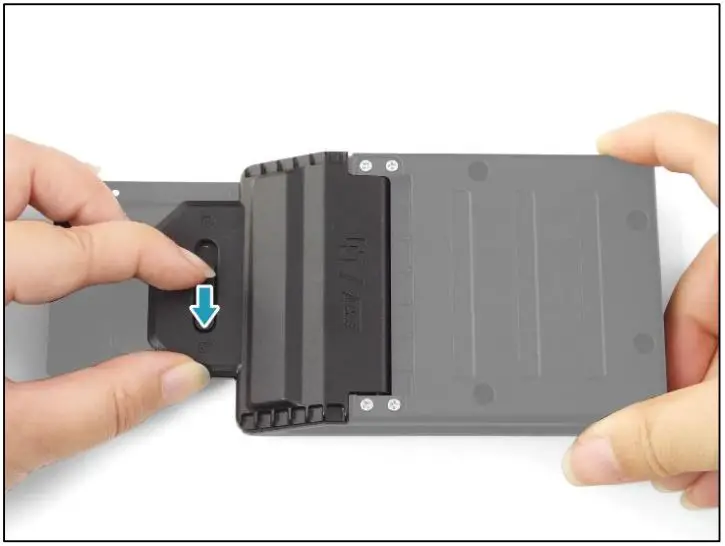

- Slide the knob to the right to unlock the CTO box door

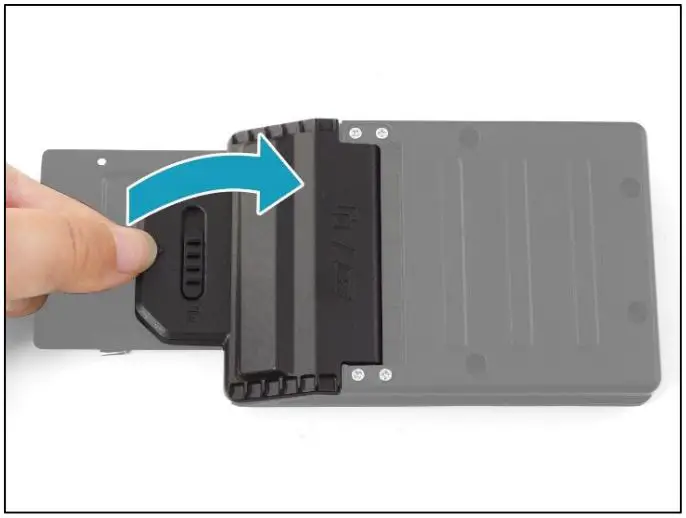

- Open the CTO box door.

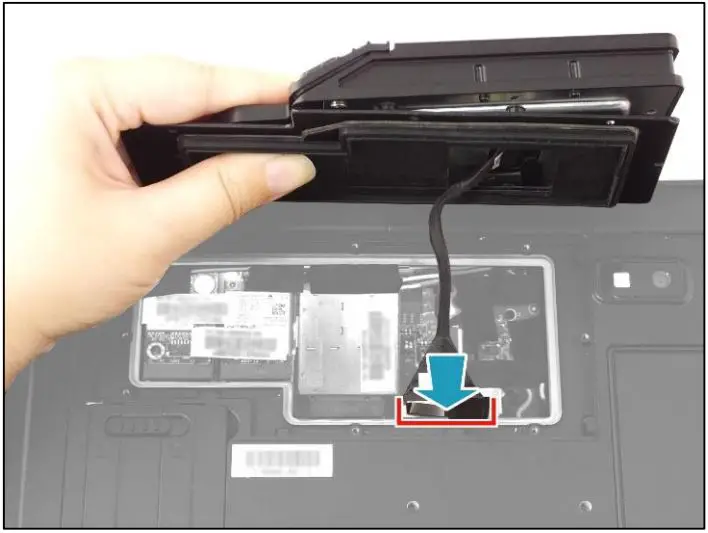

- Connect the Card 54 module harness to the mainboard connector.

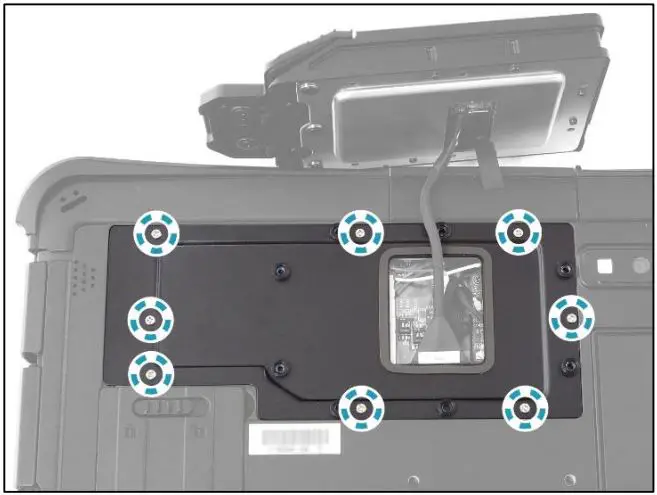

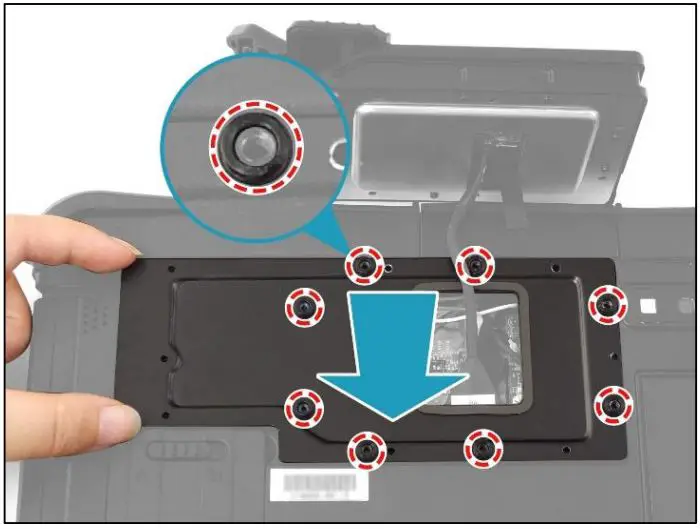

- By aligning with the screw holes, install the CTO door plate onto its compartment on the lower case. Make sure the rubber washers are properly seated into their respective screw holes.
- Attach the 8 screws to secure the CTO door plate to the lower case

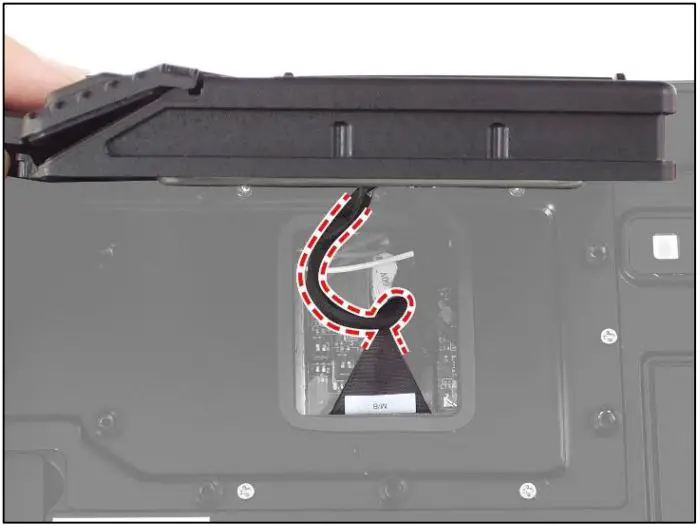

- Fold and place the excess cable of the Card 54 module harness into the gap for proper cable routing.

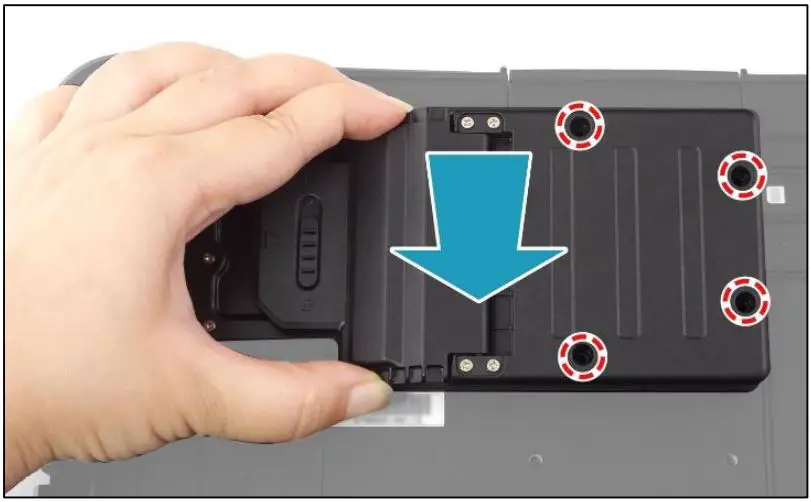

- By aligning with the screw holes, install the Card 54 module onto its slot on the lower case.
- Attach the 8 screws to secure the Card 54 module to the lower case.
- M2.6X12L & O RING (marked with a blue-white circle): 6 screws
- ISOT-M2.6X4L (marked with an orange-white circle): 2 screws

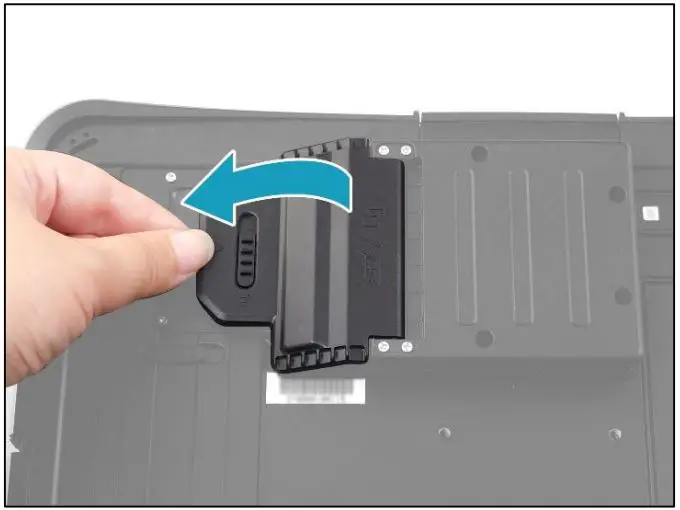

- Close the CTO box door
- Slide the knob to the left to lock the CTO box door

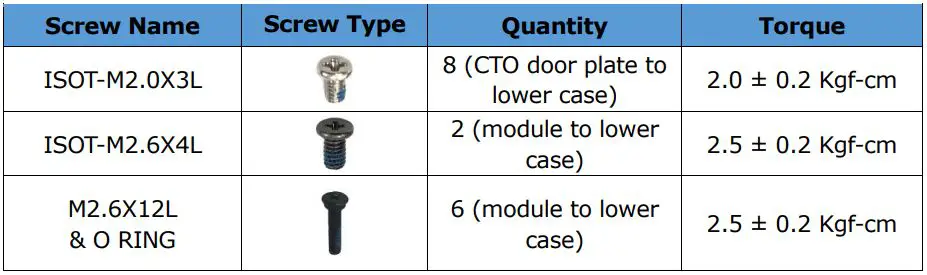

Card 54 Module Screws
