U11I Tablet
Solution Guide
U11I Tablet
Built for All. All in One.
U11I Rugged Tablet Superb
Choosing between mutually exclusive I/O interfaces and devices is a thing of the past. The Durabook U11I rugged tablet has it all. Within its extremely compact and rugged exterior, the U11I packs an unprecedented number of productivity features and generous space for further expansion.
- 11.6” FHD DynaVue® SR display with 1000 nits
- 10th Generation Intel® Core™ Processor
- Multiple I/O options for various applications
- 24 hrs. Hi-Cap hot-swappable battery
- Fanless and quick-release SSD design
- 10-point capacitive multi-touch panel with four touch modes
U11 I TABLET SOLUTION ECOSYSTEM
All accessories in the guide are fully tested in-house and in the Durabook factory by Durabook Engineers.
VERSATILE SOLUTIONS FOR THE MODERN WORKFORCE
DOCKING SOLUTIONS

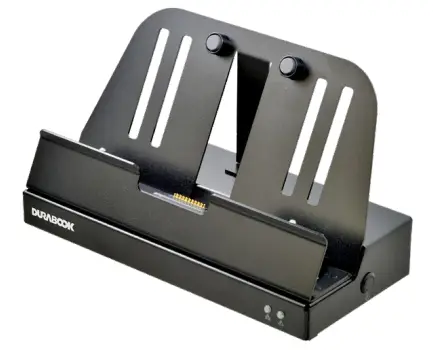

Office Dock with AC Adapter
Ports:
- DC-in jack x 1
- 10/100/1000 Ethernet (RJ-45) x 1
- USB 3.0 (type A) x 2
- USB 2.0 (type A) x 2
- HDMI port (type A) x 1
- VGA port x 1
- Serial COM port (D-sub) x 1
- Audio out jack
- Microphone in jack
Size: 240 mm (W) x 110.3 mm (D) x 141.6 mm (H) (W/rubber foot)
Weight: 1.27 kg
Part Number:
DDXU1_

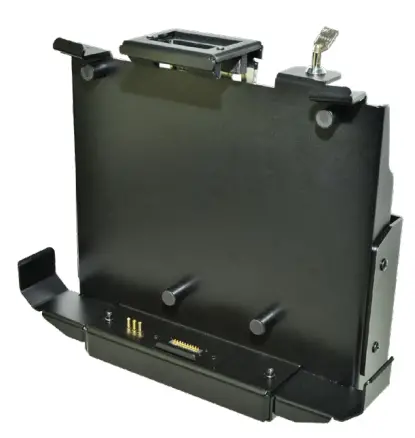

Vehicle Lite Dock with Tri-RF Pass-through (with Car Adapter)
Ports:
- DC-in jack x 1
- 10/100/1000 Ethernet (RJ-45) x 1
- USB 3.0 (type A) x 2
- USB 2.0 (type A) x 2
- HDMI port (type A) x 1
- VGA port x 1
- Serial COM port (D-sub) x 1
- Audio out jack
- Microphone in jack
- GPS/WWAN/WLAN Pass-through
Size:
338.3 mm (W) x 112.2 mm (D) x 259.4 mm (H)
Weight: 2.89 kg
Part Number:
DVPU1X

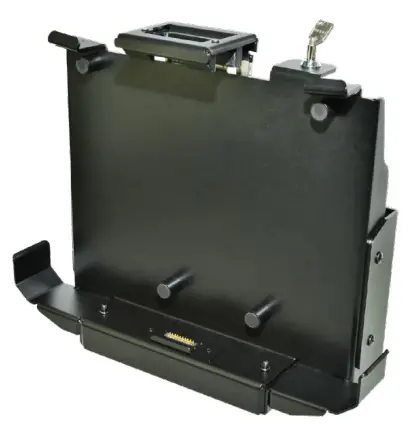

Vehicle Lite Dock without Tri-RF Pass-through (with Car Adapter)
Ports:
- DC-in jack x 1
- 10/100/1000 Ethernet (RJ-45) x 1
- USB 3.0 (type A) x 2
- USB 2.0 (type A) x 2
- HDMI port (type A) x 1
- VGA port x 1
- Serial COM port (D-sub) x 1
- Audio out jack
- Microphone in jack
Size:
338.3 mm (W) x 112.2 mm (D) x 259.4 mm (H)
Weight: 2.8 kg
Part Number:
DVXU1X
POWER MANAGEMENT SOLUTIONS
Spare Main
Battery
Part Number:
DBMU1X
Battery
Charger – 2 bays
Part Number:
DC2U1_
Supports both main and hi-cap battery Supports up to three 2-Bay Chargers daisy chained together using the attached DC-out cable. Power Input: 100-240V, 50-60Hz, 65W AC Adapter Dimensions: 151 mm (W) x 151 mm (D) x 85 mm (H)
Weight: 0.64kg
65W AC Adapter with power cord Part Number:
DAA6X_
Car Adapter (11-27V DC)
Part Number:
DAD1XX
Spare Hi-Cap Battery
Part Number:
DBHU1X
Battery
Charger – 8 bays
Part Number:
DC8U1_
Supports both main and hi-cap battery Supports battery calibration with the push of a button. Power Input: 100-240V, 50-60Hz, 200W Internal Power Supply Dimensions: 550 mm (W) x 175 mm (D) x 103 mm (H)
Weight: 4.5kg
120W AC Adapter with power cord
Part Number:
DAA2X_
MIL-STD-461G Compliant
PRODUCTIVITY SOLUTIONS
| Expansion Module – Express Card 54 Part Number: DEEU1X |  |
| Expansion Module – PCMCIA Type II Part Number: DEPU1X |  |
| Expansion Module – Smart Card+RFID Reader Part Number: DE2U1X |  |
| Detachable Membrane Backlit Keyboard Part Number: DKBU1M |  |
| Shoulder Strap (4 Point) Part Number: DMS4XX |  |
| Expansion Module – HF/LF RFID Reader Part Number: DEFU1X |  |
| Expansion Module – Smart Card Reader Part Number: DESU1X | |
| iKEY Detachable Backlit Keyboard Part Number: TKBU1K |  |
| Shoulder Strap (2 Point) Part Number: DMS2XX |  |
| Hand Strap Part Number: DMHSXX |  |
| Hard Handle Part Number: Project-based* |  |
| Spare Stylus & Tether Part Number: DMSTXX |  |
| Folio Case Part Number: DMFCUX |  |
| Rotation Hand Strap Part Number: DMRHUX |  |
| Spare Digitizer Pen Part Number: DMDPXX |  |
| Screen Protector Film Part Number: DPFU1X |  |
Tablet Stand
Part Number:
DMTSXX
STORAGE SOLUTIONS
Spare SSD with canister
Part Numbers:
DSMU14 – 1TB
DSMU13 – 512GB
DSMU12 – 256GB
DSMU11 – 128GB
WARRANTY SOLUTIONS
Extended Warranty
Durabook’s Extended Warranty provides up to an additional 2 years of warranty thereby minimizing the cost of repair throughout the lifecycle of your device.
Part Numbers:
EW4-U11 – Extended Warranty – Years 1 to 4 (including 1 Year Extended Warranty)
EW5-U11 – Extended Warranty – Years 1 to 5 (including 2 Year Extended Warranty)
Accidental Damage Warranty (Protection Plus)
Durabook’s Accidental Damage Warranty provides up to 5 years of warranty. With Durabook’s Accidental
Damage Warranty your Durabook rugged devices are covered for accidental damage.
Part Numbers:
PP3-U11 – Accidental Damage Warranty – Years 1 to 3
PP4-U11 – Accidental Damage Warranty – Years 1 to 4 (including 1 Year Extended Warranty)
PP5-U11 – Accidental Damage Warranty – Years 1 to 5 (including 2 Year Extended Warranty)
Extended Battery Warranty
Durabook’s Extended Battery Warranty provides up to 5 years of warranty on the device’s main standard battery providing you with a worry free solution for your workforce.
Part Numbers:
EBW2-U11 – Extended Battery Warranty – 2 Years Cover (Main Standard Battery Only)
EBW3-U11 – Extended Battery Warranty – 3 Years Cover (Main Standard Battery Only)
EBW4-U11 – Extended Battery Warranty – 4 Years Cover (Main Standard Battery Only)
EBW5-U11 – Extended Battery Warranty – 5 Years Cover (Main Standard Battery Only)
EBWH2-U11 – Extended Battery Warranty – 2 Years Cover (Main with Hi-Cap Battery)
EBWH3-U11 – Extended Battery Warranty – 3 Years Cover (Main with Hi-Cap Battery)
EBWH4-U11 – Extended Battery Warranty – 4 Years Cover (Main with Hi-Cap Battery)
EBWH5-U11 – Extended Battery Warranty – 5 Years Cover (Main with Hi-Cap Battery)
Extended Warranty – Others
Durabook’s other Extended Warranty provides up to 5 years of warranty on other Durabook Solutions.
Part Numbers:
EDW2-U11 – Extended Durabook Office Dock Warranty – 2 Years Cover
EDW3-U11 – Extended Durabook Office Dock Warranty – 3 Years Cover
EVW5-U11- Extended Durabook Vehicle Lite Dock Warranty – Years 1 to 5 (including 2 Year Extended Warranty)
SOLUTION OVERVIEW
| CATEGORY | ITEM | PART NO. |
| DOCKING SOLUTIONS | Office Dock with AC Adapter | DDXU1_ |
| Vehicle Lite Dock with Tri-RF Pass-through (with Car Adapt- er) | DVPU1X | |
| Vehicle Lite Dock without Tri-RF Pass-through (with Car Adapter) | DVXU1X | |
| POWER MANAGEMENT SOLUTIONS
| Spare Main Battery | DBMU1X |
| Spare Hi-Cap Battery | DBHU1X | |
| Battery Charger – 2 bays | DC2U1_ | |
| Battery Charger – 8 bays | DC8U1_ | |
| 65W AC Adapter with power cord | DAA6X_ | |
| 120W AC Adapter with power cord | DAA2X_ | |
| Car Adapter (11-27V DC) | DAD1XX | |
| PRODUCTIVITY SOLUTIONS | Expansion Module – Express Card 54 | DEEU1X |
| Expansion Module – HF/LF RFID Reader | DEFU1X | |
| Expansion Module – PCMCIA Type II | DEPU1X | |
| Expansion Module – Smart Card Reader | DESU1X | |
| Expansion Module – Smart Card+RFID Reader | DE2U1X | |
| iKEY Detachable Backlit Keyboard | TKBU1K | |
| Detachable Membrane Backlit Keyboard | DKBU1M | |
| Shoulder Strap (2 Point) | DMS2XX | |
| Shoulder Strap (4 Point) | DMS4XX | |
| Hand Strap | DMHSXX | |
| Hard Handle | Project-based | |
| Rotation Hand Strap | DMRHUX | |
| Spare Stylus & Tether | DMSTXX | |
| Spare Digitizer Pen | DMDPXX | |
| Folio Case | DMFCUX | |
| Screen Protector Film | DPFU1X | |
| Tablet Stand | DMTSXX | |
| STORAGE SOLUTIONS | Spare 1TB PCIE SSD with canister | DSMU14 |
| Spare 512GB PCIE SSD with canister | DSMU13 | |
| Spare 256GB PCIE SSD with canister | DSMU12 | |
| Spare 128GB PCIE SSD with canister | DSMU11 |
| CATEGORY | ITEM | PART NO. |
| WARRANTY SOLUTIONS | Extended Warranty | |
| Extended Warranty – Years 1 to 4 (including 1 Year Extended Warranty) | EW4-U11 | |
| Extended Warranty – Years 1 to 5 (including 2 Year Extended Warranty) | EW5-U11 | |
| Accidental Damage Warranty (Protection Plus) | ||
| Accidental Damage Warranty – Years 1 to 3 | PP3-U11 | |
| Accidental Damage Warranty – Years 1 to 4 (including 1 Year Extended Warranty) | PP4-U11 | |
| Accidental Damage Warranty – Years 1 to 5 (including 2 Year Extended Warranty) | PP5-U11 | |
| Extended Battery Warranty | ||
| Extended Battery Warranty – 2 Years Cover (Main Standard Battery Only) | EBW2-U11 | |
| Extended Battery Warranty – 3 Years Cover (Main Standard Battery Only) | EBW3-U11 | |
| Extended Battery Warranty – 4 Years Cover (Main Standard Battery Only) | EBW4-U11 | |
| Extended Battery Warranty – 5 Years Cover (Main Standard Battery Only) | EBW5-U11 | |
| Extended Battery Warranty – 2 Years Cover (Main with Hi- Cap Battery) | EBWH2-U11 | |
| Extended Battery Warranty – 3 Years Cover (Main with Hi- Cap Battery) | EBWH3-U11 | |
| Extended Battery Warranty – 4 Years Cover (Main with Hi- Cap Battery) | EBWH4-U11 | |
| Extended Battery Warranty – 5 Years Cover (Main with Hi- Cap Battery) | EBWH5-U11 | |
| Extended Warranty – Others | ||
| Extended Durabook Office Dock Warranty – 2 Years Cover | EDW2-U11 | |
| Extended Durabook Office Dock Warranty – 3 Years Cover | EDW3-U11 | |
| Extended Durabook Vehicle Lite Dock Warranty – Years 1 to 5 (including 2 Year Extended Warranty) | EVW5-U11 | |
Glacier Computer
603.882.1560 Ext. 6
[email protected]
www.glaciercomputer.com
