CE394-DI Electronic Three-Phase Electricity Meter
User Manual

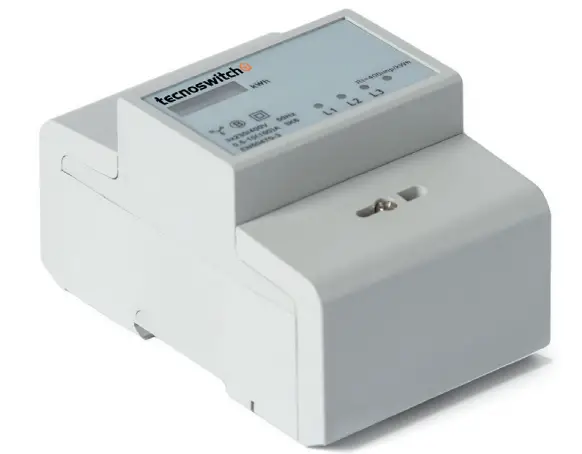

CE394-DI Electronic Three-Phase Electricity Meter
50-60 Hz – 3 x 230/400 Vac
Base current Ib 10 A
Max current 100 A
Reading resolution 0,1 kWh
Precision class 1
Numbering 6 digital + 1 decimal
Power consumption < 0,2 W per phase
Start current 0,4 % Ib
Remote control pulse output details:
Pulse width 90 ms (variable)
Pulse voltage high and low 0 – 4 V
Frequency 400 pulse / kWh

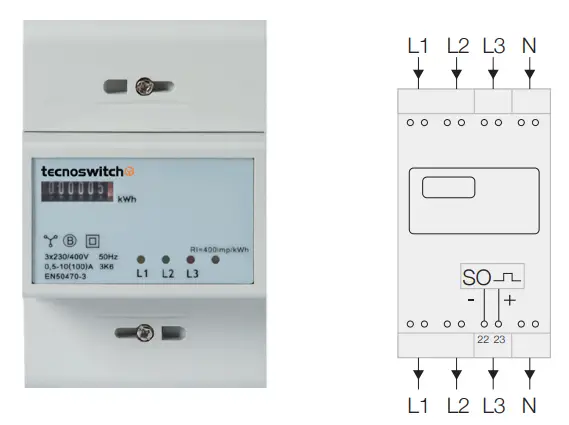

Direct connection
Max cable section 42 mm
 |  |
The energy meters are used for measuring the consumption of active energy in system with 380 Vac three phase voltage Pulse output for remote control for the accounts with computer
| CODE | MAX CURRENT (I max) | MODULE | WEIGHT |
| CE304DI | A | DIN | gr |
| 100 | 4 | 340 |
