Chapter 1 Delivery

1.1 Scope of deliveryBefore starting installation of the heat recovery unit, check that it has been supplied complete and undamaged.

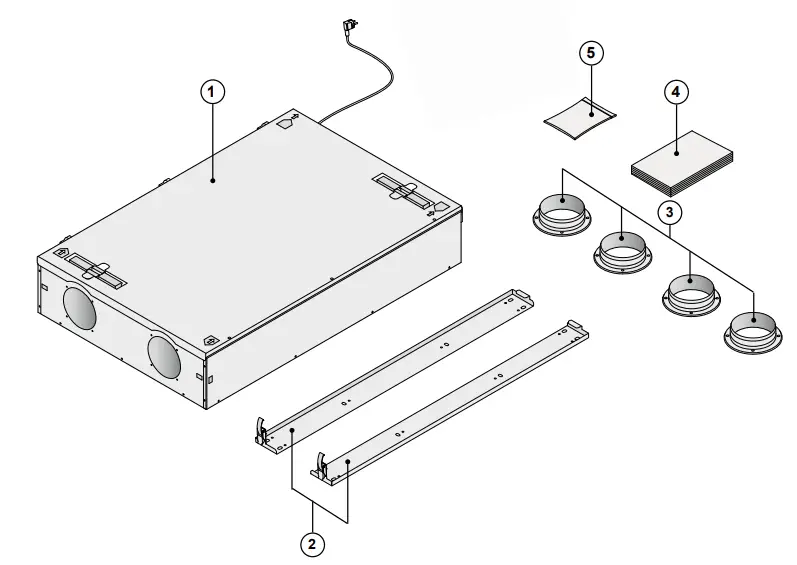

The scope of delivery of the heat recovery unit Renovent Sky 150 includes the following components:

1.2 Accessories Renovent Sky 150

Electric postheater		310730
Electric (extra) preheater		310740
Splitter RJ12		510472
sensor eBus surface-mounted		532126
Transmitter wireless remote control 2 positions (with. battery)		532170
Transmitter wireless remote control 4 positions (with. battery)		532171
Receiver wireless remote control (for battery version)		532172
Kit wireless remote control 2 positions (1 transmitter & 1 receiver)		532173
Kit wireless remote control 4 positions (1 transmitter & 1 receiver)		532174
RH (humidity)-sensor		310657
Filter kit 1x  ISO ePM 1 50% (F7) filter		533001
Filter kit 1x  ISO Coarse 60% (G4) & 1x ISO ePM 1 50% (F7)		533002
4-way switch with filter indication; flush mounted; modular connection.		540262
Silencer box Ø125 mm (2x)		423010
Silencer- / air distribution box Ø75 mm (20x)		423011
Silencer- / air distribution box 100 x 50 mm (12x)		423012
Silencer- / air distribution box 130 x 60 mm (12x)		423013
Servicetool		531961

Chapter 2 Application

The Brink Renovent Sky 150 is a ventilation unit with heat recovery with a maximum ventilation capacity of 150 m3/h and low-energy fans.
Features Renovent Sky:

• steplessly adjustable air flow rates through a “Brink Air control” (supplied with appliance).
• filter indication on the “Brink Air control” / multiple switch.
• a completely new intelligent frost protection system which ensures that also at low outdoor temperatures the appliance’s performance remains optimal and that, if necessary, it activates the standard preheater.
• low sound level
• comes as standard with automatic bypass valve
• constant flow control
• low energy consumption
• high efficiency

Renovent Sky 150 is available in two types:

• “Renovent Sky 150”
• “Renovent Sky 150 Plus”

Compared to the Renovent Sky 150, the Renovent Sky 150 Plus has a more extensive control board which increases the connection options.
These installation instruction describe both the standard Renovent Sky 150 and the Renovent Sky 150 Plus.
With the aid of the supplied mounting brackets, the Renovent Sky 150 (Plus) can be mounted either on the wall or on the ceiling. For the correct position of the connection ducts and dimensions see §3.2.
When ordering an appliance always state the correct type; subsequent conversion to a different version is highly labour-intensive.
The Renovent Sky 150 comes ready to plug in with a 230 V mains plug.
The appliance comes as standard with a “Brink Air control”, but connection of a simple 4-way switch is possible as well. If a 4-way switch is installed instead of a “Brink Air control”, the settings of the appliance can only be changed with a laptop!
Connecting a combination of “Brink Air control” and multiple switch is another option.

Chapter 3 Version

3.1 Technical information

	Renovent Sky 150
Supply voltage [V/Hz]	230150
Protection degree	IP30
Dimensions (w x d x h) [mm]	1000 x 660 x 198
Dud diameter [mm]	125
External diameter condensate discharge [“]	3/4
Weight [kg]	24,5
Filter dass	ISO Coarse 60% (G4)
Fan setting (factory setting) – “Brink Air con- trol”		1	2	3	Max.
– 4-way switch
Ventilation capacity [m,/h]	30	75	100	125	150
Permissible resistance ducts system [Pa]	2 – 6	13 – 38	22 – 66	35 -105	50 – 150
Rated power (excl. preheater) [W]	11 – 12	19 – 27	27 – 37	38 – 52	53 – 72
Rated current (excl. preheater) [A]	0,14 – 0,15	0,20 – 0,28	0,27 – 0,35	0,36 – 0,47	0,49 – 0,64
Rated power (incl. preheater) [A]	2,4
Cos 9	0,34	0,42	0,44 – 0,47	0,46 – 0,48	0,47 – 0,49

In practice, the value may deviate 1 dB(A) as a result of measuring tolerances.

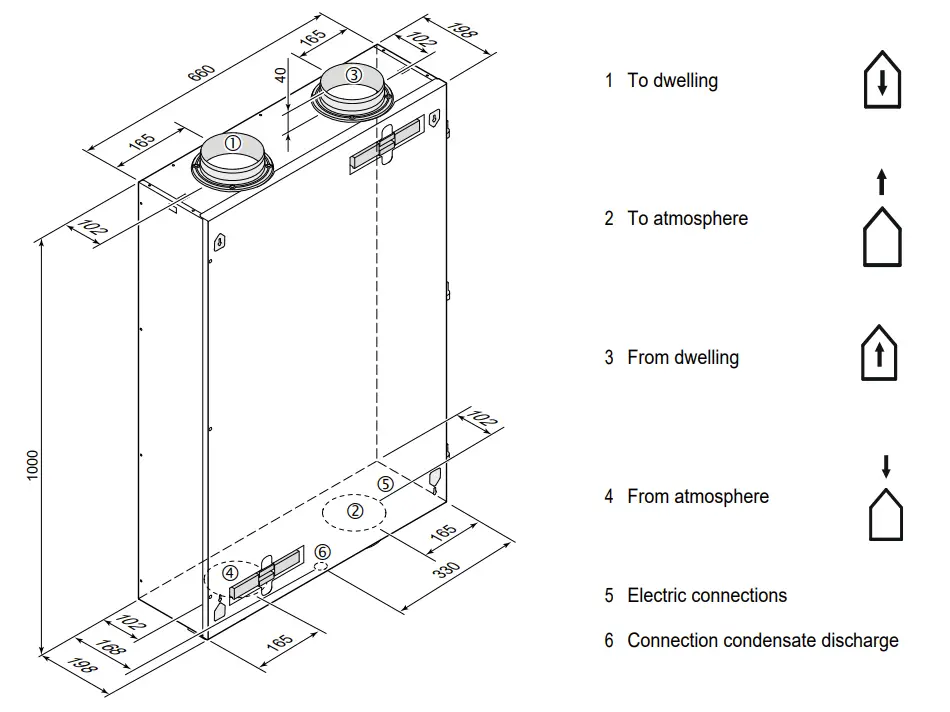

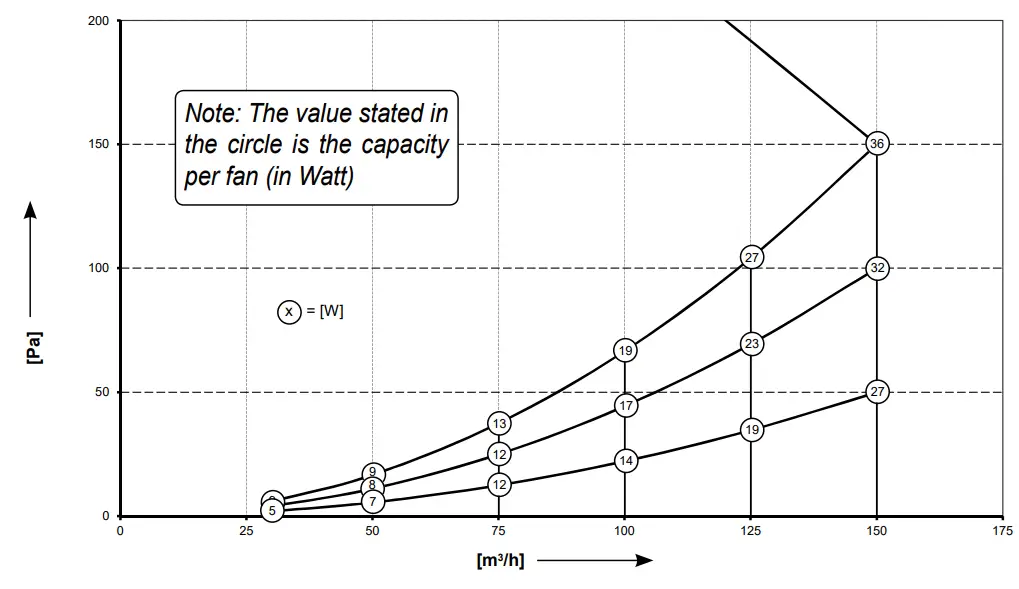

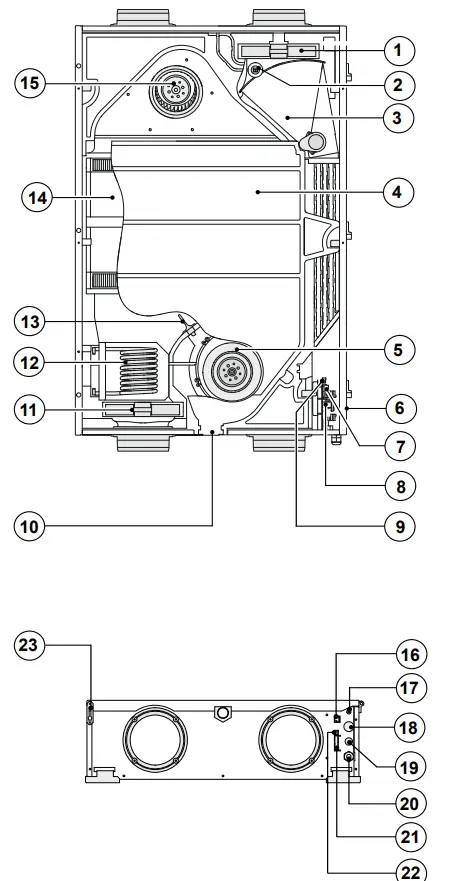

3.2 Connections and dimensions                      3.3 Fan graph 3.4 Exploded view appliance

Chapter 4 Operation

4.1 Description
The appliance comes plug and play and operates fully automatically. The extracted indoor air heats up the fresh, clean outdoor air. That saves energy and fresh air is sent to the required rooms.
The control system has four ventilation modes.
The air flow rate can be adjusted per ventilation mode. The constant volume control system ensures that the air flow rate of the supply and extract fans is realised independent of the duct pressure.

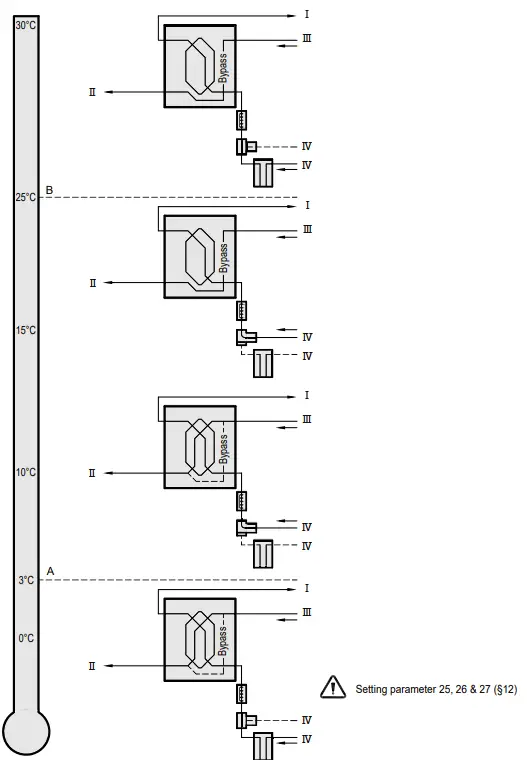

4.2 Bypass conditions The standard bypass valve makes it possible to supply fresh outside air that is not heated by the heat exchanger. Particularly during summer nights it is desirable to supply cooler outside air. Then the hot air in the dwelling is replaced by cooler outside air in so far as possible.
The bypass valve opens and closes automatically when a number of conditions are satisfied (refer to the table below for bypass conditions). The operation of the bypass valve can be adjusted in step number 5, step number 6 and step number 7 in the settings menu (see chapter 12).
Bypass valve open
– The outdoor temperature is higher than 7°C and
– the outdoor temperature is lower than the indoor temperature in the dwelling and
– the temperature in the dwelling is higher than the temperature set at step no. 5 in the settings menu (set a standard at 22°C).
Bypass valve closed
– The outdoor temperature is lower than 7°C or
– the outdoor temperature is higher than de indoor temperature in the dwelling or
– the temperature from the dwelling is lower than the temperature set at step no. 5 in the settings menu minus the set temperature by the hysteresis (step no. 6), this temperature is factory 20 °C (22,0 °C minus 2,0 °C).
4.3 Frost protection
To prevent freezing of the heat exchanger at extremely low outdoor temperatures, the Renovent Sky features intelligent frost control. Temperature sensors measure the temperatures across the heat exchanger and, if necessary, the preheater is switched on. That guarantees a proper ventilation balance, also at very low outdoor temperatures. If, with switched on preheater(s), the exchanger temperature still starts to drop below zero, stepless unbalance is created in the appliance.
4.4 Renovent Sky Plus version
The Renovent Sky is also available as Plus version. This version is equipped with a different control board with 2 additional connectors (X14 & X15) with more connection options for various applications.

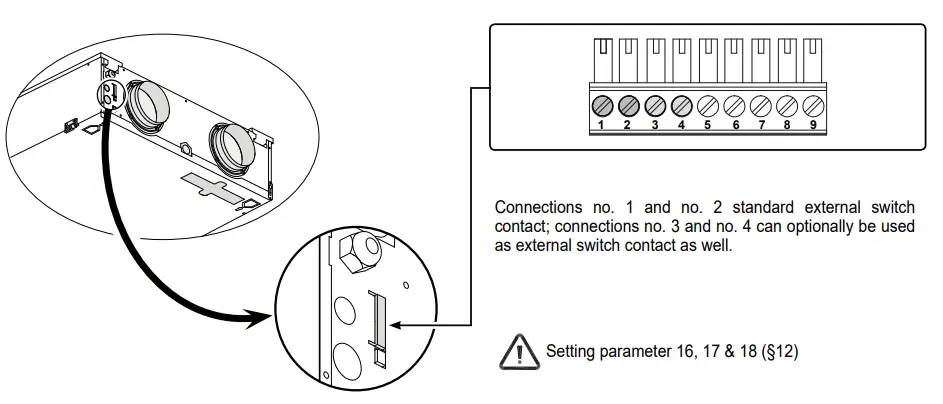

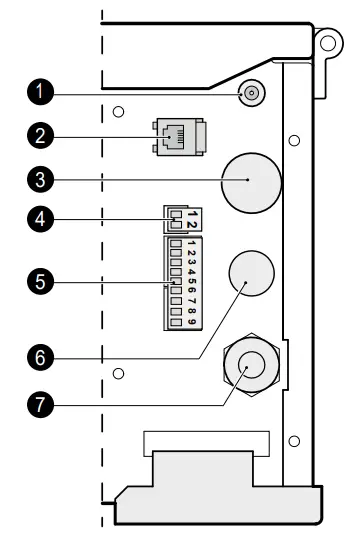

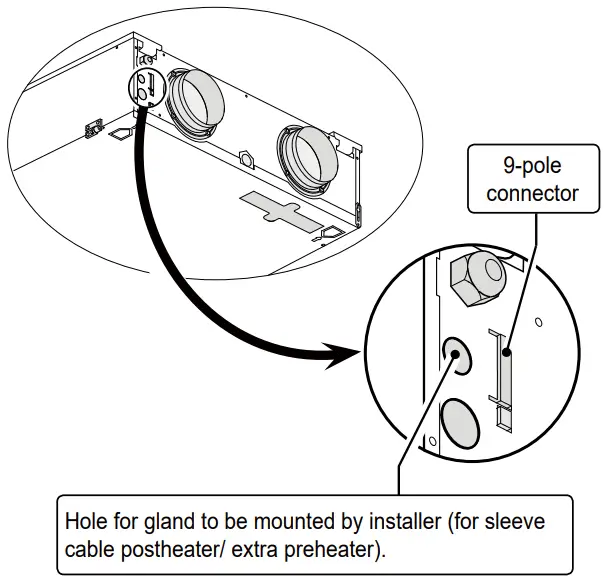

Only the Plus is equipped with a 9-pole connector (connected to X15 on control board) that is accessible from the outside of the appliance.

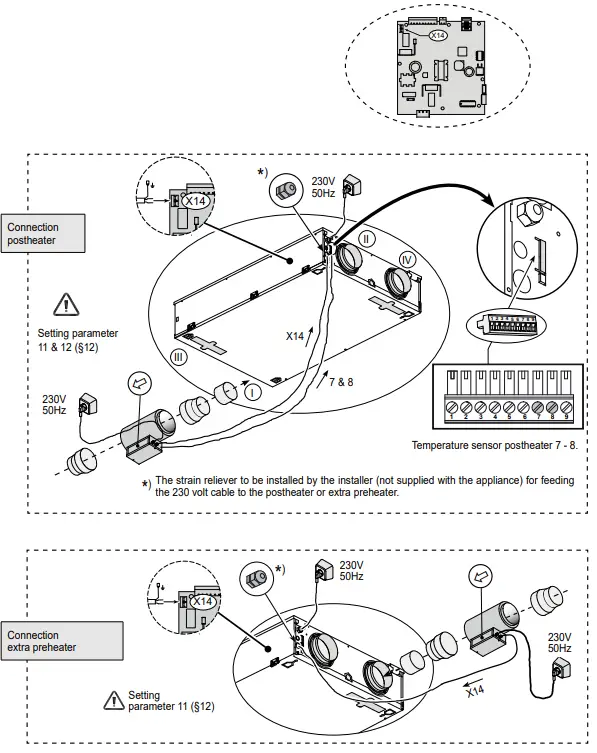

If a postheater or extra preheater is connected to connector X14 (accessible after opening the front panel ) the installer must feed the connected 230 Volt cable to outside the appliance through a strain reliever. For this strain reliever (not supplied with the appliance) a plug must be removed from the position where this strain relieve must be placed.

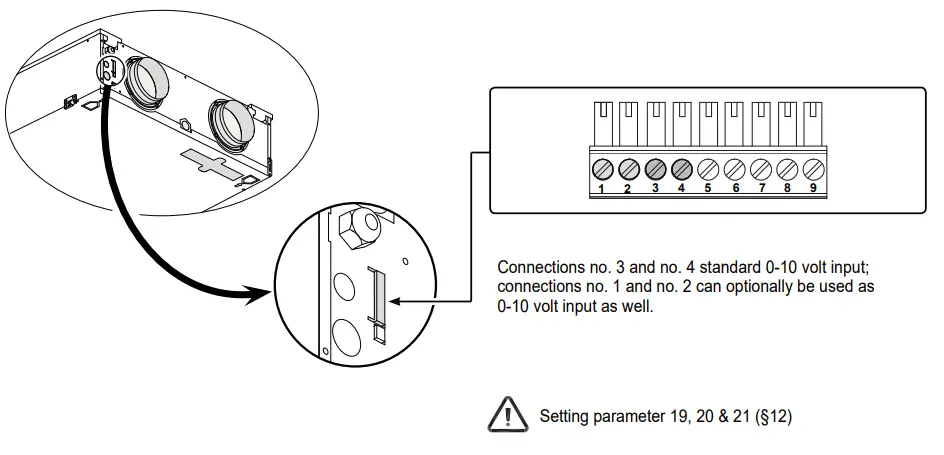

See §9 for more information on the connection possibilities of connectors X14 and X15.

Chapter 5 Installation

5.1 Installation general
Instaation must take place under:

• Quality requirements ventilation systems dwellings.
• Quality requirements balanced ventilation in dwelings.
• The regulations for ventilation of dwellings and residential buildings.
• The safety regulations for low-voltage installations.
• The regulations for connection to interior sewers in dwell-ings and residential buichrigs.
• Any additional regulations of the local utilities.
• The instalation instructions for the Renovent Sky 150
• In addition to the above design and installation requirements and recommendations. the national building and ventilation regulations must be complied with.

5.2 Placing the appliance

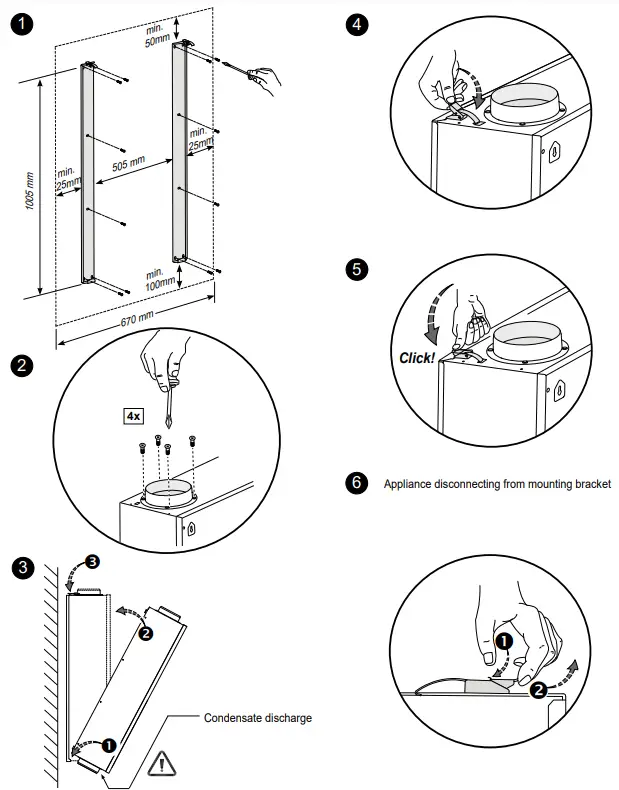

The Renovent Sky 150 can directly be mounted to the wall or ceiling usirig the mounting brackets supplied for that purpose.
Because of the appliance’s weight, mounting the appliance must always be done by two people!
The Renovent Sky can direcUy be mounted to the wall/ ceiling uskig the suspension brackets supplied for that purpose. For a vibration-free result the appliance must be mounted to a solid wal with a minimum mass of 200 kg/rn’. A gypsum block or metal stud wall does not suffice! Additional measures such as double panelling or extra studs are required in that case. h ad-dition. the following aspects must be taken into account

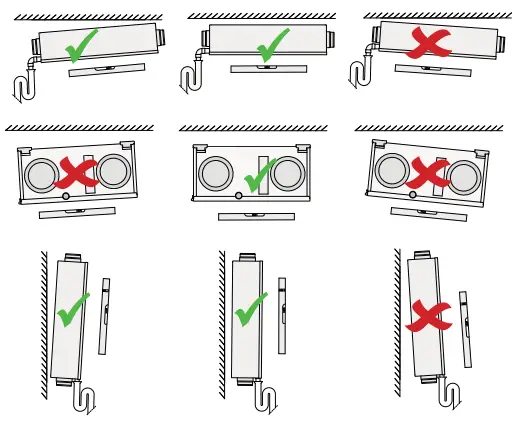

• The appliance must be placed level.

• The installation room must be such that a good conden-sate discharge with air trap and pitch for condensate can be made.
• We recommend not to install the heat recovery unit in spaces with an average high RH (for instance bathroom) That wit prevent condensation on the outside of the hem recovery unit.

Make sure that under no condition the condensate 4A, discharge is installed at a pitch towards the appli-a ce. t, The appliance is only suitable for ceiling or wall mounting! Never mount the appliance flat on the floor because of the position of the condensate discharge bin!
The heat recovery unit must be installed in an insulated. frost-free room to prevent. among other things. freezing ofthe condensate discharge

• When mounting flexible ducts. bear in mind that it must be possible to replace them in due course.
• Make sure there is sufficient free space at the appliance to allow cleaning of the filters and maintaining the appliance. It must be possible to swing the door open.
• Avoid the use of petroleum-based adhesives in air plant systems.
• Dwellings with construction moisture must be ventilated naturaly during a certain period!

Ceiling mountino:
At least 70 cm at the underside of the appliance and a free headroom of 1.8 m: if 70 cm free space is not avaiabile. for instance when mounting on lop of a suspended ceeng. there must be sufficient room to partly open and remove the front panel.

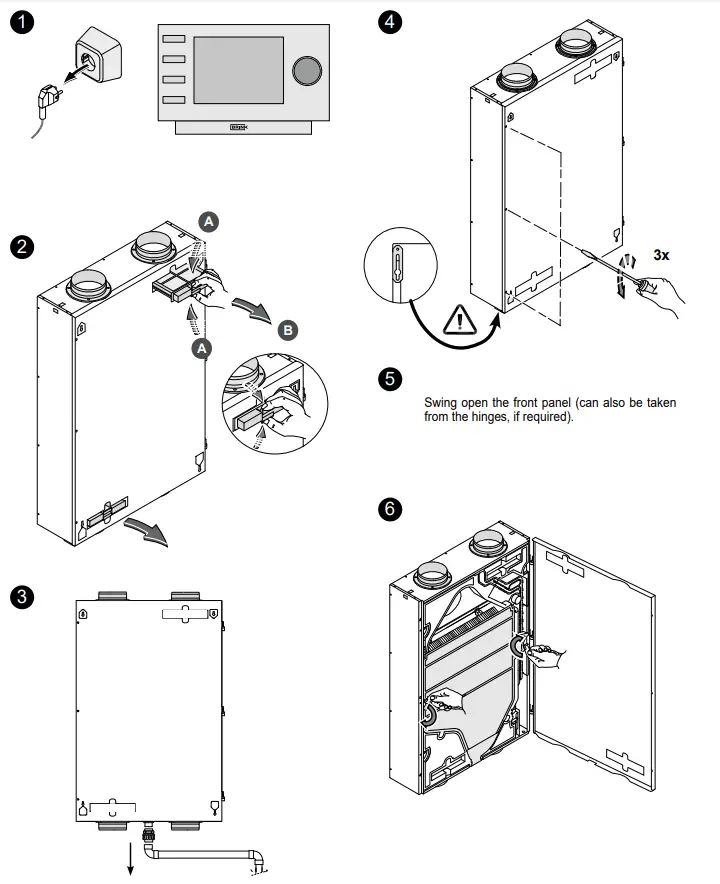

The front panel can be detached after removing a lock screw at the hinge! (§ 3..1/ nr. 6)
Make sure the filters can always freely be removed. so there is no frame or other obstade at the level of the fillers!
Wall mounting :
Make sure there is a free space of at least 70 cm at the front of the appliance and a free headroom of 1.8 m. Make sure there is at least 20 cm free space at the appli-ance side where the electric connections are located. so convectors and sleeves remain accessible.
Ari ducts-

• The air ducts must be mounted air-tight
• The air ducts to and from the dwelling must be fitted with a muffler.
• Mounting of air ducts to the roof deck must be avoided in order to prevent sound transmission.
• It is recommended to restrict the external duct pressure in the design to 100 Pa at the design flow rate in order limit the total sound level. In all events the practical external duct pressure must be limited to 150 Pa
• The air velocity must be limited to 5 Ms it the main duds and 3.5 m/s in the branches.

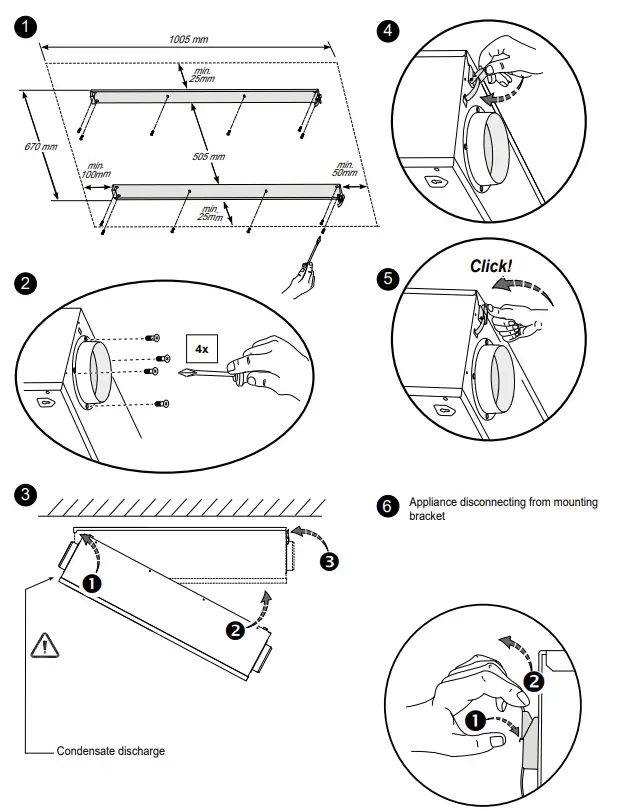

5.2.1 Placing the appliance for ceiling mounting
5.2.2 Placing the appliance for wall mounting

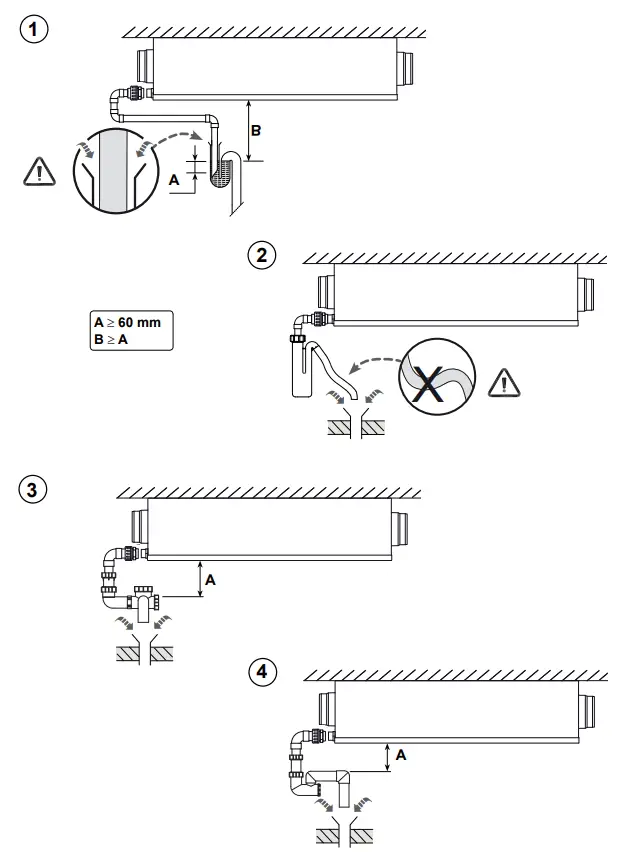

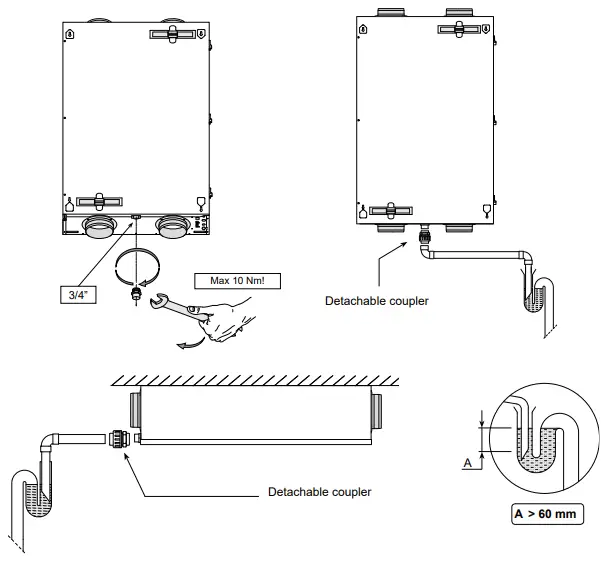

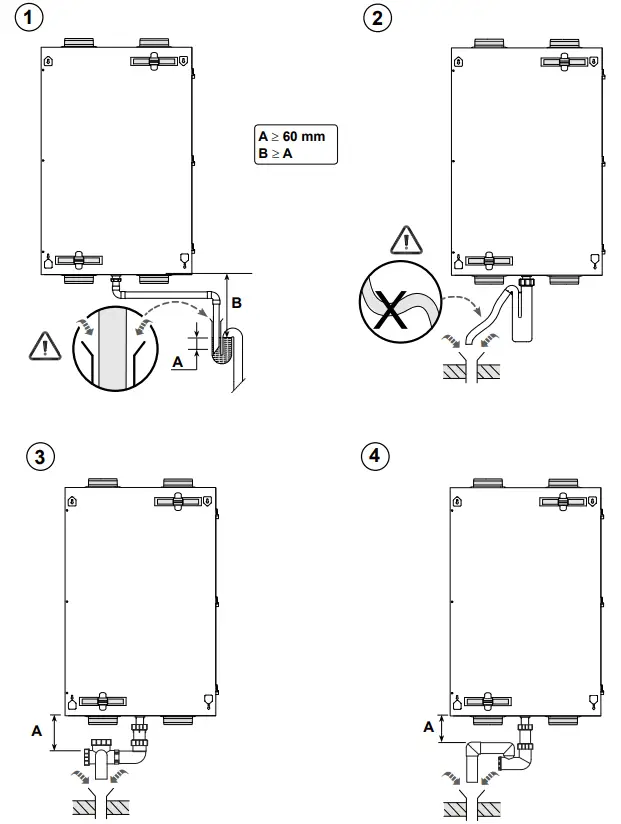

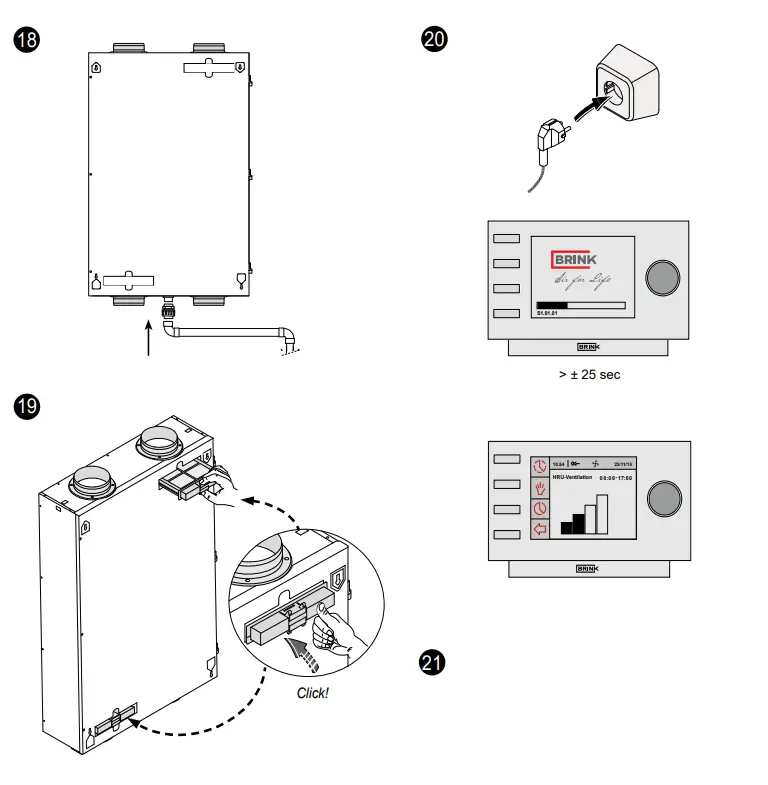

5.3 Connecting the condensate discharge
The Renovent Sky must always be fitted with a condensate discharge. The condensate must be discharged through a drainpipe
The condensate discharge connection with 3/4″ mail thread (supplied with the appliance) must be screwed into the appliance’s condensate bin by the installer.
Important: Always install a detachable coupler in the condensate discharge line as closely as possible to the appliance, otherwise the condensate bin cannot be removed from the appliance for service purposes!
The condensate discharge line can be mounted to it, preferably glued, if necessary using a square bend. The installer can glue the condensate discharge to the appliance in the desired position. The drain must discharge under the water level in the U-trap. Use a condensate discharge line with a diameter of 32 mm.
Particularly for ceiling mounting, make sure the condensate discharge is below the level of the condensate bin in the Renovent Sky!
Before connecting the condensate discharge to the appliance, pour water into the U-trap to create an air trap.

5.4 Electric connections
5.4.1 Connecting the power plug
The appliance can be connected to an easily accessible, earthed wall socket with the plug that is mounted to the appliance. The electric installation must comply with the requirements of your power company. The appliance comes ready to plug in with a 230 V mains plug
Make allowance for the 375 W preheater; if in addition also a postheater or extra preheater is installed, the rated pow-er increases to 1375 W
Warning The fans and control board carry a high voltage. Al-ways take the voltage from the appliance by pulling the power plug when working on the appliance.

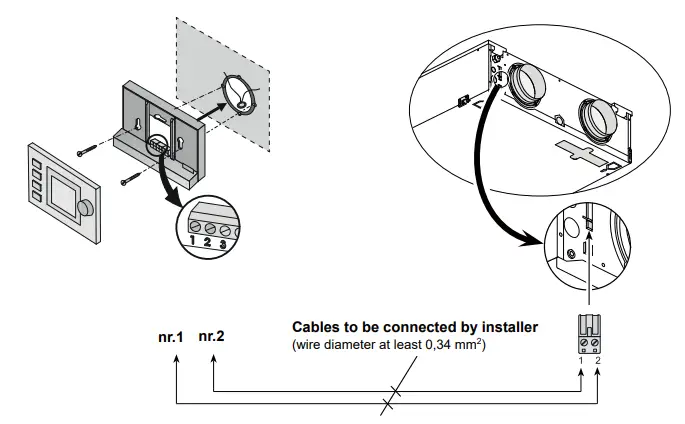

5.4.2 “Brink Air control” connection

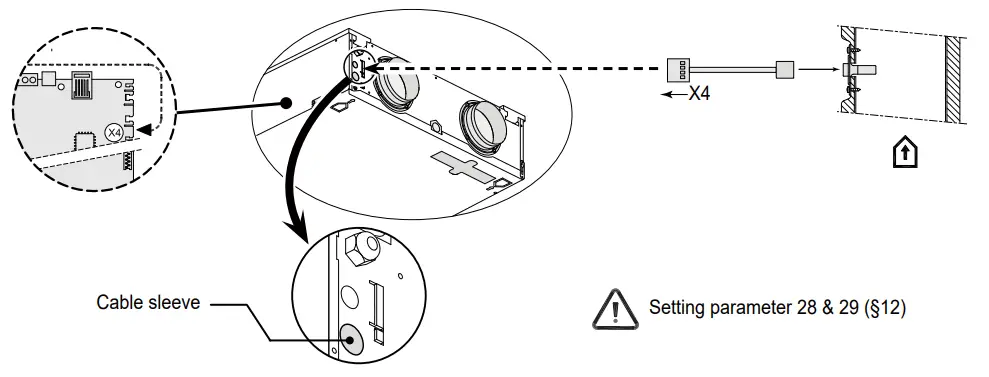

The “Brink Air control” that comes as standard with the appliance must be connected to the eBus connector. This (detachable) 2-pole eBus connector is mounted on the outside of the appliance (see also §10.1).

Chapter 6 Display

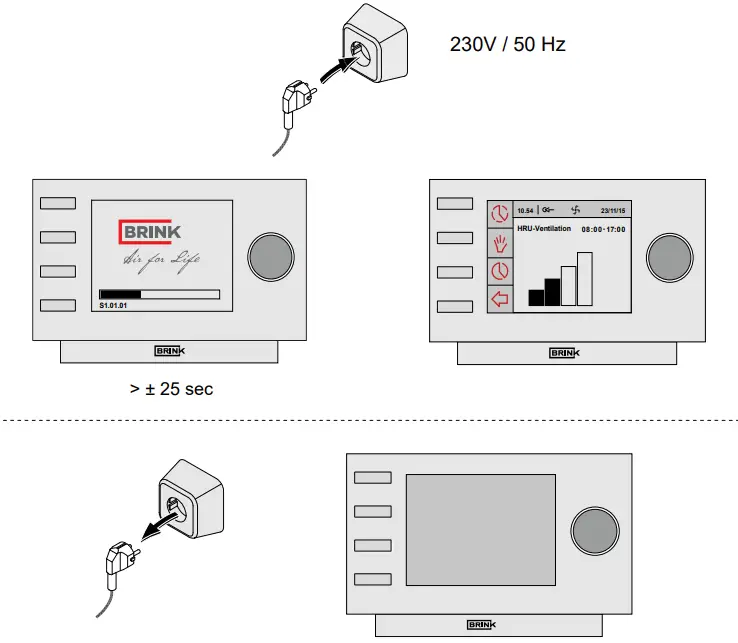

6.1 Switching the appliance on and off
Warning When working on the appliance, always take the voltage from the appliance by first switching it off through software and subsequently pulling the power plug.
6.2 General explanation Brink Air control
The “Brink Air control” display shows what the operating mode of the appliance is. Settings in the “Brink Air control” software of the Renovent Sky 150 can be called up and changed with the aid of the operating keys. Ex factory the “Brink Air Control” is set for the English language. In the setting menu “Brink Air Control”, §6.4.2, you can choose a language.

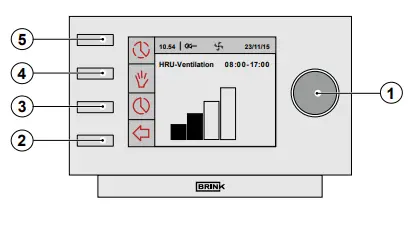

1	Setting tting knob	Pressing the Right-hand setting knob’ takes you to the Main Menu of the Sky appliance (§6.4).
2	Return key	Press the Return key () to close any selected menu.
3	Setting & activating timer programme	Use this key () to select a type of timer programme; the set times and the connected airflow rates.
5	Manual control key	After pressing the manual control key () the timer control can be overruled. At the position of the current time block, the display shows the message ‘manual’. The appliance will remain running in this manual mode until it is cancelled by pressing the ‘Return’ key ().
6	Bypassing the timer programme	Pressing the key () take you to a temporary main screen; then the airflow during one time cycle can manually be modified using the right-hand setting knob.

6.3 View on Display

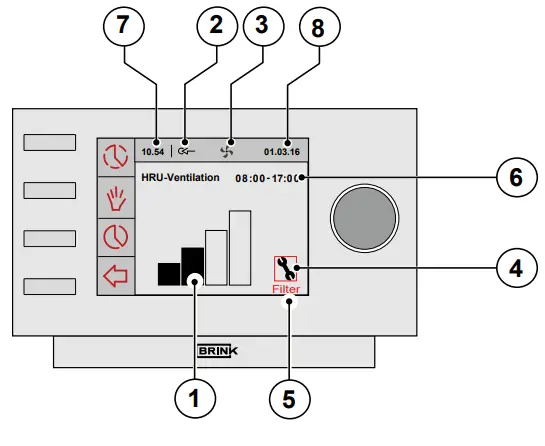

1. The display shows a bar chart (flow rate indicator) of the current ventilation rate.


   Flow rate indicator	4-way switch
   		The supply and extract fans are running at 30 m3/h or they are stopped (step number 1).
   	1	The supply and extract fans are running in ventilation mode 1 (step number 2).
   	2	The supply and extract fans are running in ventilation mode 2 (step number 3)
   	3	The supply and extract fans are running in ventilation mode 3 (step number 4)

2. This eBus indicator appears when the eBus connection is active; if it is not visible, no communication is possible between the “Brink Air control” and the Sky appliance.
3. This ventilation indicator appears when the fans in the appliance are running.
4. This fault symbol appears when an appliance fault has occurred.

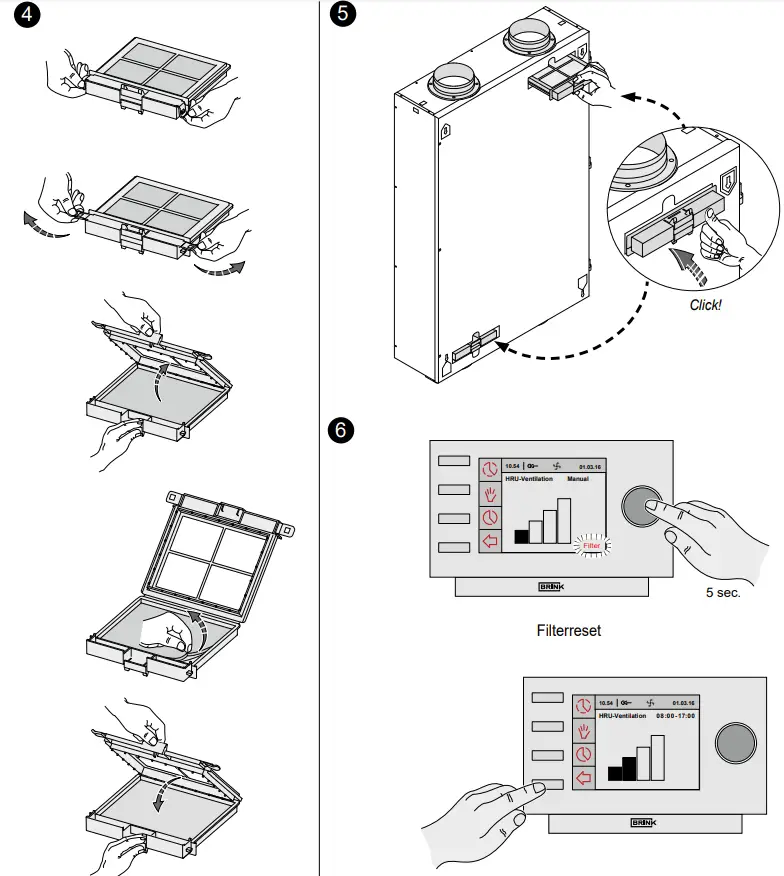

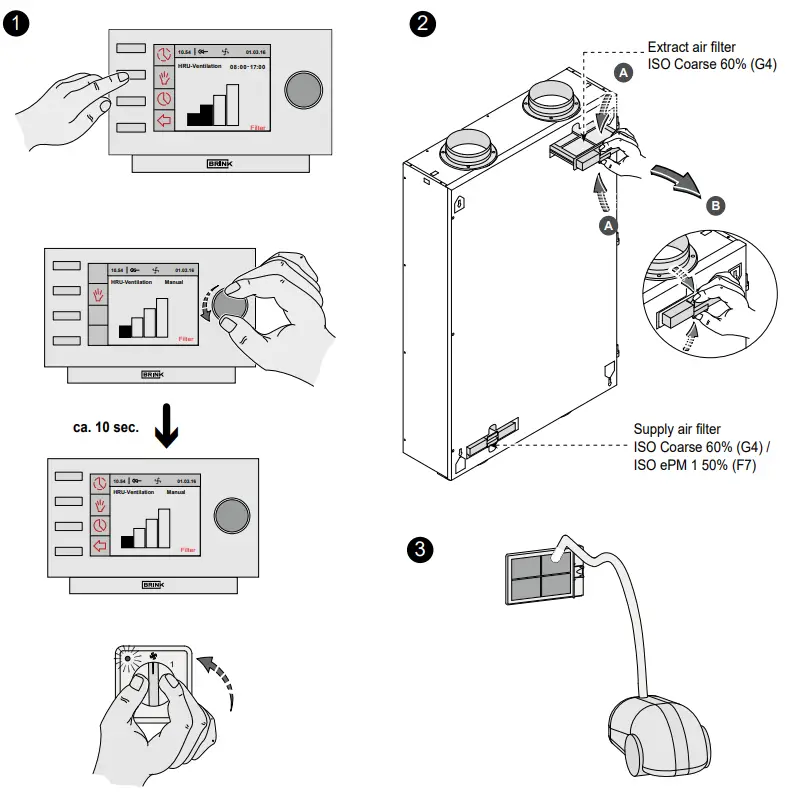

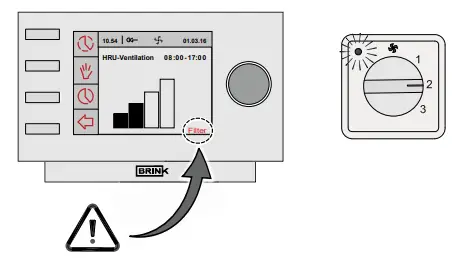

5. When the text “Filter” appears on the “Brink Air control” display, the filters in the appliance must be cleaned or replaced.
6. This indicates in what (preprogrammed) time interval the appliance is. When the manual control key () or temporary bypassing of the timer programme () iis activated, the time interval picture disappears and is replaced by the message “Manual or Temporary”.
7. The current time is shown at this position. It is important for proper performance of the appliance that the time is set correctly.
8. The current date is shown at this position.

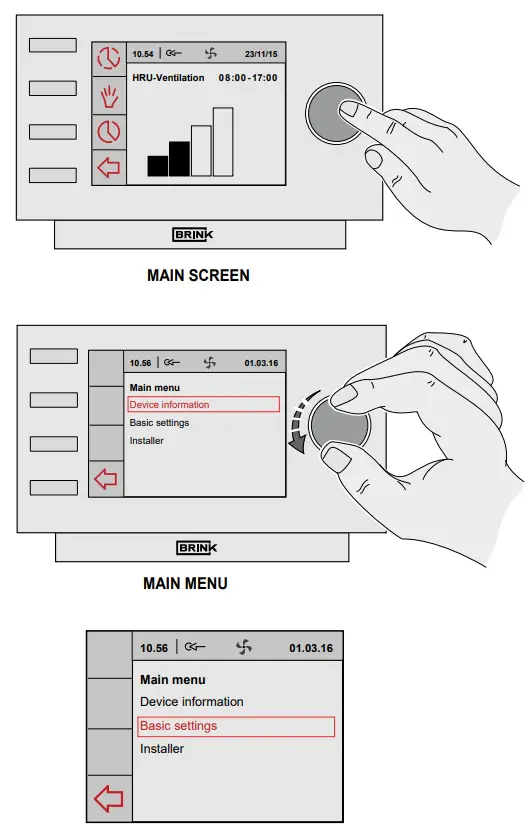

6.4 Main menu
Pressing the right-hand setting knob on the “Brink Air control” takes you to the MAIN MENU.
In this main menu you can use the right-hand setting knob to select one of the 3 available manuals (rotate to select and press to confirm) including:

– Device information §6.4.1
– Basic settings §6.4.2
– Installer §6.4.3
Selected menus can be closed by pressing the return key (<3); if the return key (<2) is not pressed, the display will return to the main screen some 5 minutes after the last time a key is operated.

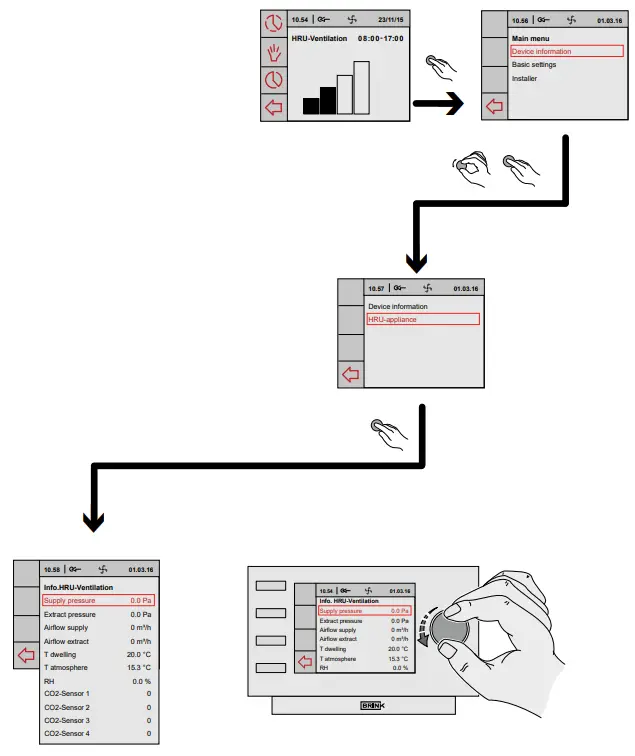

6.4.1 Device information menu
From the main menu, turn the right-hand setting knob to select the ”Device information the selection by pressing the right-hand setting knob.
If several appliances are connected, a selection from the appliances can be made in this menu; if only a Sky appliance is connected, then select HRV appliance:
– HRU-appliance
Turning the right-hand setting knob calls up the various current values. Modifying values or settings is not Selected menus can be closed by pressing the return key ( ); if the return key ( ) is not pressed, the display will return to the main screen some 5 minutes after the last time a key is operated.

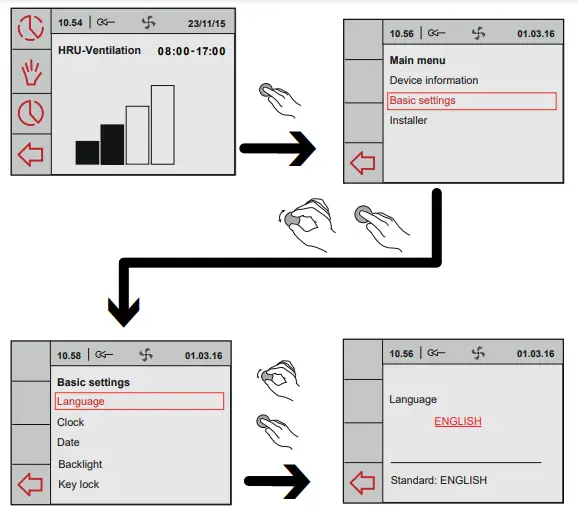

6.4.2 Basic settingh menu
From the main menu, turn the right-hand setting knob to select the “Basic settings” by pressing the right-hand setting knob. In this menu, you
– Language
– Clock
– Date
– Backlight
– Key lock

A Language
In this menu you can choose a language; ex factory the “Brink Air Control” is set for the English language.
The optional languages are:
Nederlands
English
Duits
Frans
Italiaans
Spaans
Pools
Lithuanian
DanishB Clock

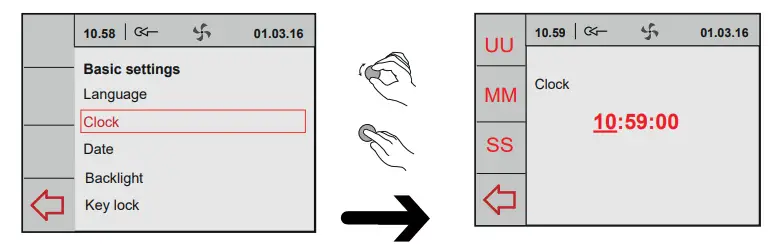

The current time must be set in this menu.

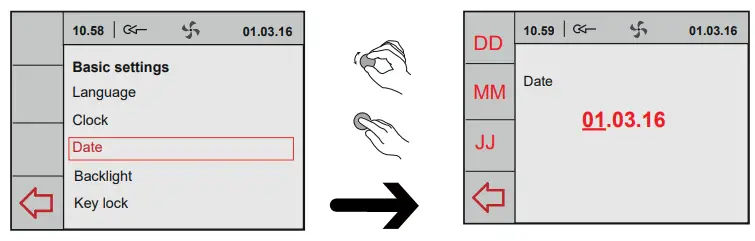

The time is always shown in 24 hours mode.C Date
The current date must be set in this menu; the day, month and year must be entered.

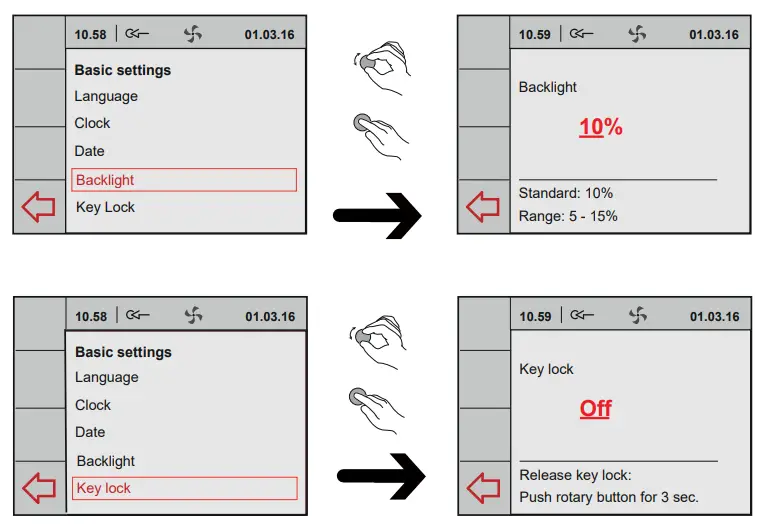

D Backlight
In this menu the display backlighting can be adjusted
E Key lock
This can be used to prevent unwanted use and the changing of settings.
It will become active 1 minute after the last setting has been made.

Deactivate the key lock once-only by holding down the right-hand setting knob for 3 seconds!
Permanently deactivate it by changing the setting in the key lock menu.

6.4.3 Installer menu
From the main menu, turn the right-hand setting knob to select the “Installer” by pressing the right-hand setting knob.
If several appliances are connected, a selection from the appliances can be made in this menu; if only a Sky appliance is connected, then select HRV appliance:
– HRU-appliance
From this menu can be chosen from:
A Device settings
B Factory setting

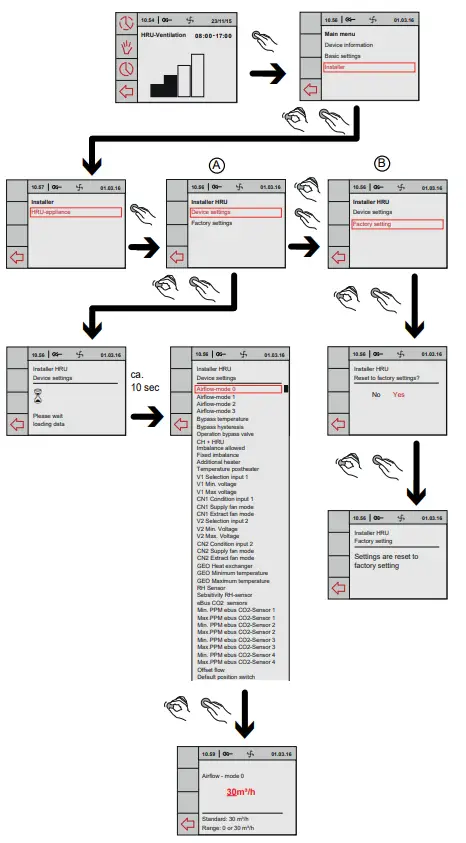

A Device settings
Selecting parameter takes you to the overview of all step numbers of the appliance as described in chapter 12. In this menu you can view these values and, if necessary, modify
them.

Incorrect settings may se-riously affect the proper performance of the appli-ance!
B Factory setting
Selecting factory setting will restore all step numbers to the original fac-tory setting. All fault messages will be deleted as well.

Chapter 7 Fault

7.1 Trouble shooting

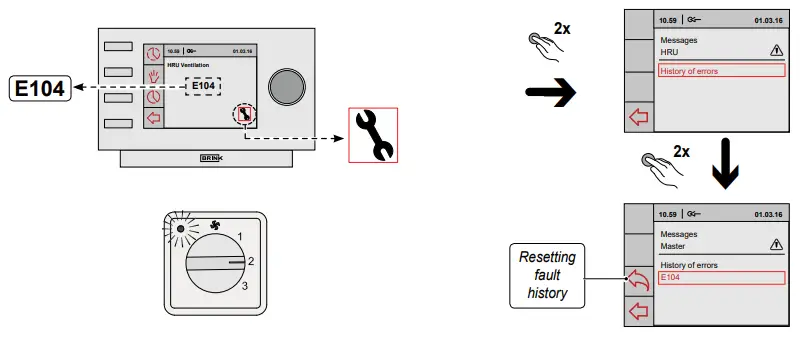

When the appliance control system detects a fault, it is indi-cated on the display of the “Brink Air control” with a spanner symbol, possibly together with a fault code.
Non-locking fault

When the appliance detects a non-locking fault, it will still keep running (limitedly).
The display does show the fault symbol (spanner).

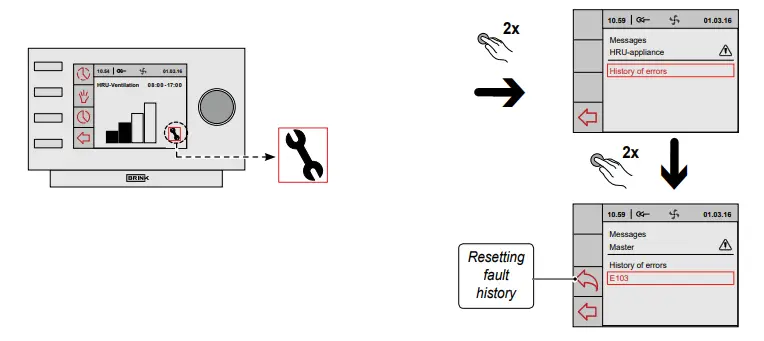

This fault can be read out in the menu “Messages”

Locking fault

When the appliance detects a locking fault, it will no longer work. The (permanently lighted) display shows the fault symbol (spanner) together with fault code. The red LED on the multiple switch (if applicable) will be blinking. Contact the installer to remedy this fault. A locking fault cannot be remedied by taking

Warning
When working on the appliance, always take the voltage from the appliance by first switching it off through software and subsequently pulling the power plug.

7.2 Display codes

Note? If mode 2 of a multiple switch does not work, the modular connector of the multiple switch has been connected the wrong way round. Cut off one of the RJ connectors to the multiple switch and mount a new connector the other way round.

Chapter 8 Maintenance

8.1 User maintenance
User maintenance is limited to periodically cleaning or replac-indicated on the display (it shows the text “FILTER”) or, if a LED at the switch lights up.

It is not permitted to use the appliance without filters!

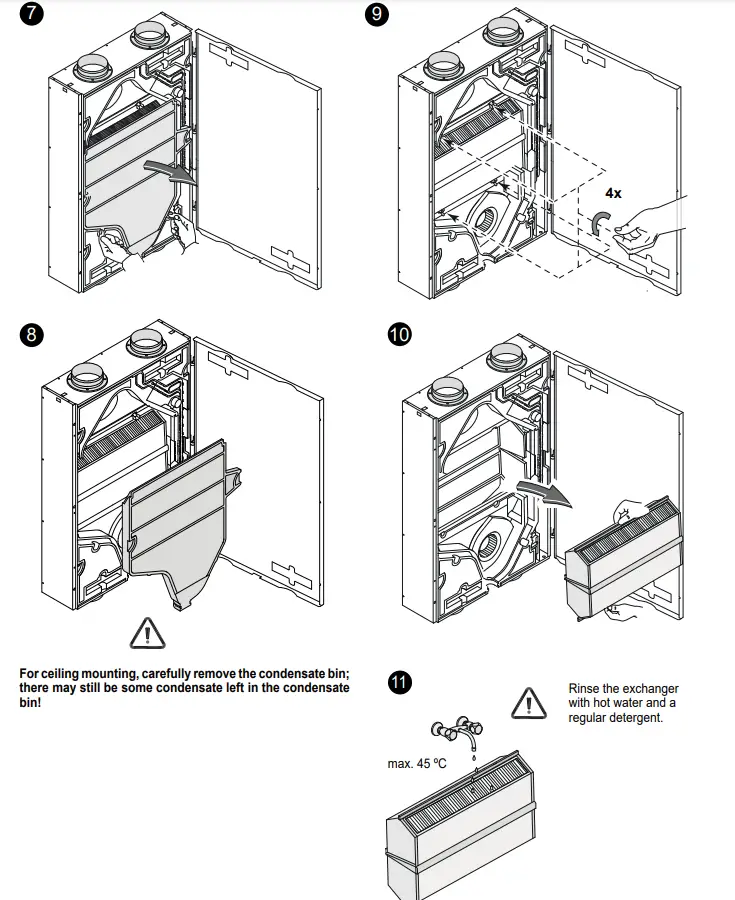

8.2 Maintenance installer

Filter reset; see §8.1 point 6
Press the Return key ( ) to leave any selected menu and the appliance will return to operating mode.

Chapter 9 Electric connections

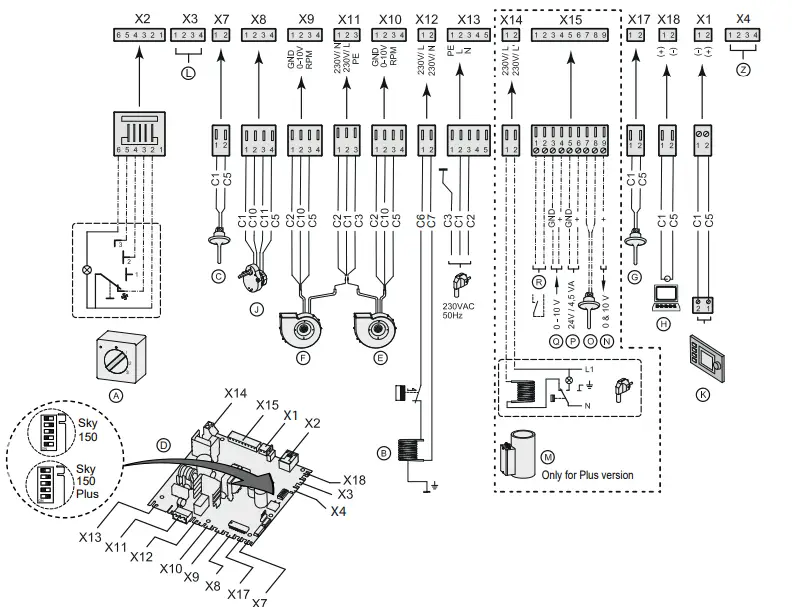

9 Wiring diagram

Chapter 10 Electric connections accessories

10.1 Connections connectors

10.2 Connecting wireless remote control

Note:
When several remote controls are used, the appliance will always run according to the remote control with the highest set ventilation mode.
The 4-way switch can also be used to activate a 30-minutes boost mode by putting the switch to setting 3 for less than 2 seconds and directly turning it back to setting 1 or 2. The boost mode can be reset by putting the switch to setting 3 for longer than 2 seconds or by switching it to absence mode ( ).

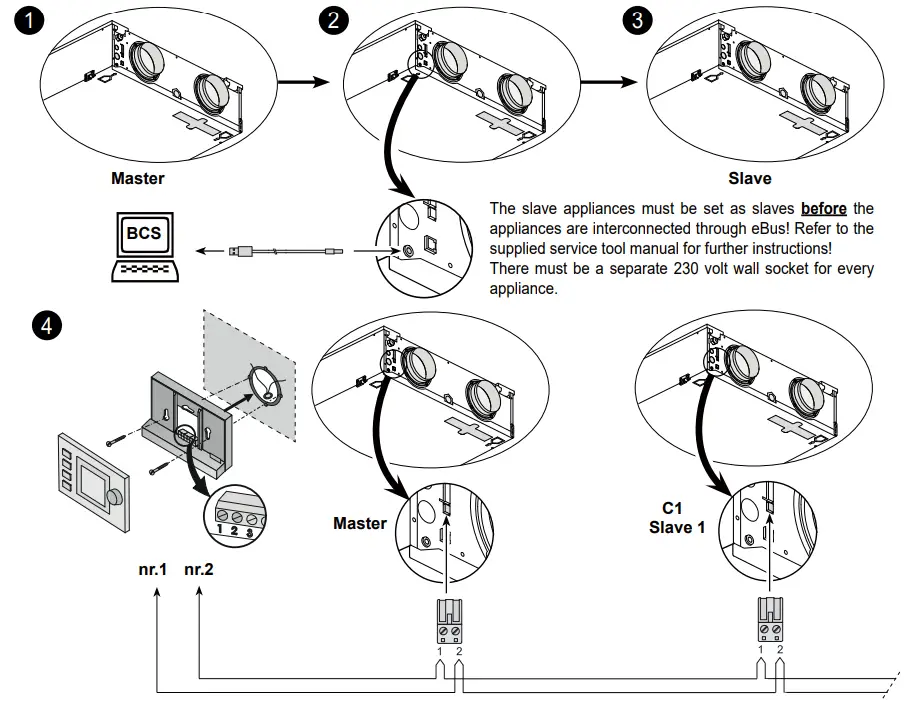

10.3 Coupling several Renovent Sky appliances

Important: Because of polarity sensitivity, always connect contacts X1-1 to X1-1 and contacts X1-2 to X1-2.
Never connect X1-1 and X1-2. A maximum of 10 appliances (1 Master + 9 Slave max.)

10.4 Connection RH (humidity)-sensor

10.5 Connection postheater or extra preheater
The postheater or extra preheater (only possible for Renovent a postheater there is also a temperature sensor that must be connected to no. 7 and 8 of the 9-pole connector that is only installed in the Plus version.
When using a postheater or extra preheater, step number 11 is applied (and for extra preheater also step number 12). Please refer to the mounting instructions that came with the heater for more extensive information regarding installation of the post- heater or the extra preheater.

10.6 Connection geo heat exchanger

10.7 Connecting external switch contact
An external switch contact (e.g. switch or relay contact) can be connected to the Renovent Sky Plus.
If a second input is required as external switch contact, if nec-essary connections no. 3 and no. 4 can be reprogrammed.

10.8 Connection to 0-10 V input
The Renovent Sky Plus can be equipped with an external provision with 0-10 volt control.
Connections X15-3 and X15-4 are set as standard as 0 – 10 V input; it is activated as standard.

Chapter 11 Service

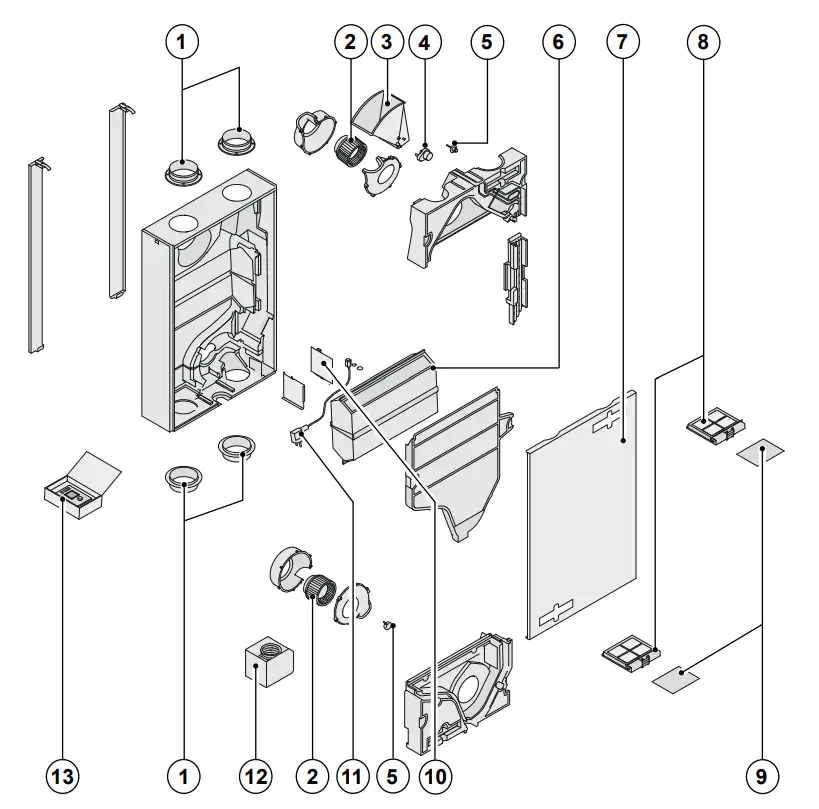

11.1 Exploded view
When ordering parts, in addition to the article code number (see exploded view), please state the type of the heat recovery appliance, the serial number, the year of production and the name of the part::
N.B:
Appliance type, serial number and year of production are statad on the identification plate on the top of the appliance.

11.2 Service parts

* The mains cable has a print connector. When replacing it, always order a replacement mains cable Brink

• The mains cable has a print connector. When replacing it, always order a replacement mains cable Brink To avoid dangerous situations, a damaged mains should only be replaced by a qualified person!
Modifications reserved Brink Climate Systems B. V. continuously strives after improvement of products and reserves the right to change the specifications without prior notice.

STEP NO.	DESCRIPTION	FACTORY SETTING RENOVENT SKY	ADJUSTING RANGE	STEP
1	Air flow rate mode /	30 m’/h	0 m’/h or 30 m’/h
2	Air flow rate mode 1 /	75 m’/h	30 m’/h – 150 m’/h	5 m’/h
3	Air flow rate made 2 /	100 m’/h	30 m’/h – 150 m’/h	5 m’/h
4	Air flow rate made 3 /	125 m’/h	30 m’/h – 150 m’/h	5 m’/h
5	Bypass temperature	22,0 °C	15,0 °C – 35,0 °C	0,5 °C
6	Bypass hysterese	2,0 °C	0,0 °C – 5,0 °C	0,5 °C
7	Operation bypass valve	0	0 (= Automatic) 1 (= Bypass valve closed) 2 (= Bypass valve open)
8	Central heating + heat recovery	OFF	ON (= Central heating+heat recovery on) OFF (= Central heating+heat recovery off)
9	Imbalance permissible	ON	ON (= flow rate supply equals extract) OFF (= imbalance permissible)
10	Fixed imbalance	0 rn3/h	-100 m’/h – 100 mVh	1 m’/h
STEP NO.	DESCRIPTION	FACTORY SETTING RENOVENT SKY PLUS	ADJUSTING RANGE	STEP
11	Heater	0	0 (r no additional heater) 1 (r additional preheater) 2 (= postheater)
12	Temperature postheater	21,0 °C	15,0 °C – 30,0 °C	0,5 °C
13	Selection input 1	0	0 (= normally open contact) 1 (= 0 – 10V input active) 2 (= normally dosed contact) 3 (= input 1/ bypas open ⇒12V: bypass dosed ⇒ 0V) 4 (= input 1/ bypas open ⇒ 0V; bypass dosed ⇒ 12V)
14	Minimum voltage input 1	0,0 V	0 Volt – 10 Volt	0,5 V
15	Maximum voltage input 1	10,0 V	0 Volt – 10 Volt	0,5 V
16	Conditions switching input 1	0 1 (= on)	0 (= off) 2 (= On if conditions bypass open satisfied) 3 (= Bypass control) 4 (= Bedroom valve)
17	Supply fan mode switching input 1	5	0 (= Input fan off) 1 (= Absolute min. flow rate 30m’/h) 2 (= Flow rate mode 1 ) 3 (= Flow rate mode 2) 4 (= Flow rate mode 3) 5 (= Multiple switch) 6 (= Maximum flow rate) 7 (= No input fan activation)
18	Extract fan mode switching input 1	5	0 (= Extract fan off) 1 (= Absolute min. flow rate 30 m’/h) 2 (= Flow rate mode 1 ) 3 (= Flow rate mode 2) 4 (= Flow rate mode 3) 5 (= Multiple switch) 6 (= Maximum flow rate) 7 (= No extract fan activation)

Chapter 13 ErP-value

* Measurements executed by TNO according to the EN 13141-7 standard (TNO-report TNO 2014 R10659, April 2014)

DECLARATION OF CONFORMITY

Manufacturers:
Brink Climate Systems B.V.
Address:
P.O. Box 11
NL-7950 AA Staphorst,
The Netherlands
Product :
Renovent Sky 150

The product described above complies with following directives:
◆ 2014/35/EU (low voltage directive)
◆ 2014/30/EU (EMC directive)
◆ RoHS 2011/65/EU (substances directive)
◆ 2009/125/EG (1253/1254 EU (EU ErP-directive))

The product bears the CE label:

Staphorst, 24-02-11W. Hijmissen,
Managing director

BRINK CLIMATE SYSTEMS B.V.
P.O.Box 11 NL-7950 AA Staphorst The Netherlands
Wethouder Wassebaliestraat 8 7951SN Staphorst The Netherlands
T. +31 (0) 522 46 99 44
F. +31 (0) 522 46 94 00
[email protected]
www.brinkclimatesystems.nl

References

• Brink Climate Systems - Breathe Excellence, Flourish in Life
• Brink Climate Systems - Breathe Excellence, Flourish in Life
