147-8220 Power Expansion Kit

Product Information

Form No.: 3461-250 Rev A
Product Name: Power Expansion Kit
Model No.: 147-8220
Manufacturer: Toro
Registration: Register at www.Toro.com
Instructions: Original Instructions (EN)

Power Expansion Kit Assembly No. 147-8220

Usage Instructions

1. Ensure all components are present in the Power Expansion
   Kit.
2. Identify the Bar-Bus, 200A (Part Number: 145-7343) and place it
   in the desired location for power expansion.
3. Connect the Harness-Wire, Data Interface (Part Number:
   140-9565) to the Bar-Bus, 200A.
4. Secure the Bar-Bus, 200A and Harness-Wire, Data Interface using
   the Screw-Sems (Part Number: 145-5783).
5. Refer to the user manual of your specific device to understand
   how to connect it to the Power Expansion Kit.
6. Follow the device’s manual instructions to connect it to the
   Power Expansion Kit using the provided data interface.
7. Ensure all connections are secure and properly tightened.
8. Power on the device and verify successful power expansion.

Form No. 3461-250 Rev A
Power Expansion Kit

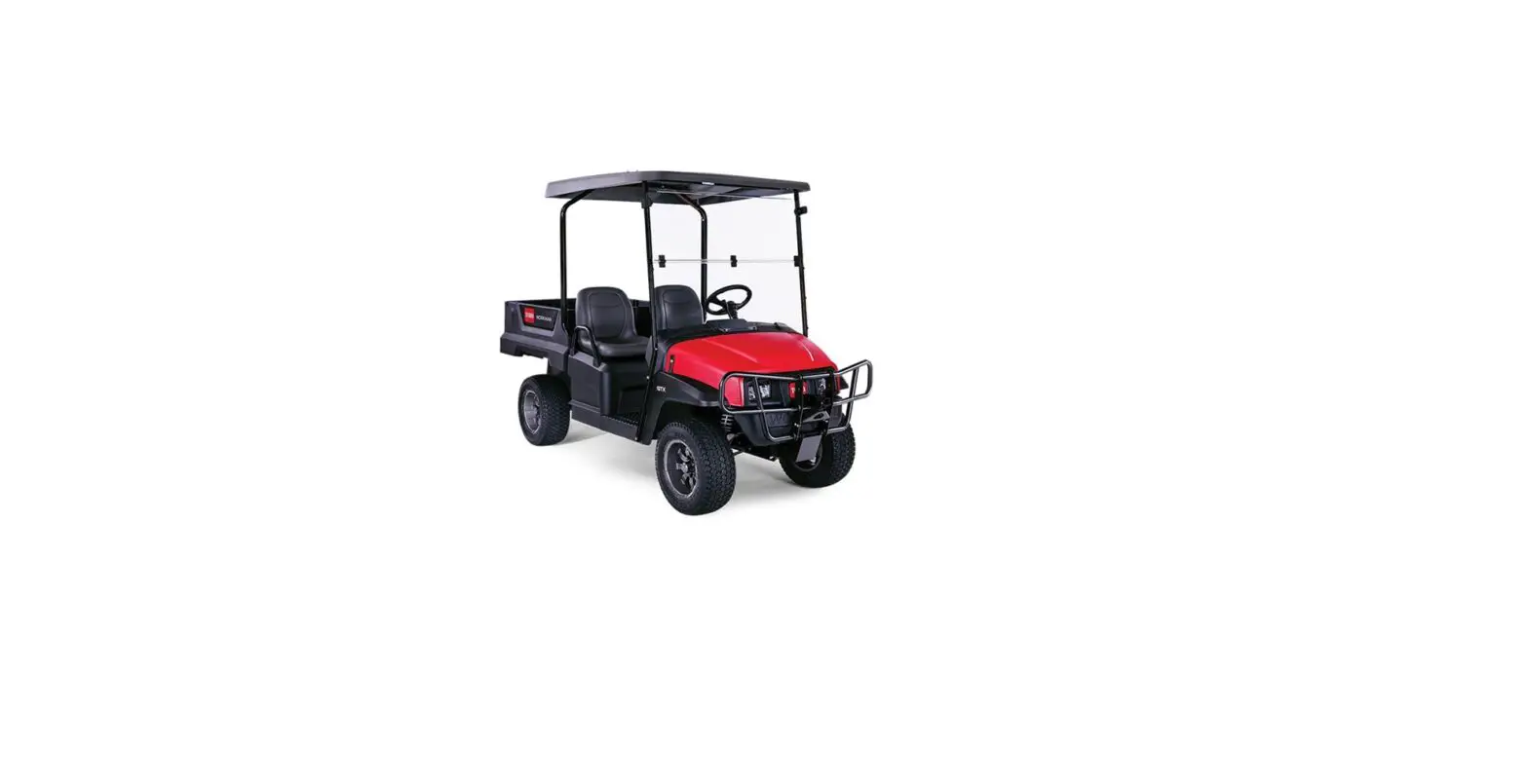

Workman® GTX Lithium Utility Vehicle
Model No. 147-8220

Register at www.Toro.com. Original Instructions (EN)

*3461-250* A

Power Expansion Kit Assembly No. 147-8220

Ref. Part Number Qty. Description

1 145-7343 2 140-9565 3 145-5783

2 Bar-Bus, 200A 1 Harness-Wire, Data Interface 2 Screw-Sems

3461-250A

2
