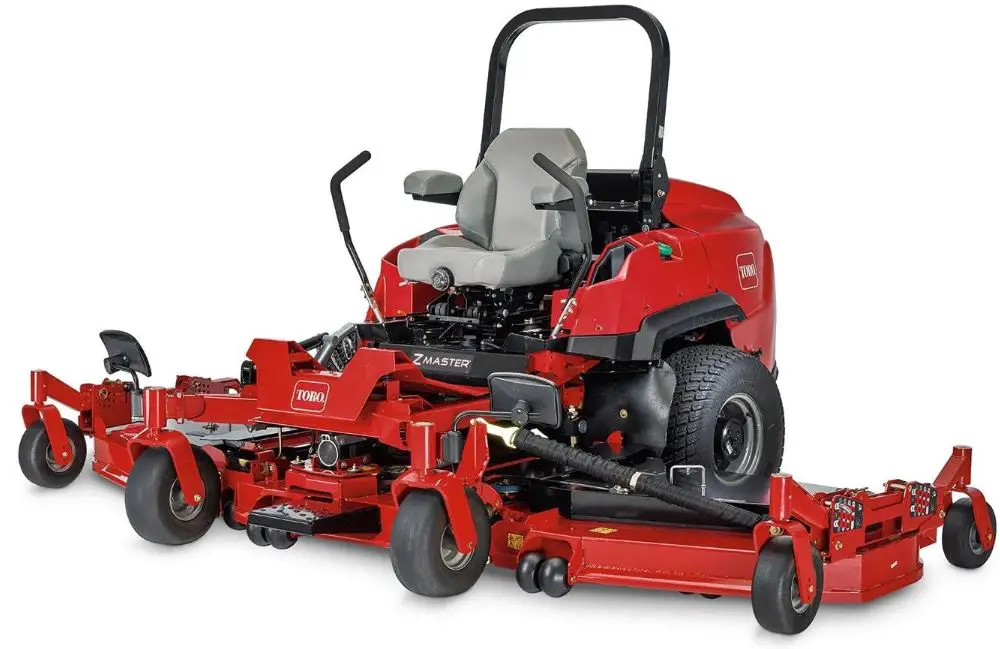

TORO 147-7843 Z Master Professional 7500 D Series Riding Mower
Product Information
The Harness Routing Kit, Model No. 147-7843, is an assembly designed for routing and organizing electrical harnesses in a Toro product. It includes various components such as brackets, clips, plugs, and screws to securely fasten the harnesses.Form No. 3462-724 Rev A
Ref. Part Number Qty. Description:
- 147-7391 – 2 units – Bracket-Support
- 32180-030 – 6 units – Clip-Tie
- 117-2382 – 3 units – Plug-Plastic
- 87-6620 – 2 units – Screw-Tph Thd Form
Product Usage Instructions
- Identify the location where the electrical harness needs to be routed and supported.
- Attach the Bracket-Support (147-7391) to the desired location using the provided Screw-Tph Thd Form (87-6620). Ensure a secure fit.
- Insert the electrical harness into the Clip-Tie (32180-030) and wrap it around the Bracket-Support. Use multiple Clip-Ties as needed to secure the harness properly.
- If any exposed connectors or ends of the harness need protection, insert the Plug-Plastic (117-2382) into them.
- Repeat steps 1-4 for each section of the electrical harness that requires routing and support.
Please note that it’s important to refer to the specific Toro product’s user manual for any additional instructions or safety precautions related to the installation and usage of the Harness Routing Kit.
Model No. 147-7843
INSTALLATION

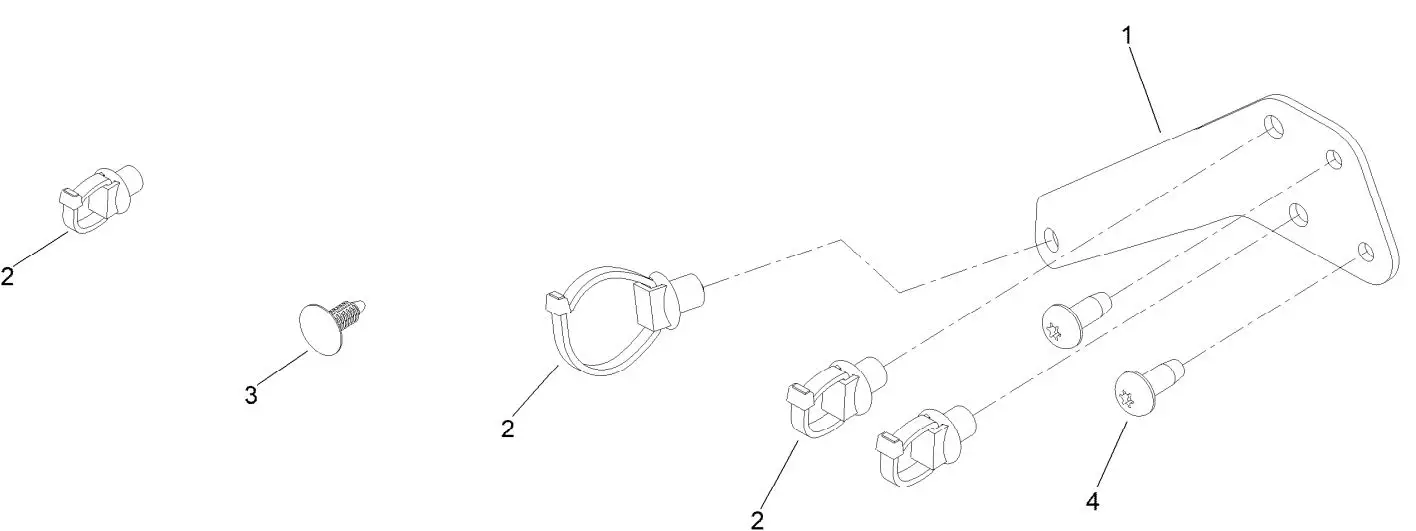

Harness Routing Assembly No. 147-7843
| Ref. | Part Number | Qty. | Description |
| 1 | 147-7391 | 1 | Bracket-Support |
| 2 | 32180-030 | 6 | Clip-Tie |
| 3 | 117-2382 | 3 | Plug-Plastic |
| 4 | 87-6620 | 2 | Screw-Tph Thd Form |
Register at www.Toro.com
