04138 Greensmaster 1000 Series Mower
Instructions
Parts Catalog

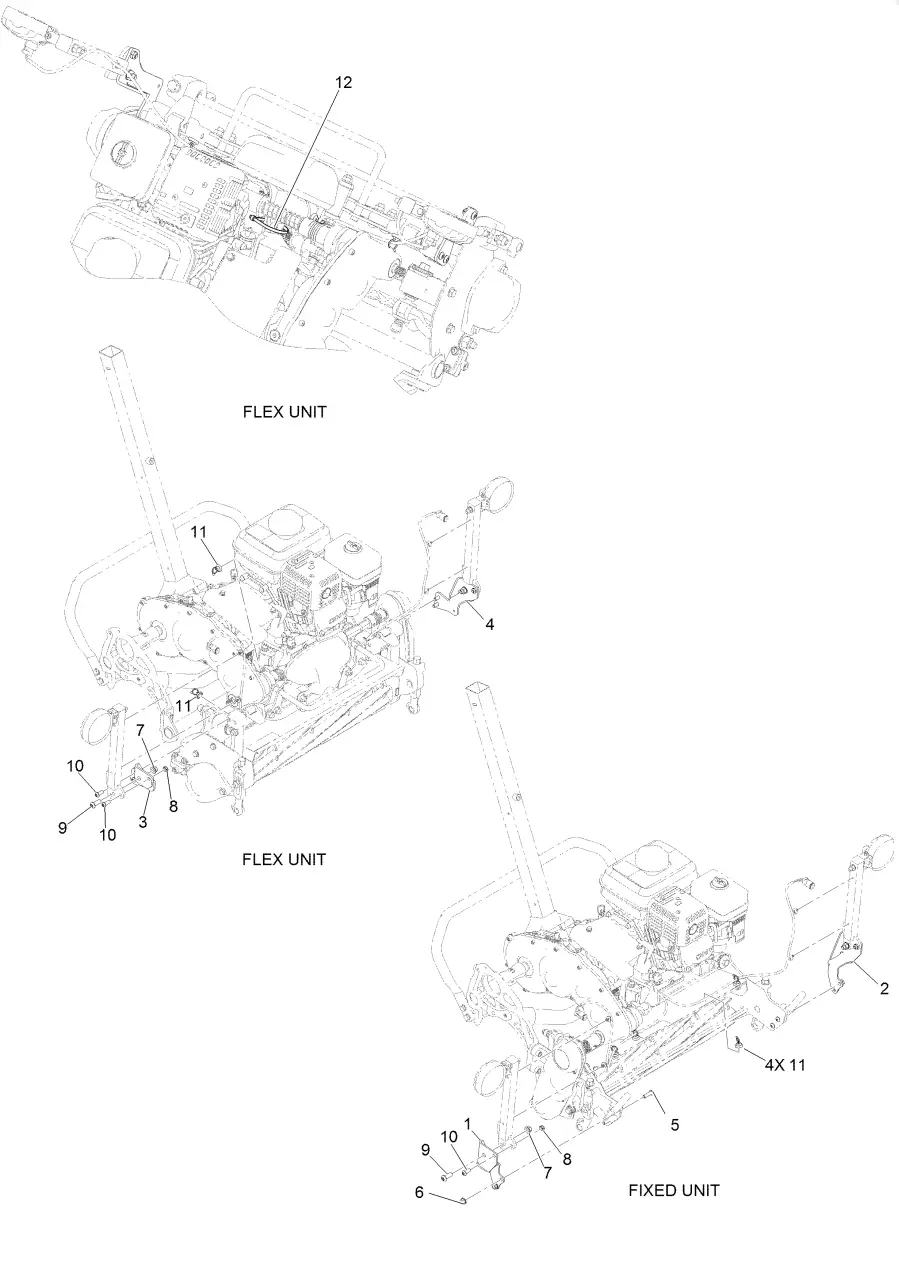

Light Mount Kit Assembly
| Ref. | Part Number | Qty | Description |
| 1 | 140-9260-01 | 1 | Bracket-Light, RH |
| 2 | 140-9261-01 | 1 | Bracket-Light, LH |
| 3 | 140-9262-01 | 1 | Bracket-Light, RH |
| 4 | 140-9263-01 | 1 | Bracket-Light, LH |
| 5 | 109-4872 | 4 | Screw-HSH |
| 6 | 32128-25 | 4 | Nut-HF |
| 7 | 32128-40 | 2 | Nut-Flange |
| 8 | 99-6007 | 2 | Nut-Lock, NI |
| 9 | 3274-94 | 2 | Screw-HSBH |
| 10 | 3274-55 | 6 | Screw-HSBH |
| 11 | 32180-139 | 4 | Mount-Tie Wrap, Magnetic |
| 12 | 3290-378 | 6 | Tie-Cable |
Register at www.Toro.com.
Original Instructions (EN)
Model No. 04138
Form No. 3442-380 Rev B
