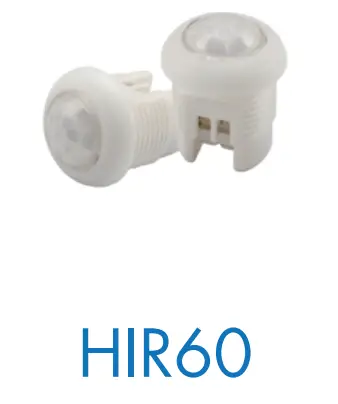

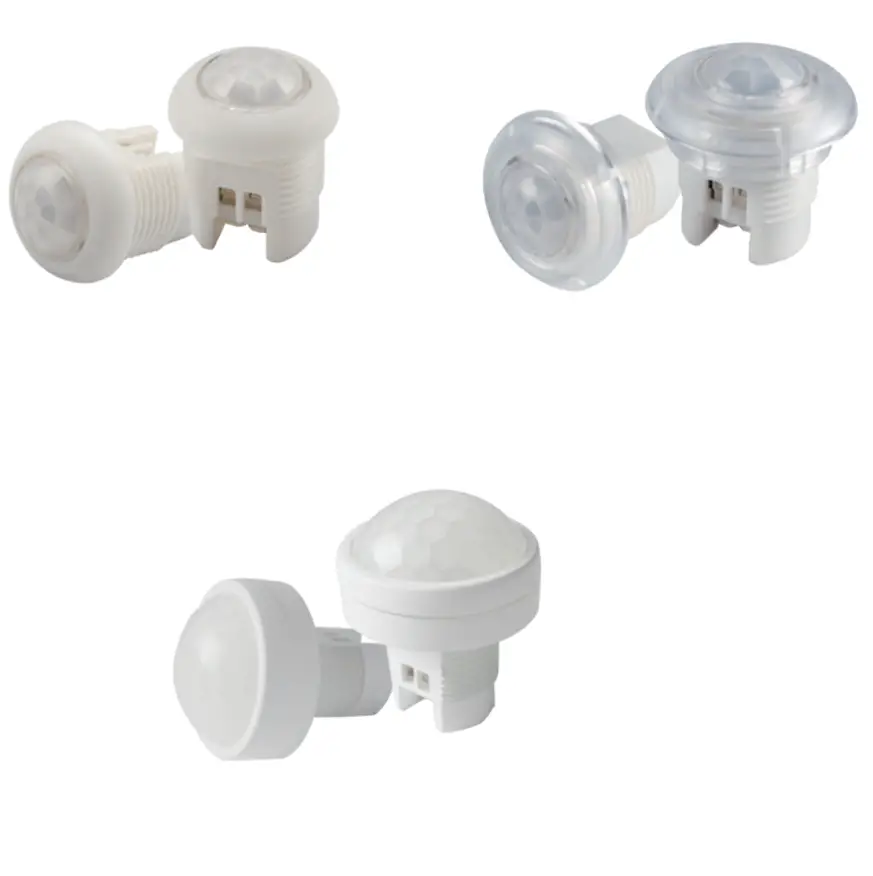

HYTRONIK HIR60SV Silvair Enabled PIR Sensor
Product Description
HIR60SV & HIR60SV/R are Bluetooth 5.0 SIG mesh PIR motion sensors, designed with Zhaga Book 20 connection that enables lighting designers/manufactures to freely connect to Zhaga Book 20 LED Drivers via plug’n’play. It’s embedded with Bluetooth module, PIR sensor and also a daylight sensor, and yet comes with a surprisingly super-mini size! Meanwhile, all commissioning and settings can be done via SILVAIR app.
Functions and Features
- Bluetooth® mesh compliant
- 4-in-1: Bluetooth + Zhaga + PIR motion sensor + Daylight sensor
- Optional accessories for different mounting style
- Super compact mini size
- Plug’n’Play via Zhaga Book 20 connection
- Daylight harvesting
Note: The component may not be suitable for daylight harvesting usage due to not being precise in lux measurements. Please only use daylight harvesting feature if user conducted field tests and accepts the the tolerance level.) - Scene control, Task tuning (0-100%)
- Compact form factor
- Autonomous sensor-based control
- OTA firmware upgrade
- Continuous dimming
- Individual/group addressing
- Decentralized control (no single point of failure)
- User-friendly design for installation
- IP65 rated design for HIR60SV/R
- 5-years warranty

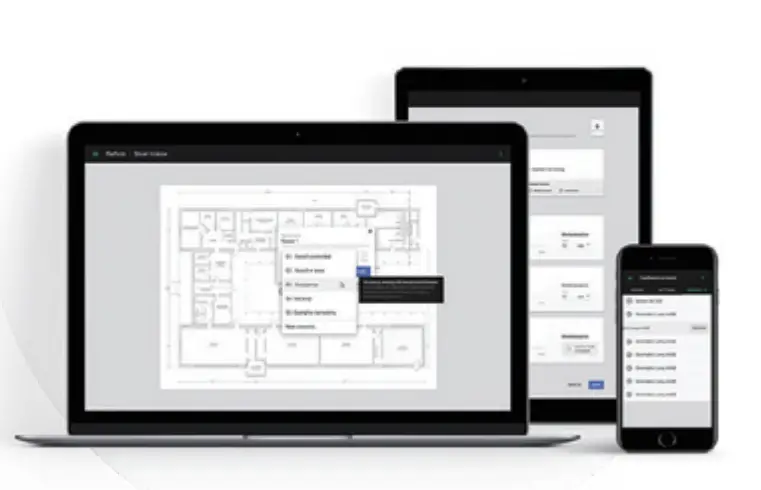

| The access to Silvair apps | |
 |  |
| mobile app: Silvair on the App Store web app: platform.silvair.com | |
Technical Specifications
| Bluetooth Transceiver | |
| Operation frequency | 2.4 GHz – 2.483 GHz |
| Transmission power | 4 dBm |
| Range (Typical indoor) | 10~30m |
| Protocol |  Mesh |
| Environment | |
| Operation temperature | Ta: -20°C ~ 50°C |
| Storage temperature | -40°C ~ +70°C |
| Relative humidity | 10 ~ 90% |
| IP rating | IP20 |
| PIR Sensor Properties (HIR60SV & HIR60SV/R) | |
| Sensor principle | PIR detection |
| Operation voltage | 9.5~22.5VDC |
| Input current | Approx. 30mA |
| Detection range * | HIR60SV Max installation height：3m Max detection range (Ø)：12mHIR60SV/R Max installation height：8m (for person) Max installation height：12m (for forklift) Max detection range (Ø)：14m |
| Detection angle | 360° |
- The detection range is heavily influenced by sensor placement (angle) and different walking paces. It may be reduced under certain conditions.

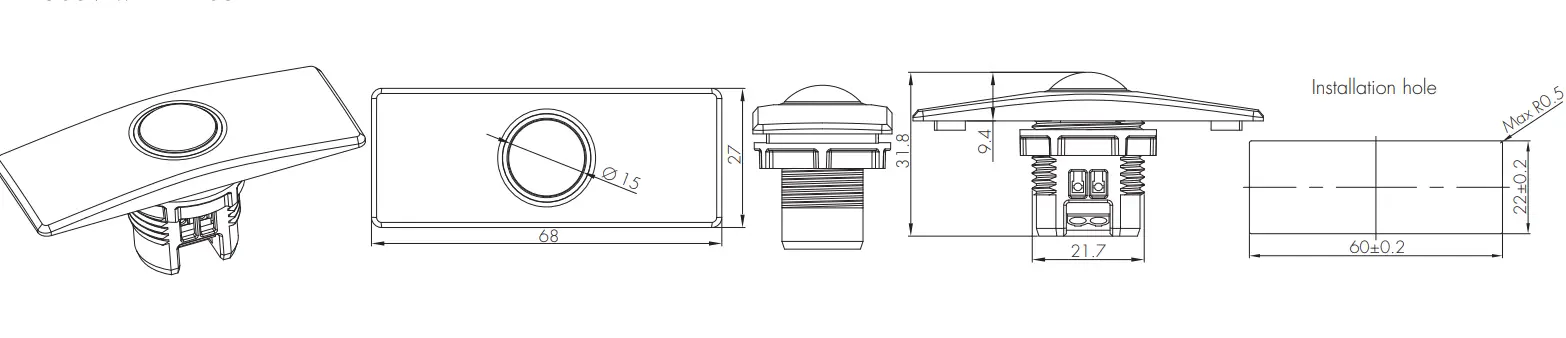

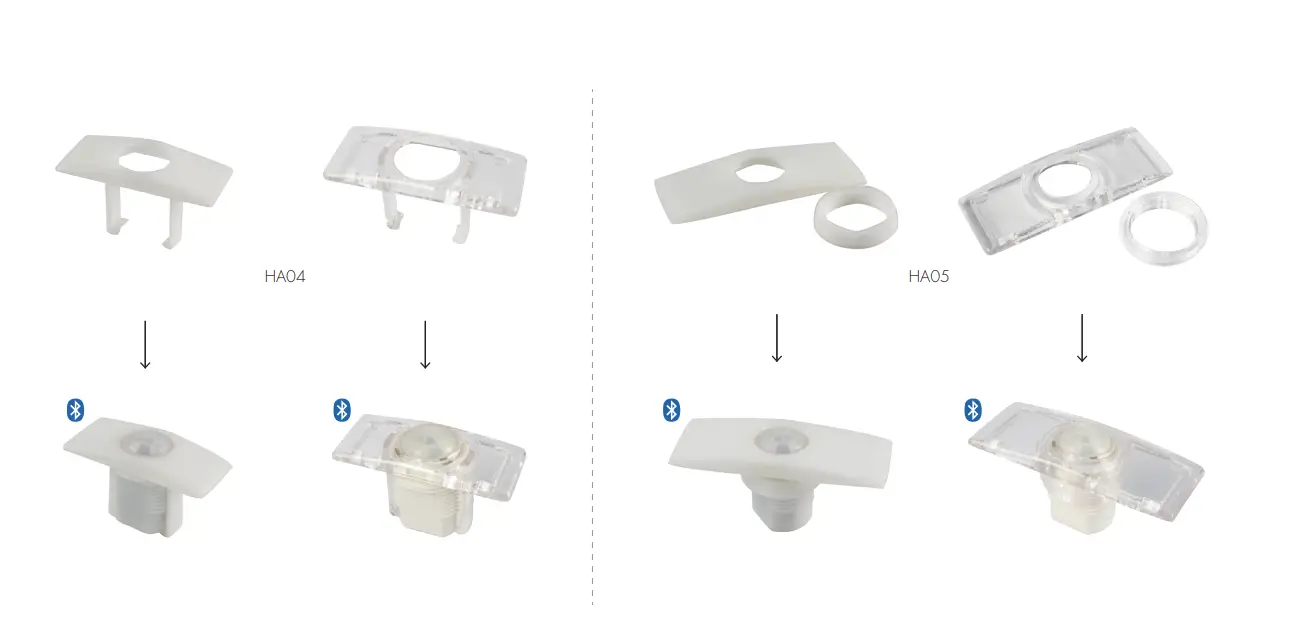

Optional Accessories

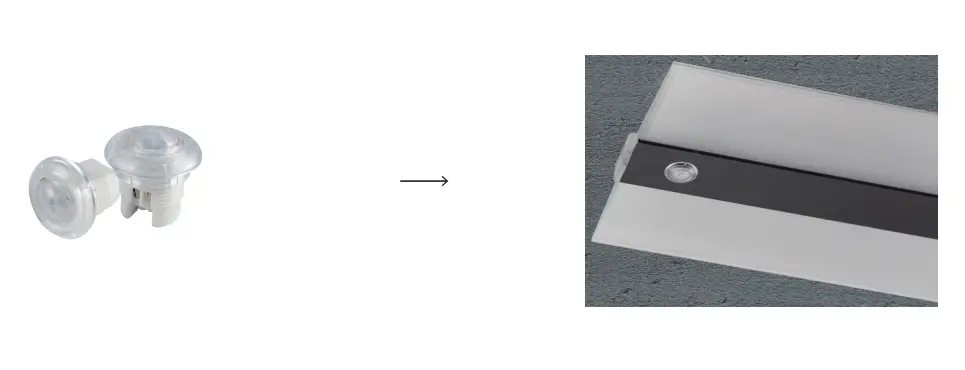

Demonstration of installation for transparent version
Mechanical Structure & Dimensions
HIR60SV

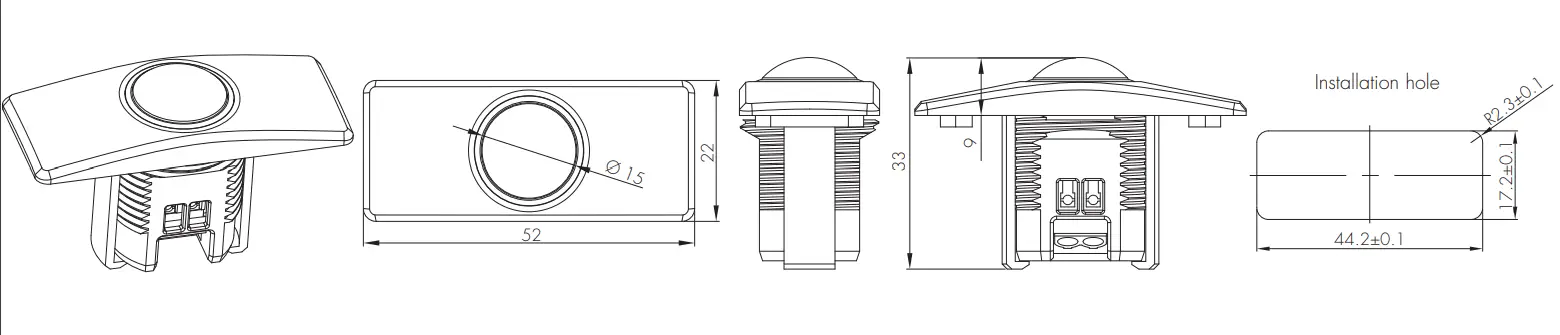

HIR60SV with HA04
HIR60SV with HA05

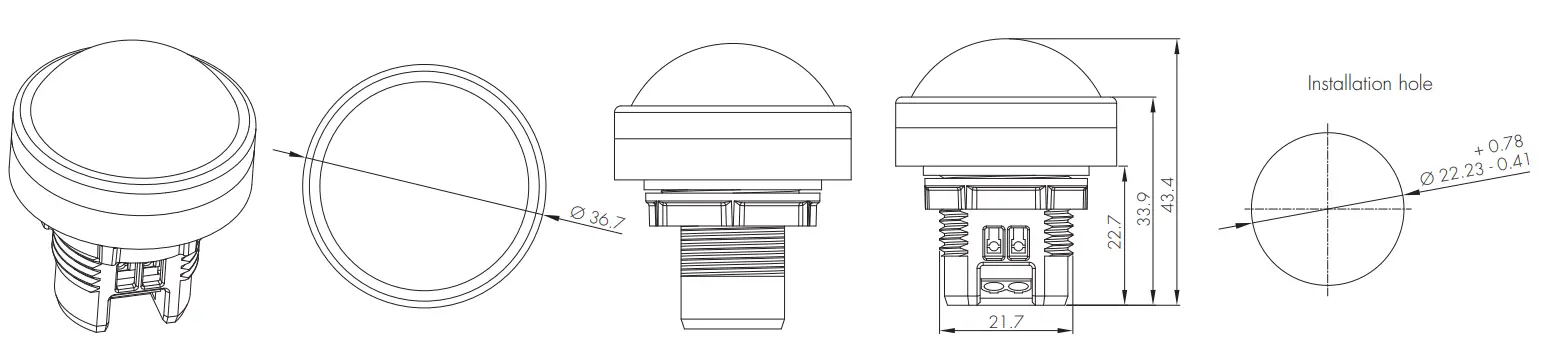

HIR60SV/R (IP65)

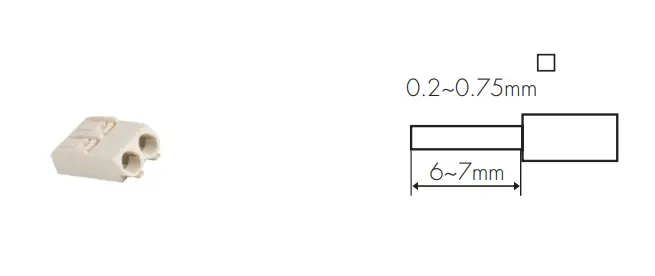

Wire Preparation
To make or release the wire from the terminal, use a screwdriver to push down the button.
- 100 metres (total) max. for 0.5mm² CSA (Ta = 50℃)
- 150 metres (total) max. for 0.75mm² CSA (Ta = 50℃)

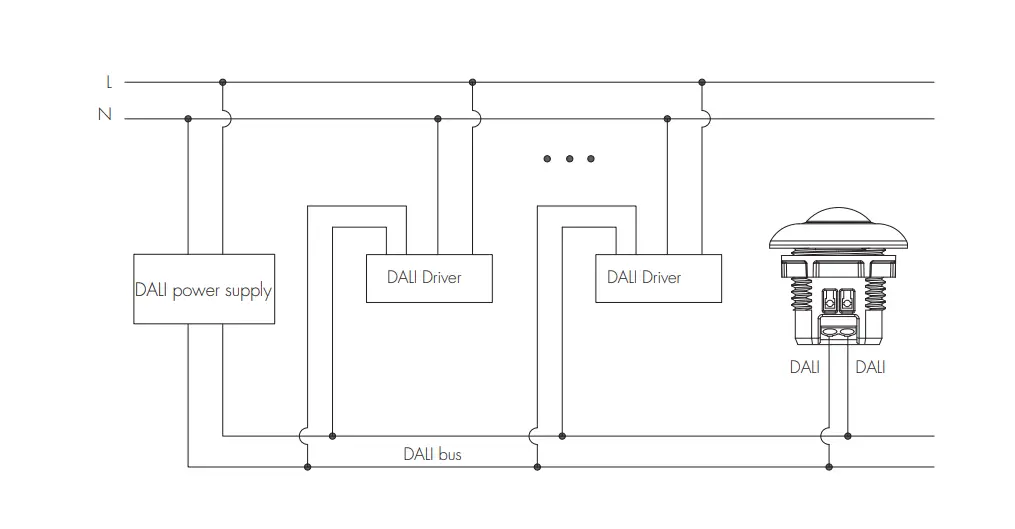

Wiring Diagram
DALI Driver
Detection Pattern – – Diagram 1
The data below is tested under following conditions:
- Single person walking;
- Sensor not connected to any driver that may have soft-on period;
- Testing temperature Ta = 20°C;
- The testing is conducted in an open and spacious indoor field, without noticeable obstacles or influences that may affect PIR performances.
| Mount height | Tangential Movement |
| 3m | max 113m2 (Ø = 12m) |
Detection Pattern – – Diagram 2
The data below is tested under following conditions:
- Forklift driving;
- Sensor not connected to any driver that may have soft-on period;
- Testing temperature Ta = 20°C;
- The testing is conducted in an open and spacious indoor field, without noticeable obstacles or influences that may affect PIR performances.
| Mount height | Tangential Movement |
| 8m | max 201m2 (Ø = 16m) |
| 9m | max 227m2 (Ø = 17m) |
| 10m | max 254m2 (Ø = 18m) |
| 11m | max 314m2 (Ø = 20m) |
| 12m | max 314m2 (Ø = 20m) |
Detection Pattern – – Diagram 3
The data below is tested under following conditions:
- Single person walking;
- Sensor not connected to any driver that may have soft-on period;
- Testing temperature Ta = 20°C;
- The testing is conducted in an open and spacious indoor field, without noticeable obstacles or influences that may affect PIR performances.
| Mount height | Tangential Movement |
| 3m | max 38m2 (Ø = 7m) |
| 4m | max 50m2 (Ø = 8m) |
| 5m | max 50m2 (Ø =8m) |
| 6m | max 64m2 (Ø = 9m) |
| 7m | max 95m2 (Ø = 11m) |
| 8m | max 113m2 (Ø = 12m) |

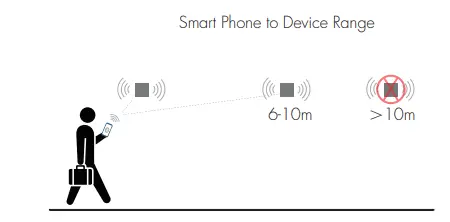

Placement Guide and Typical Range
The smart device with the App installed will have a typical range of 10m, but varies from device to device. During commissioning, the installer will need to be in range of the devices when searching for devices to add to the network.
Once the devices have been added to the network via the App, the devices will start communicating within the wireless mesh. This means that once the network is complete, all devices are accessible from the smart device when in a 20m range of a single point.
Additional Information / Documents
- Regarding precautions for PIR Sensors installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->PIR Sensors – Precautions for Product Installation and Operation
- Data sheet is subject to change without notice. Please always refer to the most recent release on www.hytronik.com/products/bluetooth technology ->Partnership
- Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy
