steinel GL 60 S Outdoor Lights with Motion Detector

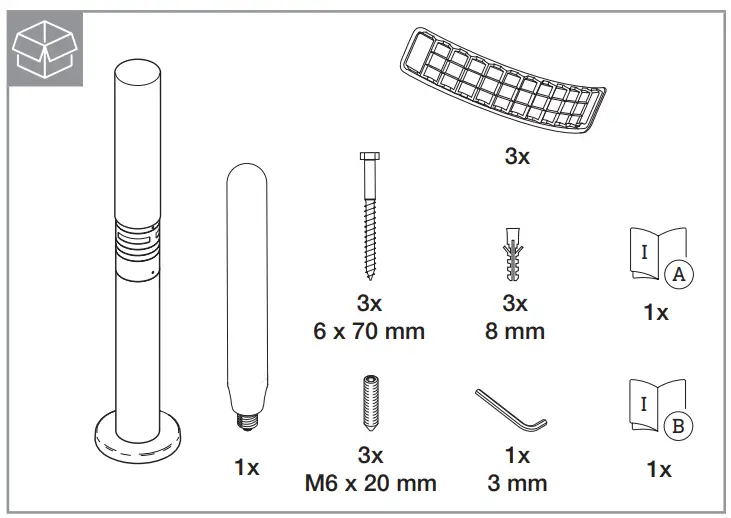

WHAT IS IN THE BOX

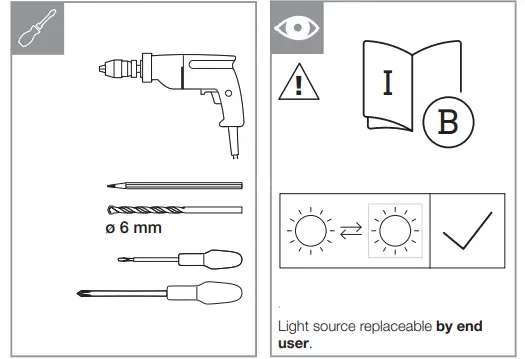

TOOL REQUIRED

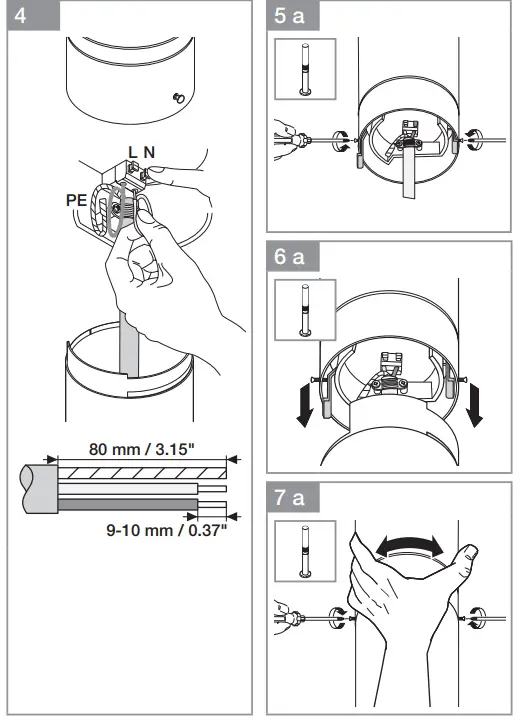

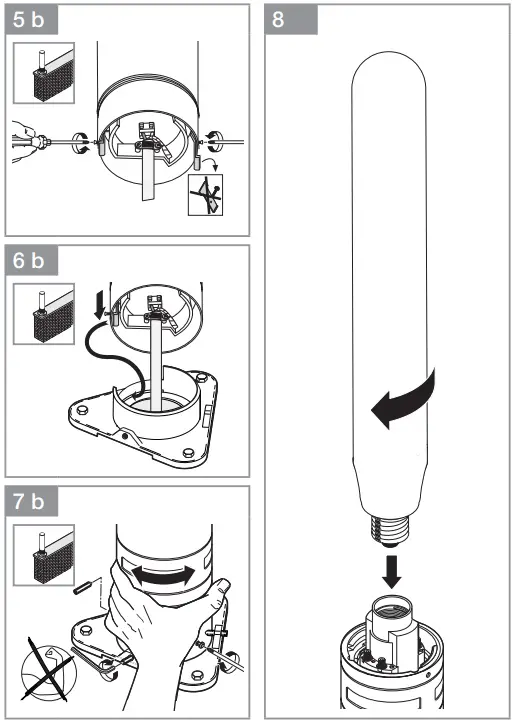

INSTALLATION
Technical Data
- Dimensions: Glass shade (H x Ø):1038 x 120 mm Base Ø: 220 mm
- Power supply: 220 – 240 V, 50/60 Hz
- Power consumption (Pon)*: 9.20 W / E 27
- Luminous flux/efficiency LED lamp*: 954 lm, 104 lm/W
- Luminous flux/efficiency: 781 lm, 79.9 lm/W
- Standby light: 0.80 W
- Colour temperature*: 3000 K (warm-white)
- Colour rendering index*: Ra = 82
- Rated average lifetime*: L70B50 at 25° C: > 20,000 hrs.
- Colour consistency SDCM*: Initial value: 3
- Luminous intensity distribution*:
- Angle of coverage: 360° with 30° angle of aperture
- Detection reach: 12 m max.
- Twilight setting: 2 – 2000 lux
- Time setting: 5 sec – 15 min
- Manual override: selectable (4 hours)
- Condition: switch connected in mains power supply lead
- Basic light: 10 – 50 %
- IP rating: IP 44
- Protection class: II
- Ambient temperature: -20 to +40°C
for included LED lamp
Declaration of conformity:
The full text of the EU declaration of conformity is available at the following internet
address: www.steinel.de
This product contains a light source of energy efficiency class “F”.
Technical documentation at
www.steinel.de/eprel
