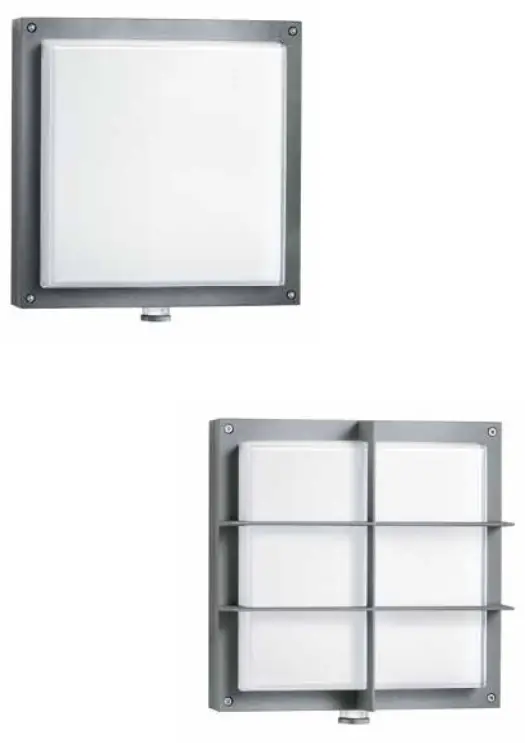

steinel L 690 S, L 691 S LED Outdoor Sensor Light

About this document

Please read carefully and keep in a safe place.

• Under copyright. Reproduction either in whole or in part only with our consent.
• Subject to change in the interest of technical progress.

Symbols

Hazard warning!
Reference to other information in the document.

General safety precautions

Disconnect the power supply before attempting any work on the unit.

• During installation, the electric power cable being connected must not be live.
  Therefore, switch off the power first and use a voltage tester to make sure the wiring is off-circuit.
• Installing the sensor-switched light involves work on the mains voltage supply.
  This work must therefore be carried out professionally in accordance with national wiring regulations and electrical operating conditions. (e.g. DE: VDE 0100, AT: ÖVE / ÖNORM E8001-1, CH: SEV 1000)
• Only use genuine replacement parts.
• Repairs may only be made by specialist workshops.

L 690 S/L 691 S

Proper use:

• LED light for mounting on indoor and outdoor walls

Sensor-switched lights L 690 S and L 691 S are LED lights with motion detectors. The integrated high-performance infrared sensor is equipped with  adouble360° sensor that detects the invisible heat emitted by moving objects (persons, animals etc.). The heat  detected in this way is converted electronically into a signal that switches the light ON automatically. Heat is not detected through obstacles, such as walls or panes of glass. Heat radiation of this type will, therefore, not trigger the sensor.

Important

The most reliable way of detecting motion is to install the sensor-switched light with the sensor aimed across the direction in which a person would walk and by ensuring that no obstacles (such as trees, walls etc.) obstruct the line of sensor vision. Reach is limited when walking directly towards the light.

Package contents (Fig. 3.1)

• one light
• one sensor unit
• one dummy plug for sensor unit
• three shrouds

Product dimensions L 690 S (Fig. 3.2)

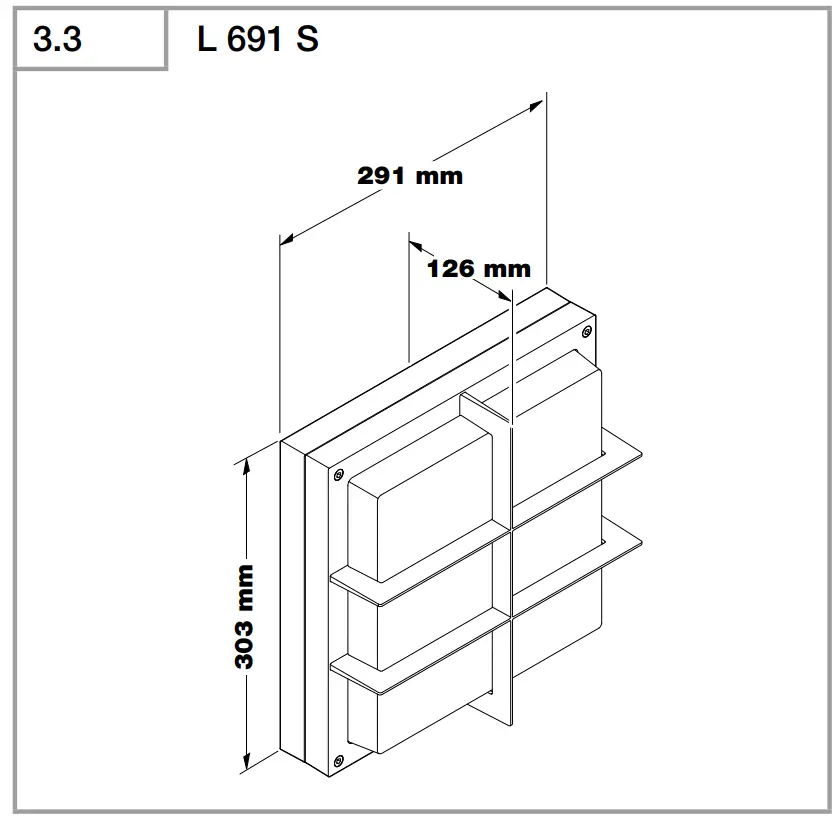

Product dimensions L 691 S (Fig. 3.3)

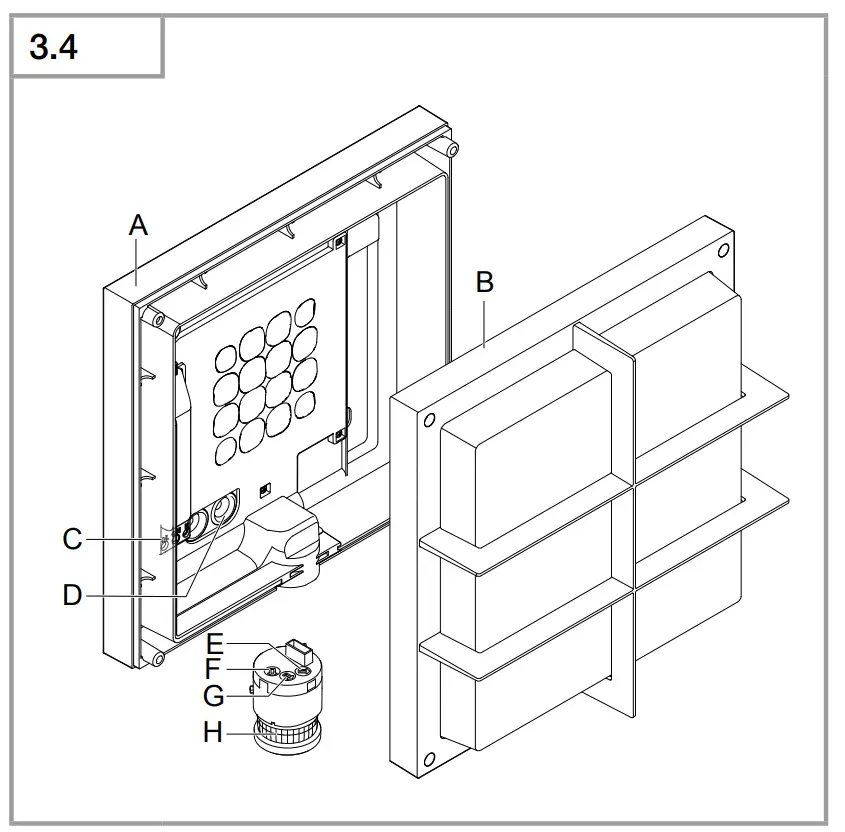

Product components (Fig. 3.4)

A Wall mount
B Light enclosure
C Connecting terminal
D Sealing plug
E Time setting
F Twilight setting
G Programmed setting

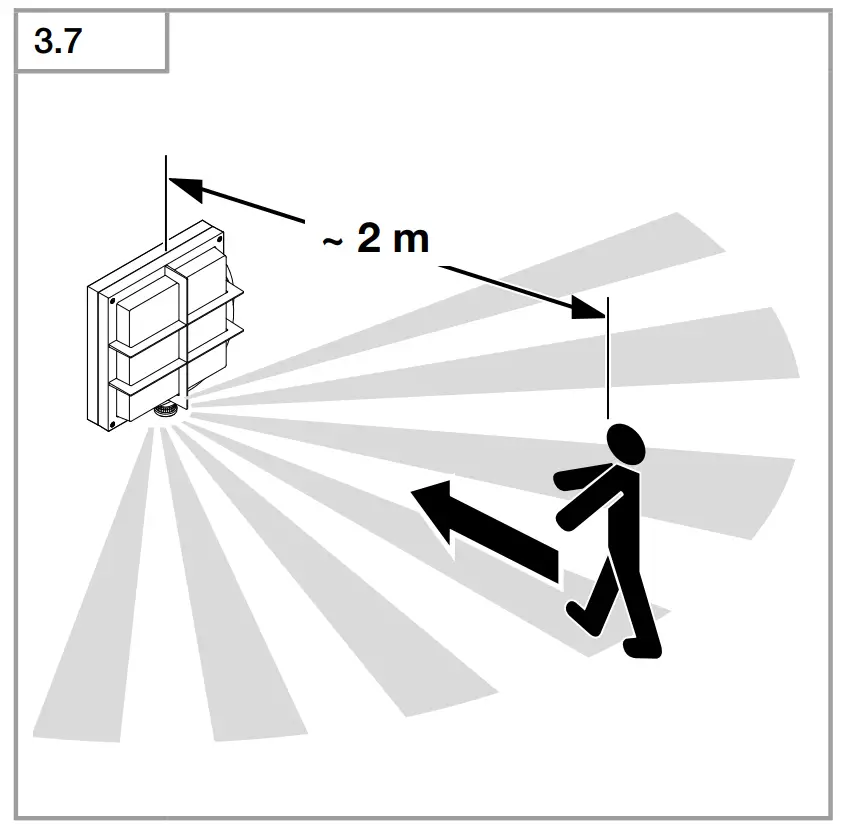

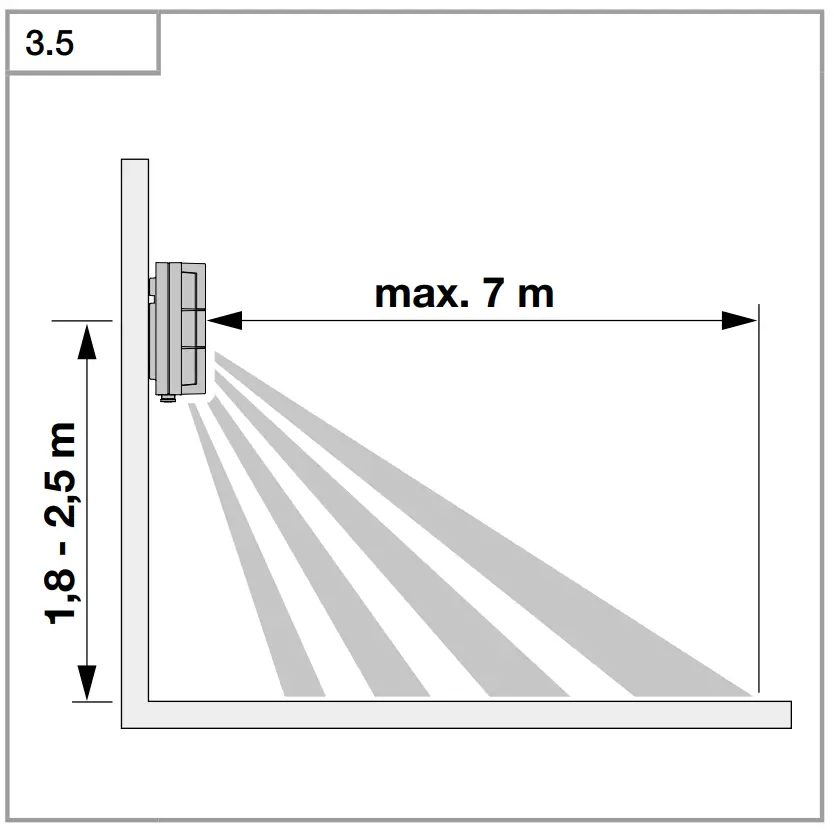

Detection zone (Fig. 3.5-3.7)

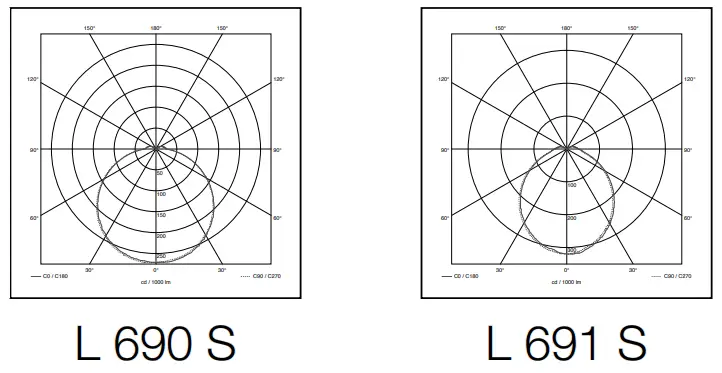

L 690 S luminous intensity distribution (Fig. 3.8)

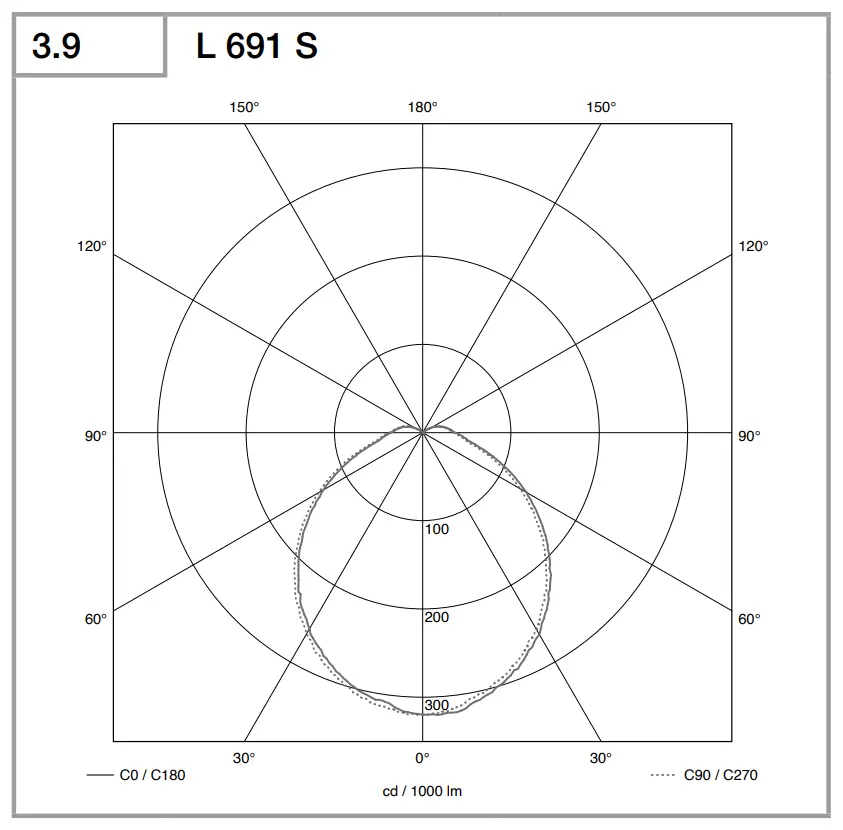

L 691 S luminous intensity distribution (Fig. 3.9)

Electrical connection

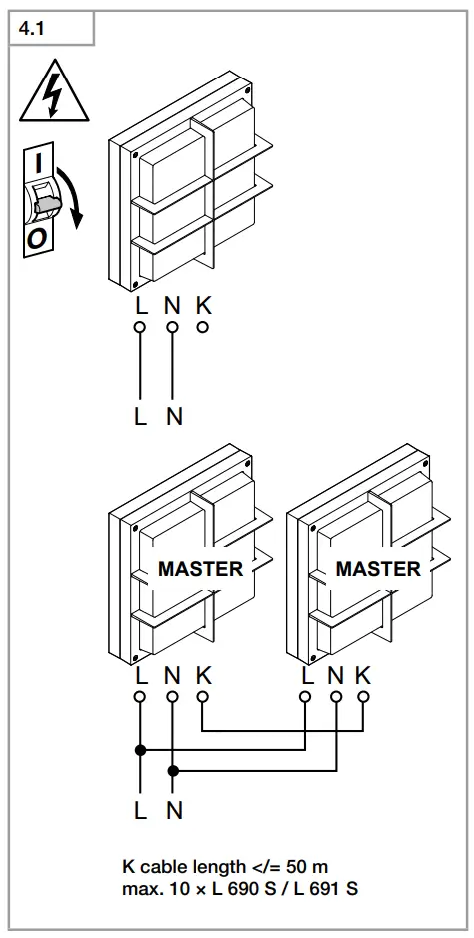

Wiring diagram (Fig. 4.1)

a) Single interconnection
b) Group interconnection

The supply lead is a 3-core cable:
L = phase conductor (usually black, brown or grey)
N = neutral conductor (usually blue)
PE = protective-earth conductor (green/yellow)
K = communication cable (optional)

If you are in any doubt, identify the conductors using a voltage tester; then disconnect from the power supply again. Connect phase (L) and neutral conductor (N) to the terminal, insulate protective-earth conductor (PE) and place it next to the connected conductors.

Important:
Incorrectly wired connections will produce a short circuit later on in the product or fuse box. In this case,  you must identify the individual conductors once again and reconnect them. A mains power switch for turning the unit ON and OFF may of course be installed in the mains supply lead.

The light source of this luminaire cannot be replaced. If the light source needs to be replaced (e.g. at the end of its service life), the complete luminaire must be replaced.

Group behavior
Communication cable (K) permits internal STEINEL group interconnection of L 690 S and L 691 S.

As many as 10 lights can be interconnected with each other. Maximum communication cable length is 50 m. The first light in a group to detect movement switches the entire group ON. If no further movement is detected after the time setting selected, the last light in a group to detect movement switches the entire group OFF.

Note:

• No voltage must be connected to the communication cable. Do no actuate any external loads.
• Within the interconnected group, all lights operate in line with their specific control dials.
• The same programmed must be selected for all lights.

Mounting

• Check all components for damage.
• Do not use the product if it is damaged.
• When installing the sensor-switched light, make sure the installation site is not exposed to vibration.
• Select an appropriate mounting location, taking the reach and motion detection into consideration.

Mounting procedure

• Switch OFF power supply (Fig. 4.1)

• Unscrew light enclosure from base (Fig. 5.1)

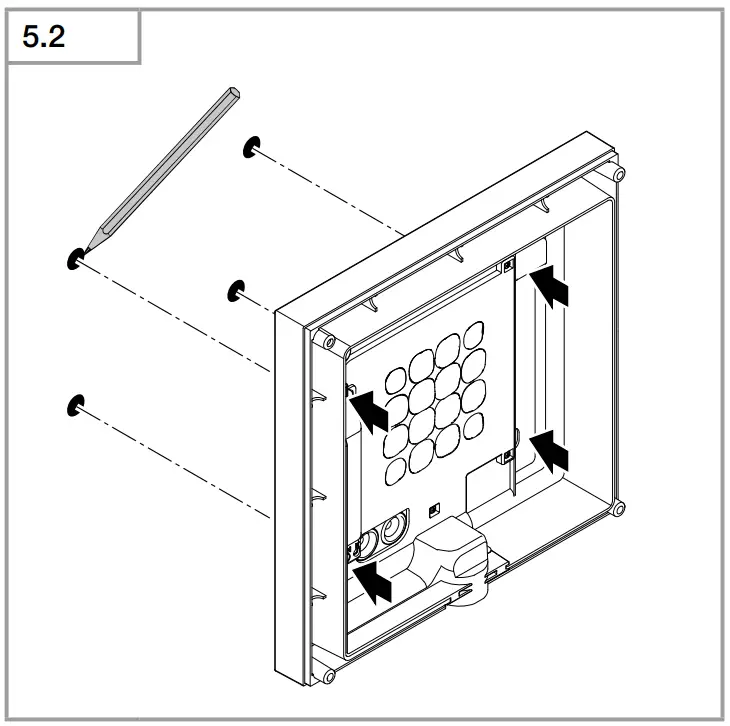

• Mark drill holes (Fig. 5.2)

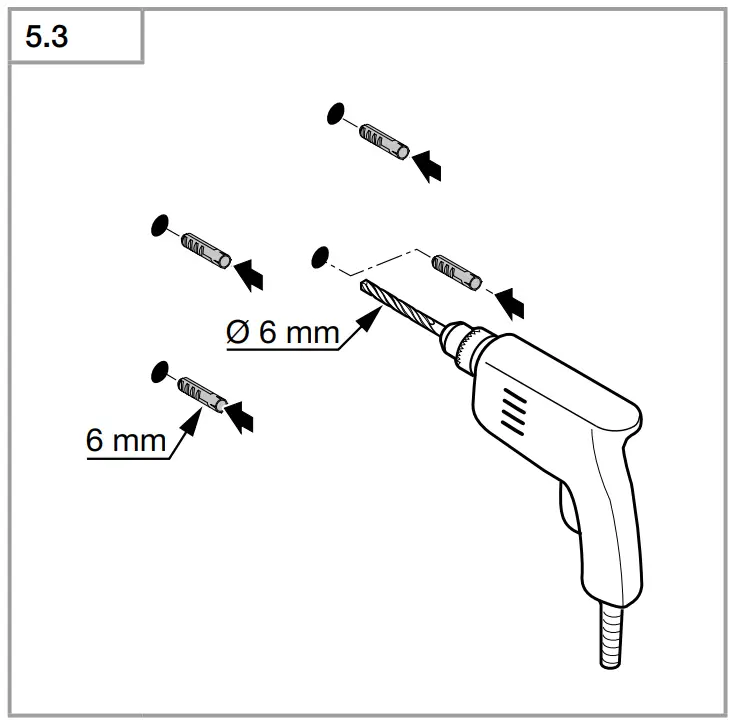

• Drill holes and insert wall plugs (Fig. 5.3)

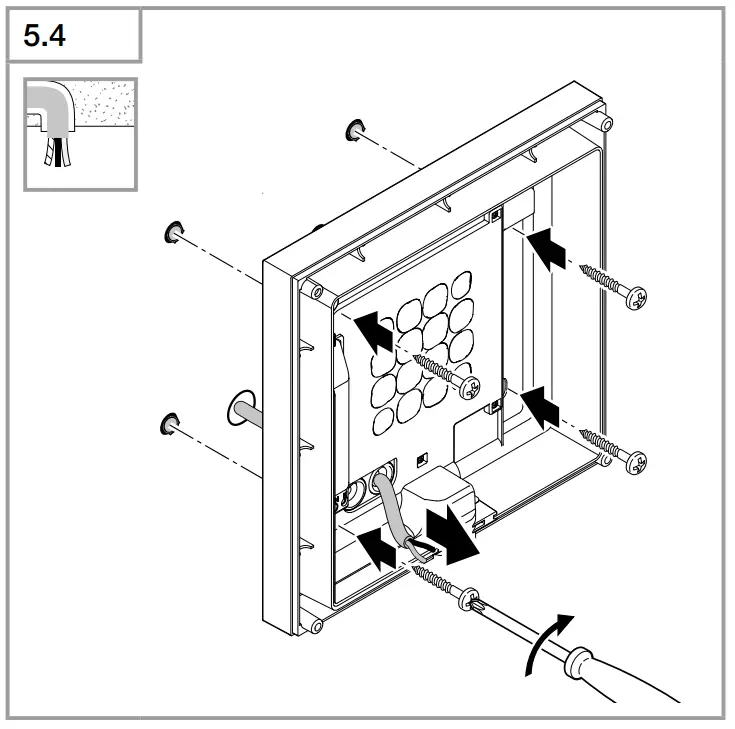

• Installation with concealed power supply lead (Fig. 5.4)

• Installation with surface-mounted power supply lead (Fig. 5.5)

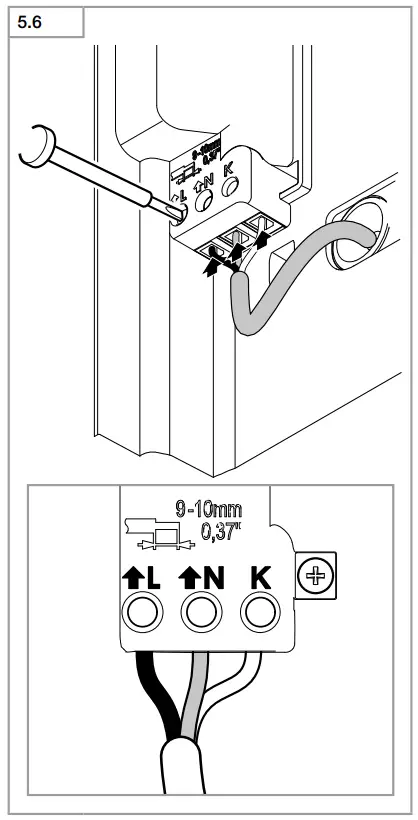

• Connect conductors (Fig. 5.6)

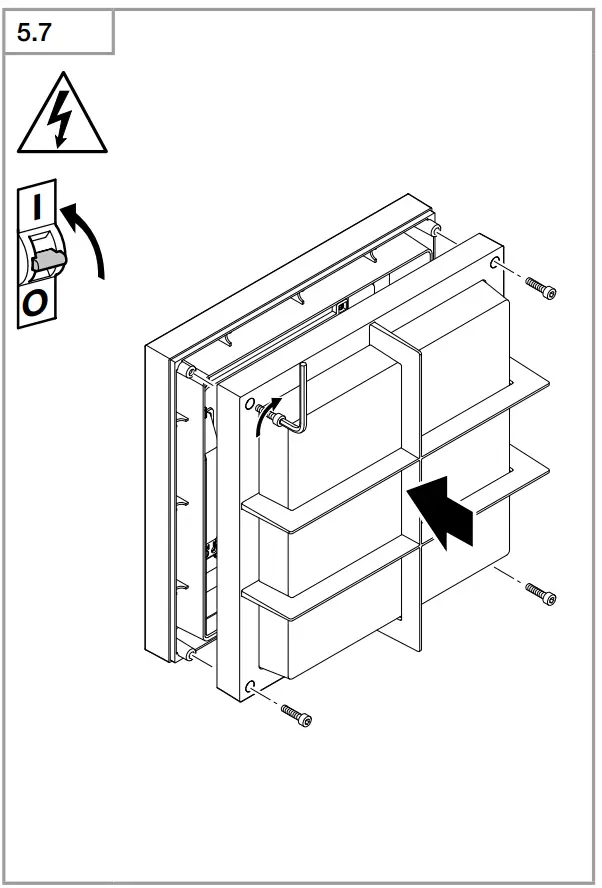

• Install light enclosure on wall mount and screw into place (Fig. 5.7)
• Switch ON power supply (Fig. 5.7)

• Make settings ➜ “6. Function”

Function

Factory settings
Programmed setting: P 1
Twilight level:           1000 lux
Time setting:            5 seconds

Once installed, the sensor-switched light can be put into operation. Control dials are provided on the sensor unit for selecting the time-, twilight- and programmed settings.

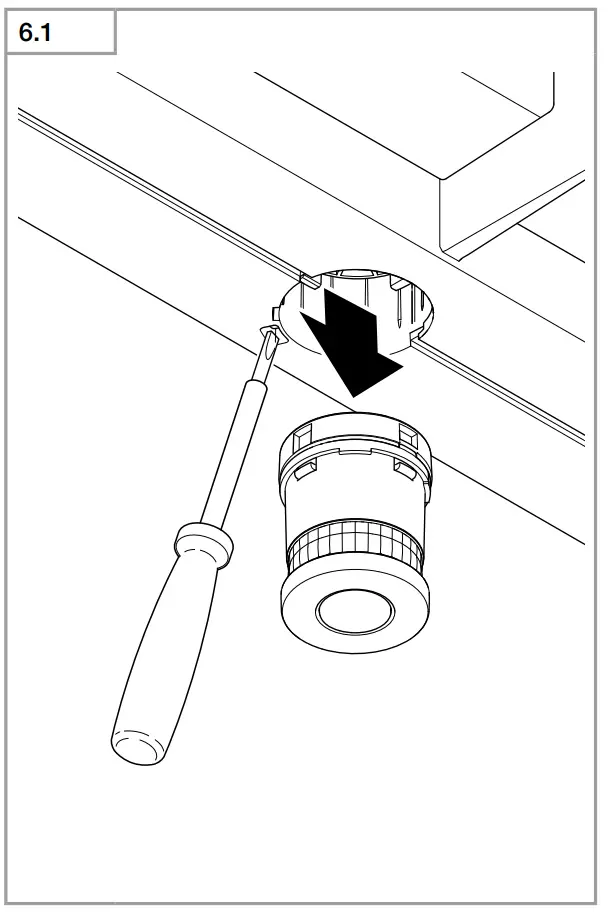

• Remove the sensor after pressing the locking tab with a flat-tip screwdriver (Fig. 6.1)

  • The sensor-switched light switches to manual override (permanently ON)

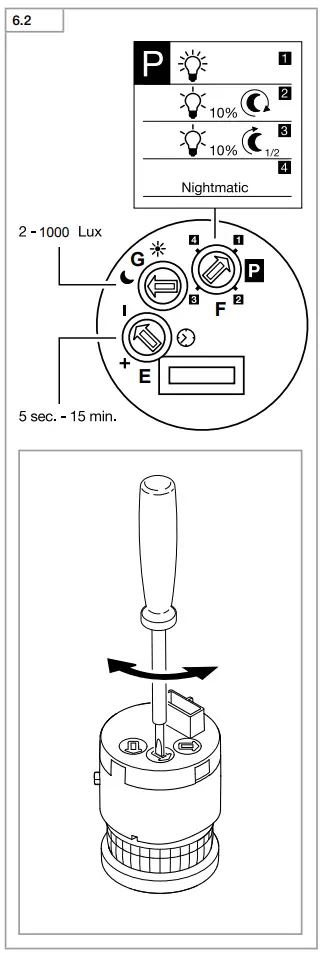

•  Make settings with a screwdriver (Fig. 6.2)



P1 Standard programmed (controller 6.2/F)

• Soft light start / no basic light level

What is soft light start?
The sensor-switched light features a soft light start function. This means that when turned ON, the light is not switched directly to maximum output but constantly builds up brightness to 100% within a short period of time. Brightness is also gradually reduced when the light is switched OFF.

P2 User-friendly programmed

• Soft light start + basic light level
• Basic light level ON from twilight setting selected

What is basic light level?
Basic light level provides continuous night-time illumination at approx. 10% light output. The light only switches to maximum output (100%) for the time selected in response to movement in the detection zone. The light then returns to the basic light level (approx. 10%).

P3 User-friendly economy programmed

• Soft light start + basic light level until the middle of the night
• Basic light level ON from twilight setting selected until the middle of the night

How does the user-friendly economy programmed work?
The sensor-switched light does not have an integrated clock. The middle of the night is only determined on the basis of the length of darkness phases. To work perfectly, therefore, it is important for the sensor-switched light to be permanently connected to the power supply during this period. During the first night (calibration phase) basic light level remains activated throughout the night. The values are saved even in the event of a mains power failure. We do not recommend interrupting the power supply during the programmed. As the values are determined over several nights, the sensor-switched light should, in the event of any fault occurring, be monitored over several nights to ascertain whether the switch-off time moves towards midnight.

P4 Nightmarish programmed

• Soft light start, no basic light level, no movement evaluation
• Switches ON at 100% if the light level falls below the level set

Twilight setting (controller 6.2/G)

The chosen response threshold can be infinitely varied from approx. 2 to 1000 lux.

• Control dial set to = daylight mode (depending on ambient brightness)
• Control dial set to = twilight mode (approx. 2 lux)

To adjust the detection zone in daylight operation, the control dial must be set to (daylight operation).

Time setting (controller 6.2/E)

The light’s ON time can be set to any period from approx. 5 seconds to a maximum of 15 minutes. Any movement detected before this time elapses will restart the timer.

Manual override function

If a mains switch is installed in the mains supply lead, the following functions are available in addition to simply switching light ON and OFF:

Sensor operation

1) Switch light ON (when light is OFF):
Switch OFF and ON once.
Light stays ON for the period selected.
2) Switch light OFF (when light is ON):
Switch OFF and ON once.
Light goes out or switches to sensor operation.

Manual override (Fig. 6.4)

1) Activate manual override:
Switch OFF and ON twice. The light is set to stay ON for 4 hours (red LED lights up behind the lens). Then it returns automatically to sensor operation (red LED off).
2) Deactivate manual override:
Switch OFF and ON once. Light goes out or switches to sensor operation.

Important:
Switching must take place within 0.2 to 1 second.

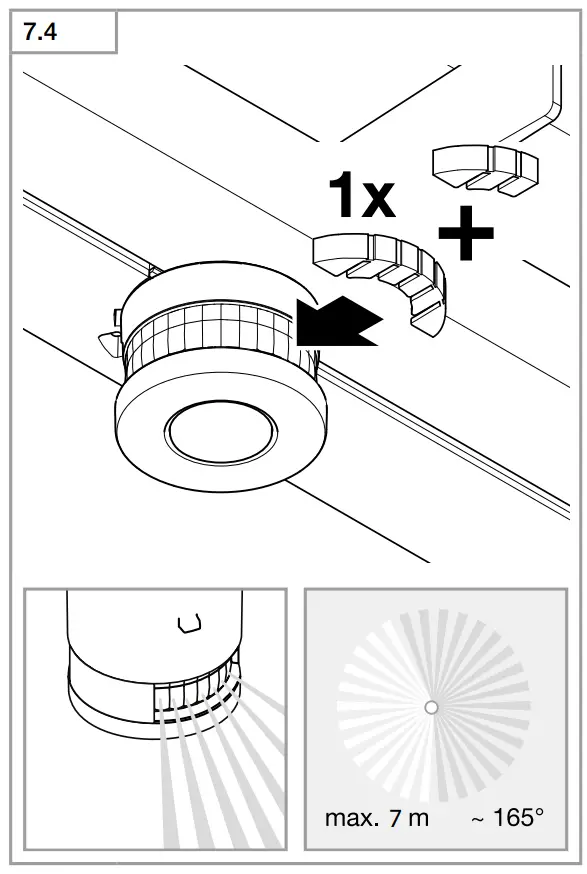

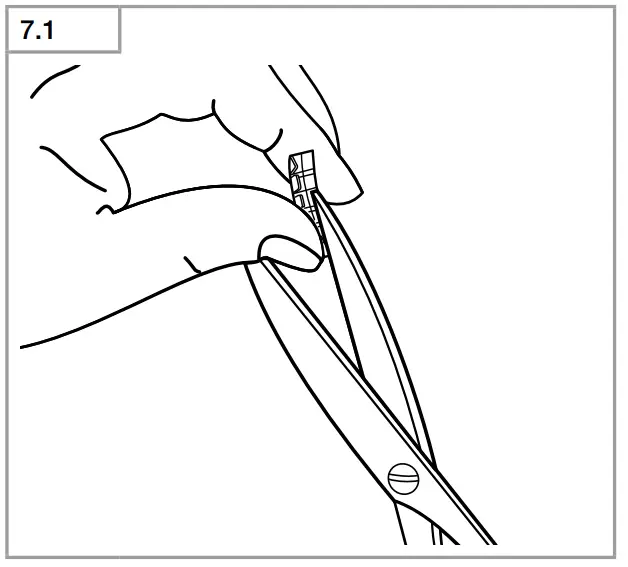

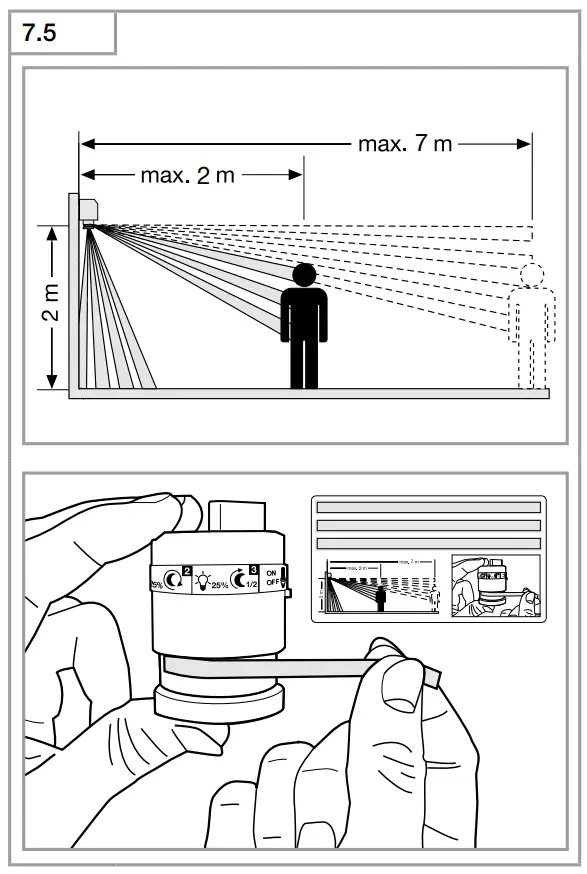

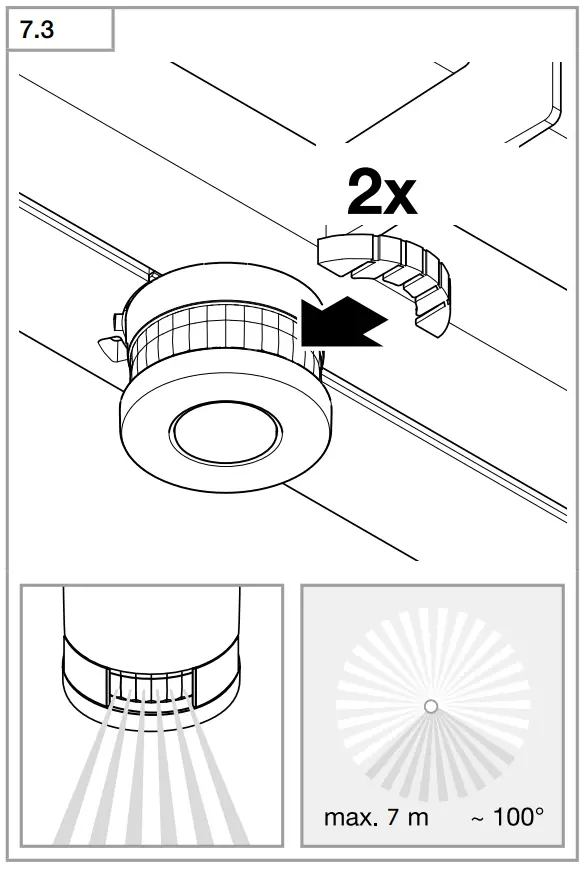

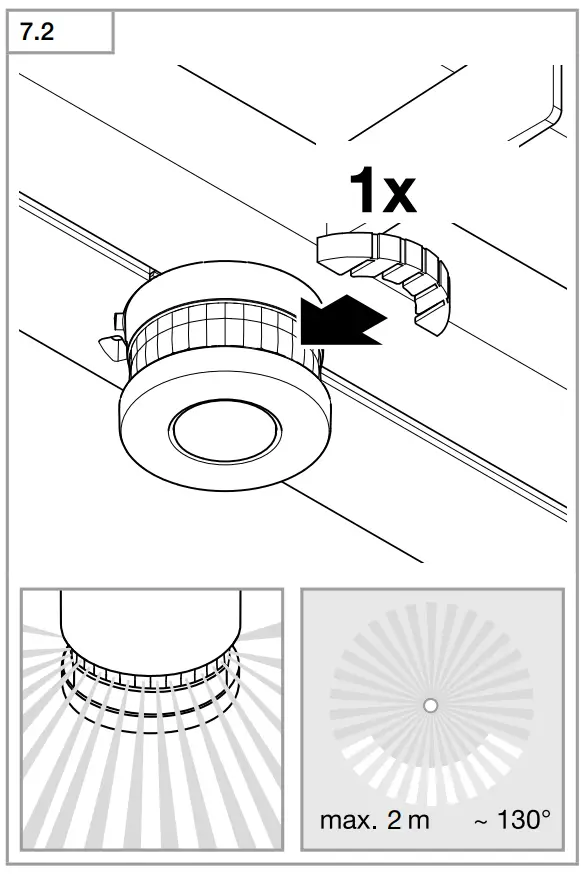

Adjusting the detection zone (Fig. 7.1-7.5)

The detection zone can be limited to suit requirements. The shrouds supplied with the unit can be used to mask out as many lens segments as you wish. This prevents the light from being activated unintentionally, e.g. by  cars, passersby etc., and allows you to target danger spots. The shrouds can be cut along the grooved vertical divisions. Then you simply clip them onto the lens.

The light can be operated without sensor. To do this, simply replace the sensor unit with the sealing plug. (Fig. 6.3)
The light can be switched ON and OFF at a mains switch in the mains supply lead.

Maintenance and care

The product requires no maintenance. The light can be cleaned with a damp cloth (without detergents) if dirty.

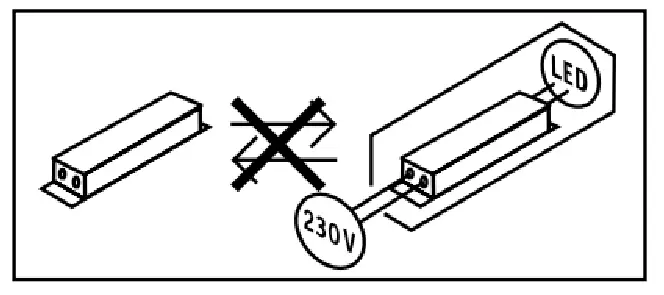

Important note: the control gear cannot be replaced.

Disposal

Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner.

Do not dispose of electrical and electronic equipment as domestic waste.

EU countries only:
Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.

Manufacturer’s Warranty

As purchaser, you are entitled to your statutory rights against the vendor. If these rights exist in your country, they are neither curtailed nor restricted by our Warranty Declaration. We guarantee that your STEINEL Professional sensor product will remain in  perfect condition and proper working order for a period of 5 years. We guarantee that this product is free from material-, manufacturing- and design flaws. In addition, we guarantee that all electronic components and cables function in the proper manner and that all materials used and their surfaces are without defects.

Making Claims
If you wish to make a claim, please send your product complete and carriage paid with the original receipt of purchase, which must show the date of purchase and product designation, either to your retailer or contact us at STEINEL (UK) Limited, 25 Mana sty Road, Axis Park, Orton Southgate, Peterborough, PE2 6UP, for a returns number. For this reason, we recommend that you keep your receipt of purchase in a safe place until the warranty period expires. STEINEL shall assume no liability for the costs or risks involved in returning a product.

For information on making claims under the terms of the warranty, please go to www.steinelprofessional. de/garantie

If you have a warranty claim or would like to ask any question regarding your product, you are welcome to call us at any time on our Service Hotline
01733 3667

Technical specifications

10 . Technical specifications
Dimensions (H x W x D)	L 690S: 303 x 291 x 104 mm L 691 S: 303 x 291 x 126 mm
Supply voltage	220 -240V, 50/60 Hz
Luminous flux	L 690S: 700Im L 691 S: 576Im
Power consumption(P..,)	8.50W
Efficiency	L 690 S 82 lm/W L 691 S 68 lm/W
Standby (sensor P.,)	0.41 W
Colour temperature	3,000 K (warm whittle)
Colour rendering index	R.=82
Average rated life expectancy	L70B50 at 25°C: 60,000 hours
Colour consistency SDCM	Starting value 3
Luminous intensity distribution
Maximum mounting height	2.50m
Sensor technology	Passive infrared
Angle of coverage	360° with 90° angle of aperture and sneak-by guard
Detection reach	7 m tangentially
lime setting	5 s – 15 min
Twilight setting	2-1,000 lux
Basic light level function	10%
Programmed setting	4 programmed geared to practical needs
Permanent light	selectable, 4 h
IP rating	IP44
Protection class	II
Impact resistance	IK07
Ambient temperature	-20 to +50°C
Energy efficiency class	This product contains an energy efficiency class ‘ D” light source.
