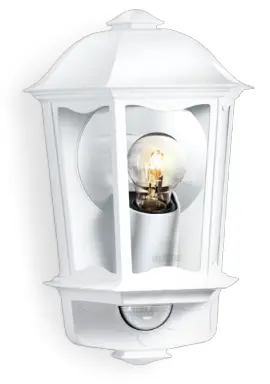

steinel L 190 S Sensor Outdoor Wall Lamp White
ICONS
Function description
Timelessly elegant in every detail. Classic outdoor SensorLight L 190 S, ideal for prestigious outdoor spaces, 180° angle of coverage, reach can be set up to 12 m or up to 5 m, durable, lavishly ornamented die-cast aluminium, basic light-level function and soft light start.
Technical specifications
| Dimensions (L x W x H) | 147 x 217 x 335 mm |
| Mains power supply | 230 – 240 V / 50 Hz |
| Sensor Technology | passive infrared |
| Output | 100 W |
| Power consumption | 0,8 W |
| Interconnection | No |
| Slave modeselectable | No |
| With lamp | No |
| Lamp | All-purpose lamp |
| Base | E27 |
| With motion detector | Yes |
| Detection angle | 180 ° |
| Angle of aperture | 90 ° |
| Capability of masking out individual segments | Yes |
| Electronic scalability | No |
| Mechanical scalability | No |
| Reach, radial | r = 5 m (39 m²) |
| Reach, tangential | r = 12 m (226 m²) |
| Continuous light | selectable, 4h |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 200 lx |
| Time setting | 5 s – 15 Min. |
| Basic light level function | Yes |
| Soft light start | Yes |
| Impact resistance | IK03 |
| IP-rating | IP44 |
| Protection class | II |
| Ambient temperature | -20 – 40 °C |
| Housing material | Aluminium |
| Cover material | Glass transparent |
| Manufacturer’s Warranty | 3 years |
| Settings via | Potentiometers |
| With remote control | No |
| Installation site | wall |
| Cover material | shrouds |
| Version | white |
| PU1, EAN | 4007841644512 |
Accessories
EAN 4007841 000813 Glass set for L 190 S
EAN 4007841 002190 Replacement base unit for L 170 / L 190 S

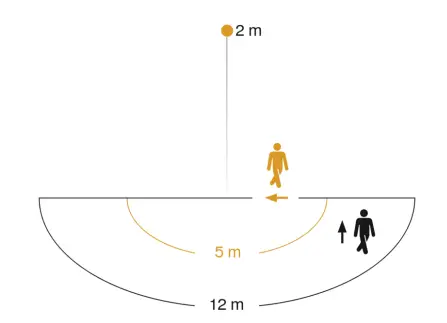

Detection Zone
M6gllche Montageh6he: 1,80 m – 4,00 m
orange: radial
Schwarz: tangential

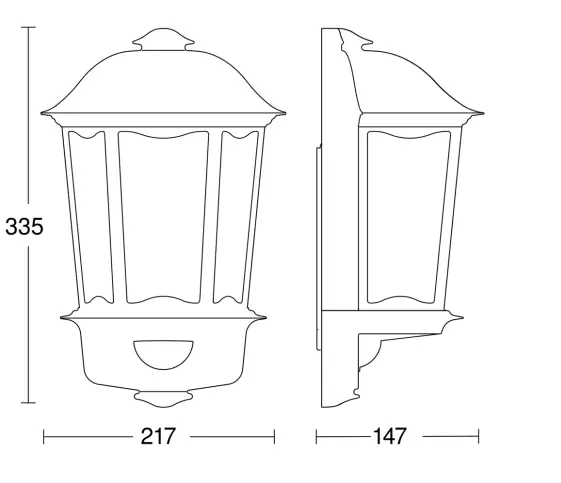

Dimension Drawing
Subject to technical modifications
https://www.steinel.de
03.2022 Page 2 from 2
