Qazqa 98792 Outdoor Wall Lamp With Motion Sensor Instruction Manual

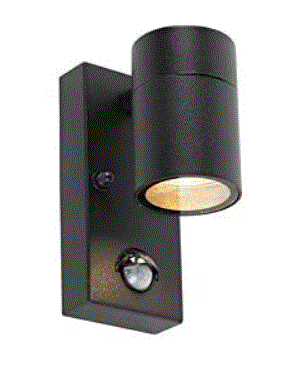

QAZQA 98792 Outdoor Wall Lamp with Motion Sensor

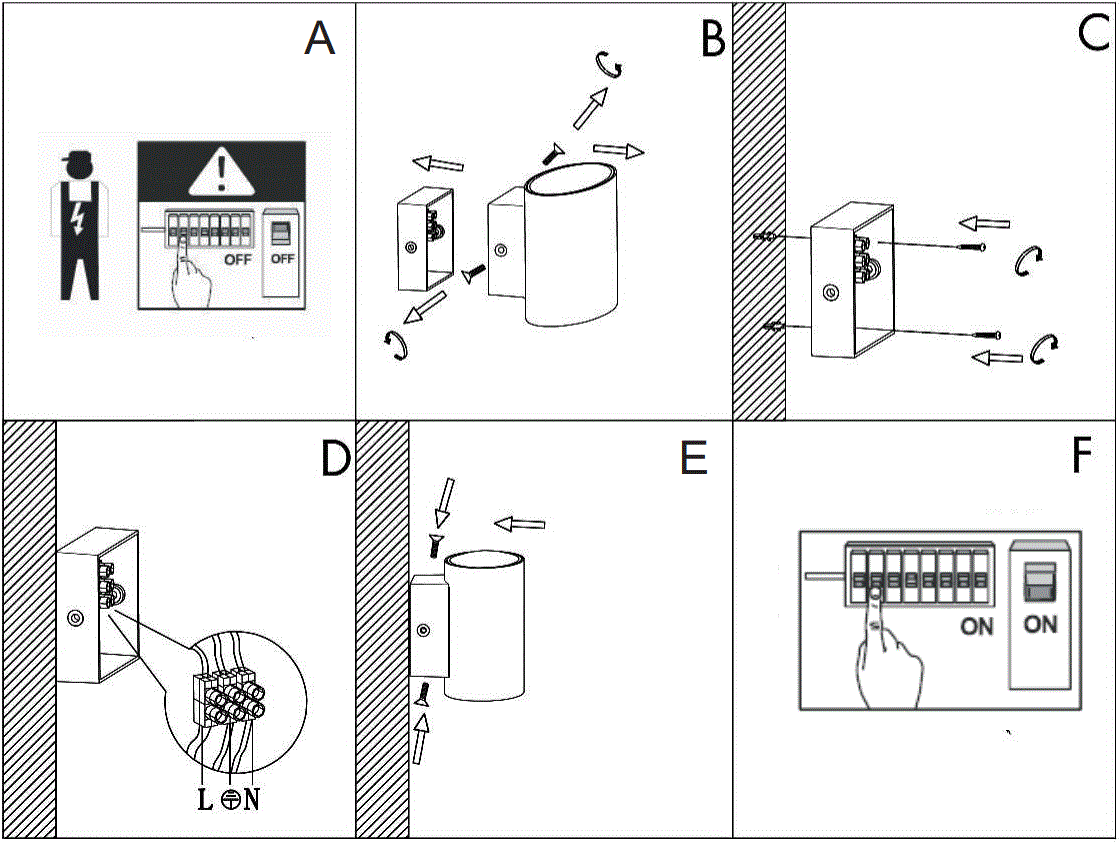

Installation

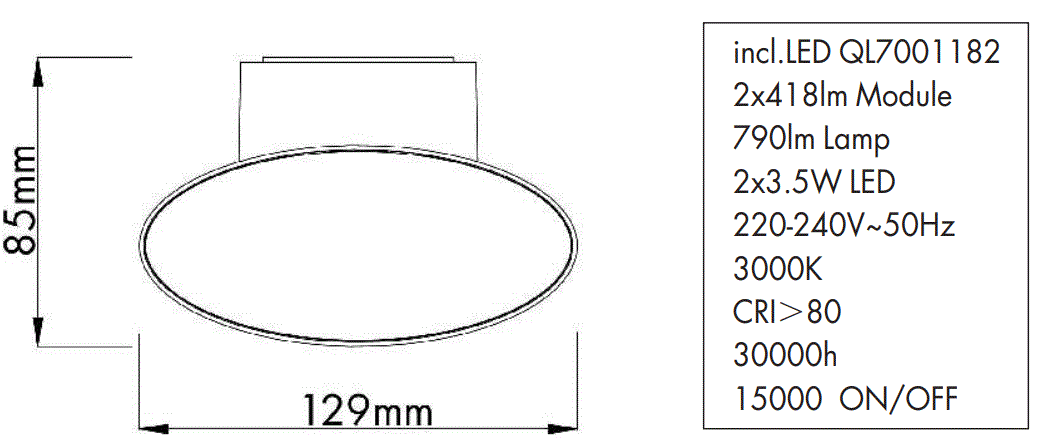

Dimension

This product contains a light source of energy efficiency class E

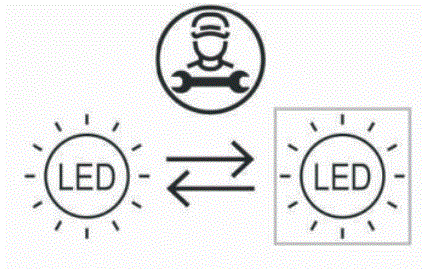

Replaceable (LED only) light source by a professional.

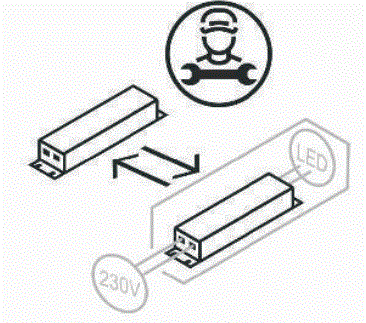

Replaceable control gear by a professional.

SAFETY INSTRUCTION

Please study the instruction manual and below information carefully before installing or using this product. Please keep this user manual for further reference

1. The luminaires may only be installed by authorized and qualified technicians according to the valid regulations for electrical installation.
2. Maintenance of the luminaires is limited to their surfaces. During maintenance, no moisture can come into contact with any areas of the terminal connections or voltage control parts.
3. The electrical supply must be switched off at the outset, preferably by means of a switch in the distribution box, before any installation, maintenance, or repair work is undertaken.
4. Exterior lighting must not be installed during rain.
5. Take account of the minimum separation distance from other objects and the room required around the fitting
6. tin any doubt, consult a professional, taking local installation requirements into account. Some countries stipulate that lighting may be installed only by registered installers.
7. Clamping screws in electrical connections must be adequately tightened. This is particularly the case with 12V low voltage
8. Clean with a clean, dry cloth or brush, use no solvents or abrasives. Avoid dampness on al electrical components
9. Take account of all available technical information.
10. Meaning of symbols:
    For indoor use only, where direct contact with water is impossible
    This icon indicates the level of water-proof and dust-proof
    Protection Class I: the fitting must be earthed
    Protection Class l: the fitting is doubled insulated and does not require earthing
    Protection Class ll: the fitting is low voltage
    Minimum distance from lighted objects (meters)
    The type of lamp and maximum size and wattage indicated in each lighting unit must not be exceeded; different items require different kinds of light sources with different bulb icons
    The armature is designed to work only with the indicated voltage. Different items require different working voltages.
    The luminaire can be used in combination with a dimmer
    The reference light angle and light space of the luminaire
    This luminaire cannot be disposed of together with normal domestic waste in standard rubbish can, but you have to bring it to a staging area for electrical waste

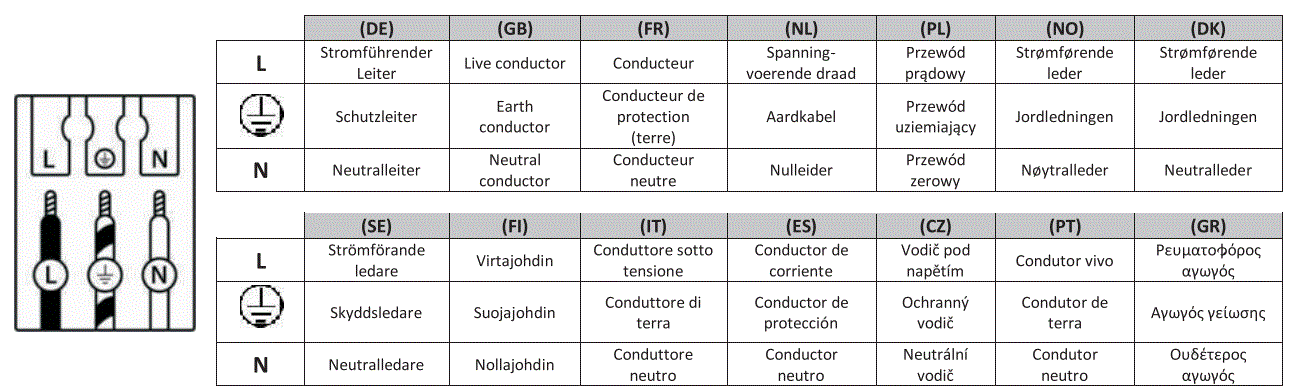

11. Take note of the symbols when connecting wires:
