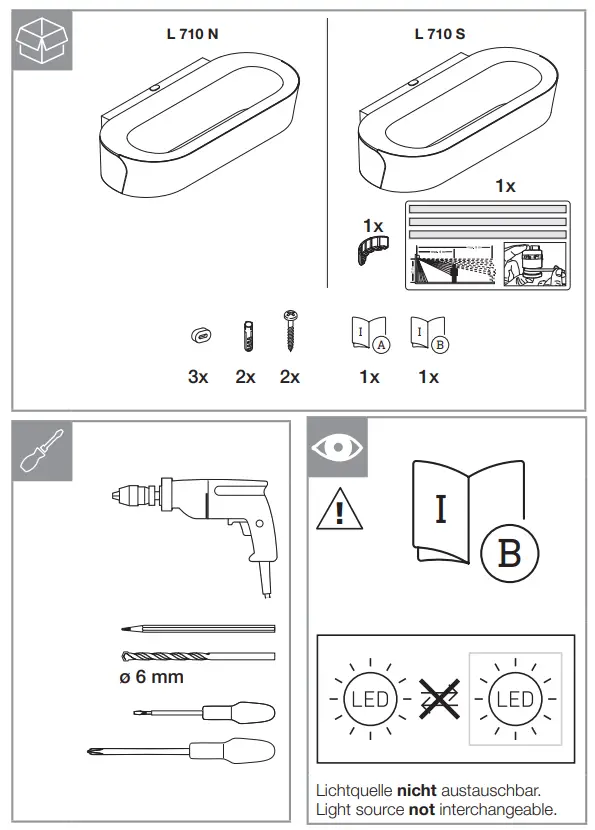

Quick Start
L 710 S
L 710 N
L 710 N Outdoor Lights
 |  |
 |  |
Technical Data
– Dimensions (W × D × H):
L 710 N: 260 × 140 × 63 mm
L 710 S: 260 × 140 × 77 mm
– Supply voltage: 220 – 240 V, 50/60 Hz
– Power consumption (Pon):8.3 W
– Standby Sensor (Psb): 0.47 W
– Luminous flux: 729 lm
– Efficiency: 88 lm/W
– Basic light: L 710 S: 10%
– Rated average lifetime: > 60,000 h (L70B50 at 25 °C)
– Colour temperature: 3,000 K (warm white)
– Colour rendering index: Ra = 82
– Sensor technology: L 710 S: Passiv-Infrarot
L 710 N: Light sensor/Automatic twilight control
– Detection zone: L 710 S: 360°
– Reach: L 710 S: Max. 8 m tangential
– Time setting: L 710 S: 5 s – 15 min
– Twilight setting: 2-2,000 lux
– IP rating: IP 44
– Protection class: II
– Ambient temperature: -20 to +40°C
– Illuminant: LED
– Colour consistency SDCM: Initial value: 3
– Luminous intensity distribution:
This product contains a light source of energy efficiency class „E“.
Technical documentation at www.steinel.de/eprel
Service
Service
Komplette Anleitung Complete user manual steinel.de/110081303.pdf
+49 5245-448-188
@ [email protected]
Find your local service
at steinel.de/contact
STEINEL Vertrieb GmbH
Dieselstraße 80 – 84, 33442
Herzebrock-Clarholz, Germany
www.steinel.de
110086929 04/2022_A
T echnische Änderungen vorbehalten.
Subject to technical modification without notice.
