Alca Plast Apz107 650mm Simple Linear Drain Plastic Instruction Manual

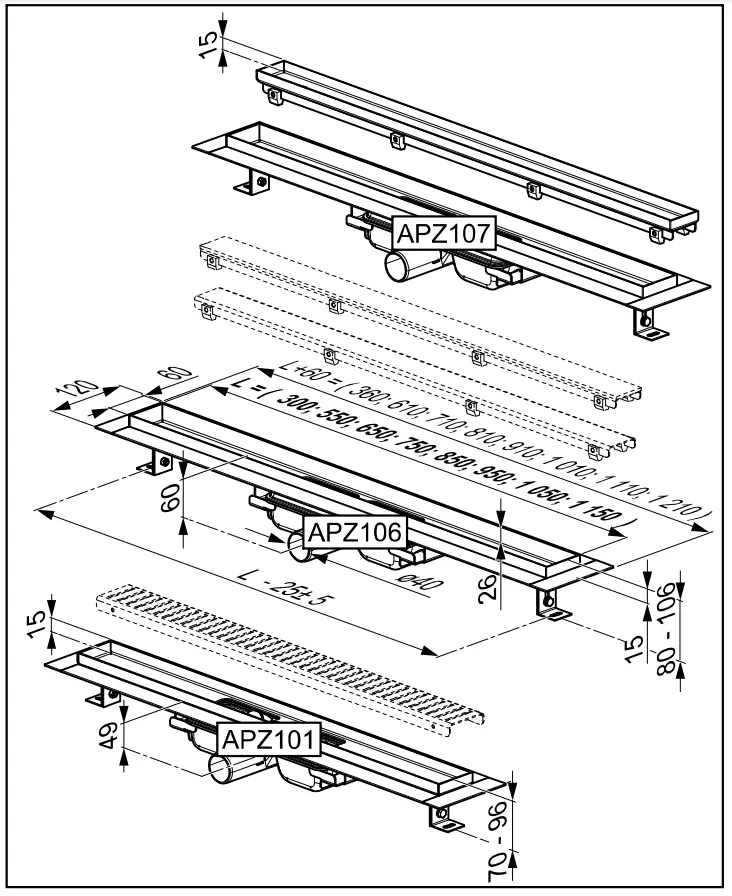

APZ101
APZ106
APZ107

APZ107 650mm SIMPLE Linear Drain Plastic

Linear shower drain

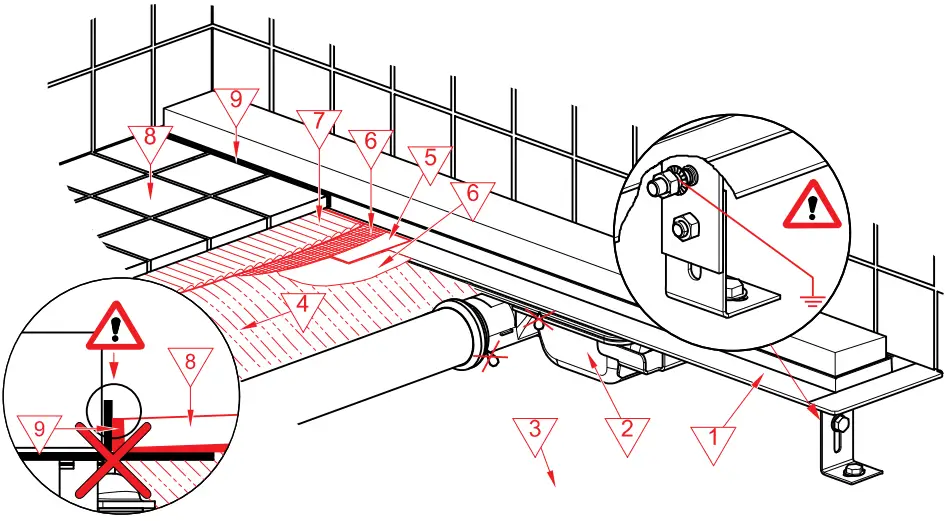

1. Dreins
2. Siphons
3.  Flooring Concrete

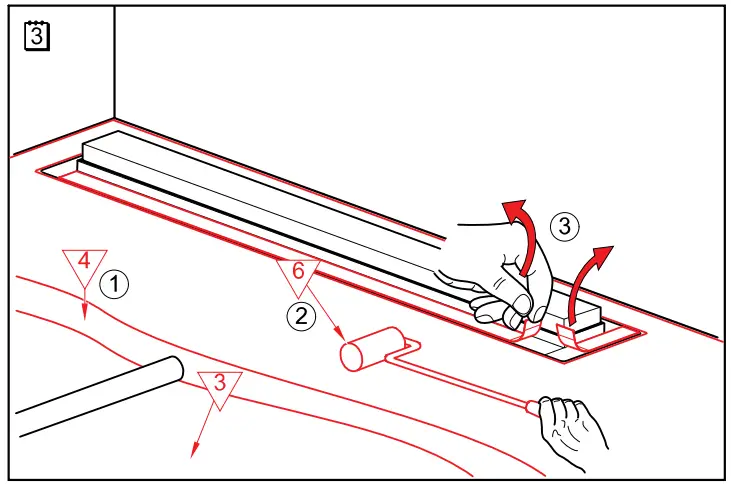

4. Top Concrete

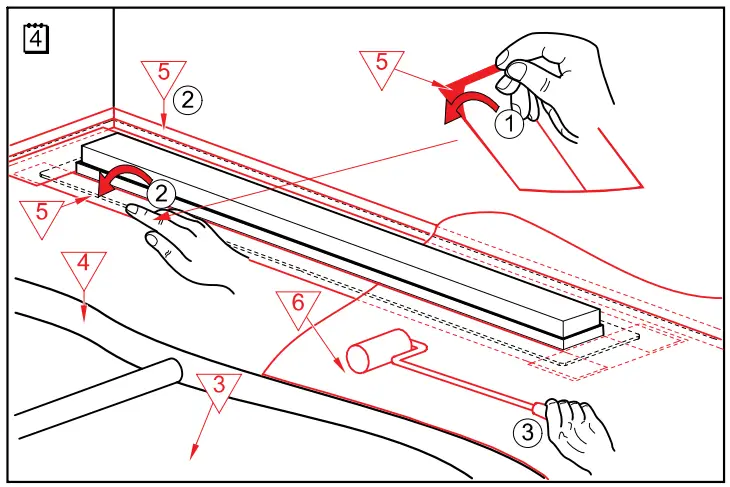

5. Hydro isolation wrapper/band/
6. Hydroisolation substance
7.  Glue
8.  Paving

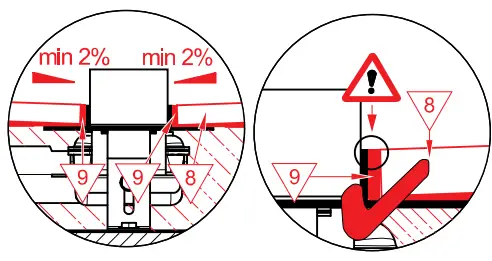

9. Flexible filler

Before concreting it’s necessary to carry out test tightness!

Dreins must be line up on earth connection! Producer:

Alca plast, s. r. o. , Bratislayska 2846 , 690 02 Breclav , Oeska republika
Tel.: +420 519 326 499, +420 519 323 456 — prodej OR
Tel.: +420 519 361 641 — export , Fax: +420 519 330 621
e-mail: [email protected] , www.alcaplast.cz
