Vieser 3317307 One Horizontal Drain Instruction Manual

Vieser 3317307 One Horizontal Drain Instruction Manual

Contents hide
1 vieser 3317307 One Horizontal Drain
2 Opening the side inlet
3 Concrete floor
4 Applying an extension ring
5 Vinyl floor/waterproofing
6 Visser membranes
7 Documents / Resources
7.1 References
8 Related Posts

vieser logo

vieser 3317307 One Horizontal Drain

vieser 3317307 One Horizontal Drain Instruction product

Vieser One floor drain DN50 1×32 extra low installation instructions

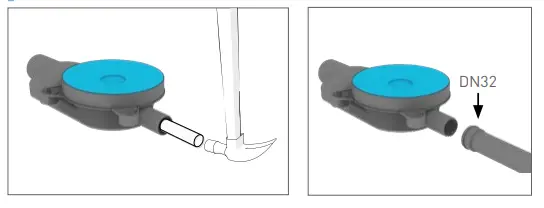

Opening the side inletvieser 3317307 One Horizontal Drain Instruction fig 1

Concrete floorvieser 3317307 One Horizontal Drain Instruction fig 2

  • Adjust the height of the floor drain´s legs. Install the upper surface of the nut to match the height of the concrete surface.

Applying an extension ringvieser 3317307 One Horizontal Drain Instruction fig 3

  • Press down the white supporting ring right to the bottom.

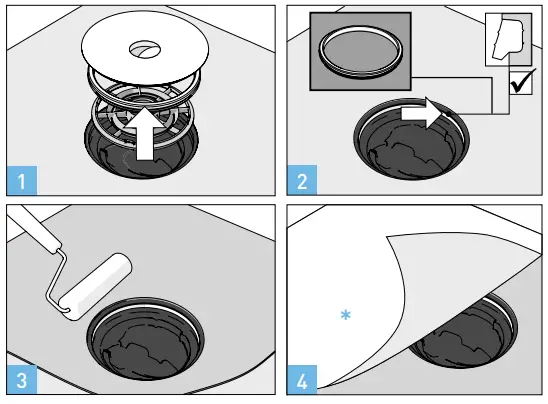

Vinyl floor/waterproofingvieser 3317307 One Horizontal Drain Instruction fig 4

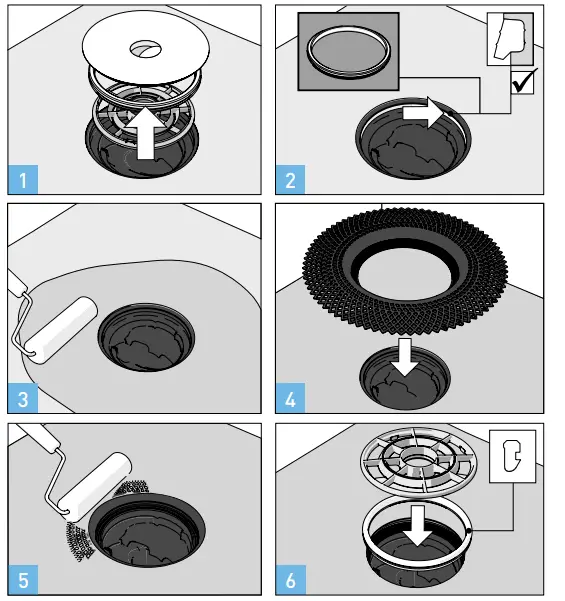

Visser membranes vieser 3317307 One Horizontal Drain Instruction fig 5

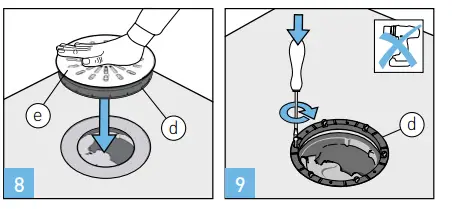

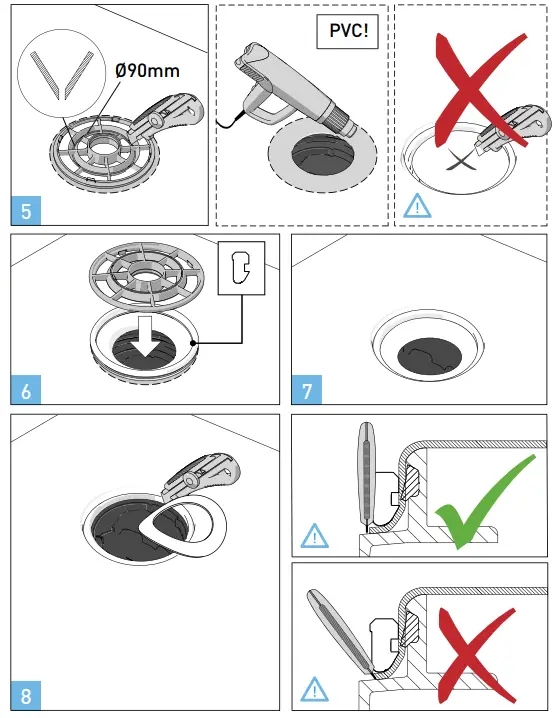

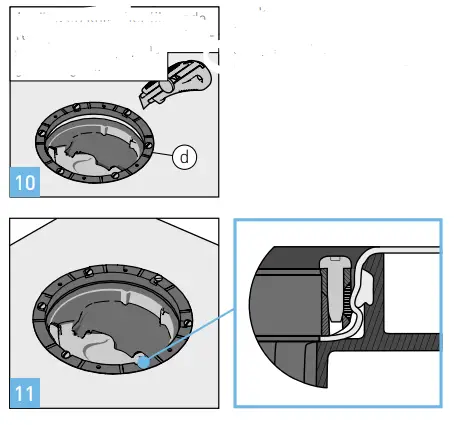

Follow the instructions of the waterproofing manufacturer vieser 3317307 One Horizontal Drain Instruction fig 6vieser 3317307 One Horizontal Drain Instruction fig 7vieser 3317307 One Horizontal Drain Instruction fig 8
