Oase logo

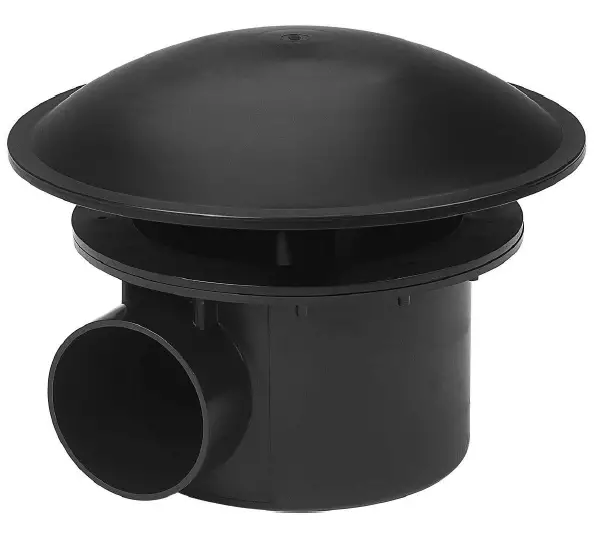

Oase BD 100 Floor Drain

Oase BD 100 Floor Drain

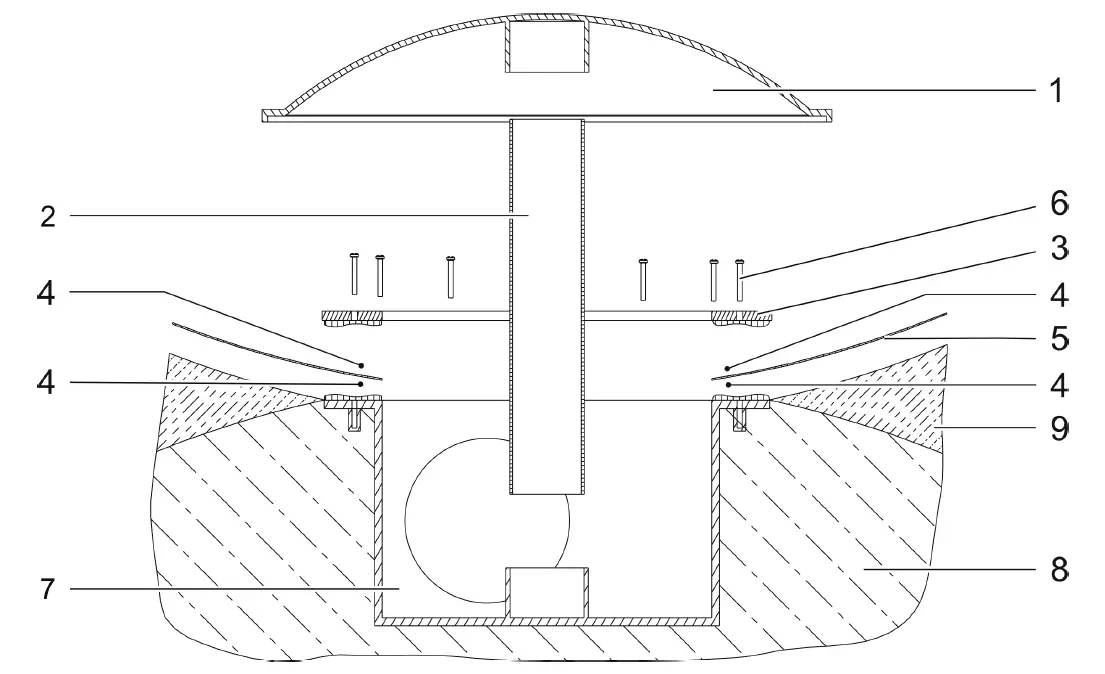

Operating instructions

Oase BD 100 Floor Drain 1

  1. Hood
  2. Spacker
  3. Flange ring
  4. Silicone antitoxic
  5. Pond foil
  6. Screws
  7. Drain unit
  8. Concrete
  9. Sand

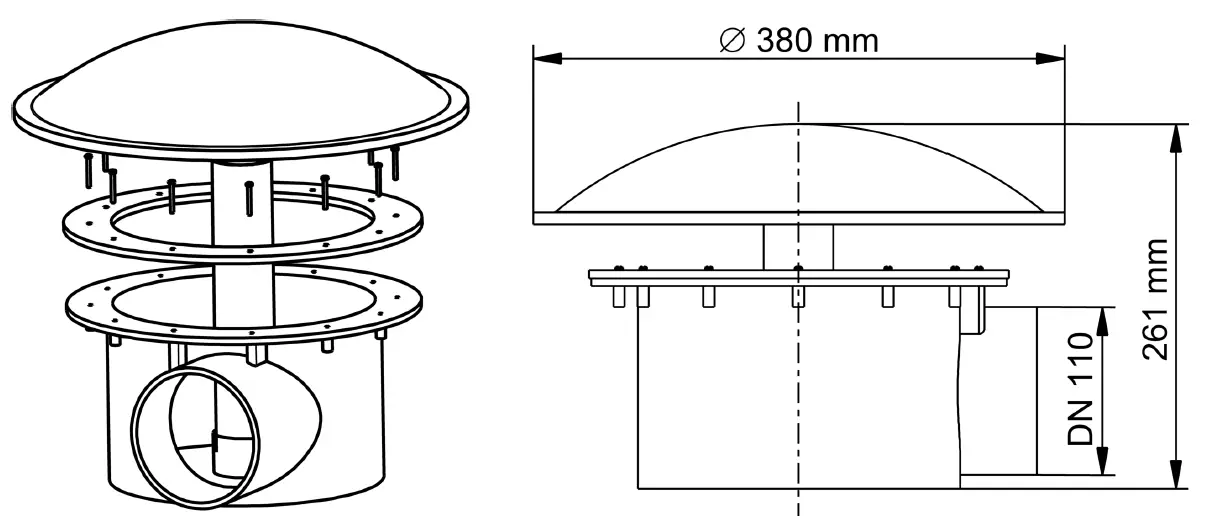

Dimensions

Oase BD 100 Floor Drain 2

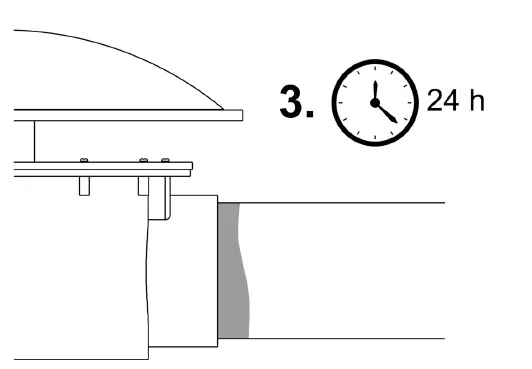

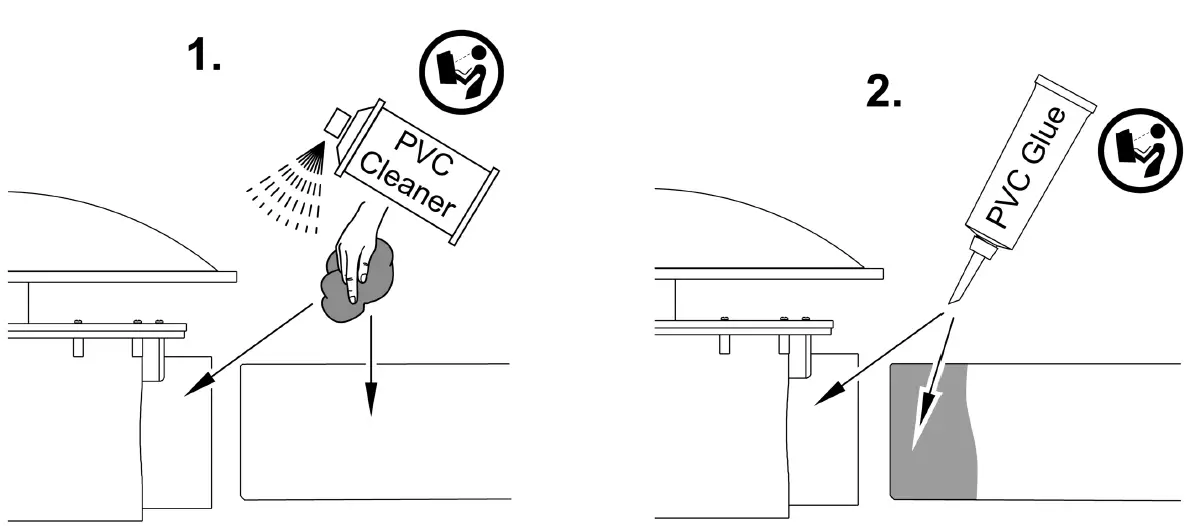

Procedure

Oase BD 100 Floor Drain 3

Oase BD 100 Floor Drain 4OASE GmbH
Tecklenburger Straße 161
48477 Hörstel | Germany
+49 (0) 5454 80-0
+49 (0) 5454 80-9353
[email protected]

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
